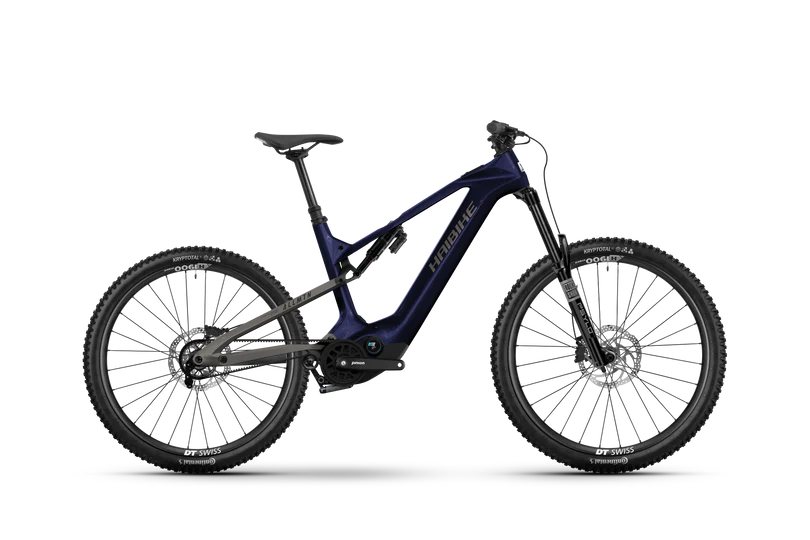

The Haibike ALLMTN CF 10 TRN/IQ is a premium full-suspension electric mountain bike built for riders who demand exceptional performance on technical trails, steep climbs, and demanding descents. Featuring a lightweight carbon frame and the revolutionary Pinion Motor.Gearbox.Unit (MGU), this advanced eMTB integrates the motor and gearbox into a single compact system for smoother power delivery, improved reliability, and reduced maintenance. The intelligent Smart Shift Auto-Shift technology automatically selects the ideal gear, allowing you to focus entirely on the trail.
With 160 mm of front and rear suspension travel, the ALLMTN CF 10 TRN/IQ delivers outstanding comfort and control across rough terrain. The powerful 800 Wh integrated battery provides excellent range for long mountain adventures, while premium RockShox suspension, TRP hydraulic disc brakes, and DT Swiss wheels ensure confidence on every climb and descent. Designed for riders who want cutting-edge technology and uncompromising trail performance, the ALLMTN CF 10 TRN/IQ is ready for every adventure.
Key Features
- Lightweight HIGH carbon full-suspension frame
- Pinion E1.12 Motor.Gearbox.Unit (MGU)
- Integrated 12-speed gearbox
- Smart Shift Auto-Shift technology
- 85 Nm motor torque
- 800 Wh integrated removable battery
- RockShox Psylo Gold RC 160 mm suspension fork
- RockShox Super Deluxe Select RT rear shock
- TRP Slate EVO four-piston hydraulic disc brakes
- Gates Carbon Drive CDX belt drive
- DT Swiss H1900 Spline wheelset
- Maximum system weight: 135 kg
Bike Geometry
- Frame Sizes: S, M, L, XL
- Frame Type: High
- Front Wheel Size: 29"
- Rear Wheel Size: 27.5"
- Wheel Configuration: Mullet
- Maximum System Weight: 135 kg
Brake System
- Brake Front Description: TRP Slate EVO HD-M807 Hydraulic Disc Brake
- Brake Rear Description: TRP Slate EVO HD-M807 Hydraulic Disc Brake
- Brake Type: 4-Piston Hydraulic Disc
- Brake Mount: Post Mount
- Brake Rotor Size: Front: 203 mm / Rear: 203 mm
- Third Brake: No
Drivetrain
- Gear System: Pinion Motor.Gearbox.Unit
- Number Of Gears: 12
- Shifter Right: Pinion Smart Shift TE1 E-Trigger
- Drive Belt: Gates Carbon Drive CDX Belt
- Front Sprocket: Gates CDX
- Rear Sprocket: Gates CDX
- Gear Description: Pinion Electronic 12-Speed Gearbox
E-Bike Components
- Motor Description: Pinion E1.12 Motor.Gearbox.Unit
- Motor Power: 600 W
- Motor Torque: 85 Nm
- Motor Location: Mid Drive
- Battery Description: Pinion InTube Battery
- Battery Capacity: 800 Wh
- Battery Location: Integrated Downtube
- Battery Removable: Yes
- Display Description: FIT Master Node Display with Remote Pure
- Charger Description: FIT Standard Charger 48V
- Maximum Assisted Speed: 25 km/h
Suspension
- Front Fork Description: RockShox Psylo Gold RC
- Fork Travel: 160 mm
- Rear Shock Description: RockShox Super Deluxe Select RT
- Rear Travel: 160 mm
Frame and More
- Frame Description: HIGH Carbon Full Suspension Frame
- Frame Material: Carbon
- Frame Shape: High
- Internal Cable Routing: Yes
- Maximum Load: 135 kg
Handlebar and Saddle
- Handlebar Description: Haibike TheBar++
- Handlebar Material: Aluminium
- Handlebar Width: 780 mm
- Grips: XLC MTB Grip Set
- Saddle Description: Selle Royal Vivo
- Seatpost Description: Limotec A4H Dropper Post
- Seatpost Diameter: 34.9 mm
- Dropper Travel: 150 mm
- Pedals: VP Components Alloy Platform Pedals
Wheels and Wheel Components
- Front Wheel Description: DT Swiss H1900 Spline
- Rear Wheel Description: DT Swiss H1900 Spline
- Front Wheel Size: 29"
- Rear Wheel Size: 27.5"
- Wheel Configuration: Mullet
- Tyre Front: Continental Kryptotal Front Enduro Soft
- Tyre Rear: Continental Kryptotal Rear Enduro Soft
- Tyre Type: Tubeless Ready
