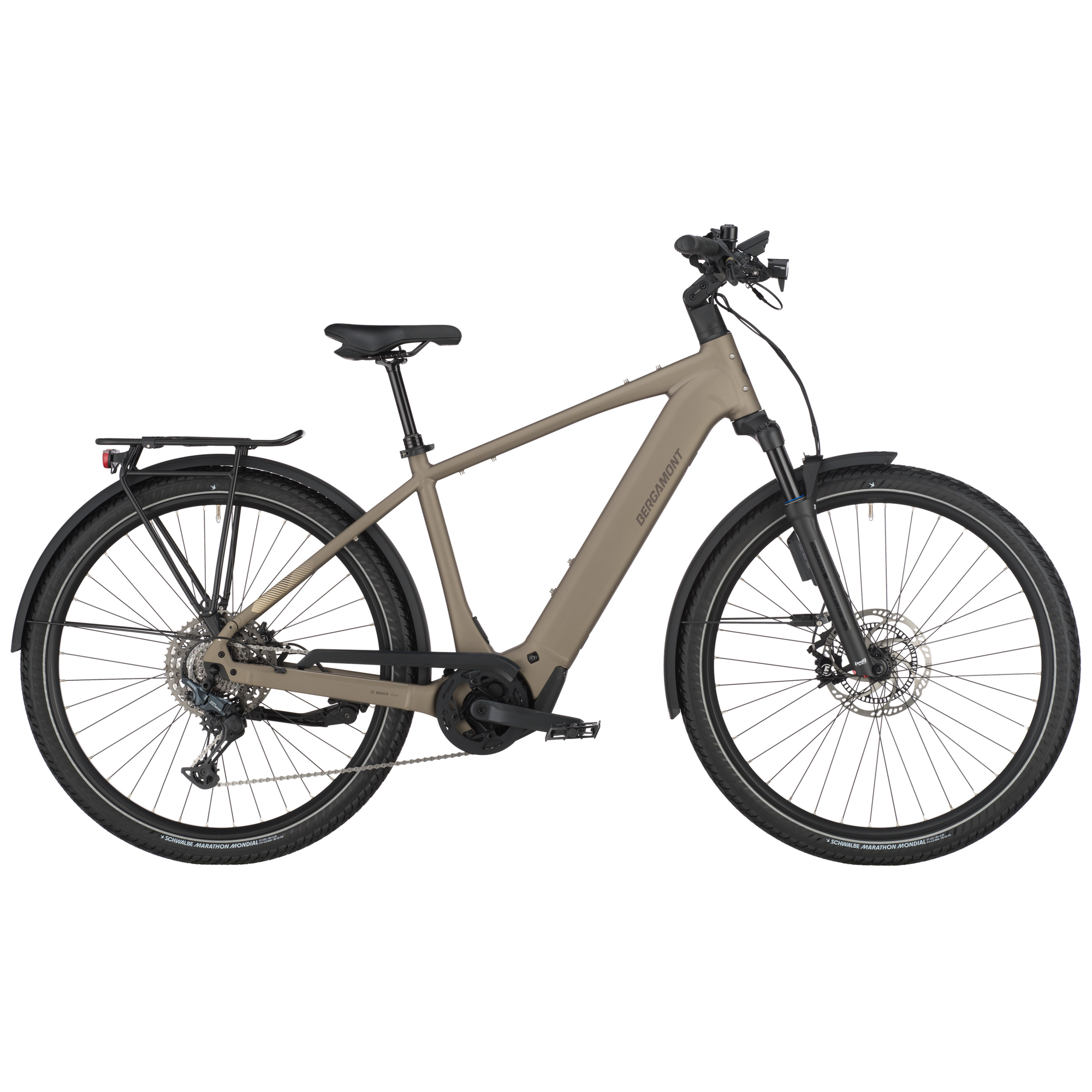

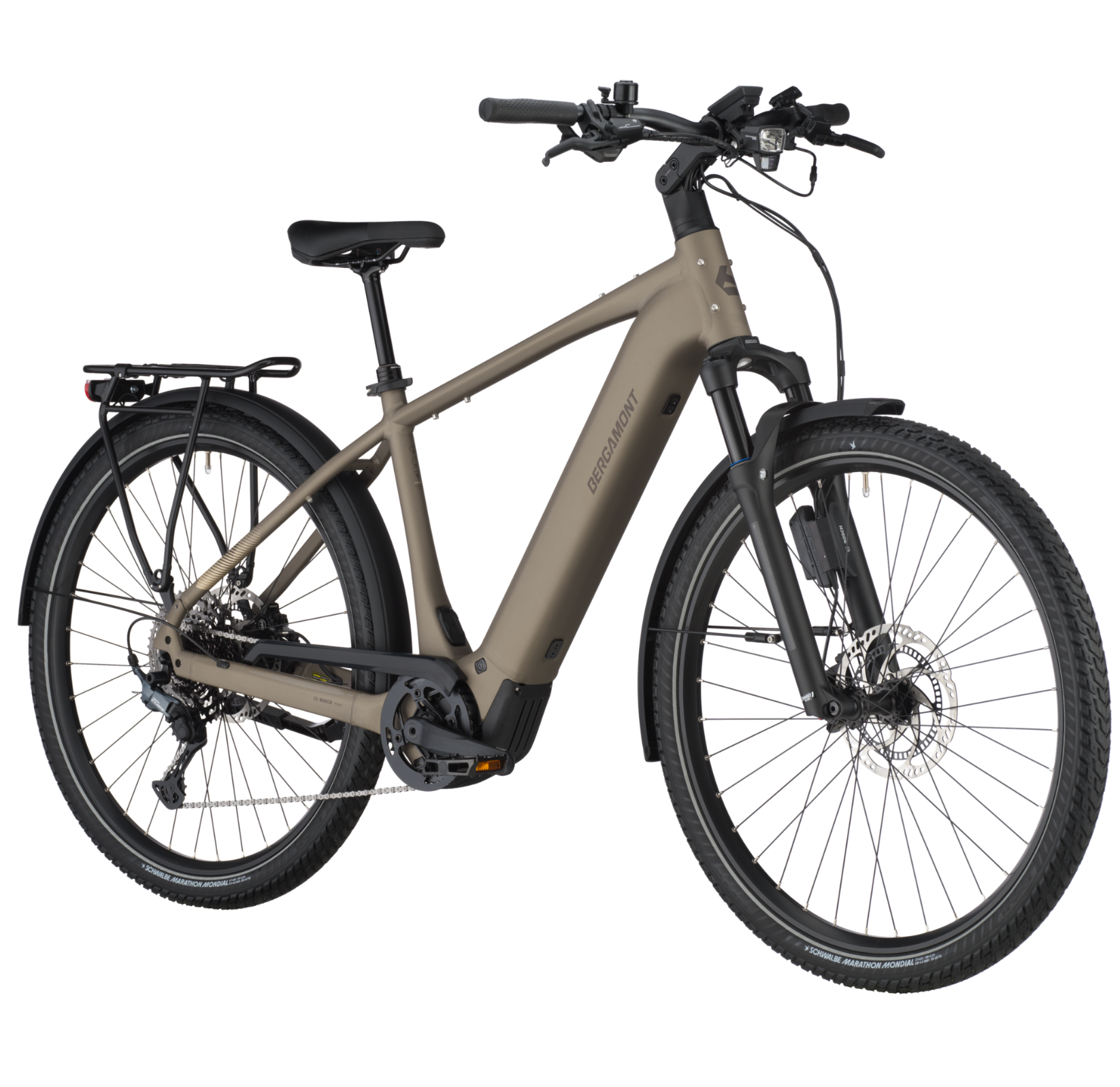

The E-Horizon SUV is a fully equipped e-trekking bike with perfectly integrated components. It includes features such as LED lights with a rear brake light function that increase rider safety in urban environments. The rear carrier is approved for 27 kg and child transportation in combination with a Thule Yepp 2 Maxi seat. The wide off-road tires add grip on lose surfaces and ensure a comfortable ride even on unpaved roads. For safer stopping this model comes equipped with an anti lock braking system.
The Bosch Performance Line CX electric drive system offers powerful and long-lasting support, giving you the freedom to explore beyond your usual routes.
The high-capacity Bosch PowerTube battery integrated into the frame can be removed for remote charging, while the battery cover remains on the bike to protect the empty battery bay from the elements. With the Bosch Smart System advanced connectivity features and upgrades are available: Use the eBike Flow App to control your bike or add optional extras like a Bosch PowerMore battery for increased range.
-
Frame28", super lite AL-6061 tubing, PowerTube battery
ForkSuntour Mobie 34 DS RLR, air, ABS, 100 mm, 15x110 mm axle
Drive UnitBosch Smart System, Performance Line CX (BDU384Y), 250 W, 36 V, max. 25 km/h
BatteryBosch PowerTube, 36 V Li Ion, 800 Wh
DisplayBosch Kiox 300 with LED Remote
ChargerBosch Standard Charger, 4A
Rear DerailleurShimano Cues, RD-U8000, Shadow Plus
ShiftersShimano Cues, SL-U8000, 1x11-speed, rapidfire plus-shifter
CranksetFSA CK-745, 170 mm, 38t
BB-SetBosch, Isis
ChainShimano Linkglide, CN-LG500
CassetteShimano Cues, CS-LG700-11, 11-50t
Brake LeversMagura MT-C, hydraulic disc brake
BrakesFront: Magura MT-C, hydraulic disc brake, 4-piston, ABSRear: Magura MT-C, hydraulic disc brake
RotorMagura MDR-C CL, 203 mm
GripsSyncros Urban, Ergo, double density, lock-on
HandlebarSyncros 3.0, riserbar, backsweep: 15°, rise: 12 mm
H'stemSatori Python, adjustable
SeatpostSyncros Duncan, dropper post
SeatSyncros Capilano Trekking
HeadsetAcros, A-Headset, semi-integrated, tapered, with integrated cable routing
Front HubShimano HB-TC500-B, centerlock, disc, 15x110 mm axle
Rear HubShimano FH-QC400, centerlock, disc, quick release
Spokesstainless, black
RimsCross X18, disc, eyelets, width: 30 mm
Front TireSchwalbe Marathon Mondial, Performance, RaceGuard, reflective stripe, 57-622Tube: Schwalbe AV19B Light
Rear TireSchwalbe Marathon Mondial, Performance, RaceGuard, reflective stripe, 57-622Tube: Schwalbe AV19B Light
LightsFront: 100 Lux, LEDRear: Axa Juno, LED, with brake light function
RackRacktime / BGM Trekking Pro, Snapit 2.0 System
FenderCurana Orbit, with stainless stays
PedalsTrekking alloy, platform
AccessoriesKickstand: Syncros U-mount
Approx weight in KG28,2
Chain coverIntegrated in motor cover
Max. System Weight160,0 kgThe overall weight includes the bike, the rider, the equipment and possible additional luggage.
