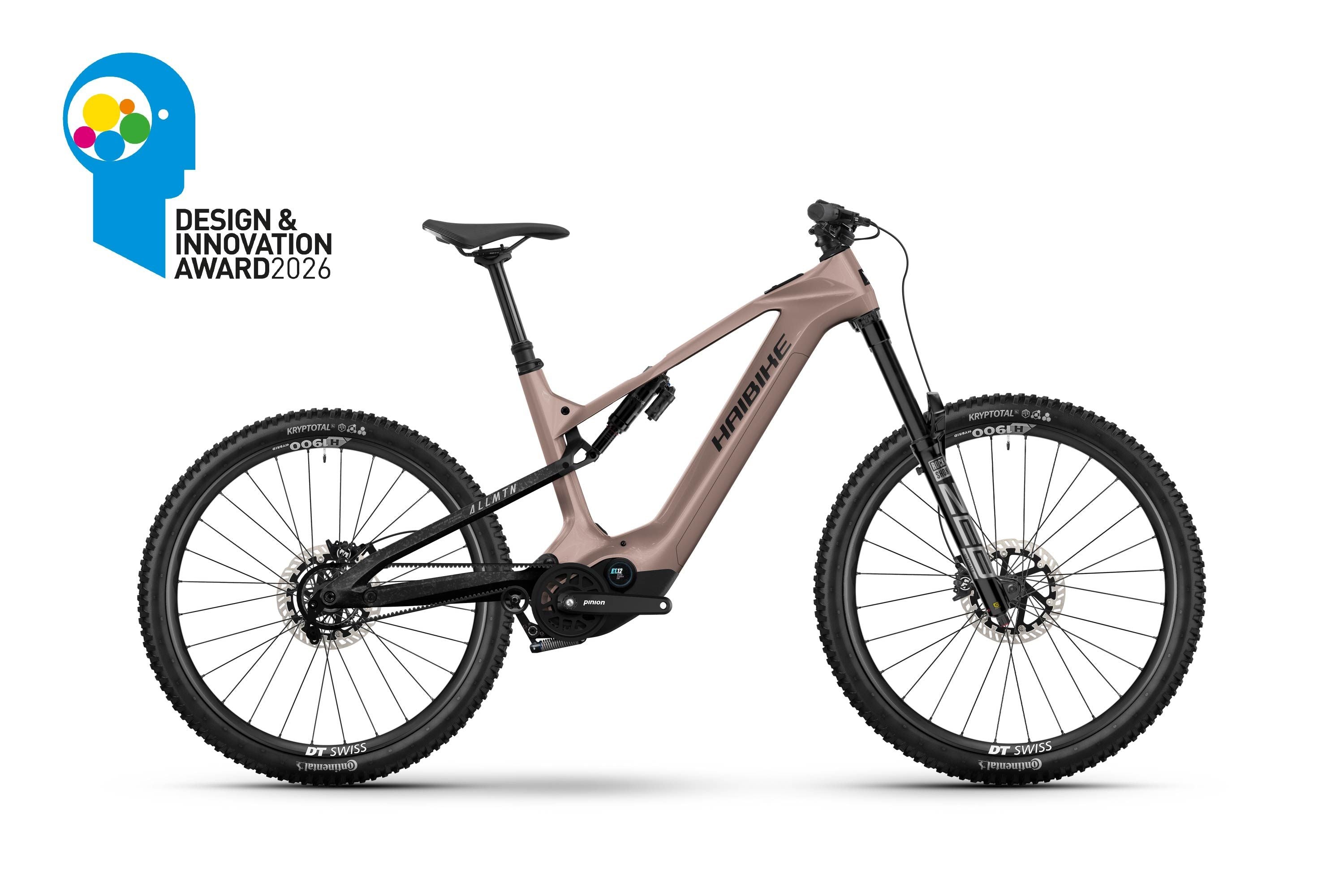

Reach the highest peaks with ultimate riding fun. Our new ALLMTN CF 11 TRN/IQ delivers just that – and even more. This full-suspension eMTB embodies “Next Level Riding” like no other eMountain bike in our range. One key feature is the fully integrated Pinion Motor.Gearbox.Unit (MGU) – an advanced drive technology that combines motor and gearbox in one housing. Supported by the mullet setup, shorter chain stays and improved kinematics with 160mm of travel front and rear, you’ll enjoy an entirely new, intuitive riding experience. And with the 800Wh battery, even the longest Alpine climbs become a breeze, while the high-quality Magura disc brakes bring you safely back down to the valley. Climbing to the highest peaks has never been this fun!
Bike Geometry
- Bottom bracket drop [mm]: 10 mm
- Chain stay length [mm]: 440 mm
- Fork offset [mm]: 576 mm
- Fork total length [mm]: 44 mm
- Head tube angle: 64 degrees
-
Head tube length [mm]:
- · 120 mm
- · 110 mm
- · 100 mm
- · 130 mm
-
Reach [mm]:
- · 485 mm
- · 455 mm
- · 425 mm
- · 515 mm
-
Stack [mm]:
- · 635 mm
- · 626 mm
- · 617 mm
- · 644 mm
- Stand over height [mm]: 760 mm
-
Seat tube angle:
- · 72.6 degrees
- · 72.5 degrees
- · 72.7 degrees
-
Seat tube length [mm]:
- · 440 mm
- · 420 mm
- · 400 mm
- · 490 mm
-
Top tube length [mm]:
- · 624 mm
- · 592 mm
- · 560 mm
- · 656 mm
-
Wheelbase [mm]:
- · 1271 mm
- · 1237 mm
- · 1203 mm
- · 1306 mm
Brake system
- Brake Front Description: Magura, Hydraulic Disc brake, MT5, 4 pistons, 203 mm
- Brake Front Mount: Post Mount
- Brake Rear Description: Magura, Hydraulic Disc brake, MT5, 4 pistons, 203 mm
- Brake Rear Mount: Post Mount
- Brake Lever Description: Magura, MT5 HC-Lever
- Brake Rotor Description: Magura, MDR-P 203 mm, Centerlock
Drivetrain
- Cassette Description: Gates, Carbon Drive CDX Sprocket, 9 Spline
- Cassette Teeth: 32T

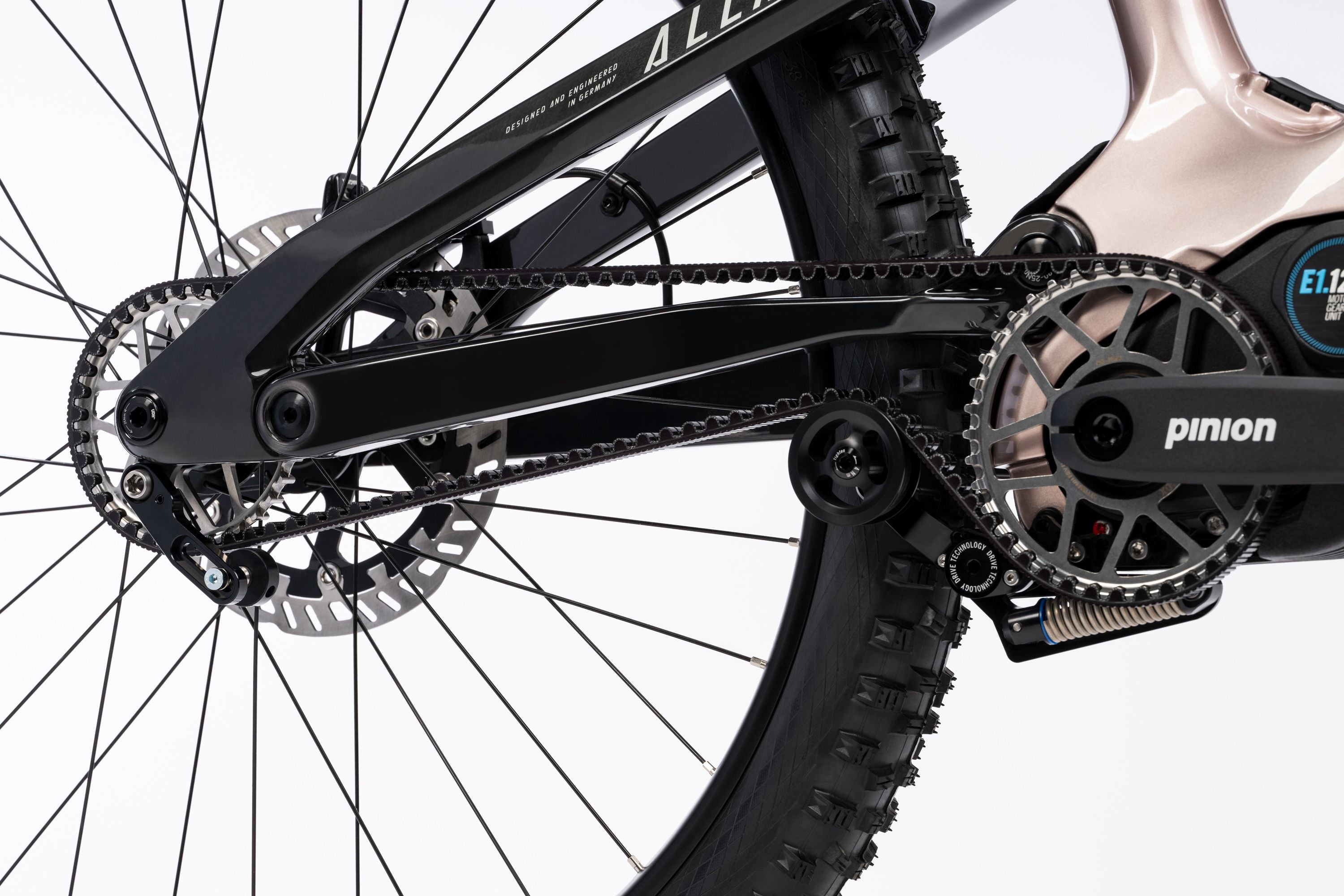

- Chain Description: Gates, Belt, Carbon Drive Belt CDX, 120T
- Crank Arm length: 165
- Crankset Description: Pinion, Forge Crankset + GATES CDX front sprocket w/ Guard
- Crankset Teeth: 39T
- Crankset Type: single
- Gear Description: Pinion, Gearbox
- Number Of Gears: 12
- Pedal Description: VP, VPE-527 Alloy w/ Reflector
- Pedal Inclusive: Yes
- Shifter Right Description: Pinion, Triggershift, Smart Shift TE1 E-Trigger
E-bike components
- Battery Description: Pinion, InTube 800Wh
- Battery Capacity: 800 Wh
- Battery Location: Powertube
- Charger Description: Pinion, FIT Standard Charger 48V
- Display Description: Pinion, FIT Master Node Display + Remote Pure
- Max Support Speed [km/h]: 25 km/h

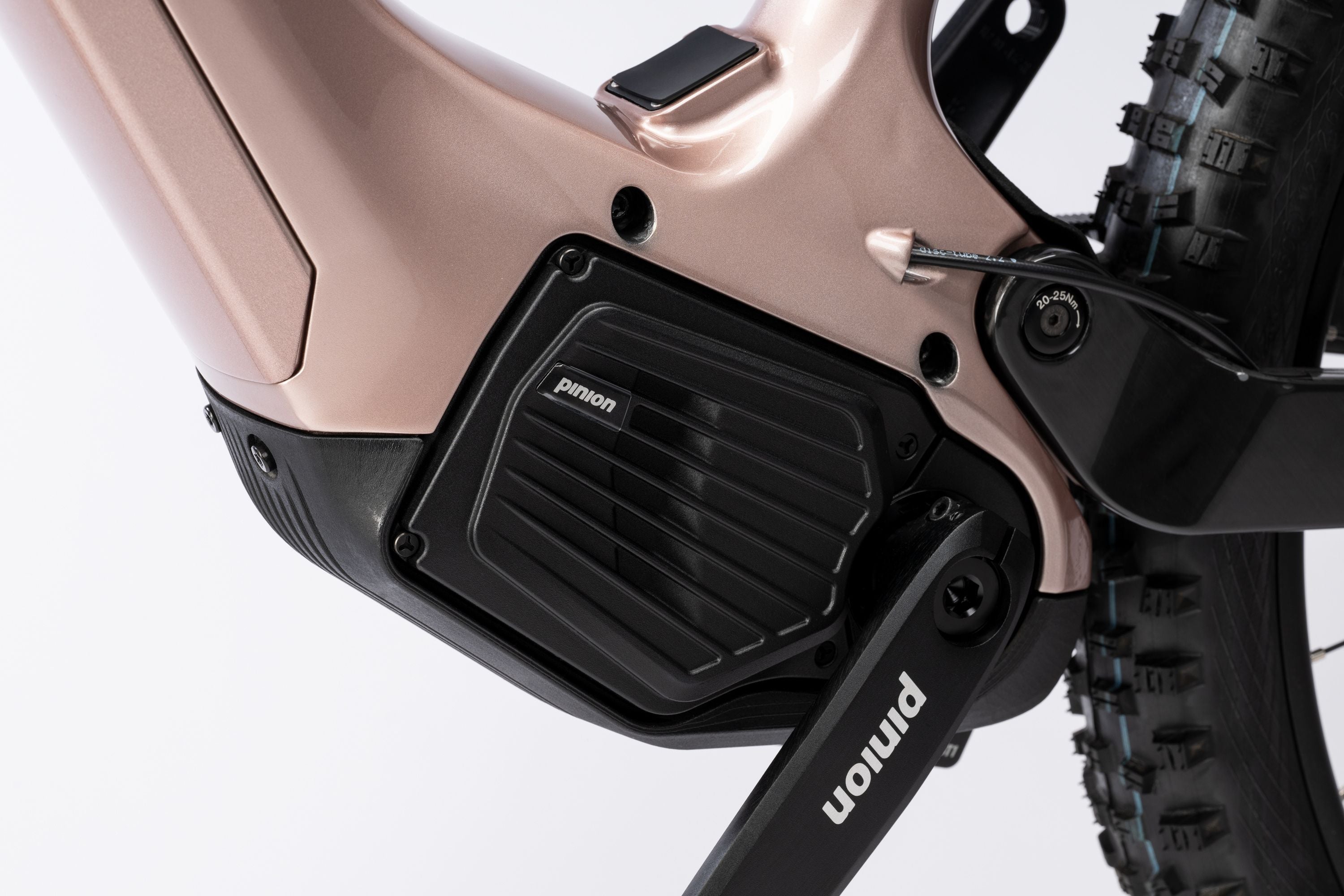

- Motor Description: Pinion, E1.12 Motor Gearbox Unit, E1.12 Motor Gearbox Unit
- Motor Torque [nm]: 85 Nm
- Motor Location: Center
Frame and more
-
Framesize:
- · 44 cm
- · 42 cm
- · 40 cm
- · 49 cm
-
Framesize Convection:
- · L
- · M
- · S
- · XL
- Max loadable weight (KG): 135 kg

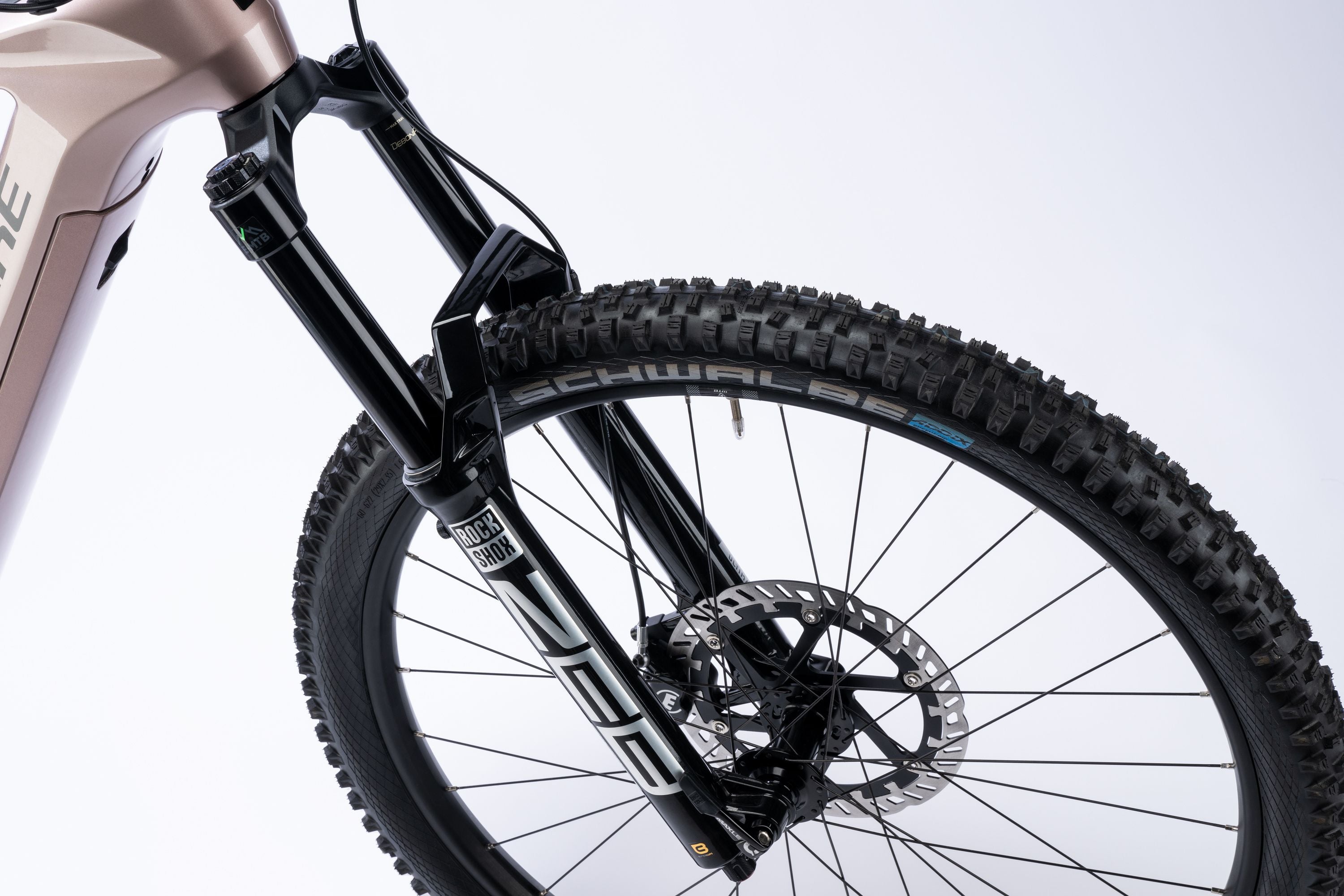

- Front Fork Description: Rockshox, ZEB Ultimate Charger 3.1 RC2, DebonAir 160 mm
- Front Fork Type: Suspension
- Frame Description: High, Carbon, Uni

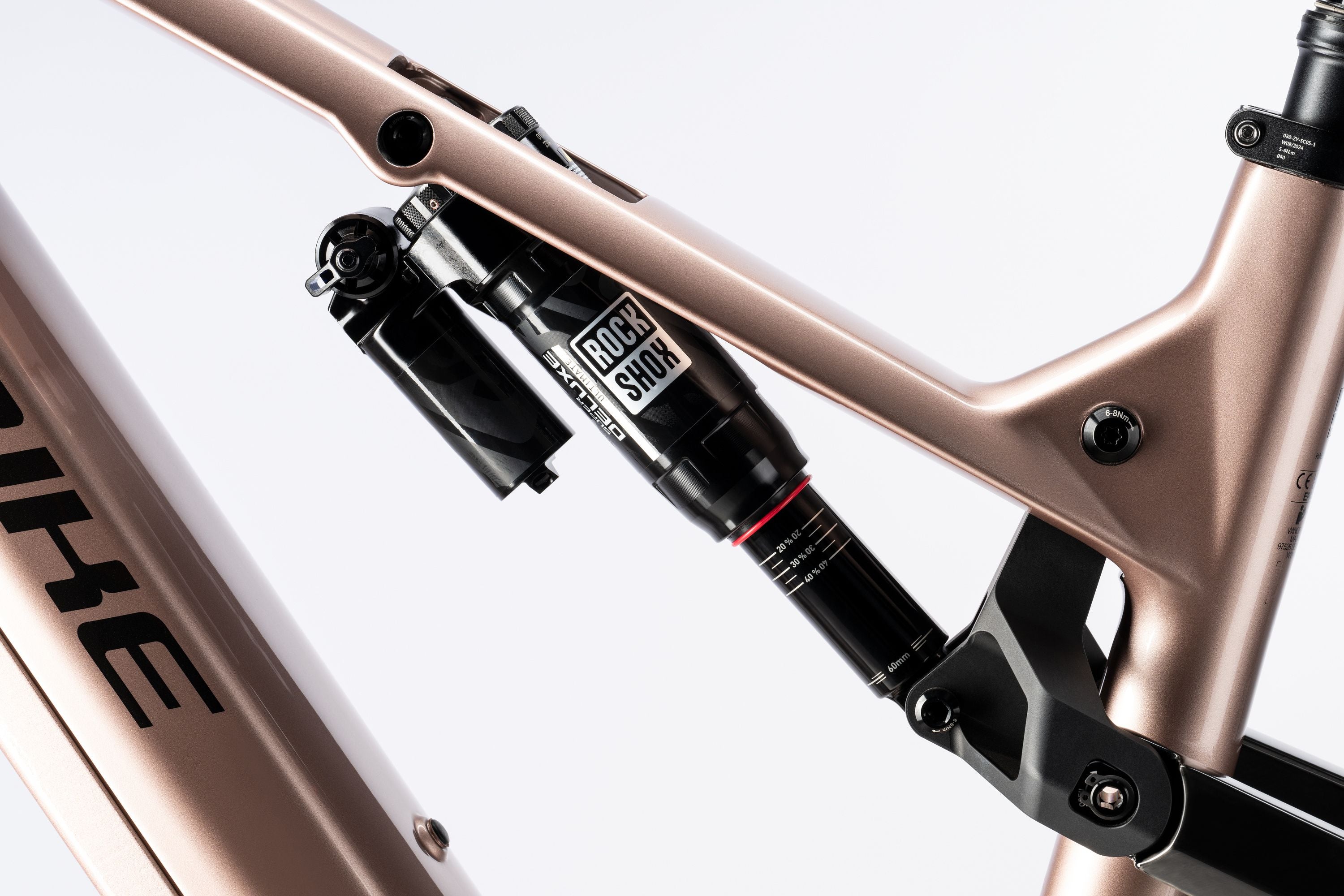

- Shock Description: Rockshox, Super Deluxe Ultimate RC2T 230x60mm, DebonAir
- Suspension Type: Fully
- Travel Front: 160 mm
- Travel Rear: 160 mm
Handlebar and Saddle
- Handgrip Description: XLC, MTB Grip Set VLG-1751D2

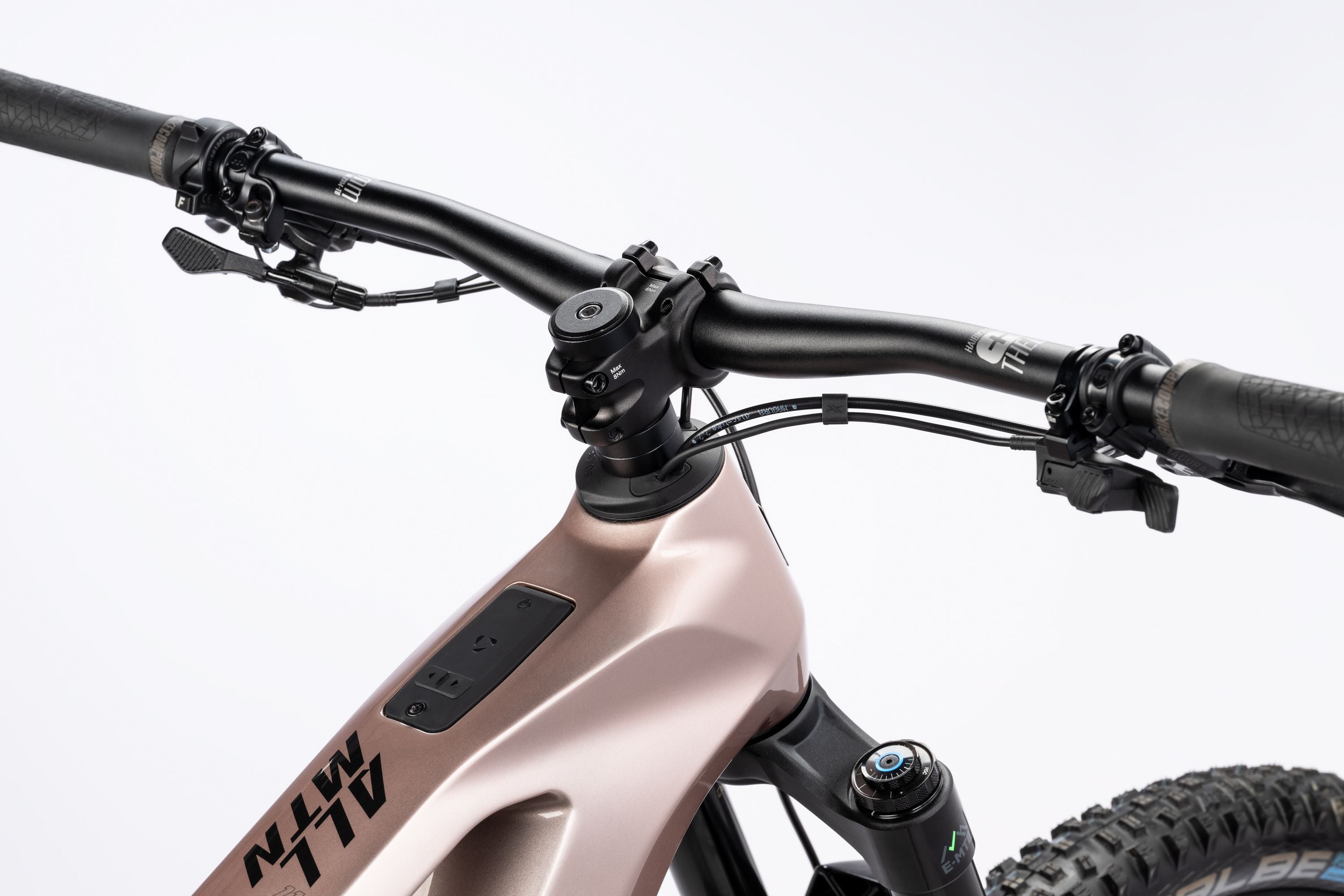

- Handlebar Description: Haibike, Flat bar, TheBar++ Dia. 31.8 mm
- Handlebar Diameter: 31.8 mm
- Handlebar Material: Aluminium
- Handlebar Width: 780 mm
- Headset Description: Acros, Semi-integrated, ICR Top cup / bottom BlockLock ZS56/ZS56
- Saddle Description: Selle Royal, Vivo 1216HRN
- Seatpost Description: Limotec, Dropperpost, A4H Dropper, Dia. 34.9 mm, Travel: 170 mm
- Seatpost Material: Aluminium
-
Seatpost Travel (mm):
- · 170 mm
- · 150 mm
- · 125 mm
- · 200 mm
- Stem Description: Haibike, The Stem++ Dia. 31.8 mm, L: 35 mm, A-Head
- Stem Length: 35 mm
Lighting
- Brake Light: No
Wheels and wheel components
- Tyre Description: Continental, Kryptotal-Fr, Enduro Soft, foldable skin SL, 60-622
- Tyre Rear Description: Continental, Kryptotal-Re, Enduro Casing
- Wheelset Description: DT Swiss, H 1900 Spline, 30 mm, 15x110 mm, Centerlock
- Wheelset Rear Description: DT Swiss, H 1900 Spline,35 mm,12x148 mm,CL, HG Single Speed
- Wheelsize Description: 29, 27.5
