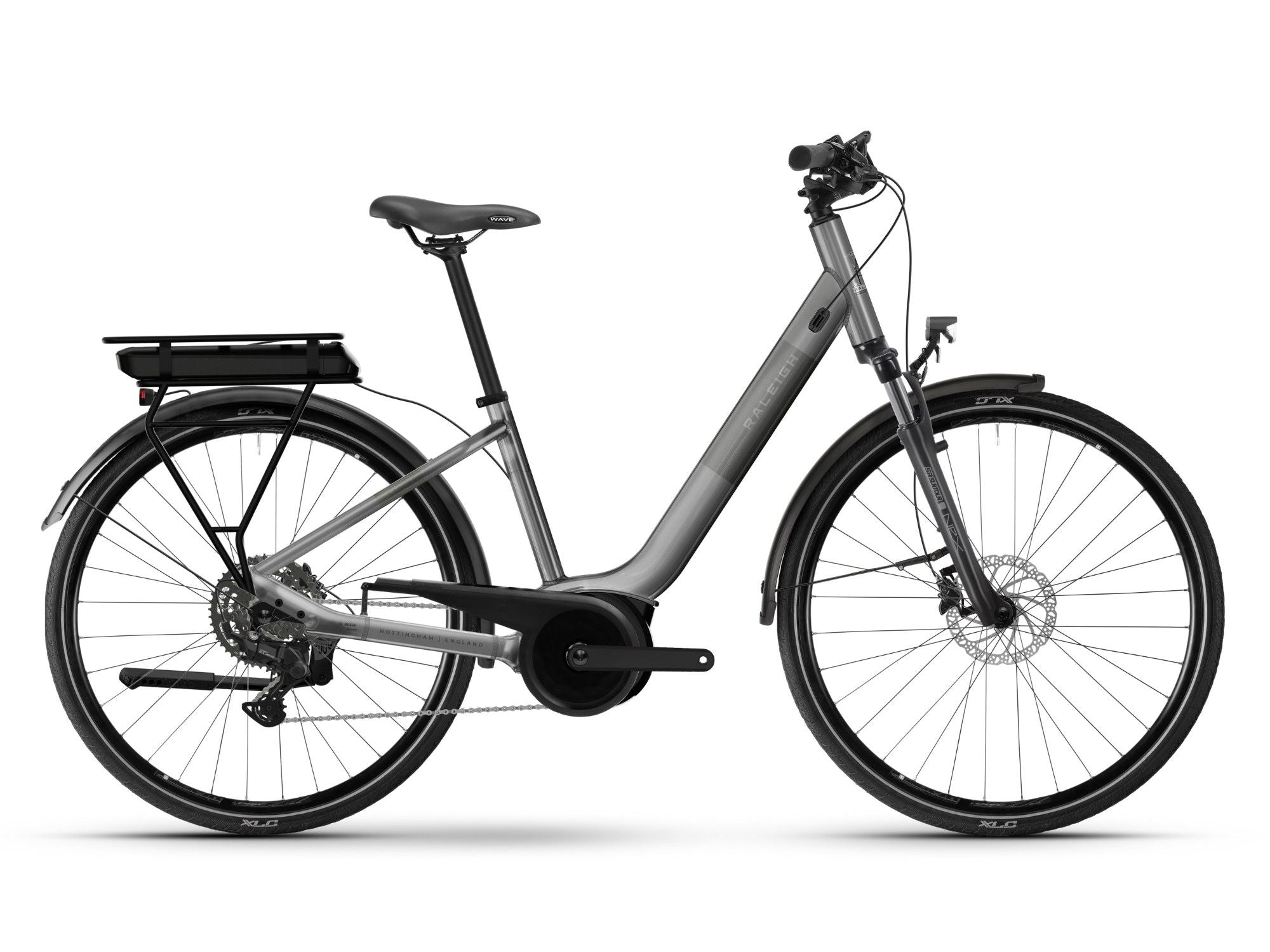

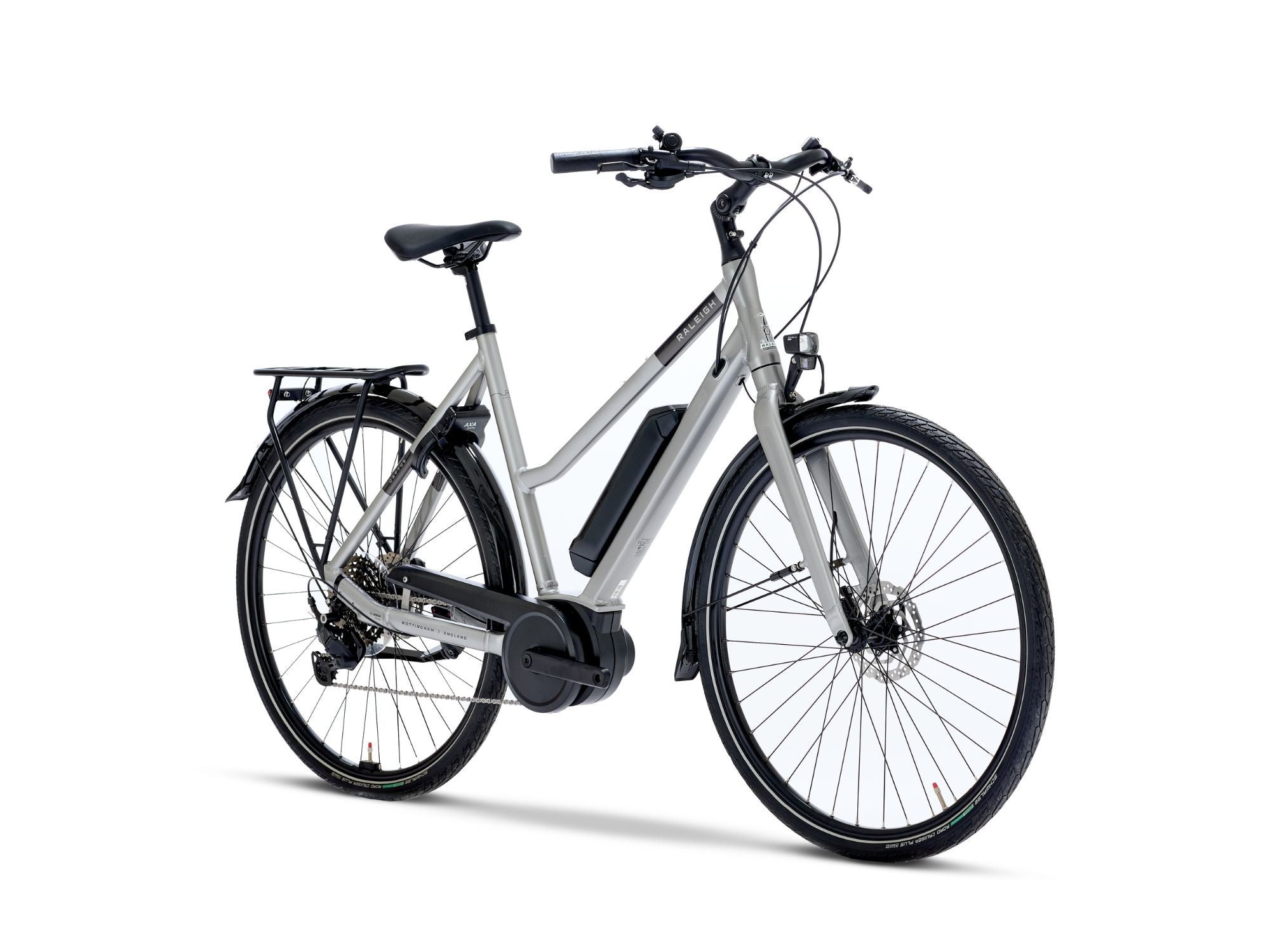

The Raleigh Captus is back. With a completely new sleek frame platform, available in either low or midstep options. Lowstep featuring front suspension and a rack mounted battery, Midstep equipped with a downtube battery and a rigid alloy fork. Both options come with Shimano gears and brakes.
All new 6061 alloy frame
Bosch Active Line motor
Bosch LED remote
400Wh battery
Shimano CUES 9 speed gearing
Brake system
- Brake Front Description: Shimano, Hydraulic Disc brake, Altus BR-MT200, 2 pistons, resin pad, 160 mm
- Brake Front Mount: Post Mount
- Brake Rear Description: Shimano, Hydraulic Disc brake, Altus BR-MT200, 2 pistons, resin pad, 160 mm
- Brake Rear Mount: Post Mount
- Brake Lever Description: Shimano, Altus BL-MT-200
- Third Brake: No
Carrier
- Carrier Rear Description: Raleigh, MIK, CRP Introvert BES3
- Max Weight Carrier Rear: 27.5 kg
Drivetrain
- Cassette Description: Shimano, Cassette, CUES CS-LG300-9, HG
- Cassette Teeth: 11-41T
- Chain Description: Shimano, Chain, CUES CN-LG500 9-11s, LINKGLIDE
- Chain Guard Description: SKS, Chainguard, Chainbow-E
- Crankset Description: Samox, EC37A-F9-BNI Cranks + CR Miranda DM
- Crankset Teeth: 38T
- Crankset Type: single
- Derailleur Rear Description: Shimano, Cues, CUES RD-U4000-GS 9s, Shadow+
- Gear Description: Shimano, Derailleur, CUES
- Automatic Gear: No
- Number Of Gears: 9
- Pedal Description: XLC, VPE-527 Alloy w/ Reflector
- Shifter Right Description: Shimano, Triggershift, CUES SL-U4000-9R, Rapidfire+
E-bike components
- Battery Description: Bosch
- Battery Capacity: 400 Wh
- Battery Location: Carrierpack
- Battery Removeable: Yes
- Charger Description: Bosch, Smart Charger, Charger 2A 220-240V
- Display Description: Bosch, Led, LED Remote
- Display Removeable: Not Removable
- Display Steercontrol: No
- Max Support Speed [km/h]: 25 km/h
- Motor Description: Bosch, Active Line
- Motor Torque [nm]: 40 Nm
- Motor Location: Center
- Sensor: Pedalforce, speed & rotation
- Power Handle: No
- Walk Assist: Yes
Frame and more
-
Framesize:
- · 41 cm
- · 46 cm
- · 51 cm
- · 48 cm
- · 53 cm
- · 57 cm
-
Framesize Convection:
- · XS
- · S
- · M
- · L
- Front Fork Description: Suntour, SF20 NEX DS MBL, 50 mm
-
Front Fork Type:
- · Suspension
- · Non Suspension
- Frame Description: LOW, Aluminium, Low-Step
- Stand Description: Ursus, Single, R90 Mooi Plus, 40 mm, Adjustable, Anti-Noise
- Modular Rail System: No

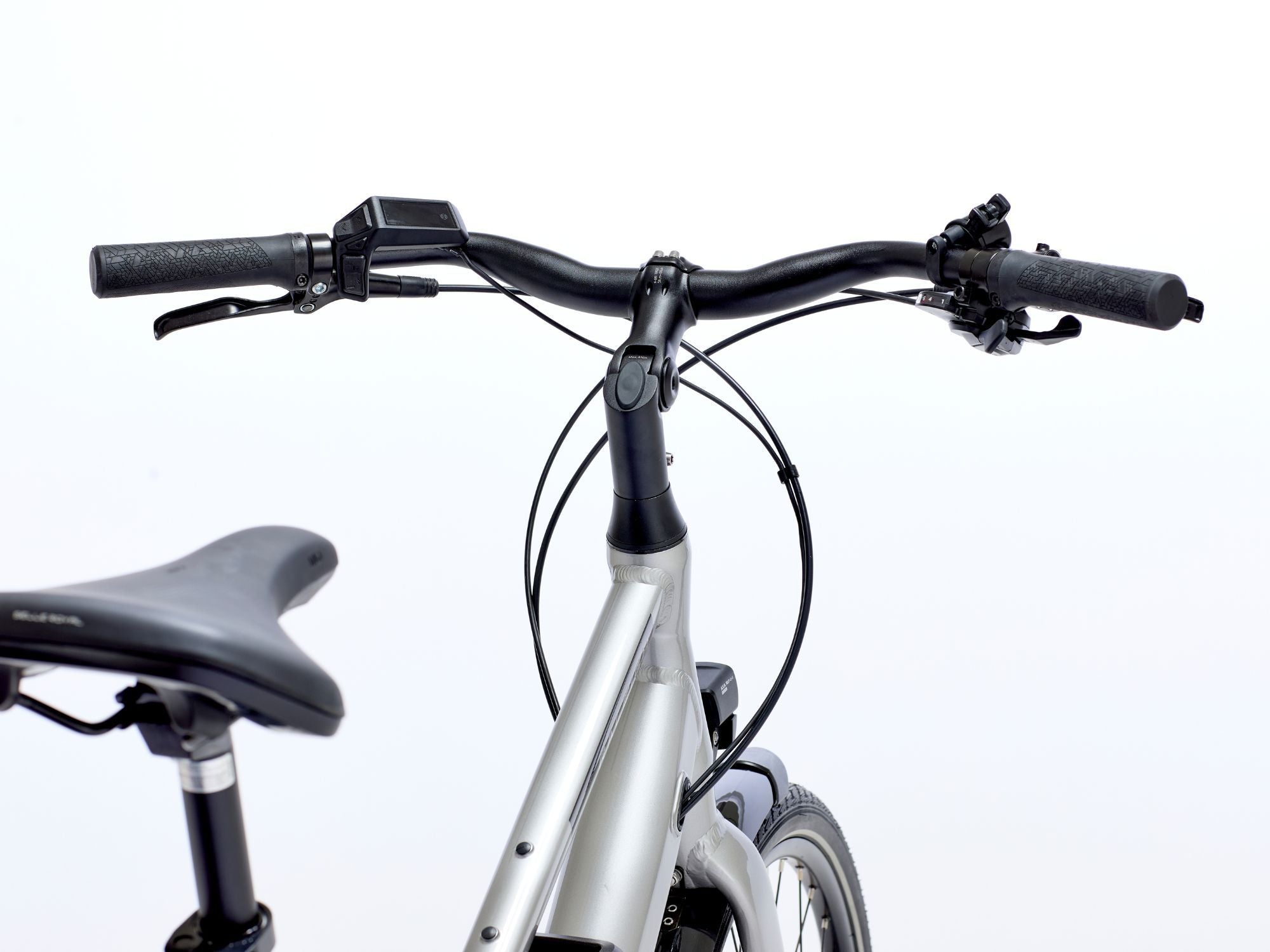

Handlebar and Saddle
- Ring: Yes
- Handgrip Description: XLC
- Handlebar Description: XLC, Flat bar, JD-TR25AL, Dia. 31.8 mm, L: 640 mm
- Handlebar Material: Aluminium
- Headset Description: VP, Semi-integrated, Z108AC ZS44/ZS44

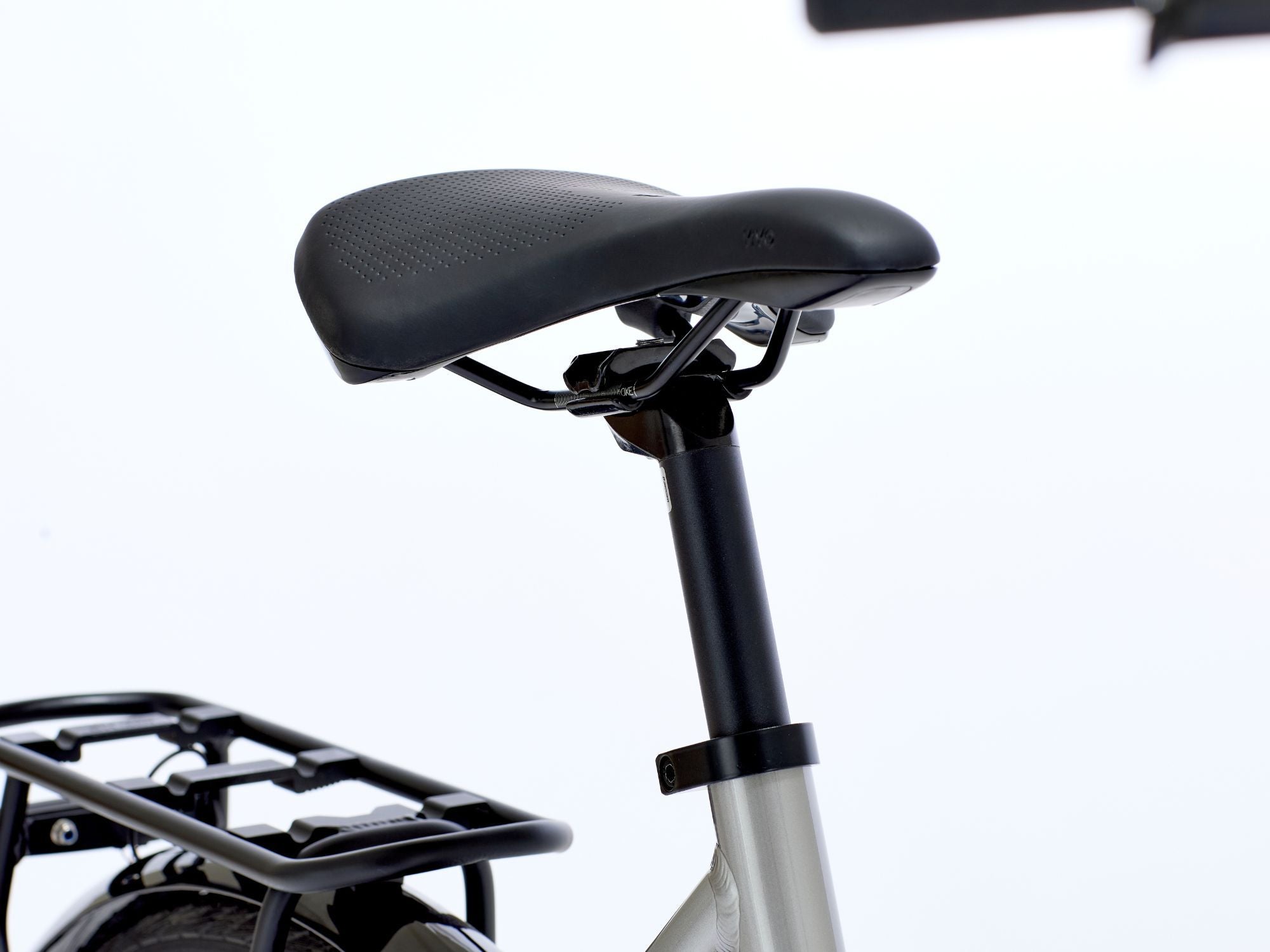

- Saddle Description: Selle Royal, Wave 8214 DC
- Seatpost Description: XLC, Non Suspension, SP-DC1, Dia. 27.2 mm, L: 350 mm
- Seatpost Material: Aluminium
-
Stem Adjustable:
- · No
- · Yes
- Stem Description: XLC, JD-ST161A, Dia. 31.8 mm, L: 70 mm
- Steering Lock: No
Lighting
- Brake Light: No
- Front Light Description: Herrmans, Via E-bike System, CL3, 30 Lux, 6-12V, Nex Bracket
- Rear Light Description: AXA, Via E-bike System, Juno E-Bike, 6-12V
Locks
- Lock Description: Abus, Ring lock
Other
- Connectivity App: Yes
- Suitable For Range Extender: No
- Suitable For Childseat: Yes
Wheels and wheel components
- Axle Type Front: Quick-release
- Axle Type Rear: Quick Release 5mm
- Hub Front Description: Shimano, HB-QC300 QRx100 mm, 36H, Centerlock
- Hub Rear Description: Shimano, FH-QC300 QRx135 mm, 36H, Centerlock, HG
- Mudguard Front Description: EuroFender, Tempo 58, black
- Mudguard Rear Description: EuroFender, Tempo 58, black
- Rim Description: Ryde, ZAC 421 36H 8,5 mm Valve
- Spoke Description: Sapim, Leader Inox Dia. 2.0 mm
- Tyre Description: Schwalbe, Road Cruiser Plus PunctureGuard, 50-622
- Tyre Rear Description: Wired Tire
- Wheelsize Description: 28
