RALEIGH Motus Derailleur Gear Low Step

€2.649,00 EUR

Tax included. Shipping calculated at checkout.
If you would like to purchase your bike using Cycle To Work Scheme please Select "Request Quote" and follow the instructions
PRODUCT INFO

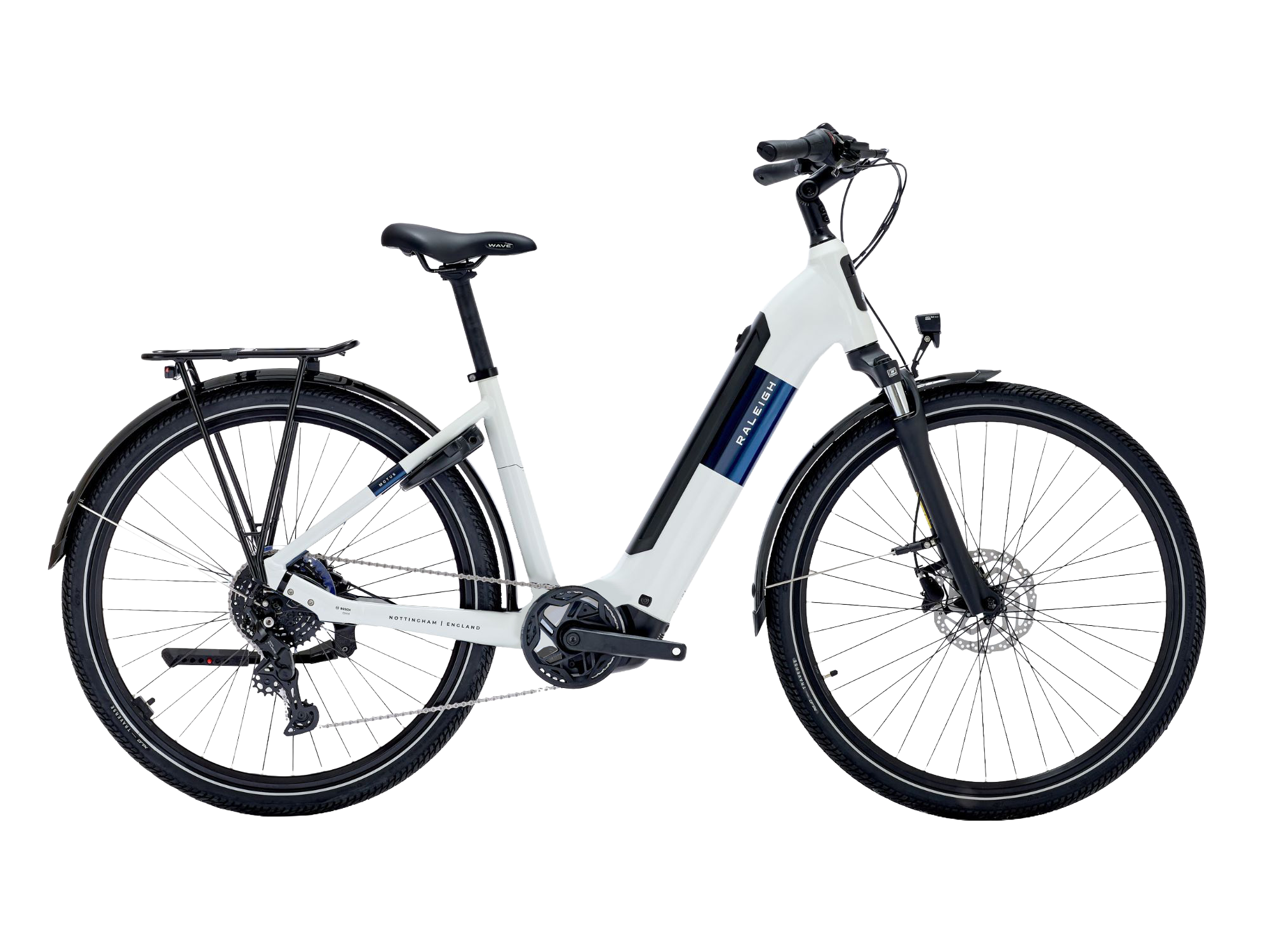

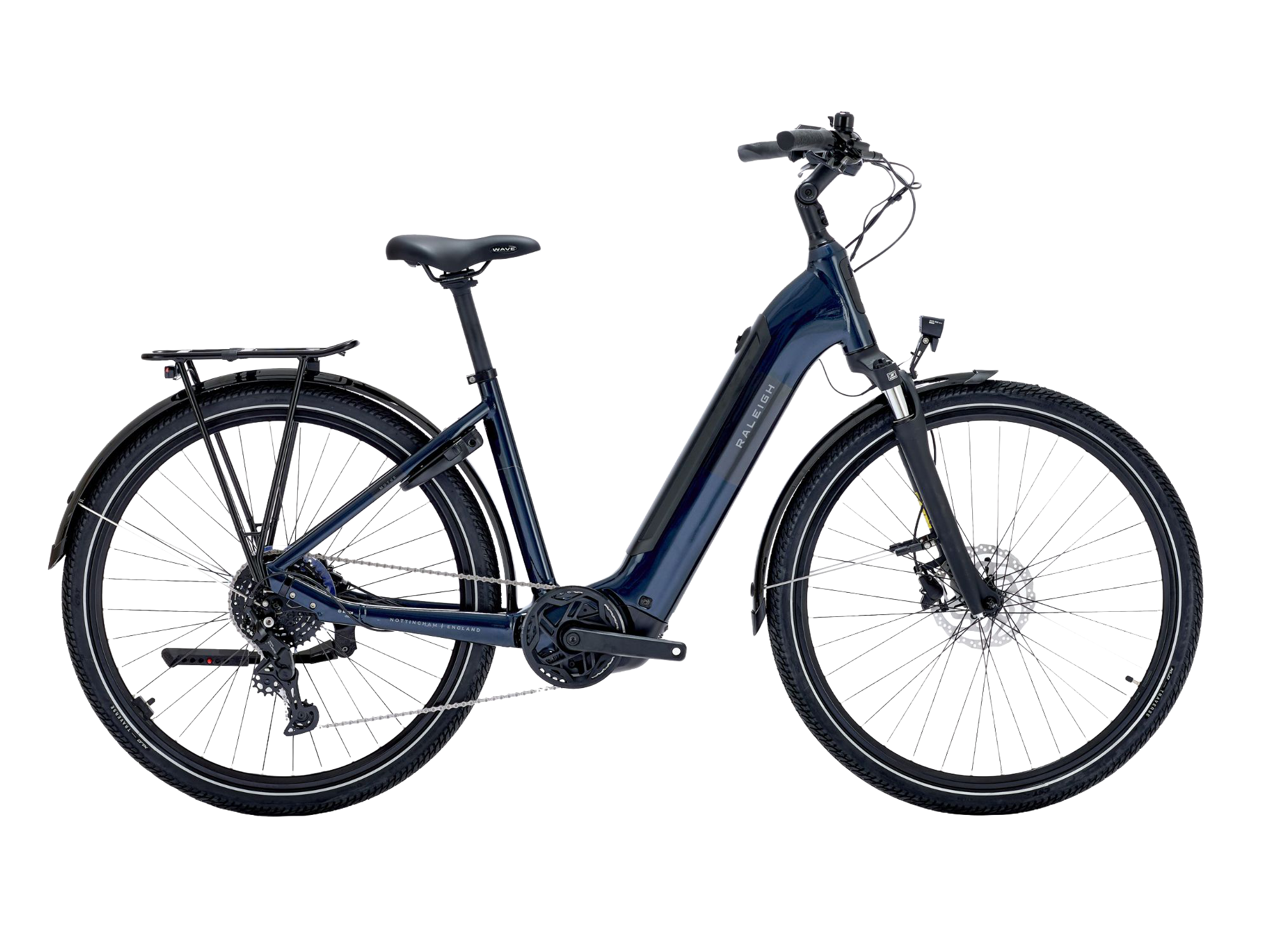

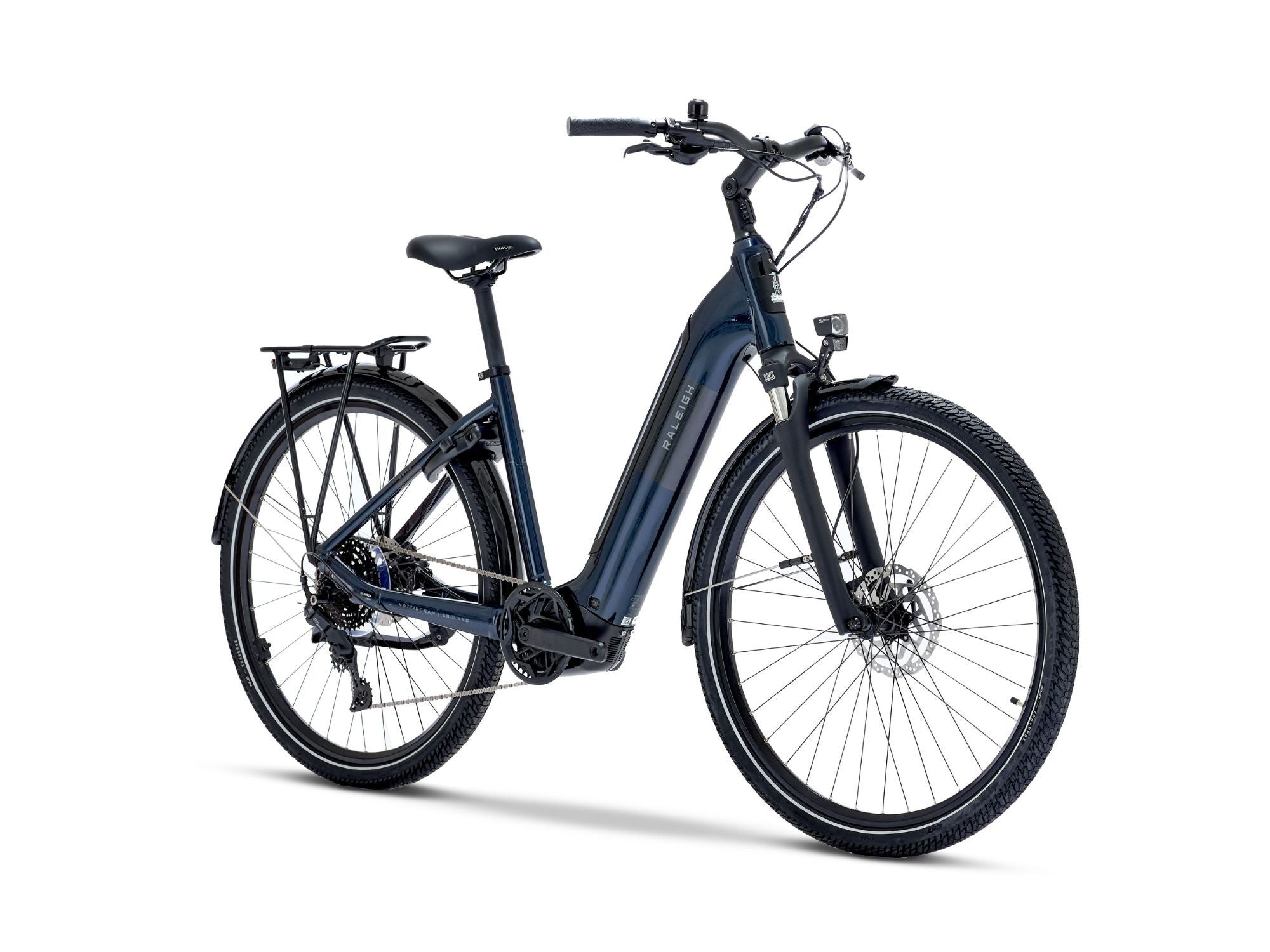

The new Motus Derailleur model with an all new Lowstep frame platform. With a powerful Bosch Performance Line motor and an internal Powrtube 500Wh battery. Fully equipped with integrated lights, mudguards and a MIK rear carrier, Shimano CUES 9 speed gears and Shimano Hydraulic disc brakes.

All new alloy frame
Bosch Performance Line Motor
Bosch Purion 200 Display
500Wh Powertube Battery
Shimano CUES 9 Speed gearing

Brake system
  • Brake Front Description: Shimano, Hydraulic Disc brake, Altus BR-MT200, 2 pistons, resin pad, 180 mm
  • Brake Front Mount: Post Mount
  • Brake Rear Description: Shimano, Hydraulic Disc brake, Altus BR-MT200, 2 pistons, resin pad, 160 mm
  • Brake Rear Mount: Post Mount
  • Brake Lever Description: Shimano, Altus BL-MT-200
  • Third Brake: No
Carrier

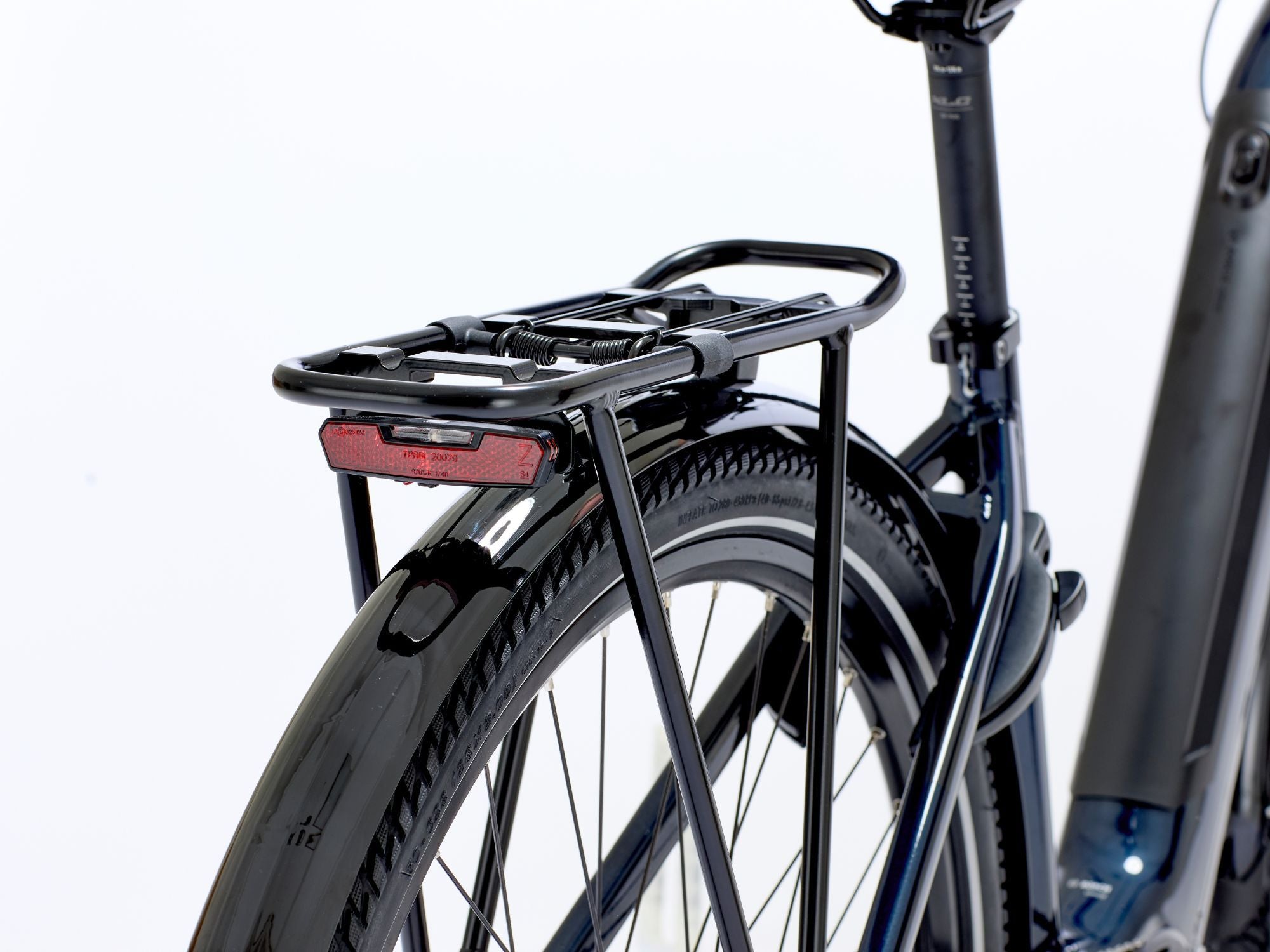

  • Carrier Rear Description: Raleigh, MIK, CRP Introvert BES3
  • Max Weight Carrier Rear: 27.5 kg
Drivetrain
  • Cassette Description: Shimano, Cassette, CUES CS-LG300-9, HG
  • Cassette Teeth: 11-41T
  • Chain Description: Shimano, Chain, CUES CN-LG500 9-11s, LINKGLIDE
  • Chain Guard Description: XLC, Chainguard, CR-X10
  • Crankset Description: Samox, EC37-F9 ISIS Cranks + CR EMS06 + XLC Bashring
  • Crankset Teeth: 38T
  • Crankset Type: single
  • Derailleur Rear Description: Shimano, Cues, CUES RD-U4000-GS 9s, Shadow+
  • Gear Description: Shimano, Derailleur
  • Automatic Gear: No
  • Number Of Gears: 5, 9
  • Pedal Description: XLC, VPE-527 Alloy w/ Reflector
  • Shifter Right Description: Shimano, Triggershift, CUES SL-U4000-9R, Rapidfire+
E-bike components
  • Battery Description: Bosch
  • Battery Capacity: 500 Wh
  • Battery Location: Powertube
  • Battery Removeable: Yes
  • Charger Description: Bosch, Smart Charger, Charger 2A 220-240V
  • Display Description: Bosch, Purion, Purion 200
  • Display Removeable: Not Removable
  • Max Support Speed [km/h]: 25 km/h
  • Motor Description: Bosch, Performance Line
  • Motor Torque [nm]: 75 Nm
  • Motor Location: Center
  • Sensor: Pedalforce, speed & rotation
  • Power Handle: No
  • Walk Assist: Yes
Frame and more
  • Framesize:
    • · 46 cm
    • · 51 cm
    • · 57 cm
    • · 41 cm
  • Framesize Convection:
    • · S
    • · M
    • · L
    • · XS
  • Front Fork Description: Suntour, SF24 NEX E25 DS, 50 mm
  • Front Fork Type: Suspension
  • Frame Description: HIGH, Aluminium, Low-Step
  • Stand Description: Ursus, Single, R90 Mooi Plus, 40 mm, Adjustable, Anti-Noise
  • Modular Rail System: No
Handlebar and Saddle
  • Ring: Yes
  • Handgrip Description: XLC

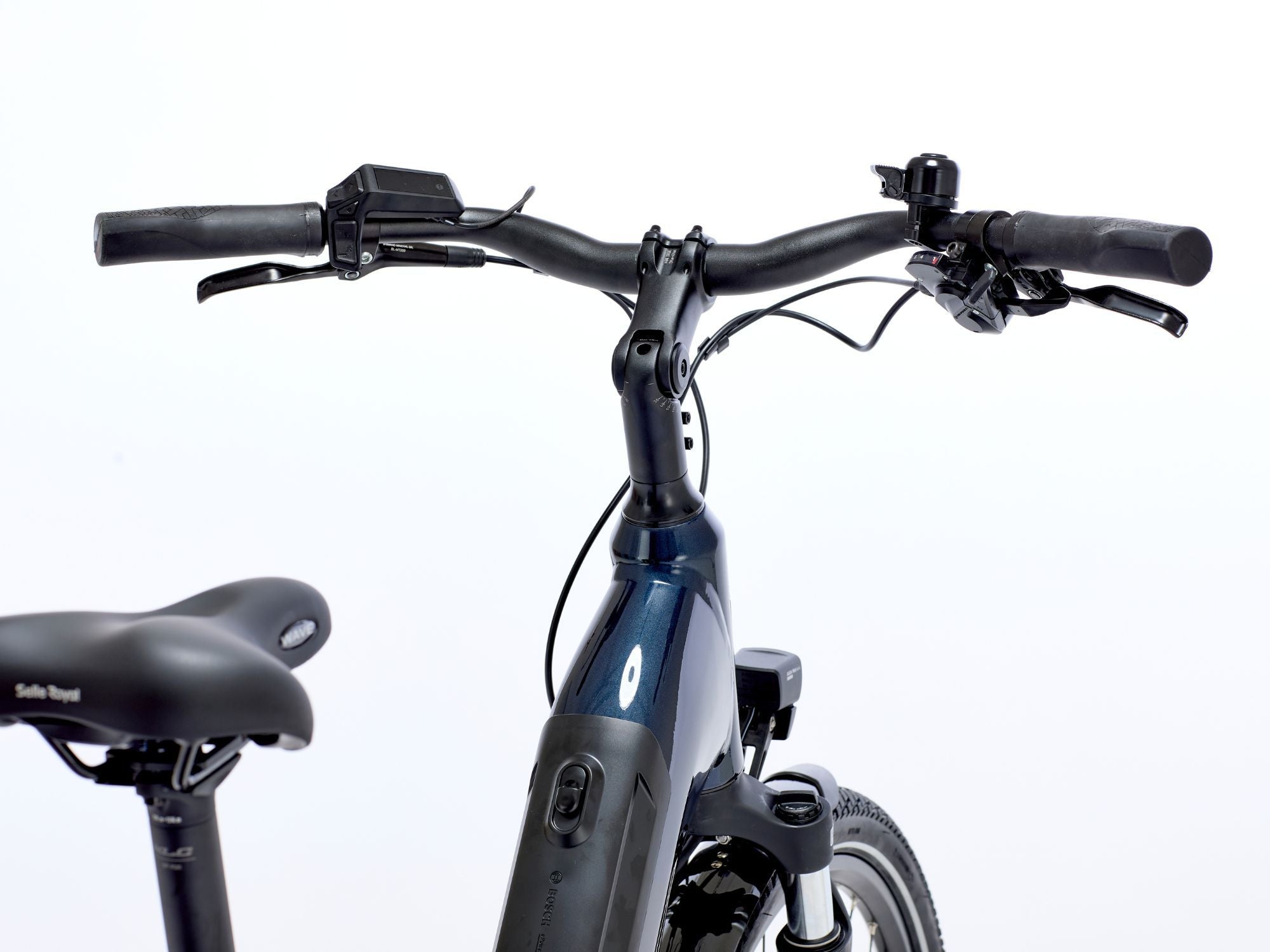

  • Handlebar Description: XLC, Flat bar, JD-TR25AL, Dia. 31.8 mm, L: 640 mm
  • Handlebar Material: Aluminium
  • Headset Description: VP, Semi-integrated, J213PE ZS44/ZS55

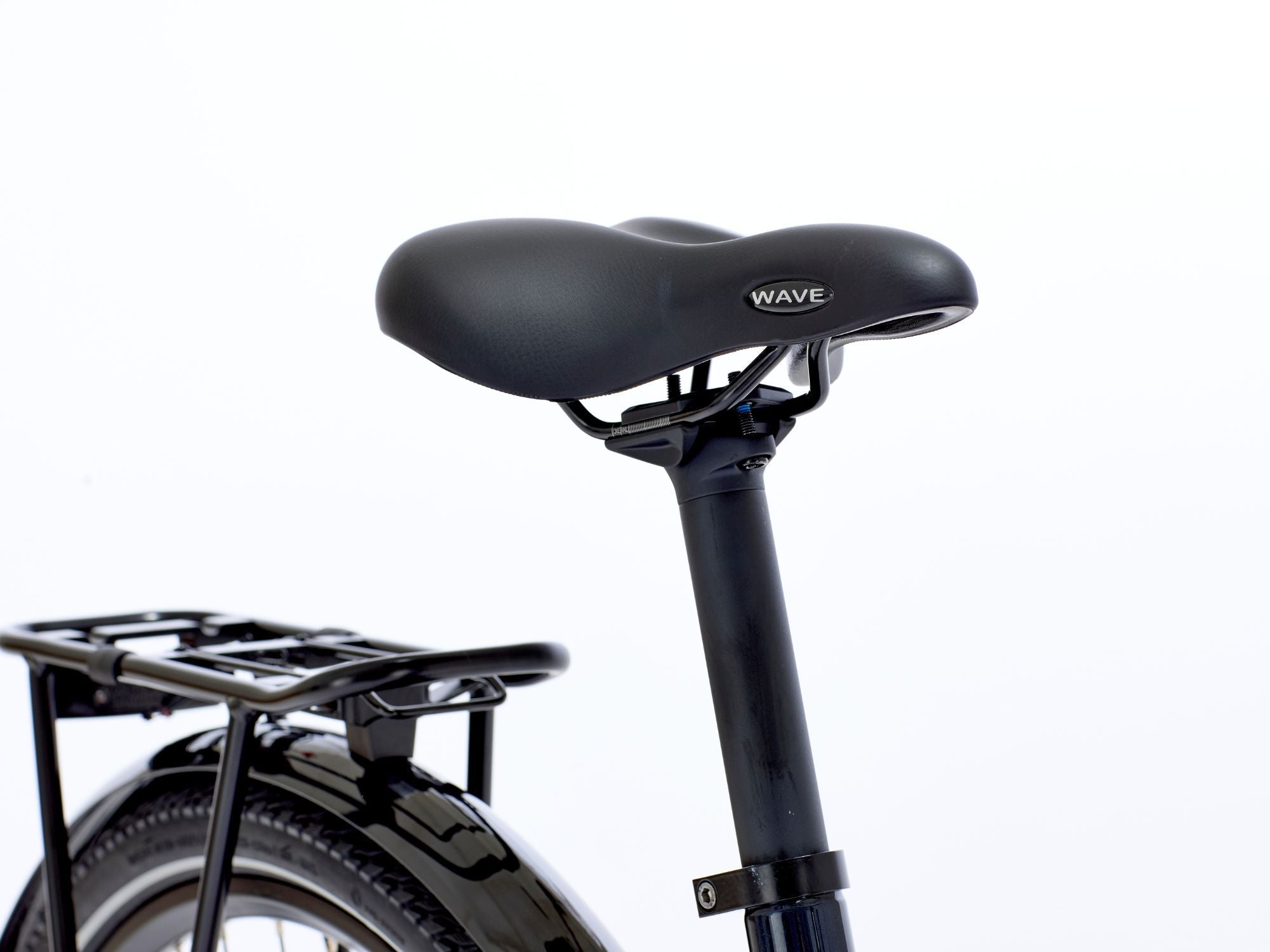

  • Saddle Description: Selle Royal, Wave 8214 DC
  • Seatpost Description: XLC, Non Suspension, SP-R30, Dia. 31.6 mm, L: 300 mm
  • Seatpost Material: Aluminium
  • Stem Adjustable: Yes
  • Stem Description: XLC, JD-ST243A-2, Dia. 31.8 mm, L: 85 mm
Lighting
  • Brake Light: No

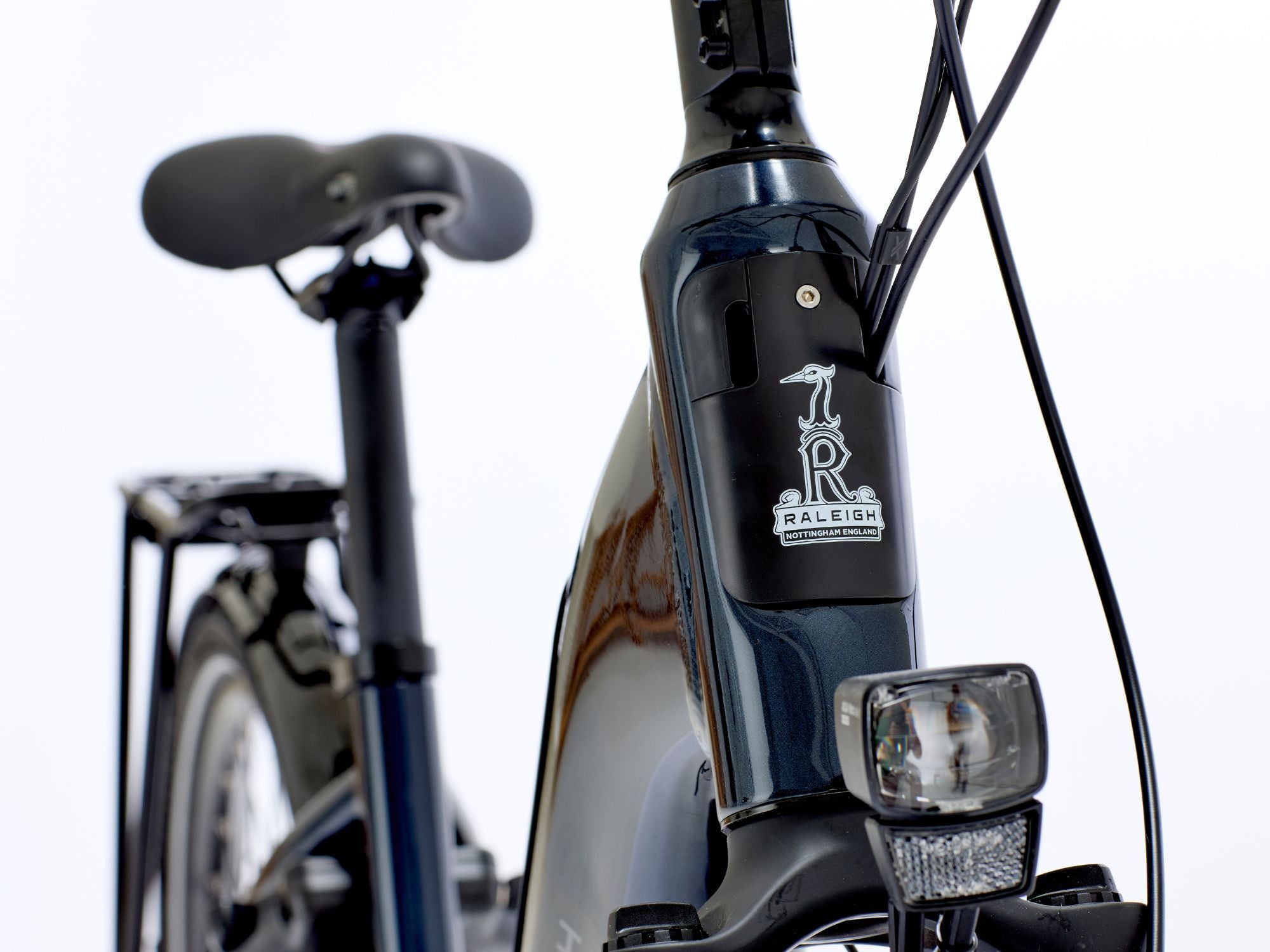

  • Front Light Description: AXA, Via E-bike System, NXT 45 E-Bike, 45 Lux, 5-12V
  • Rear Light Description: AXA, Via E-bike System, Juno E-Bike, 6-12V
Locks
  • Lock Description: Abus, Ring lock, 4750
  • Plug-In Cable Compatible: Yes
Other
  • Connectivity App: Yes
  • Suitable For Range Extender: No
  • Suitable For Childseat: Yes
Wheels and wheel components
  • Axle Type Front: Quick-release
  • Axle Type Rear: Quick Release 5mm
  • Hub Front Description: Shimano, HB-QC300 QRx100 mm, 36H, Centerlock
  • Hub Rear Description: Shimano, FH-QC300 QRx135 mm, 36H, Centerlock, HG
  • Mudguard Front Description: EuroFender, Tempo 58, black
  • Mudguard Rear Description: EuroFender, Tempo 58, black
  • Rim Description: Ryde, ZAC 421 36H 8,5 mm Valve
  • Spoke Description: Sapim, Leader Inox Dia. 2.0 mm
  • Tyre Description: XLC, Traverse CTC, 50-622
  • Tyre Rear Description: Wired Tire
  • Wheelsize Description: 28
