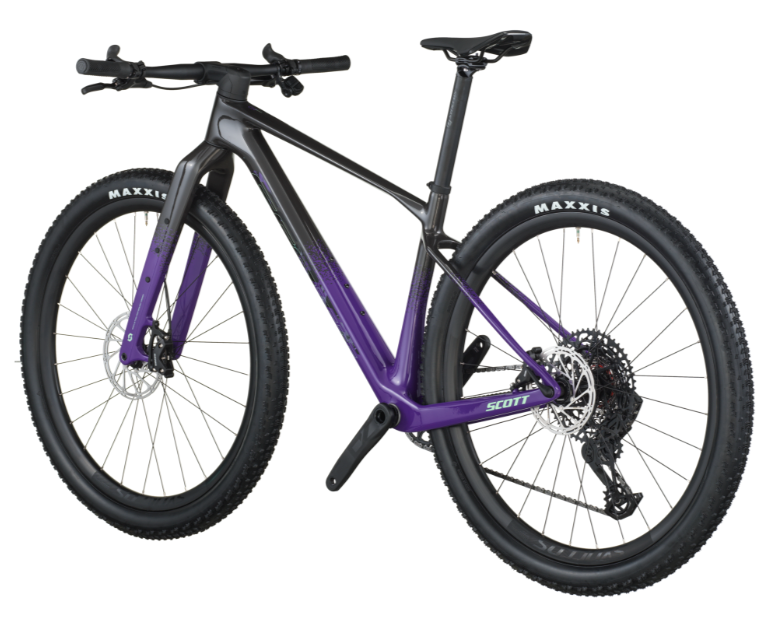

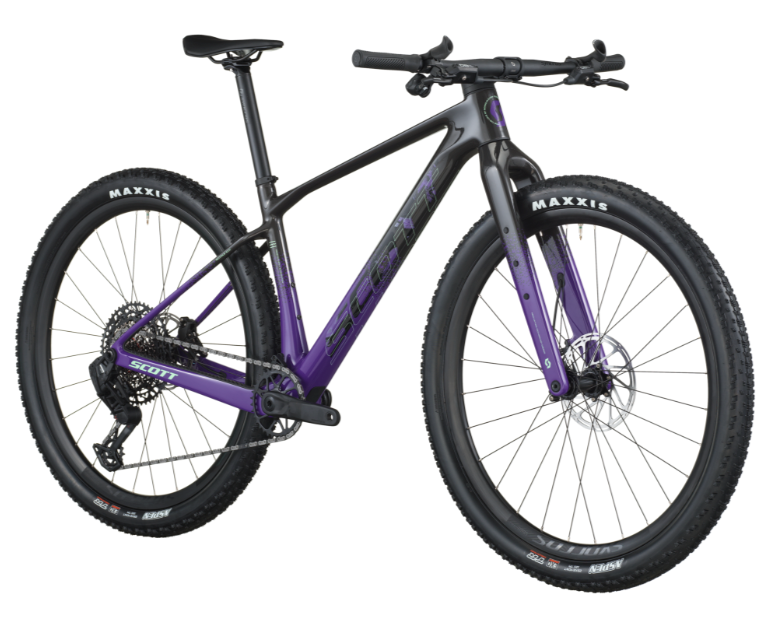

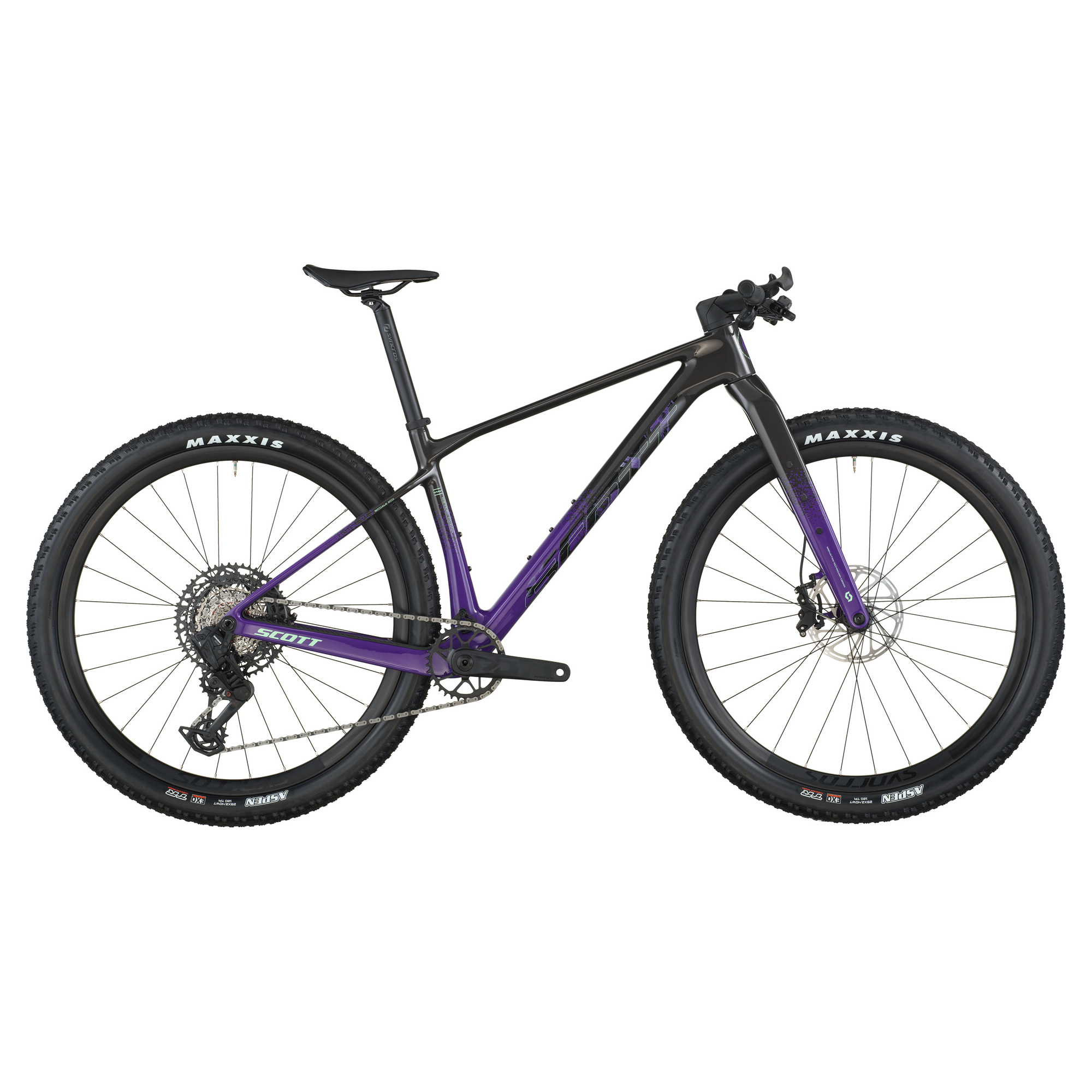

The Scale Gravel was put on this planet for going on adventures with attitude. Designed to go the distance over any and all types of terrain, the Scale Gravel is lightweight with agile handling and features multiple mounting options.
Frame Scale Carbon HMF
Adjustable head angle, Syncros Cable Integration System
Advanced Shock & Standing Damping System
BB92, UDH Interface, 12x148mm with 55mm Chainline
Fork Scale Rigid HMF Postmount Disc Standard Tapered Carbon steerer
Rear Derailleur SRAM S1000 Eagle AXS Transmission 12 Speed Wireless Electronic Shift System
Shifters SRAM AXS Pod Controller
Crankset SRAM Eagle 70 TransmissionDUB, 55mm CL, 34T
Chainguide SCOTT custom
BB-SetS RAM DUB PF 92 MTB Wide, shell 41x92mm
Chain SRAM CN Eagle 70 Transmission
Cassette SRAM Eagle XS 1270 V2 Transmission 10-52
Brakes SRAM DB6 4-Piston Disc
Rotor SRAM Centerline CL Rotors 180/F and 160/R

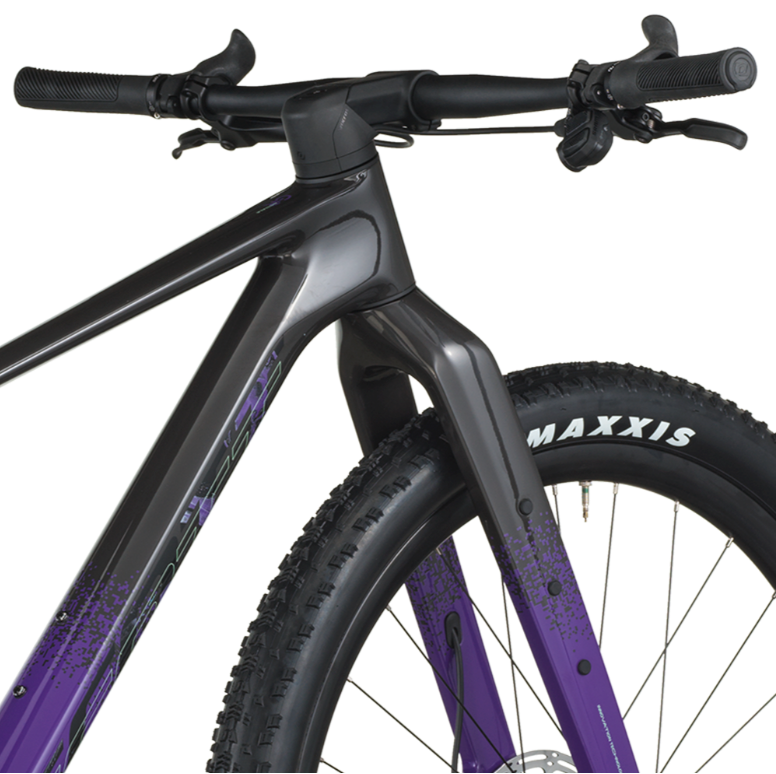

Handlebar Syncros Fraser 2.0 XC Alloy 6061 D.B.Flat Bar, 8°, 740mm, Syncros Performance XC lock-on grips
H'stem Syncros XC 2.0Syncros Cable Integration System-12° rise, 6061 Alloy, 31.8mm, 1 1/8"

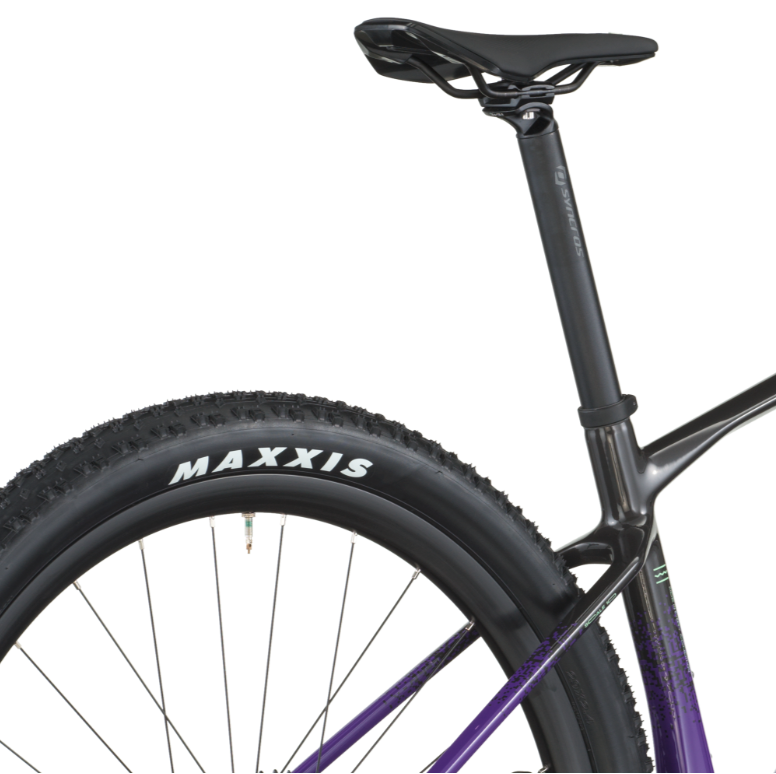

Seatpost Syncros Duncan 2.0, 10mm offset31.6x400mm
Seat Syncros Belcarra V2.0 Cut OutCRMO rails
Headset Syncros - Acros Angle adjust & Cable Routing HS System+-0.6° head angle adjustmentZS56/28.6 – ZS56/40 MTB
Hub (Front) Formula CL-811, 15x110mm
Hub (Rear) Formula CL-3248, 12x148mm
Spokes Stainless Black 15G, 1.8mm
Rims Syncros X-28, 28H, Tubeless ready
Front Tire Maxxis Aspen, 29x2.4", 120TPI Foldable BeadTubeless Ready, EXO
Rear Tire Maxxis Aspen, 29x2.4", 120TPI Foldable BeadTubeless Ready, EXO
Extras SRAM AXS Powerpack
Accessories Spirgrips+ Inner Bar ends
Approx weight in KG 10.5 (Tubless setup)
Approx weight in LBS 23.15 (Tubless setup)
Max. System Weight 120kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
Please note that bike specifications are subject to change without prior notice.
