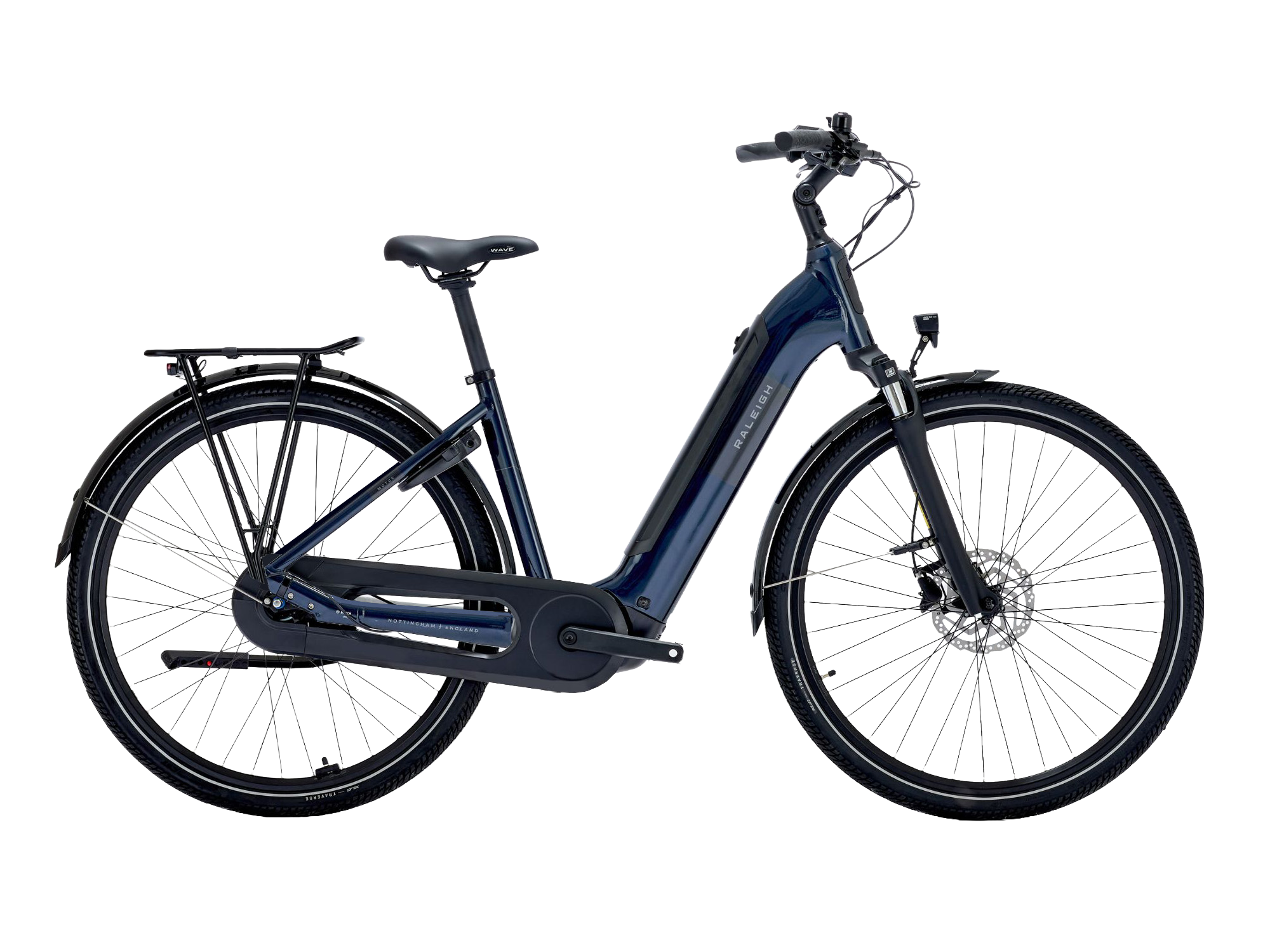

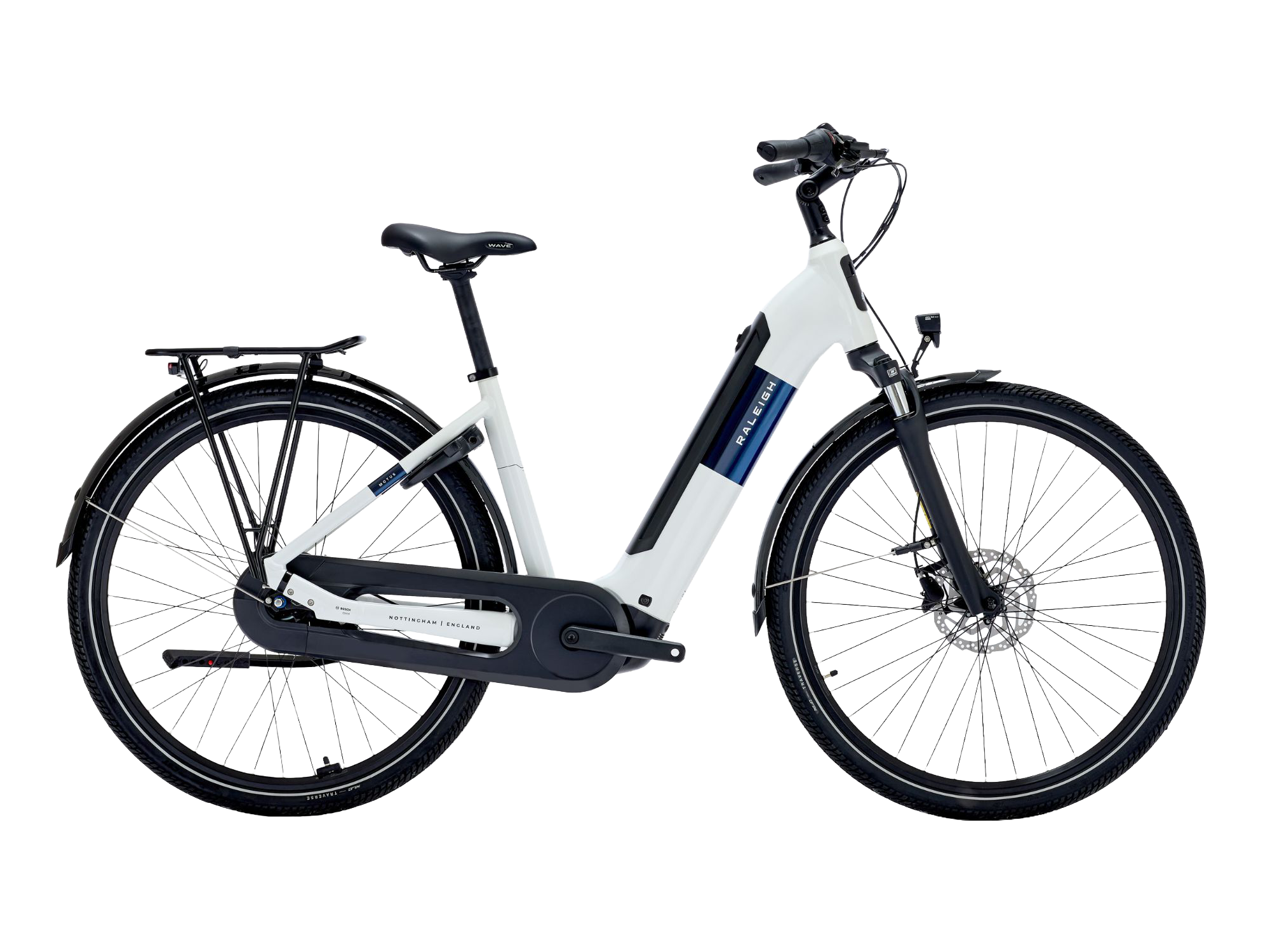

The new Motus Hub Gear model with an all new Lowstep frame platform. With a powerful Bosch Performance Line motor and an internal Powertube 500Wh battery. Fully equipped with integrated lights, mudguards and a MIK rear carrier, Shimano Nexus 5 speed eBike specific hub gears and Shimano hydraulic disc brakes.
All new alloy frame
Bosch Performance Line Motor
Bosch Purion 200 Display
500Wh Powertube Battery
Shimano Nexus 5 Speed Hub Gears
Brake system
- Brake Front Description: Shimano, Hydraulic Disc brake, Altus BR-MT200, 2 pistons, resin pad, 180 mm
- Brake Front Mount: Post Mount
- Brake Rear Description: Shimano, Hydraulic Disc brake, Altus BR-MT200, 2 pistons, resin pad, 160 mm
- Brake Rear Mount: Post Mount
- Brake Lever Description: Shimano, Altus BL-MT-200
- Third Brake: No

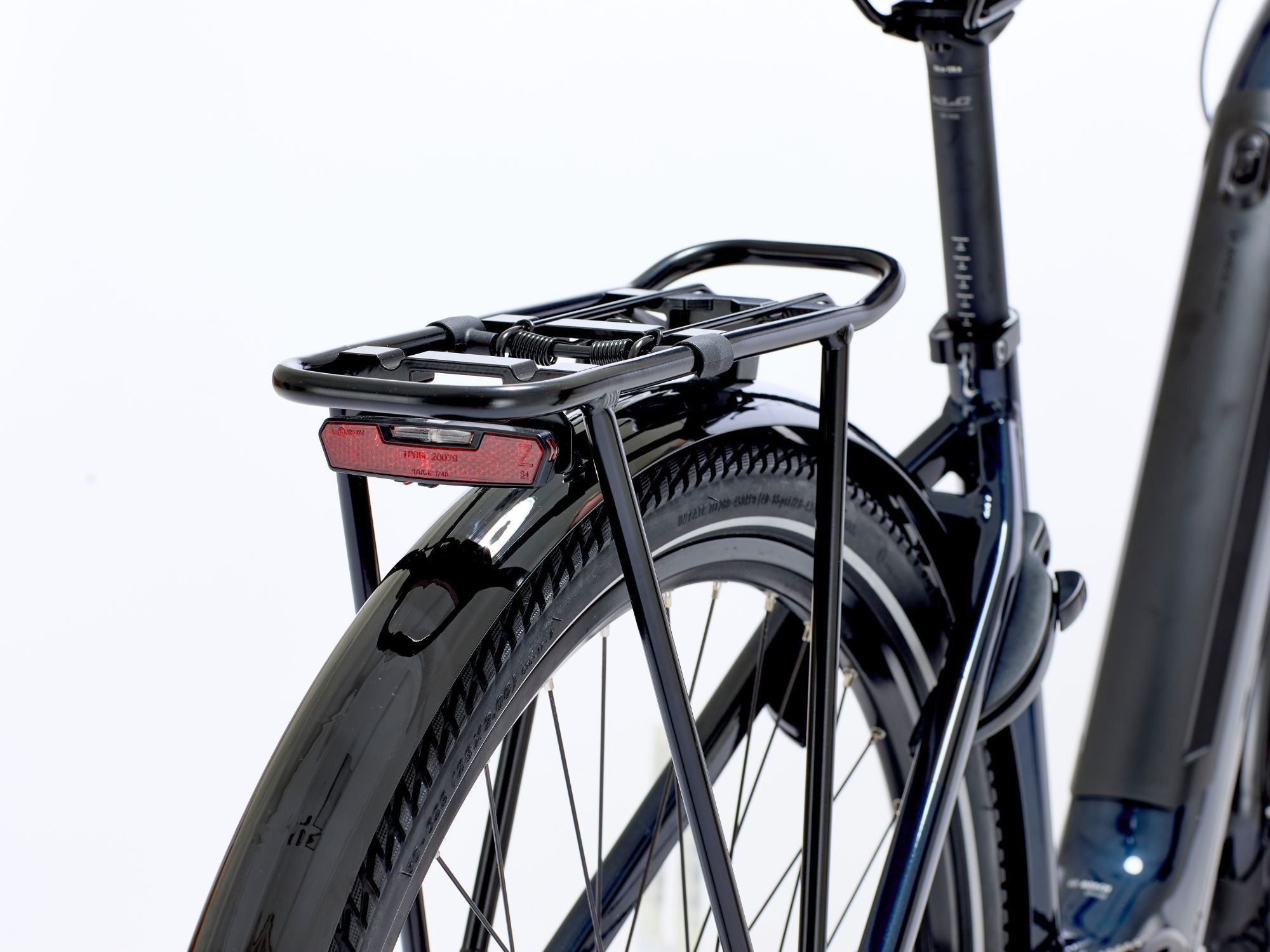

Carrier
- Carrier Rear Description: Raleigh, MIK, CRP Introvert BES3
- Max Weight Carrier Rear: 27.5 kg
Drivetrain
- Cassette Description: KMC, Sprocket, Sprocket
- Cassette Teeth: 27T
- Chain Description: KMC, Chain, e1 EPT
- Chain Guard Description: Hesling, Chainguard, CINCO CRP BDU 34
- Crankset Description: Samox, EC37-F9 ISIS Cranks + CR EMS05
- Crankset Teeth: 38T
- Crankset Type: single
- Gear Description: Shimano, Internal Gear Hub
- Automatic Gear: No
- Number Of Gears: 5
- Pedal Description: XLC, VPE-527 Alloy w/ Reflector
- Shifter Right Description: Shimano, Gripshift, Nexus SL-C7000-5, Revoshift
E-bike components
- Battery Description: Bosch
- Battery Capacity: 500 Wh
- Battery Location: Powertube
- Battery Removeable: Yes
- Charger Description: Bosch, Smart Charger, Charger 2A 220-240V
- Display Description: Bosch, Purion, Purion 200
- Display Removeable: Not Removable
- Max Support Speed [km/h]: 25 km/h
- Motor Description: Bosch, Performance Line
- Motor Torque [nm]: 75 Nm
- Motor Location: Center
- Sensor: Pedalforce, speed & rotation
- Power Handle: No
- Walk Assist: Yes
Frame and more
-
Framesize:
- · 41 cm
- · 46 cm
- · 51 cm
- · 57 cm
-
Framesize Convection:
- · XS
- · S
- · M
- · L
- Front Fork Description: Suntour, SF24 NEX E25 DS, 50 mm
- Front Fork Type: Suspension
- Frame Description: LOW, Aluminium, Low-Step
- Stand Description: Ursus, Single, R90 Mooi Plus, 40 mm, Adjustable, Anti-Noise
- Modular Rail System: No

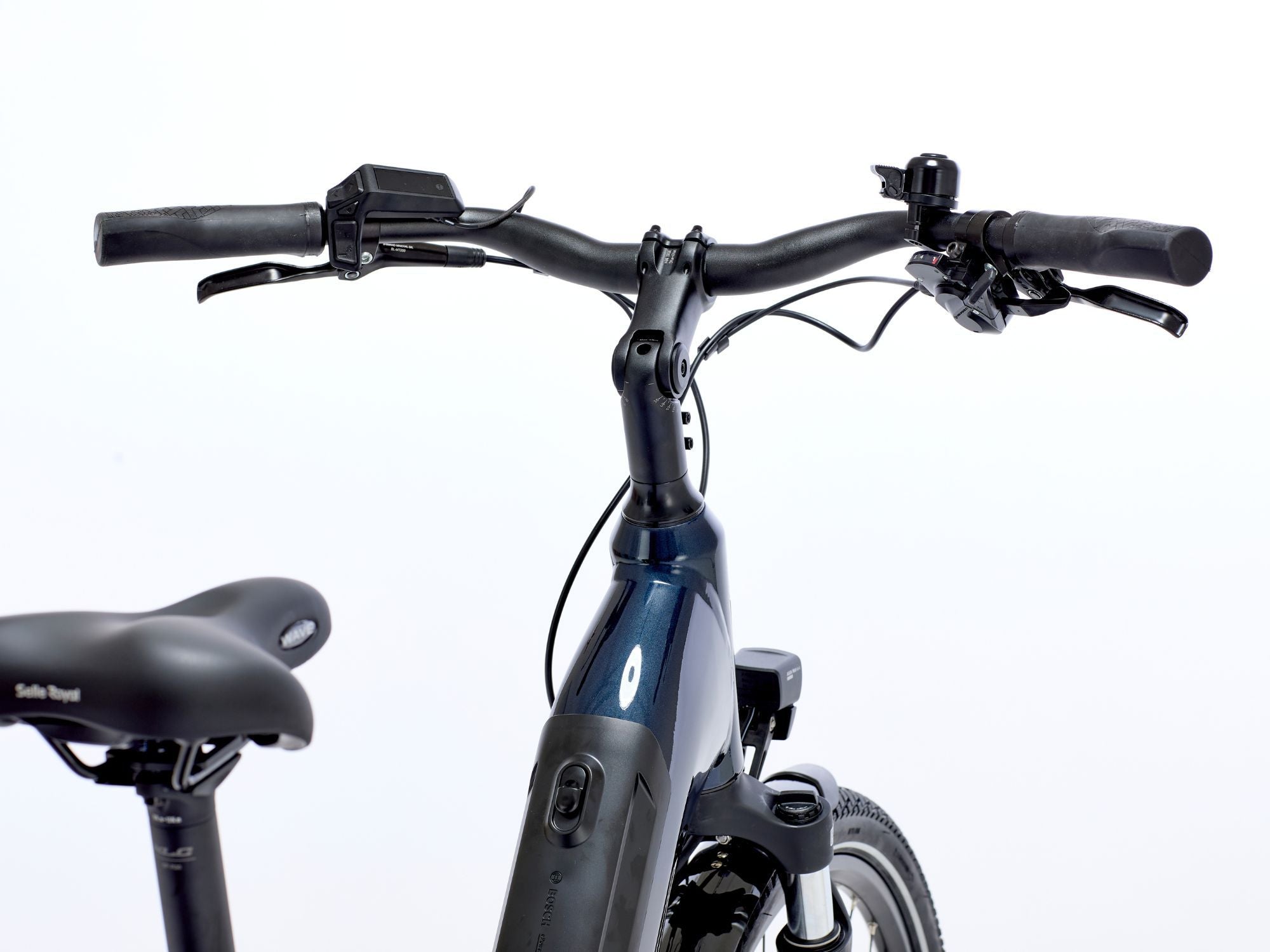

Handlebar and Saddle
- Ring: Yes
- Handgrip Description: Herrmans
- Handlebar Description: XLC, Flat bar, JD-TR25AL, Dia. 31.8 mm, L: 640 mm
- Handlebar Material: Aluminium
- Headset Description: VP, Semi-integrated, J213PE ZS44/ZS55
- Saddle Description: Selle Royal, Wave 8214 DC
- Seatpost Description: XLC, Non Suspension, SP-R30, Dia. 31.6 mm, L: 300 mm
- Seatpost Material: Aluminium
- Stem Adjustable: Yes
- Stem Description: XLC, JD-ST243A-2, Dia. 31.8 mm, L: 85 mm
Lighting
- Brake Light: No
- Front Light Description: AXA, Via E-bike System, NXT 45 E-Bike, 45 Lux, 5-12V
- Rear Light Description: AXA, Via E-bike System, Juno E-Bike, 6-12V
Locks
- Lock Description: Abus, Ring lock, 4750
- Plug-In Cable Compatible: Yes
Other
- Connectivity App: Yes
- Suitable For Range Extender: No
- Suitable For Childseat: Yes
Wheels and wheel components
- Axle Type Front: Quick-release
- Axle Type Rear: Fixed
- Hub Front Description: Shimano, HB-QC300 QRx100 mm, 36H, Centerlock
- Hub Rear Description: Shimano, Nexus, Nexus SG-C7000-5D, 36H, CL, Internal Geared Hub
- Mudguard Front Description: EuroFender, Tempo 58, black
- Mudguard Rear Description: EuroFender, Tempo 58, black
- Rim Description: Ryde, ZAC 421 36H 8,5 mm Valve
- Spoke Description: Sapim, Leader Inox Dia. 2.0 mm
- Tyre Description: XLC, Traverse CTC, 50-622
- Tyre Rear Description: Wired Tire
- Wheelsize Description: 28
