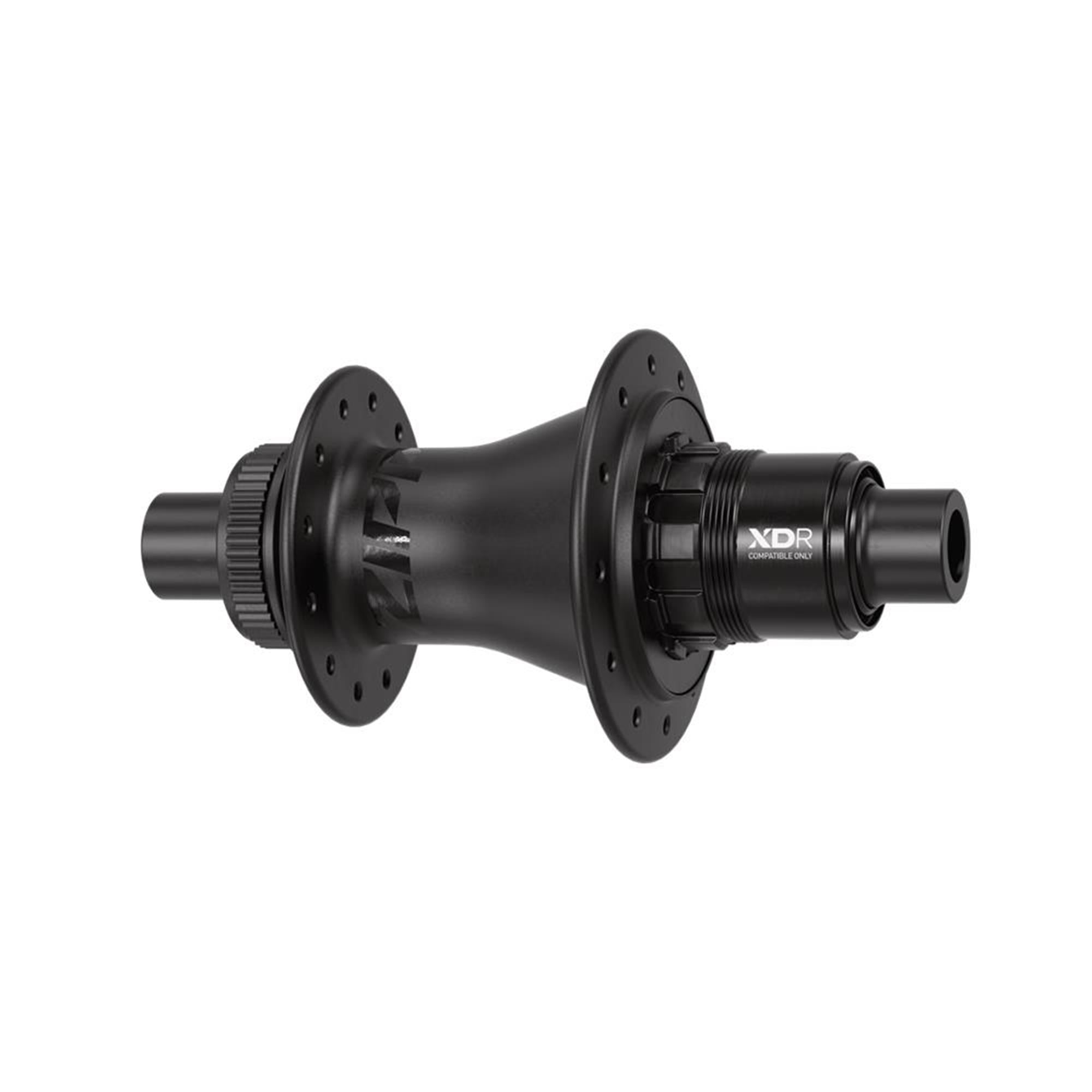

Zipp ZR1 Rear Hub – TA 12x142 – 24H – SRAM/Shimano Road – Center Lock – Black

€317,00 EUR

Tax included. Shipping calculated at checkout.
If you would like to purchase your bike using Cycle To Work Scheme please Select "Request Quote" and follow the instructions.
For products stored in our External Warehouse, please allow for 7 - 14 days for availability
PRODUCT INFO

Zipp developed the ZR1 hubset as an upgraded hubset for its pro-proven Firecrest wheel lineup, working with engineering colleagues at SRAM’s development center in Schweinfurt, Germany. The ZR1 features an improved seal design for increased durability and a quick engagement feel with 66 points of engagement. Development of the ZR1 took more than two years and included more than 58,500 km of test riding as part of 3,222 hours of total testing.

The ZR1 incorporates key technology from Zipp’s Cognition hubs, including a seal design with a large dust cap at the base of the driver body and improved bearing seals for additional protection. The six pawls are offset into two groups of three, with three pawls engaging at any time to provide the specified quick engagement feel. The driver body is designed to keep the pawls in place during disassembly for convenient service. Zipp hubs are designed for J-bend spokes, which are widely available and easier to replace. This version features a 24-hole configuration, SRAM/Shimano Road driver body, and Center Lock disc brake interface.

Features:

  • Better sealing, increasing durability over the previous hub model
  • Quick engagement for a responsive ride
  • Lightweight design
  • Same bearing size and caps as the premium-level Cognition hub
  • E-bike certified
  • Disc brake hub with Center Lock rotor interface
  • Lock ring included
  • Available in disc and rim brake variants
  • Through axles or QR with removable end caps
  • XDR or SRAM / Shimano variants
  • Lifetime Warranty
  • Designed for J-bend spokes
  • Driver body designed to keep pawls in place during disassembly

Specifications:

  • Brand: Zipp
  • Model: ZR1
  • Orientation: Rear
  • Axle Type: TA 12x142
  • Spoke Holes: 24
  • Brake Compatibility: Disc (Center Lock)
  • Driver Body Type: SRAM/Shimano Road
  • Over Locknut Material: n/a
  • Color (Hub): Black
  • Driver Mechanism: 12 Pawls Leaf Spring, 132 POE
  • Axle Material: Aluminum front & rear
  • Axle - Convertible: No
  • Driver Body Material: Aluminum
  • Hub Shell: Aluminum – Angled flanges – Fully machined
  • OLD: 142mm
  • Bearings: Cartridge - Steel
  • Power Measurement: Not Compatible
