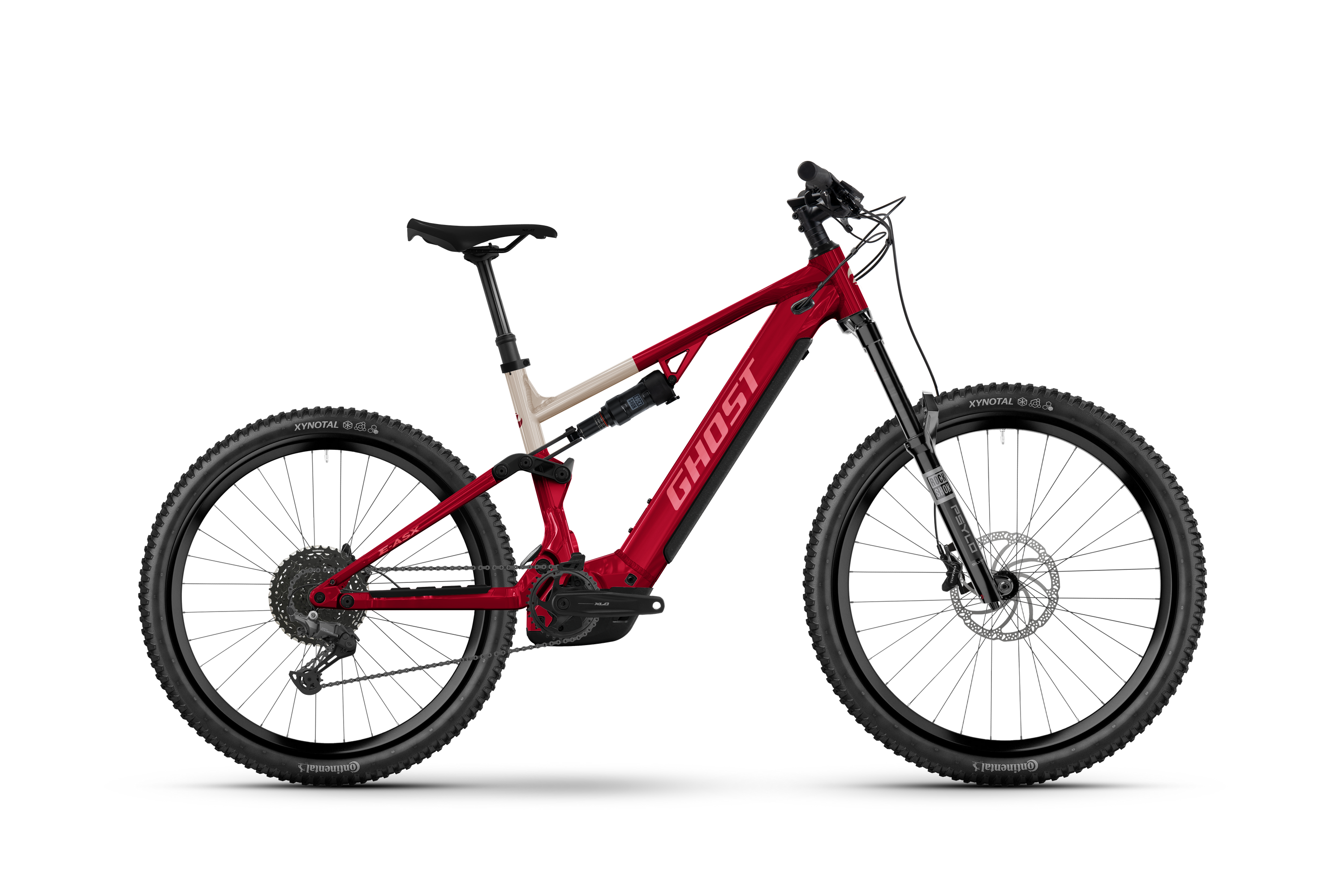

If you want to blast some trails without blasting your wallet, the E-ASX 160 Essential is the right choice for you! The E-ASX 160 Essential features a sophisticated aluminium frame, a snappy Bosch motor and a solid 160 mm travel. This e-mountain bike for touring and trails is the perfect companion for demanding descents and challenging uphills. The battery is elegantly integrated into the frame and the MX wheel concept provides additional confidence on steep downhills.
Alloy Frame
Rockshox Psylo Silver RC 160mm Fork
Rockshox Deluxe Select R Rear Shock
Bosch performance Line CX Motor
600Wh Powertube battery
Bike Geometry
- Bottom bracket drop [mm]: 9.9 mm
- Chain stay length [mm]: 450 mm
- Fork total length [mm]: 44 mm
- Head tube angle: 65 degrees
-
Head tube length [mm]:
- · 125 mm
- · 110 mm
- · 105 mm
- · 140 mm
-
Reach [mm]:
- · 480 mm
- · 455 mm
- · 430 mm
- · 510 mm
-
Stack [mm]:
- · 646 mm
- · 632 mm
- · 628 mm
- · 659 mm
-
Stand over height [mm]:
- · 796 mm
- · 793 mm
- Seat tube angle: 77 degrees
-
Seat tube length [mm]:
- · 455 mm
- · 430 mm
- · 405 mm
- · 495 mm
-
Top tube length [mm]:
- · 625 mm
- · 597 mm
- · 570 mm
- · 658 mm
-
Wheelbase [mm]:
- · 1266 mm
- · 1235 mm
- · 1208 mm
- · 1303 mm
Brake system
- Brake Front Description: Tektro, Hydraulic Disc brake, HD-M535, 4 pistons, resin pad, 203 mm
- Brake Front Mount: Post Mount
- Brake Rear Description: Tektro, Hydraulic Disc brake, HD-M535, 4 pistons, resin pad, 203 mm
- Brake Rear Mount: Post Mount
- Brake Lever Description: Tektro, HD-M535-BL
- Brake Rotor Description: Tektro, TR203-45 203 mm, Centerlock
Drivetrain
- Cassette Description: Shimano, CUES CS-LG300-10, HG
- Cassette Teeth: 11-48T
- Chain Description: Shimano, CN-LG500 9-11s, LINKGLIDE
- Chain Guide Description: MRP, 1x for Bosch BDU38 32-36T
- Crank Arm length: 165
- Crankset Description: XLC, CR-E40 DM Chainring BDU38 + CR-E18 Crankarms
- Crankset Teeth: 34T
- Crankset Type: single
- Derailleur Hanger Description: Glory Wheel, UDH
- Derailleur Rear Description: Shimano, CUES RD-U6000 10/11s, Shadow+
- Gear Description: Shimano, Derailleur
- Number Of Gears: 10
- Pedal Description: XLC, Flat Pedal PD-M29 w/ Reflector + integrated Pins
- Pedal Inclusive: Yes
- Shifter Right Description: Shimano, Triggershift, CUES SL-U6000-10R, Rapidfire+
E-bike components
- Battery Description: Bosch, InTube 600 Wh
- Battery Capacity: 600 Wh
- Battery Location: Powertube
- Charger Description: Bosch, Charger 2A 220-240V
- Display Description: Bosch, Kiox 300 + LED Remote
- Motor Description: Bosch, Performance Line CX
- Motor Torque [nm]: 85 Nm
- Motor Location: Center
Frame and more
-
Framesize:
- · 46 cm
- · 43 cm
- · 41 cm
- · 50 cm
-
Framesize Convection:
- · L
- · M
- · S
- · XL
- Max loadable weight (KG): 150 kg
- Front Fork Description: Rockshox, Psylo Silver RC, Crown Adjust, Solo Air, 160 mm
- Front Fork Type: Suspension
- Frame Description: HIGH, Aluminium, Uni
- Shock Description: Rockshox, Deluxe Select R 210x55mm, DebonAir+
- Type kickstand mount: KSA18
- Suspension Type: Fully
- Travel Front: 160 mm
- Travel Rear: 150 mm
Handlebar and Saddle
- Handgrip Description: XLC, MTB Grip Set VLG-1751D2
- Handlebar Description: XLC, Riser Bar, HB-M34, Dia. 35 mm, Rise: 20 mm, backsweep 9°
- Handlebar Diameter: 35 mm
- Handlebar Material: Aluminium
- Handlebar Rise: 20
- Handlebar Width: 800 mm
- Headset Description: Acros, Semi-integrated, Blocklock 120° Tapered ZS56/ZS56
- Saddle Description: XLC, Sport Comfort SA-S11 Steel Rail 155 mm
- Seatpost Description: XLC, Dropperpost, Dropper SP-T21, Dia. 34.9 mm, Travel: 200 mm, 555 mm
- Seatpost Material: Aluminium
-
Seatpost Travel (mm):
- · 200 mm
- · 170 mm
- · 150 mm
- Stem Description: XLC, ST-M50, Dia. 35 mm, L: 50 mm, A-Head
- Stem Length: 50 mm
Wheels and wheel components
- Hub Front Description: XLC, HF-M55 Boost 15x110 mm, 32H, Centerlock
- Hub Rear Description: XLC, HR-M55 Boost 12x148 mm, 32H, Centerlock, HG
- Rim Description: XLC, WR-M39 Disc 30/622 32H 6,5 mm Valve
- Rim Rear Description: XLC, WR-M37 Disc 30/584 32H 6,5 mm Valve
- Spoke Description: DT Swiss, FACTORY 2.0
- Tyre Description: Continental, Xynotal Trail Endurance, foldable skin SL, 60-622
- Tyre Rear Description: Continental, Xynotal Trail Endurance, foldable skin SL
- Wheelsize Description: 29, 27.5
