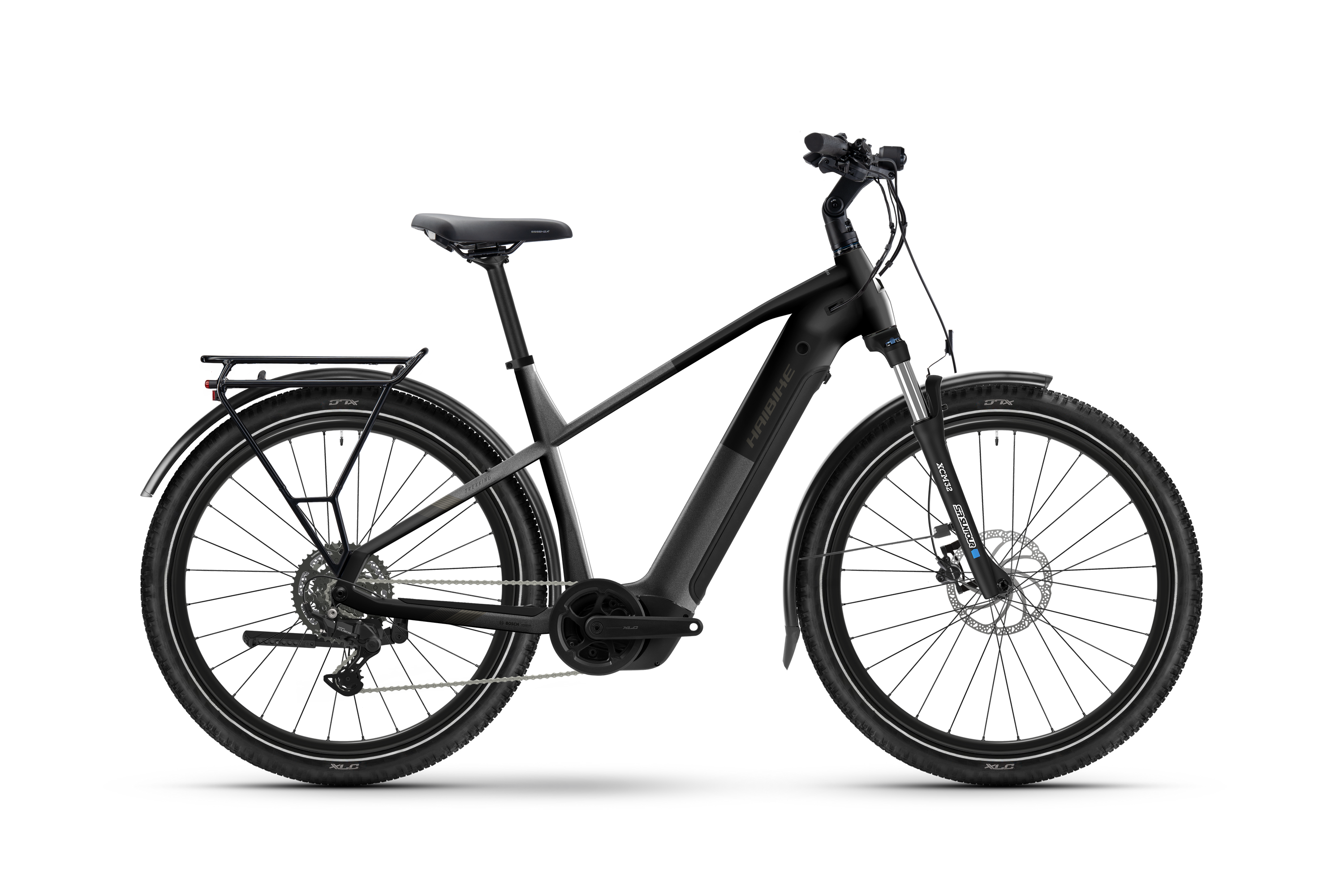

Make life easy – with the new HAIBIKE TREKKING 3. An eTrekking bike for anyone who wants to just hop on and ride. No compromises. The new Bosch Performance motor delivers smooth support, while the 540Wh battery provides enough range for your daily routine, weekend trips and everything in between. Comfort is key: an adjustable stem, suspension fork and relaxed riding position make every journey a pleasure. You also get full everyday practicality – with mudguards, lights, MIK luggage rack and road-legal equipment. Plus: thanks to the Modular Rail System, you can easily add accessories like frame bags, locks or bottle holders. Available in high- and low-step versions, the TREKKING 3 fits right into your life – and offers unbeatable value for money.
Alloy Frame
Suntour XCM34 120mm Fork
Bosch Performance Line 75Nm Motor
540Wh Powertube Battery
Shimano CUES 9 Speed Gearing
Bike Geometry
- Bottom bracket drop [mm]: 60 mm
- Chain stay length [mm]: 465 mm
- Fork total length [mm]: 44 mm
- Head tube angle: 68 degrees
-
Head tube length [mm]:
- · 155 mm
- · 140 mm
- · 170 mm
-
Reach [mm]:
- · 443 mm
- · 432 mm
- · 422 mm
- · 462 mm
-
Stack [mm]:
- · 670 mm
- · 656 mm
- · 684 mm
-
Stand over height [mm]:
- · 760 mm
- · 790 mm
- Seat tube angle: 74 degrees
-
Seat tube length [mm]:
- · 500 mm
- · 450 mm
- · 400 mm
- · 550 mm
-
Top tube length [mm]:
- · 635 mm
- · 620 mm
- · 610 mm
- · 658 mm
-
Wheelbase [mm]:
- · 1198 mm
- · 1181 mm
- · 1171 mm
- · 1223 mm
Brake system
- Brake Front Description: Tektro, Hydraulic Disc brake, HD-M280, 2 pistons resin pad, 180 mm
- Brake Front Mount: Post Mount
- Brake Rear Description: Tektro, Hydraulic Disc brake, HD-M280, 2 pistons, resin pad, 180 mm
- Brake Rear Mount: Post Mount
- Brake Lever Description: Tektro, HD-M280-BL
Carrier
- Carrier Rear Description: Easylife, MIK, System luggage carrier
- Max Weight Carrier Rear: 27 kg
Drivetrain
- Cassette Description: Shimano, CUES CS-LG300-9, HG
- Cassette Teeth: 11-46T
- Chain Description: KMC, Chain, eGlide with EPT Coating 9-11s
- Crankset Description: XLC, CR-E18 CRNKS + Chainring CR-E15 BDU38 + Bashring
- Crankset Teeth: 38T
- Crankset Type: single
- Derailleur Rear Description: Shimano, CUES RD-U4000-GS 9s, Shadow
- Gear Description: Shimano, Derailleur, CUES
- Number Of Gears: 9
- Pedal Description: XLC, Flat Pedal PD-M30 w/ Reflector + integrated Pins
- Shifter Right Description: Shimano, Triggershift, CUES SL-U4010-9R, Rapidfire+
E-bike components
- Battery Description: Bosch
- Battery Capacity: 540 Wh
- Battery Location: Powertube
- Battery Removeable: Yes
- Charger Description: Bosch, Charger 2A 220-240V
- Display Description: Bosch, Intuvia 100, Intuvia 100 + LED Remote
- Motor Description: Bosch, Performance Line, Performance Line
- Motor Torque [nm]: 75 Nm
- Motor Location: Center
Frame and more
-
Framesize:
- · 50 cm
- · 45 cm
- · 40 cm
- · 55 cm
-
Framesize Convection:
- · L
- · M
- · S
- · XL
- Max loadable weight (KG): 150 kg
- Front Fork Description: Suntour, XCM32 Boost DS Coil 100 mm
- Front Fork Type: Suspension
- Frame Description: High, Aluminium, Uni
- Stand Description: XLC, Single, Mooi 18 mm, Max. Length: 333 mm
Handlebar and Saddle
- Handgrip Description: XLC
- Handlebar Description: XLC, Riser Bar, HB-C32, Dia. 31.8 mm, Rise: 25 mm, backsweep 15°
- Handlebar Material: Aluminium
- Headset Description: Feimin, Semi-integrated, FP-H858U ZS44 + ACROS BlockLock ZS56
- Saddle Description: XLC, SA-S10 143 mm Sport
- Seatpost Description: XLC, Non Suspension, SP-R30, Dia. 34.9 mm, L: 450 mm
- Seatpost Material: Aluminium
- Stem Description: XLC, ST-M36, Dia. 31.8 mm, L: 70 mm, A-Head
Lighting
- Brake Light: No
- Front Light Description: Herrmans, MR5, Standard bracket, 40 Lux
- Rear Light Description: AXA, Juno E-Bike, 6-12V
Wheels and wheel components
- Hub Front Description: XLC, HF-M15 Boost 15x110 mm, 32H, 6 bolt Disc
- Hub Rear Description: XLC, HR-M15 Boost 12x148 mm, 32H, 6 bolt Disc, HG
- Mudguard Front Description: Curana, Apollo 70, extra matte black
- Mudguard Rear Description: Curana, Apollo 70, extra matte black
- Rim Description: XLC, WR-M17 Disc 25/584 32H 6,5 mm Valve
- Spoke Description: Sapim, Leader Dia. 2.0 mm
- Tyre Description: XLC, VT-T45 Toorak w/ reflective stripes, 60-584
- Wheelsize Description: 27.5
