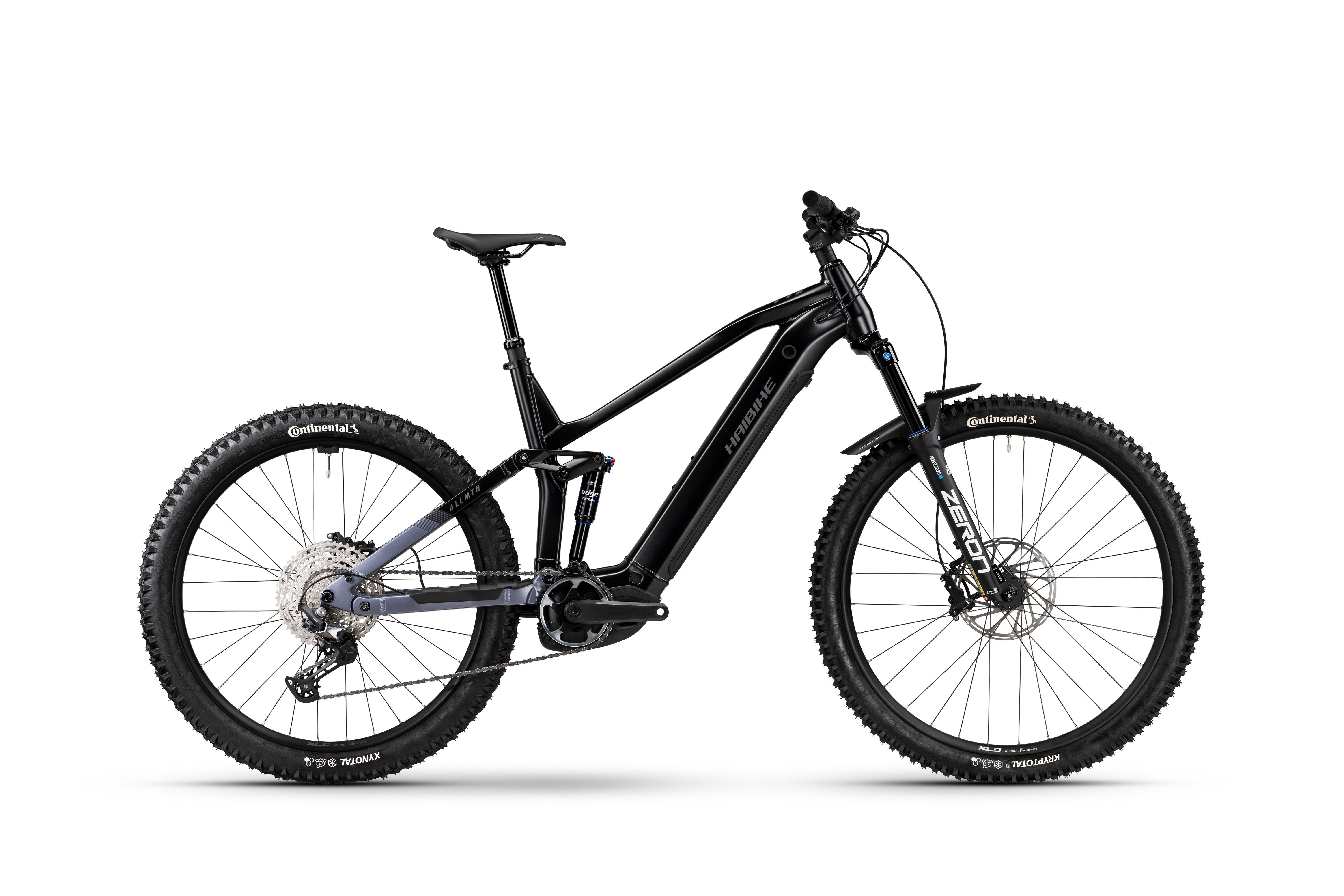

Tricky root sections, flowing trails, steep climbs. The HAIBIKE ALLMTN 2 is your ticket to a world of limitless all-mountain possibilities. A bike that opens up every route. Thanks in part to its mountain-ready all-round equipment, which has been comprehensively updated for the new season: with 160mm travel front and rear, wide Continental knobbly tyres and a mixed wheel setup – 29" at the front, 27.5" at the rear – you’ll cruise confidently over any downhill obstacle while still enjoying perfect traction on steep climbs. The powerful Bosch Performance Line CX motor helps you tackle even the steepest gradients. Plus the 800Wh battery ensures you can fully enjoy electric tailwinds even on long tours. In short: with this eMTB, you’ll experience serious off-road fun – no matter how challenging the terrain.
Alloy Frame
Suntour Zeron 36X Boost Fork
Suntour EDGE-X R Rear Shock
Bosch performance Line CX Motor
Bosch 800Wh Powertube Battery
Bike Geometry
- Bottom bracket drop [mm]: 20 mm
- Chain stay length [mm]: 455 mm
- Head tube angle: 64.5 degrees
-
Head tube length [mm]:
- · 135 mm
- · 140 mm
- · 130 mm
-
Reach [mm]:
- · 468 mm
- · 501 mm
- · 408 mm
- · 435 mm
-
Stack [mm]:
- · 656 mm
- · 660 mm
- · 651 mm
-
Stand over height [mm]:
- · 760 mm
- · 770 mm
- Seat tube angle: 75 degrees
-
Seat tube length [mm]:
- · 465 mm
- · 485 mm
- · 405 mm
- · 435 mm
-
Top tube length [mm]:
- · 628 mm
- · 662 mm
- · 567 mm
- · 594 mm
-
Wheelbase [mm]:
- · 1268 mm
- · 1303 mm
- · 1206 mm
- · 1233 mm
Brake system
- Brake Front Description: Sram, Hydraulic Disc brake, DB4 Stealth A-MAJIG, 4 pistons, org. pad, 200 mm
- Brake Front Mount: Post Mount
- Brake Rear Description: Sram, Hydraulic Disc brake, DB4 Stealth A-MAJIG, 4 pistons, org. pad, 203 mm
- Brake Rear Mount: Post Mount
- Brake Lever Description: Sram, DB4 Stealth-BL
- Brake Rotor Description: Sram, DB Rotor Centerline 200 / 203 mm, 6 bolt Disc
Drivetrain
- Cassette Description: Shimano, Deore CS-M6100-12, MICRO SPLINE
- Cassette Teeth: 10-51T
- Chain Description: Shimano, Deore CN-M6100 12s
- Chain Guide Description: Winning, WI-38L-95 Chainguide
- Crank Arm length: 160
- Crankset Description: XLC, CR-E18 CRNKS + CR-E15 Chainring for Bosch BDU38
- Crankset Teeth: 36T
- Crankset Type: single
- Derailleur Hanger Description: Glory Wheel, UDH
- Derailleur Rear Description: Shimano, Deore RD-M6100-SGS 12s, Shadow+
- Gear Description: Shimano, Derailleur, Deore
- Number Of Gears: 12
- Pedal Description: XLC, Flat Pedal PD-M29 w/ Reflector + integrated Pins
- Pedal Inclusive: Yes
- Shifter Right Description: Shimano, Triggershift, Deore SL-M6100-R, Rapidfire+
E-bike components
- Battery Description: Bosch, InTube 800Wh
- Battery Capacity: 800 Wh
- Battery Location: Powertube
- Battery Removeable: Yes
- Charger Description: Bosch, Charger 2A 220-240V
- Display Description: Bosch, Purion 200, Purion 200
- Motor Description: Bosch, Performance Line CX, Performance Line CX
- Motor Torque [nm]: 85 Nm
- Motor Location: Center
Frame and more
-
Framesize:
- · 47 cm
- · 49 cm
- · 41 cm
- · 44 cm
-
Framesize Convection:
- · L
- · XL
- · S
- · M
- Max loadable weight (KG): 135 kg
- Front Fork Description: Suntour, Zeron36X-Boost EQ 2CR DS 160 mm
- Front Fork Type: Suspension
- Frame Description: High, Aluminium, Uni
- Shock Description: Suntour, EDGE-X R 205x65mm, Trunnion
- Suspension Type: Fully
- Travel Front: 160 mm
- Travel Rear: 150 mm
Handlebar and Saddle
- Handgrip Description: XLC, GR-S34 Gravity Grip
- Handlebar Description: XLC, Riser Bar, HB-M34, Dia. 35 mm, Rise: 20 mm, backsweep 9°
- Handlebar Diameter: 35 mm
- Handlebar Material: Aluminium
- Handlebar Rise: 20
- Handlebar Width: 800 mm
- Headset Description: Acros, Semi-integrated, BlockLock 164° AZX-220-R4 ZS44/ZS56
- Saddle Description: XLC, SA-S10 143 mm Sport
- Seatpost Description: XLC, Dropperpost, Dropper SP-T21, Dia. 34.9 mm, Travel: 150 mm, 456 mm
- Seatpost Material: Aluminium
-
Seatpost Travel (mm):
- · 150 mm
- · 170 mm
- · 125 mm
- Stem Description: XLC, ST-M50, Dia. 35 mm, L: 40 mm, A-Head
- Stem Length: 40 mm
Wheels and wheel components
- Hub Front Description: XLC, HF-M55 Boost 15x110 mm, 32H, 6 bolt Disc
- Hub Rear Description: XLC, HR-M55 Boost 12x148 mm, 32H, 6 bolt Disc, MS
- Rim Description: XLC, WR-M39 Tryp EVO Disc 30/622 32H 6,5 mm Valve
- Rim Rear Description: XLC, WR-M37 Tryp EVO Disc 30/584 32H 6,5 mm Valve
- Spoke Description: Sapim, Race Dia. 2.0, J-Bend
- Tyre Description: Continental, Kryptotal-Fr, Trail Endurance, TR, 60-622
- Tyre Rear Description: Continental, Kryptotal-Re, Trail Endurance, TR
- Wheelsize Description: 29, 27.5
