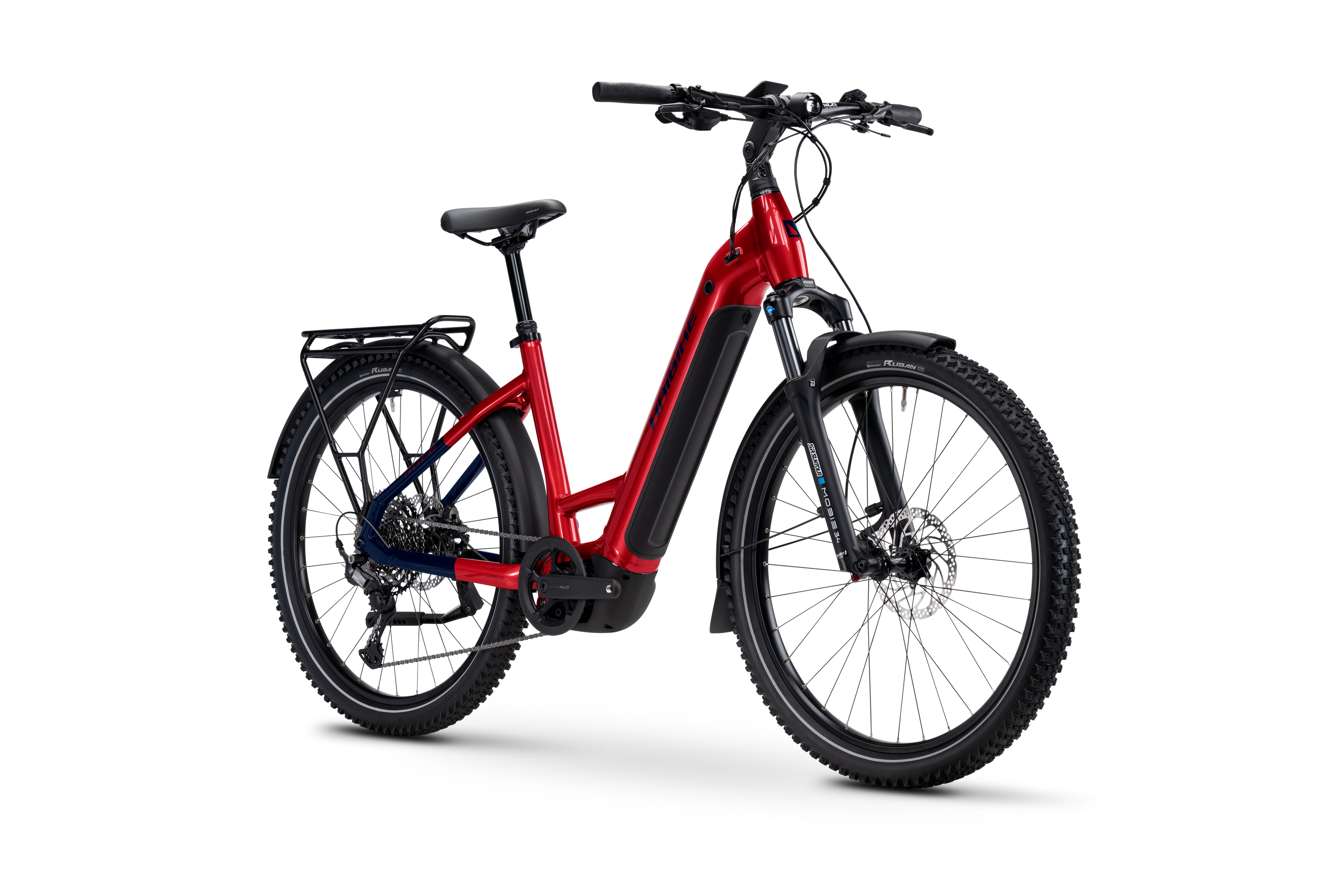

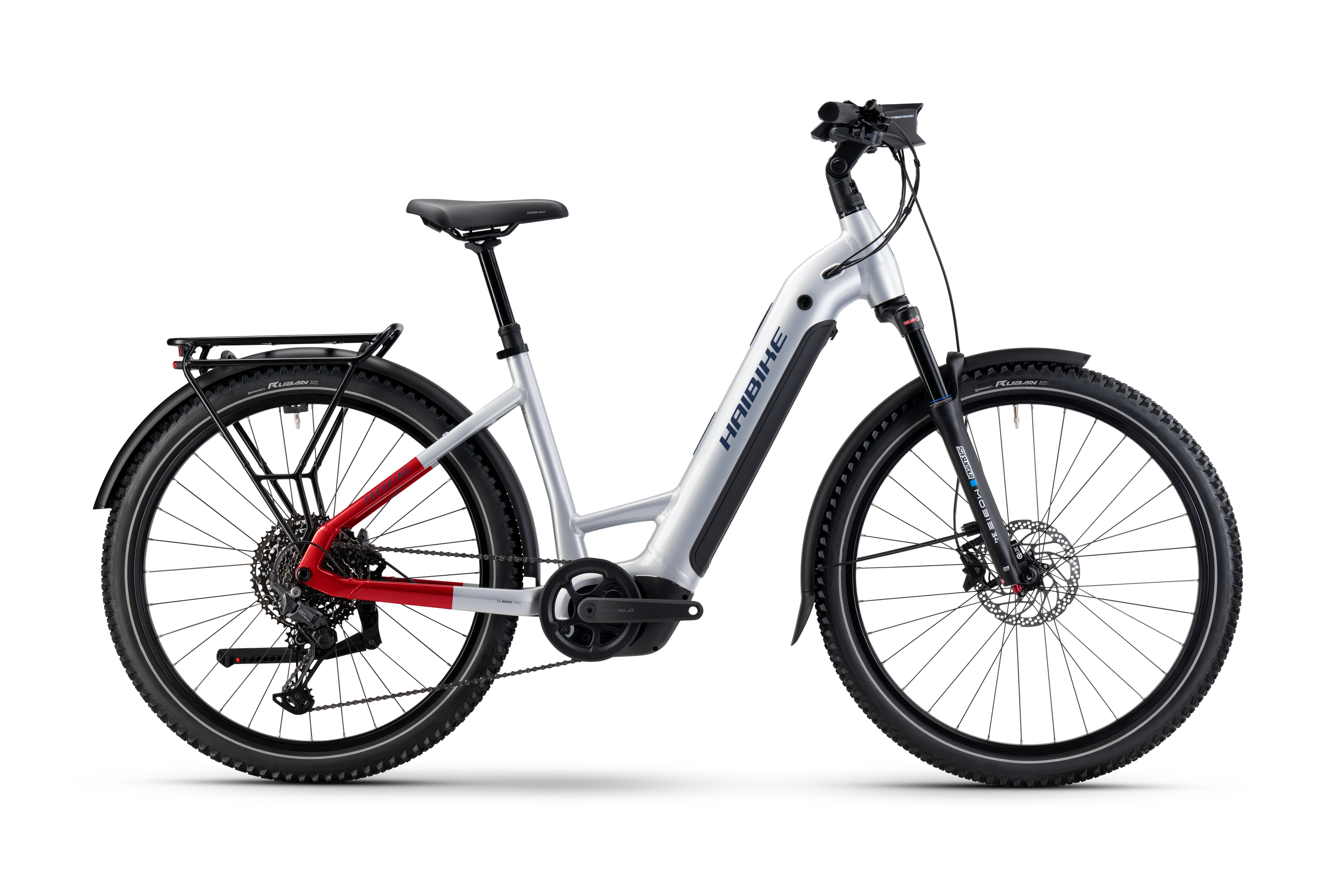

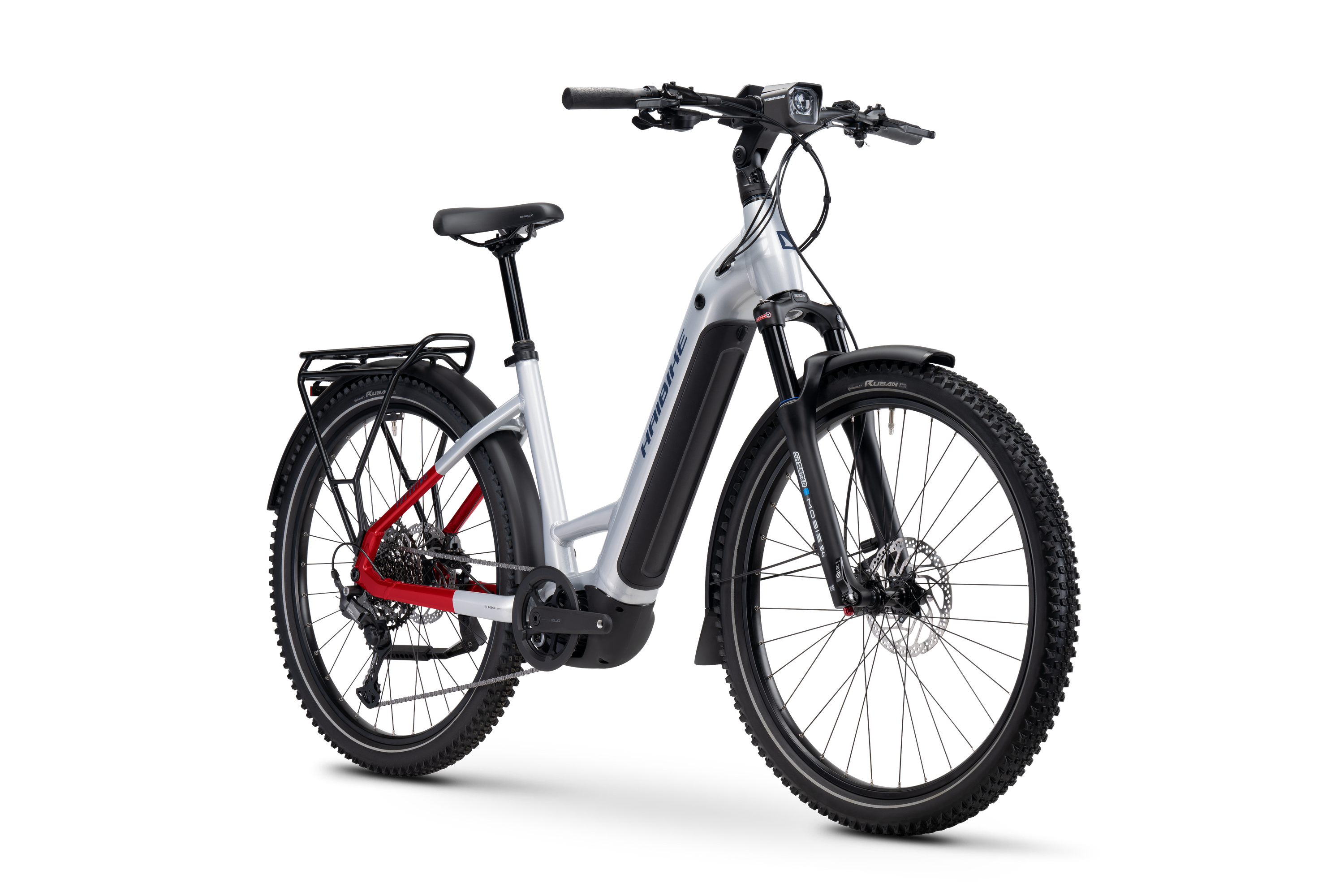

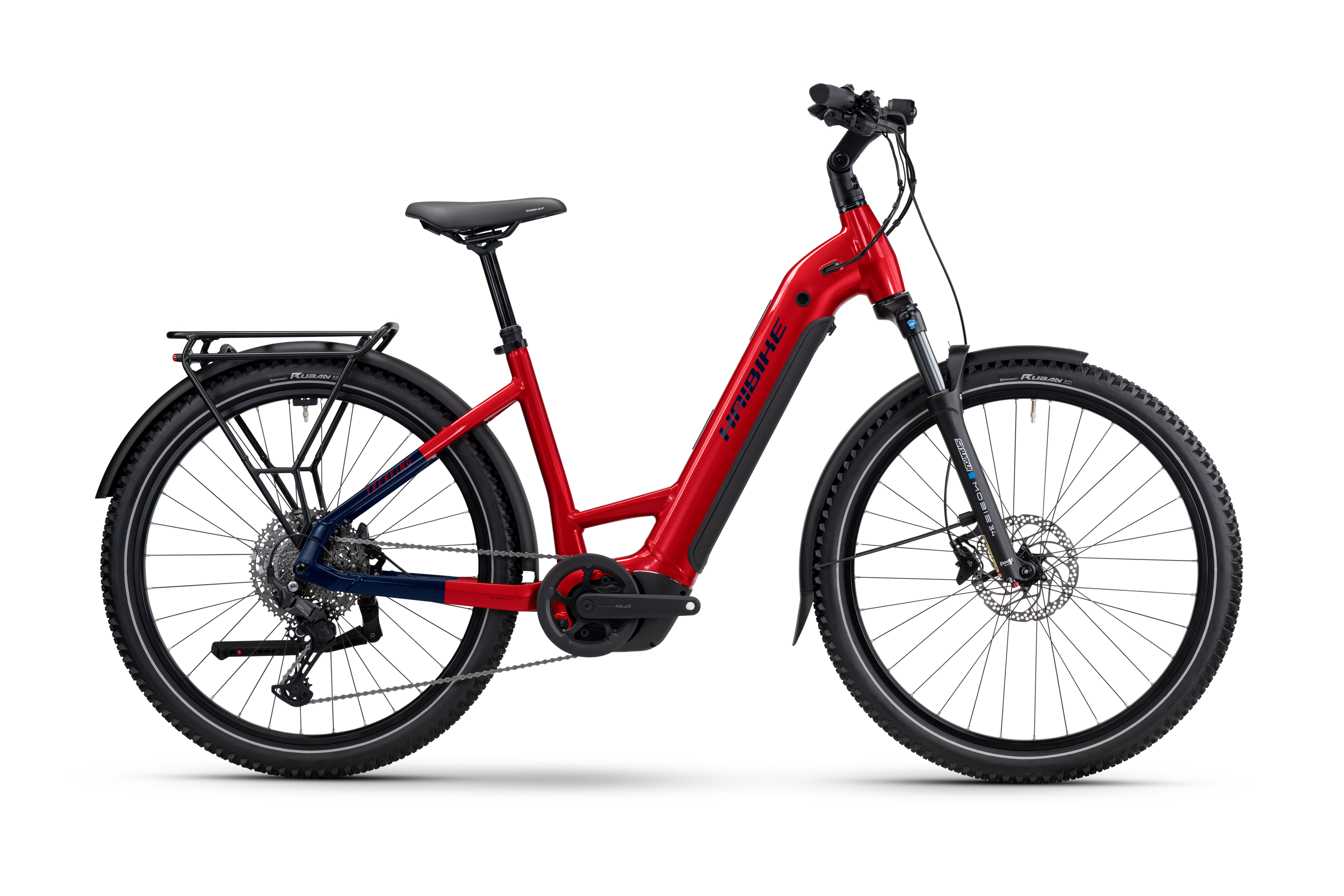

Riding fun meets comfort meets versatility. Whether it’s a sporty afterwork ride in the woods, your daily commute or a multi-day tour with luggage – our TREKKING 7 can do it all. This premium trekking eBike will impress you with its versatility, sense of adventure and high level of comfort. The powerful Bosch Performance CX motor provides strong support whenever you need it. With the 800Wh battery and the optional Range Extender, even full-day tours are no problem. The 100mm SR Suntour suspension fork ensures you’re well-equipped for moderate off-road rides, and the adjustable stem allows you to fine-tune your riding position. Plus, with StVZO features like mudguards, a rear rack and lighting, this eBike is fully road-compliant. Available in both high and low-frame versions. Perfect for those who value fun, comfort and versatility on every ride.
Alloy Frame
Suntour Mobie 34-D Boost 120mm Fork
Bosch Performance Line CX Motor
800Wh Powertube Battery
Shimano CUES 11 Speed Gearing
Bike Geometry
-
Bottom bracket drop [mm]:
- · 60 mm
- · 65 mm
-
Chain stay length [mm]:
- · 475 mm
- · 465 mm
- Fork total length [mm]: 44 mm
- Head tube angle: 68 degrees
-
Head tube length [mm]:
- · 175 mm
- · 155 mm
- · 150 mm
-
Reach [mm]:
- · 491 mm
- · 467 mm
- · 450 mm
-
Stack [mm]:
- · 552 mm
- · 534 mm
- · 524 mm
-
Stand over height [mm]:
- · 470 mm
- · 480 mm
- Seat tube angle: 73 degrees
-
Seat tube length [mm]:
- · 500 mm
- · 450 mm
- · 380 mm
-
Top tube length [mm]:
- · 660 mm
- · 630 mm
- · 610 mm
-
Wheelbase [mm]:
- · 1257 mm
- · 1225 mm
- · 1196 mm
Brake system
- Brake Front Description: Shimano, Hydraulic Disc brake, Deore BR-MT410, 2 pistons, resin pad, 180 mm
- Brake Front Mount: Post Mount
- Brake Rear Description: Shimano, Hydraulic Disc brake, Deore BR-MT410, 2 pistons, resin pad, 180 mm
- Brake Rear Mount: Post Mount
- Brake Lever Description: Shimano, BL-MT402-3A
Carrier
- Carrier Rear Description: Easylife, MIK, System luggage carrier
- Max Weight Carrier Rear: 27 kg
Drivetrain
- Cassette Description: Shimano, CUES CS-LG400-11, HG
- Cassette Teeth: 11-50T
- Chain Description: Shimano, Chain, CN-LG500 9-11s, LINKGLIDE
- Crankset Description: Miranda, Crius ISIS Crankset + Chainring Spiderless BDU38
- Crankset Teeth: 38T
- Crankset Type: single
- Derailleur Rear Description: Shimano, CUES RD-U6000 10/11s, Shadow+
- Gear Description: Shimano, Derailleur, CUES
- Number Of Gears: 11
- Pedal Description: VP, VPE-527 Alloy w/ Reflector
- Shifter Right Description: Shimano, Triggershift, CUES SL-U6000-11R, Rapidfire+
E-bike components
- Battery Description: Bosch
- Battery Capacity: 800 Wh
- Battery Location: Powertube
- Charger Description: Bosch, Charger 2A 220-240V
- Display Description: Bosch, Kiox 500, Kiox 500 + LED Remote
- Max Support Speed [km/h]: 25 km/h
- Motor Description: Bosch, Performance Line CX, Performance Line CX
- Motor Torque [nm]: 85 Nm
- Motor Location: Center
Frame and more
-
Framesize:
- · 50 cm
- · 45 cm
- · 38 cm
-
Framesize Convection:
- · L
- · M
- · S
- Max loadable weight (KG): 150 kg
- Front Fork Description: Suntour, MOBIE34-D-Boost, 2CR, Coil, 100 mm
- Front Fork Type: Suspension
- Frame Description: Low, Aluminium, Uni
- Stand Description: XLC, Single, Mooi 18 mm, Max. Length: 333 mm
Handlebar and Saddle
- Handgrip Description: XLC
- Handlebar Description: XLC, Riser Bar, JD-MTB579A, Dia. 31.8 mm, Rise: 15 mm
- Handlebar Material: Aluminium
- Headset Description: Cane Creek, Semi-integrated, Viscoset ZS44 + ACROS BlockLock ZS56
- Saddle Description: Selle Royal, Essenza+
- Seatpost Description: Limotec, Dropperpost, A1H Dropper, Dia. 34.9 mm, Travel: 125 mm
- Seatpost Material: Aluminium
- Stem Description: XLC, Trekking CAT2, Dia. 31.8 mm, L: 80 mm, A-Head
Lighting
- Brake Light: No
- Front Light Description: Trelock, Skybeamer 300, 6-24V
- Rear Light Description: Spanninga, Aerline 2.0 Brake
Wheels and wheel components
- Hub Front Description: Shimano, HB-TC500-15-B 15x110 mm, 32H, Centerlock
- Hub Rear Description: Shimano, FH-TC500-HM-B 12x148 mm, 32H, Centerlock, HG
- Mudguard Front Description: Curana, Apollo 70, extra matte black
- Mudguard Rear Description: Curana, Apollo 70, extra matte black
- Rim Description: Schurmann, YAK Disc 25-584 32H w/ single eyelets
- Spoke Description: Sapim, Leader Dia. 2.0 mm
- Tyre Description: Schwalbe, Johnny Watts w/ reflective line, 60-584
- Wheelsize Description: 27.5
