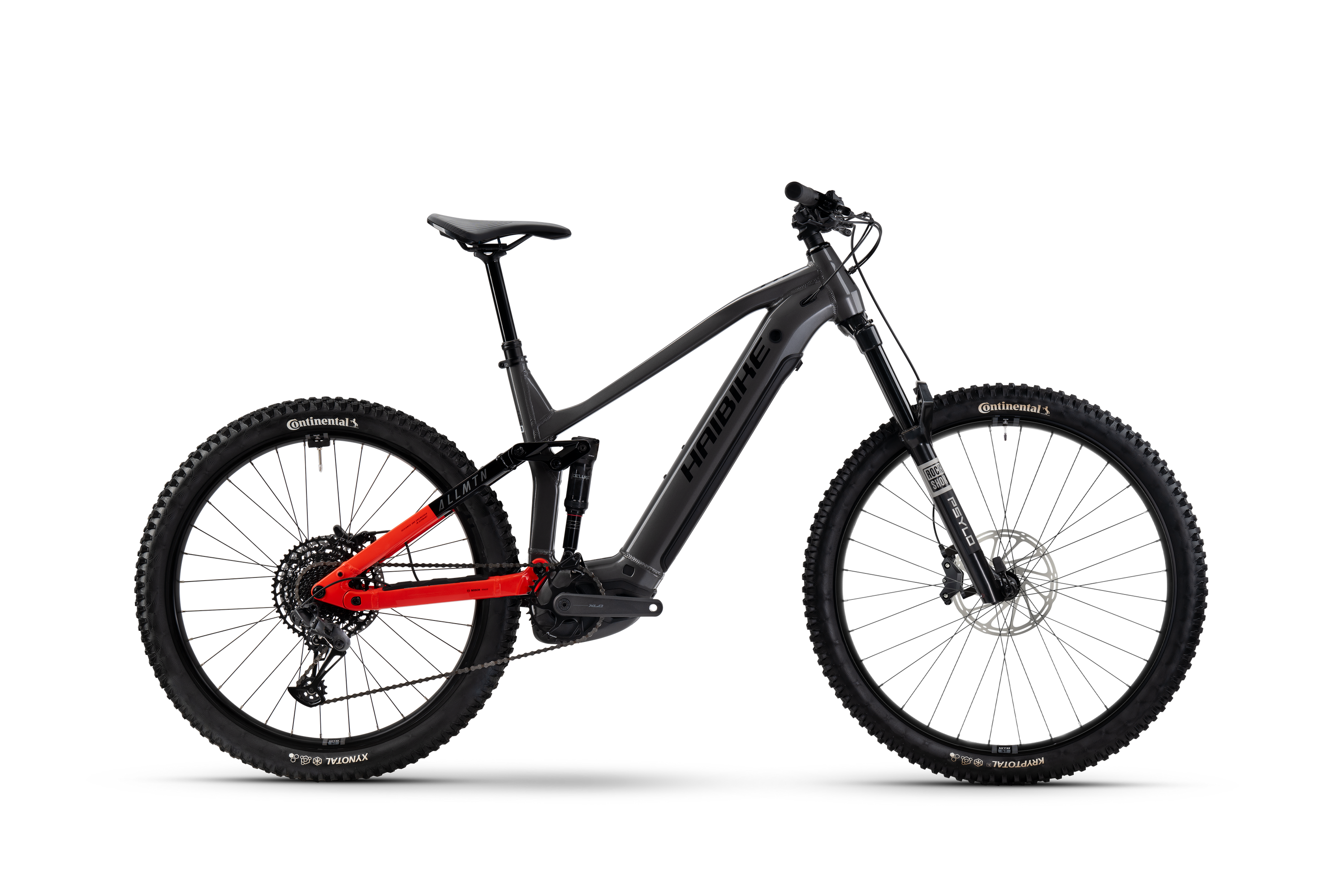

A rush of altitude and valley flow in one ride. Our HAIBIKE ALLMTN 4 bursts with riding fun – even when heading up high. That’s why we’ve equipped this all-mountain fully with a specially developed aluminium frame that strikes the perfect balance between weight saving, comfort and stiffness with its distinctive design. On top of that comes a strong component mix: the powerful Bosch Performance CX drive system with 800Wh battery and optional range extender lets you enjoy even long mountain rides without limits. Thanks to 160mm front and 150mm rear travel, you can go full throttle on the descents. And with SRAM gear components, you’ll always be in the right gear. In short: the ideal eMTB for rides where alpine thrills and downhill fun go hand in hand.
Alloy Frame
Rockshox Psylo Gold RC 160mm Fork
Rockshox Deluxe Select + Rear Shock
Bosch Performance Line CX Motor
800Wh Powertube battery
Bike Geometry
- Bottom bracket drop [mm]: 20 mm
- Chain stay length [mm]: 455 mm
- Fork total length [mm]: 44 mm
- Head tube angle: 64.5 degrees
-
Head tube length [mm]:
- · 130 mm
- · 135 mm
- · 140 mm
-
Reach [mm]:
- · 408 mm
- · 435 mm
- · 468 mm
- · 501 mm
-
Stack [mm]:
- · 651 mm
- · 656 mm
- · 660 mm
-
Stand over height [mm]:
- · 770 mm
- · 760 mm
- Seat tube angle: 75 degrees
-
Seat tube length [mm]:
- · 405 mm
- · 435 mm
- · 465 mm
- · 485 mm
-
Top tube length [mm]:
- · 567 mm
- · 594 mm
- · 628 mm
- · 662 mm
-
Wheelbase [mm]:
- · 1206 mm
- · 1233 mm
- · 1268 mm
- · 1303 mm
Brake system
- Brake Front Description: Sram, Hydraulic Disc brake, DB8 Stealth, 4 pistons, 200 mm
- Brake Front Mount: Post Mount
- Brake Rear Description: Sram, Hydraulic Disc brake, DB8 Stealth, 4 pistons, 203 mm
- Brake Rear Mount: Post Mount
- Brake Lever Description: Sram, DB8 Stealth-BL
- Brake Rotor Description: Sram, DB Rotor Centerline 200 / 203 mm, 6 bolt Disc
Drivetrain
- Cassette Description: Sram, XS-1270 Eagle T-Type, HG
- Cassette Teeth: 10-52T
- Chain Description: Sram, Chain, Eagle 70 T-Type 12s
- Chain Guide Description: Winning, WI-38L-95 Chainguide
- Crank Arm length: 160
- Crankset Description: XLC, CR-E18 CRNKS + SRAM CR T-Type Bosch DU38, DM
- Crankset Teeth: 36T
- Crankset Type: single
- Derailleur Rear Description: Sram, Eagle 70 T-Type 12s
- Gear Description: Sram, Derailleur
- Number Of Gears: 12
- Pedal Description: XLC, Flat Pedal PD-M29 w/ Reflector + integrated Pins
- Pedal Inclusive: Yes
- Shifter Right Description: Sram, Triggershift, Eagle 70 T-Type Single Click Trigger
E-bike components
- Battery Description: Bosch, InTube 800Wh
- Battery Capacity: 800 Wh
- Battery Location: Powertube
- Charger Description: Bosch, Charger 2A 220-240V
- Display Description: Bosch, Purion 200, Purion 200
- Motor Description: Bosch, Performance Line CX, Performance Line CX
- Motor Torque [nm]: 85 Nm
- Motor Location: Center
Frame and more
-
Framesize:
- · 41 cm
- · 44 cm
- · 47 cm
- · 49 cm
-
Framesize Convection:
- · S
- · M
- · L
- · XL
- Max loadable weight (KG): 135 kg
- Front Fork Description: Rockshox, Psylo Gold RC, Crown Adj, DebonAir 160 mm
- Front Fork Type: Suspension
- Frame Description: High, Aluminium, Uni
- Shock Description: Rockshox, Deluxe Select R 205x65mm, Trunnion, DebonAir
- Suspension Type: Fully
- Travel Front: 160 mm
- Travel Rear: 150 mm
