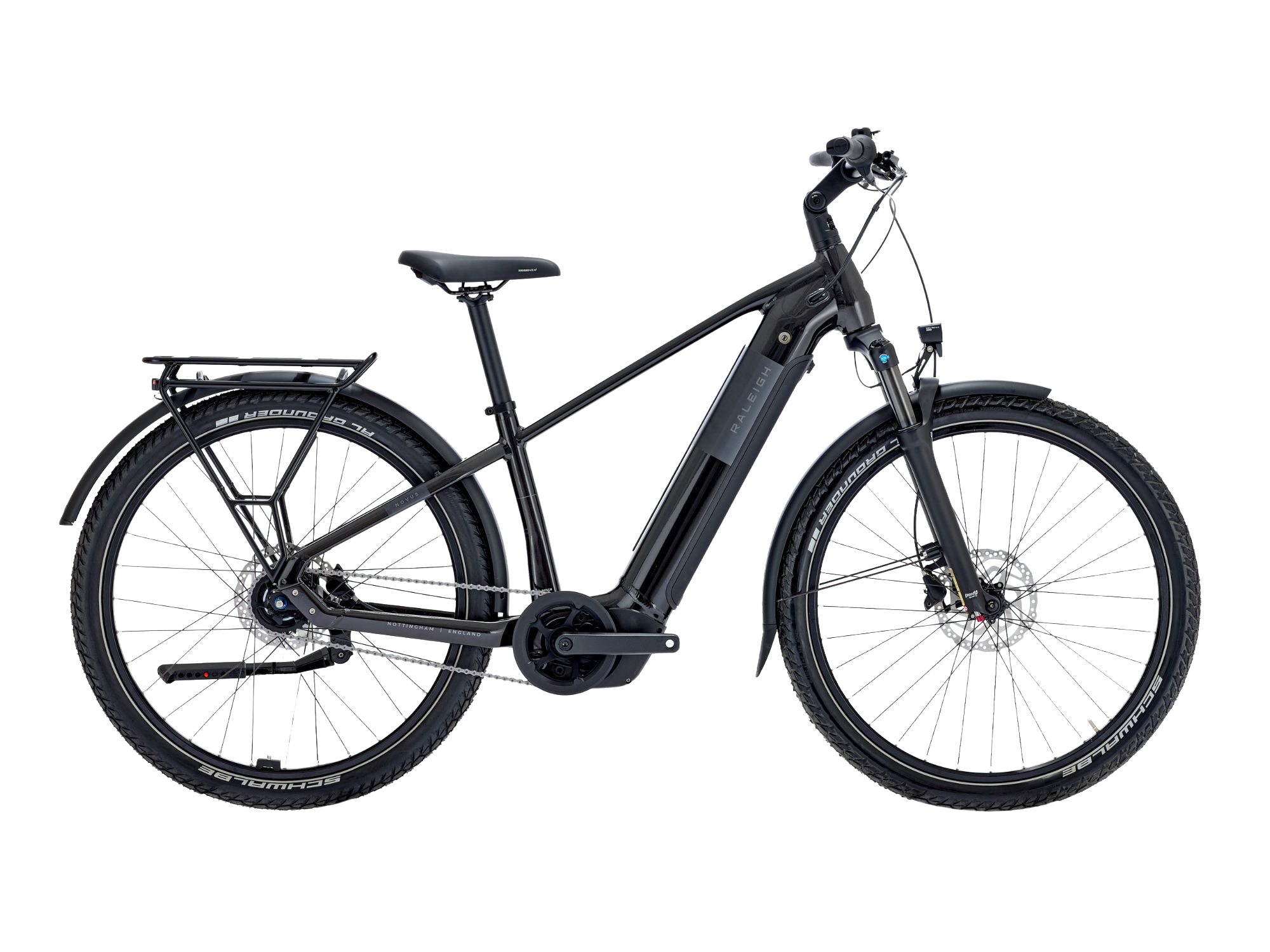

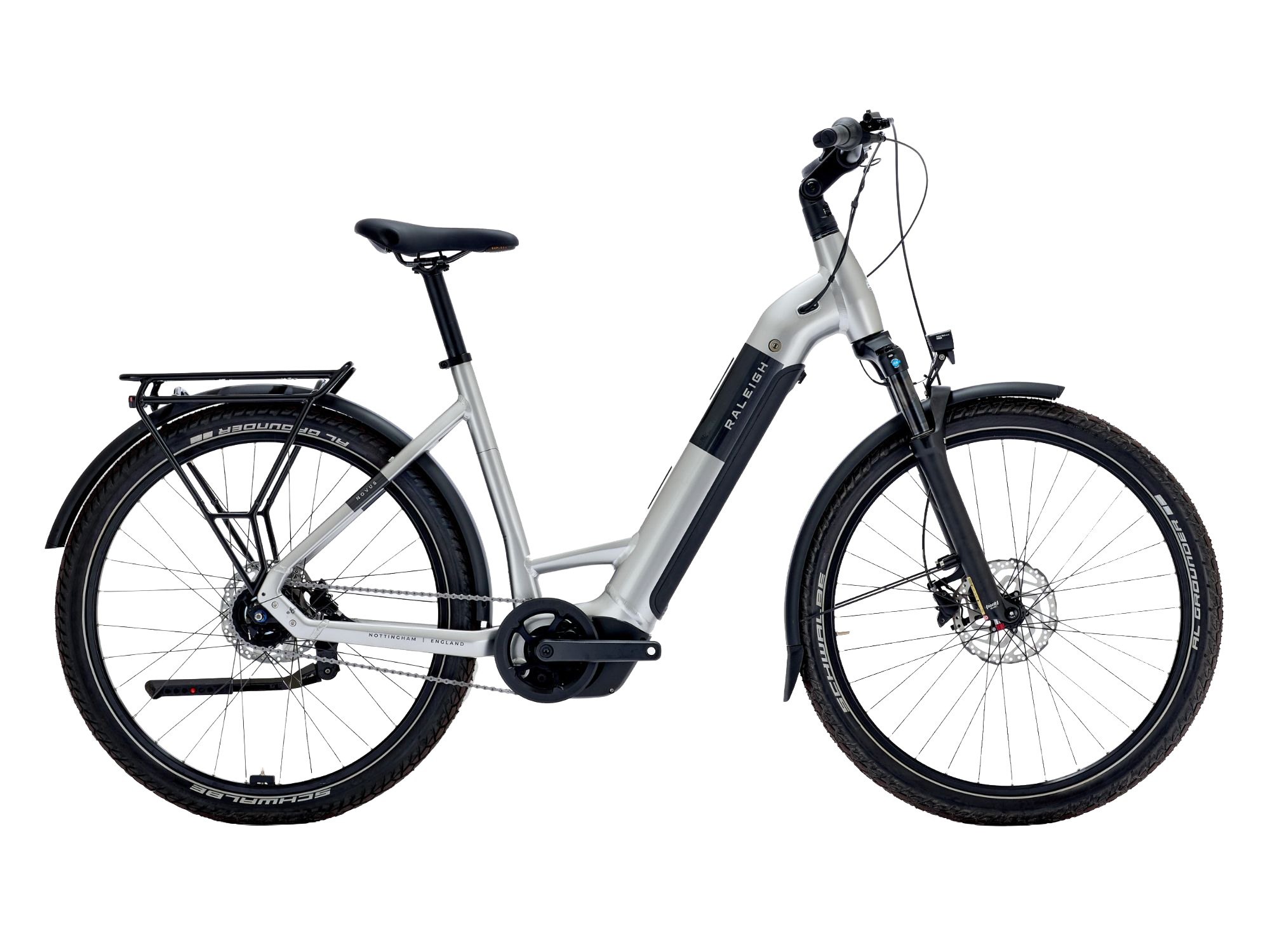

The Raleigh Novus Hub Gear. With 650B wheels, capable geometry, powerful Bosch Performance Line motor, 600Wh Powertube battery and the clever Modular Rail System (MRS) Fully equipped with integrated lights, mudguards and a MIK rear carrier. With a 5 speed Shimano Nexus Hub Gear system and Shimano Hydraulic disc brakes. Available in both Crossbar and Low Step versions.
6061alloy frame
Bosch Performance Line motor
Bosch Purion 200 display
600Wh Powertube battery
Shimano Nexus 5 speed hub gears
Brake system
- Brake Front Description: Shimano, Hydraulic Disc brake, Altus BR-MT200, 2 pistons, resin pad, 180 mm
- Brake Front Mount: Post Mount
- Brake Rear Description: Shimano, Hydraulic Disc brake, Altus BR-MT200, 2 pistons, resin pad, 180 mm
- Brake Rear Mount: Post Mount
- Brake Lever Description: Shimano, Altus BL-MT-200
- Third Brake: No
Carrier

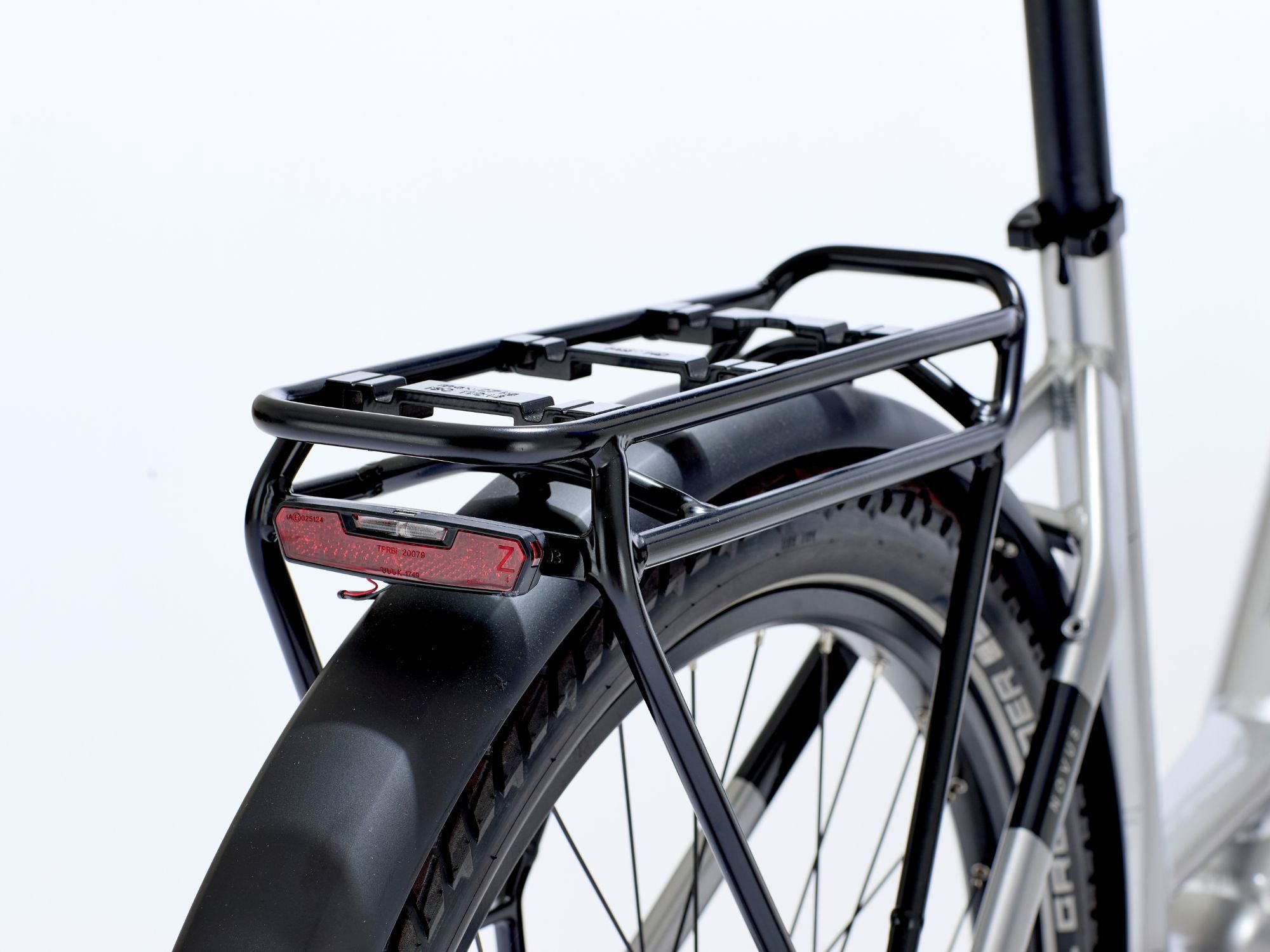

- Carrier Rear Description: Easylife, MIK, System Luggage Carrier
- Max Weight Carrier Rear: 27.5 kg
Drivetrain
- Cassette Description: KMC, Sprocket, Sprocket
- Cassette Teeth: 27T
- Chain Description: KMC, Chain, e1 EPT
- Chain Guard Description: Raleigh, Belt Guard Aax1AH-CBG
- Crankset Description: Samox, EC37-F9 ISIS Cranks + CR EMS05
- Crankset Teeth: 38T
- Crankset Type: single
- Gear Description: Shimano, Internal Gear Hub
- Automatic Gear: No
- Number Of Gears: 5
- Pedal Description: XLC, VPE-527 Alloy w/ Reflector
- Shifter Right Description: Shimano, Gripshift, Nexus SL-C7000-5, Revoshift
E-bike components
- Battery Description: Bosch
- Battery Capacity: 600 Wh

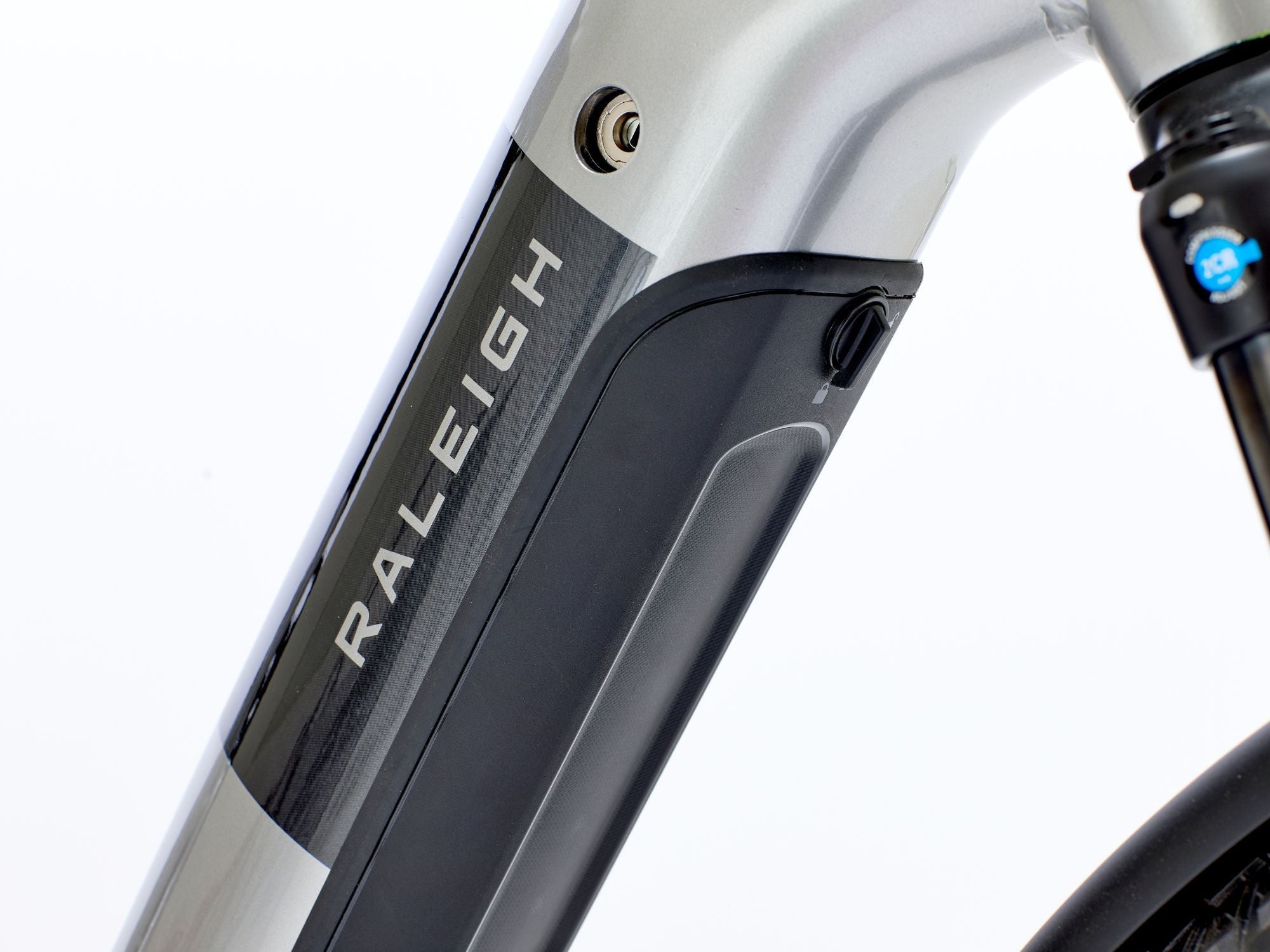

- Battery Location: Powertube
- Battery Removeable: Yes
- Charger Description: Bosch, Smart Charger, Charger 2A 220-240V
- Display Description: Bosch, Purion, Purion 200
- Display Removeable: Not Removable
- Max Support Speed [km/h]: 25 km/h
- Motor Description: Bosch, Performance Line
- Motor Torque [nm]: 75 Nm
- Motor Location: Center
- Sensor: Pedalforce, speed & rotation
- Power Handle: No
- Walk Assist: Yes
Frame and more
-
Framesize:
- · 38 cm
- · 45 cm
- · 50 cm
- · 40 cm
- · 55 cm
-
Framesize Convection:
- · S
- · M
- · L
- · XL
- Front Fork Description: Suntour, XCM34 DS Boost, 100 mm
- Front Fork Type: Suspension
- Frame Description: LOW, Aluminium, Low-Step
- Stand Description: Ursus, Single, R90 Mooi Plus, 40 mm, Adjustable, Anti-Noise
- Modular Rail System: Yes
Handlebar and Saddle
- Ring: Yes
- Handgrip Description: Herrmans

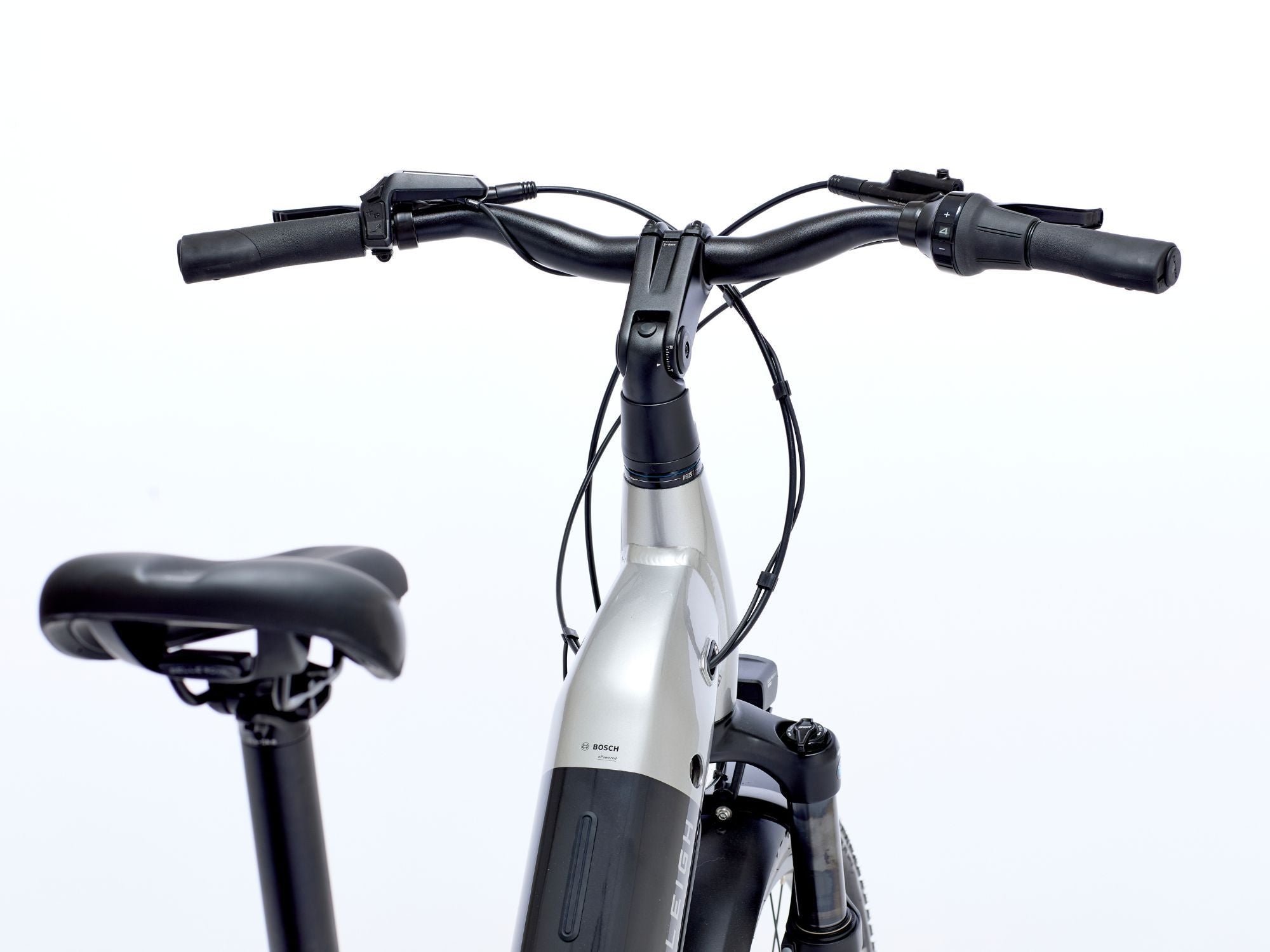

- Handlebar Description: XLC, Flat bar, JD-TR28AL, Dia. 31.8 mm, L: 640 mm
- Handlebar Material: Aluminium
- Headset Description: Feimin, Semi-integrated, TRK FP-H858U ZS44 / ACROS BlockLock ZS56
- Saddle Description: Selle Royal, Essenza+ A037DRN
- Seatpost Description: XLC, Non Suspension, SP-R30, Dia. 34.9 mm, L: 300 mm
- Seatpost Material: Aluminium
- Stem Adjustable: Yes
- Stem Description: XLC, JD-ST99A-1, Dia. 31.8 mm, L: 80 mm
Lighting
- Brake Light: No
- Front Light Description: AXA, Via E-bike System, NXT 45 E-Bike, 45 Lux, 5-12V
- Rear Light Description: AXA, Via E-bike System, Juno E-Bike, 6-12V
Other
- Connectivity App: Yes
- Suitable For Range Extender: Yes
- Suitable For Childseat: Yes
Wheels and wheel components
- Axle Type Front: Thru-axle Boost
- Axle Type Rear: Fixed
- Hub Front Description: Shimano, HB-TC500-15B 15x110 mm, 32H, Centerlock
- Hub Rear Description: Shimano, Nexus SG-C7000-5D, 32H, CL, Internal Geared Hub
- Mudguard Front Description: Curana, Apollo 70, extra matte black
- Mudguard Rear Description: Curana, Apollo 70, extra matte black
- Rim Description: Schurmann, YAK Disc 25-584 32H 8,5 mm Valve
- Spoke Description: Sapim, Leader Inox Dia. 2.0 mm
- Tyre Description: Schwalbe, Al Grounder Perf. RaceGuard, 60-584
- Tyre Rear Description: Wired Tire
- Wheelsize Description: 27.5
