Product Description
The Horizon Tour 10 Wave offers low-maintenance, everyday riding with a low step-through frame for easy mounting and convenience. LED lighting enhances visibility on busy city routes, and the Racktime carrier with KID'n'CARRY and SNAPIT 2.0 compatibility supports bags, baskets or a child seat.
Its belt-drive with internal gear hub delivers quiet, reliable shifting without the maintenance of a chain. The adjustable stem supports a relaxed riding posture, and SP Connect makes it easy to attach your smartphone for everyday riding and navigation. Full fenders and a 100mm suspension fork help smooth out rougher paths during longer rides. Schwalbe Energizer Plus tires provide reliable puncture protection and confident grip for urban and suburban terrain.
With strong support from the Bosch Performance Line PX motor and a 720Wh PowerTube battery, compatibility with the Bosch PowerMore battery and connectivity functions via the Bosch eBike Flow App, it's ready for extended trips and daily commutes.
Key Features
- Alloy frame, top extraction battery

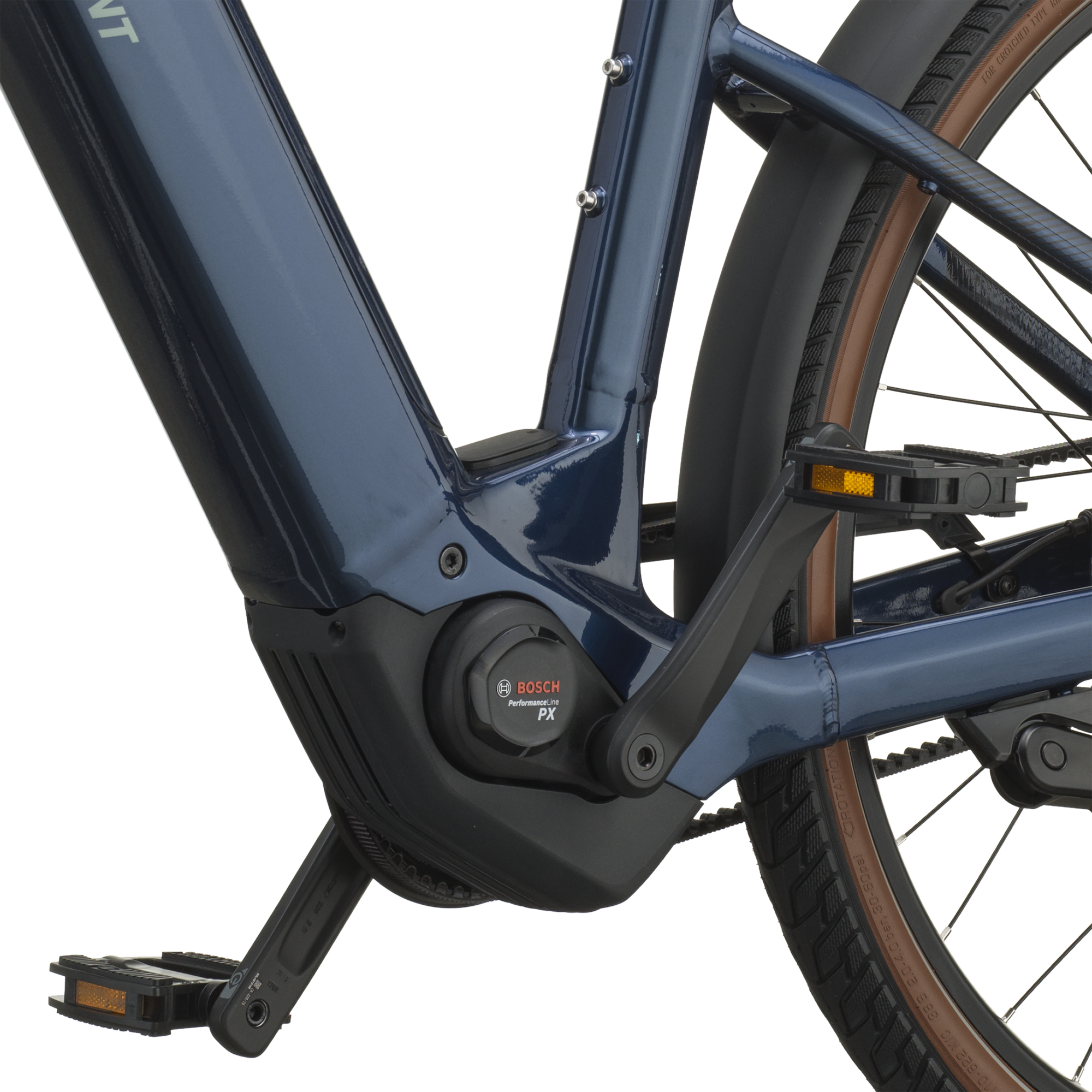

- Bosch Performance Line PX motor, up to 90Nm
- Bosch 720Wh removable battery

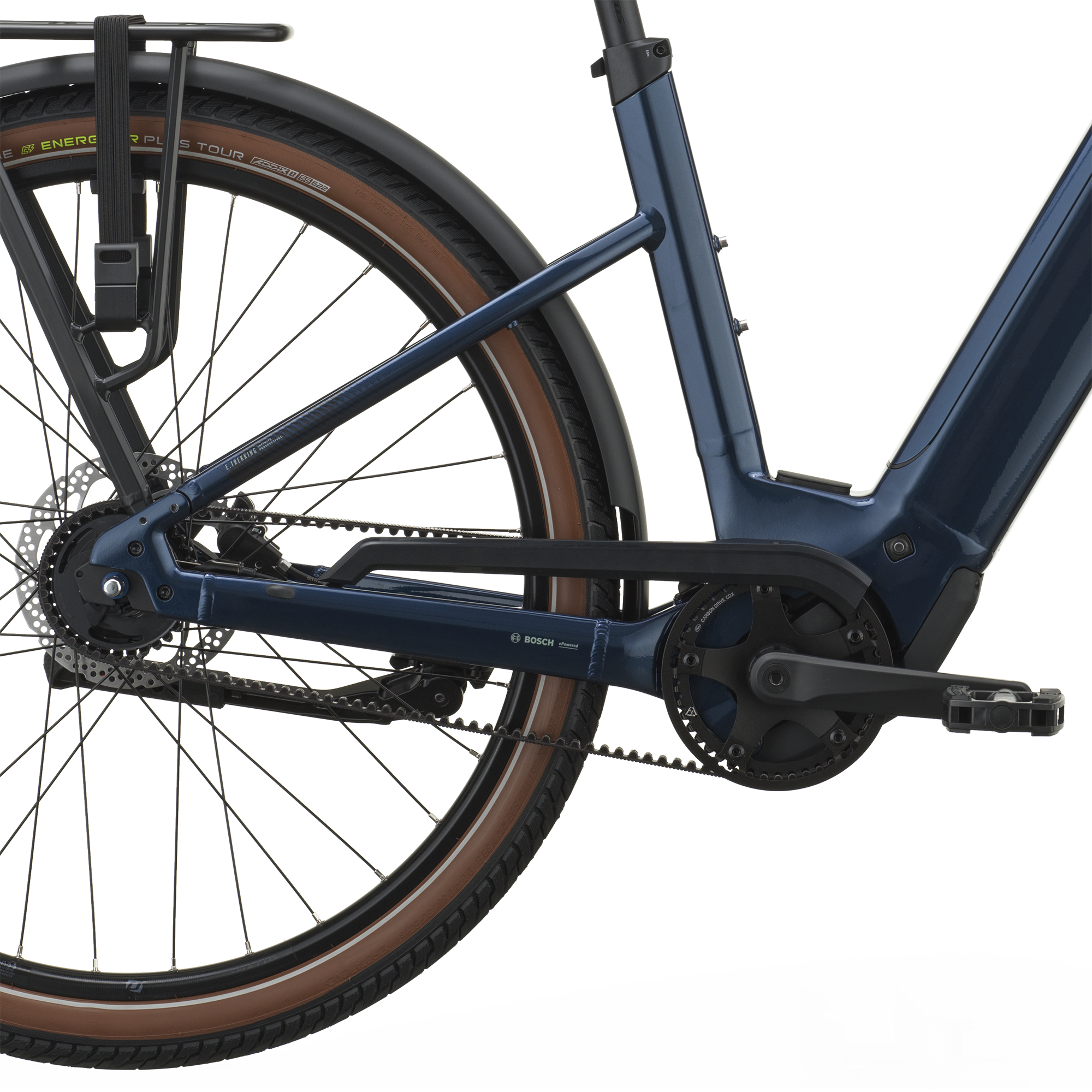

- Belt Drive and Shimano Nexus 5 speed gear hub

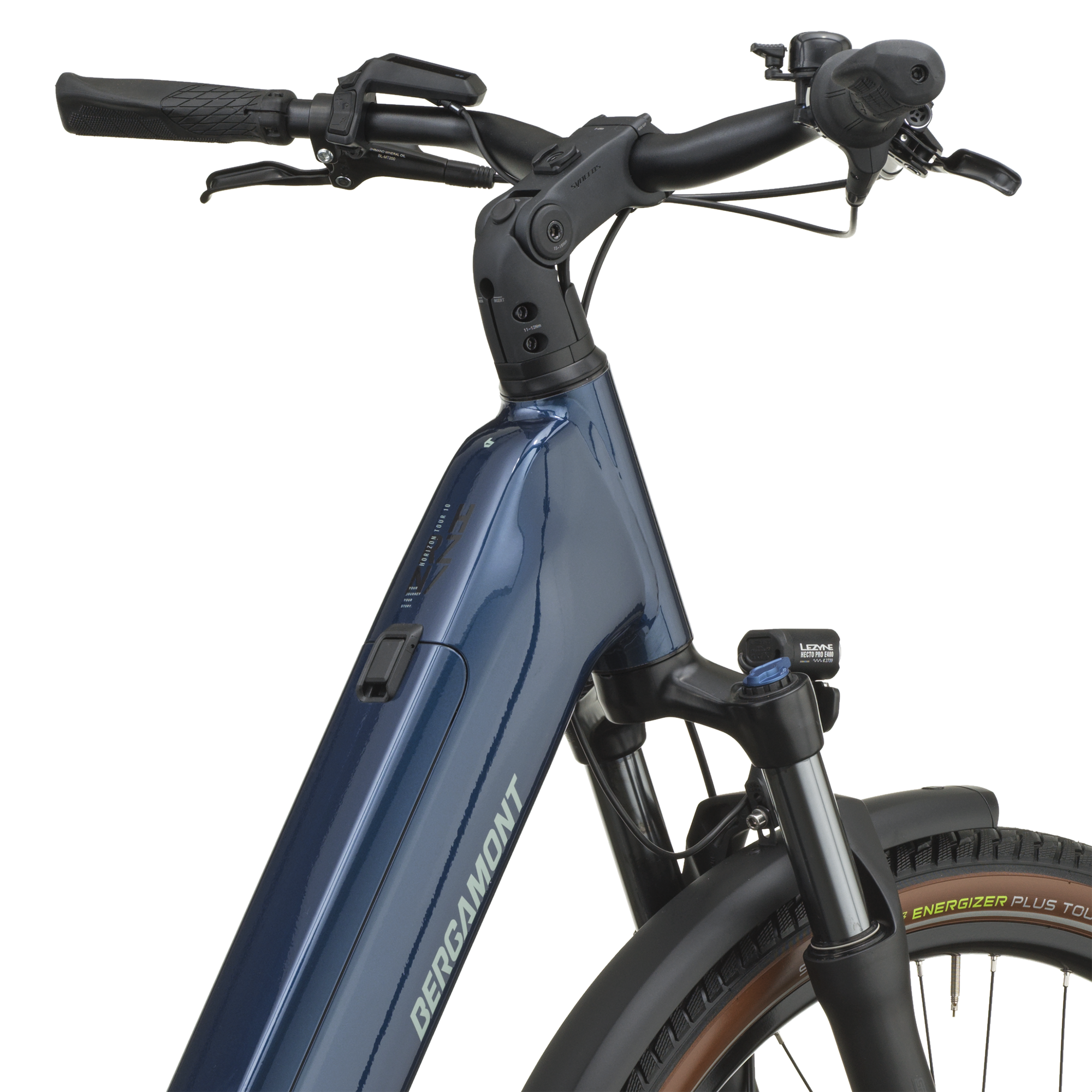

- Adjustable stem, SP Connect

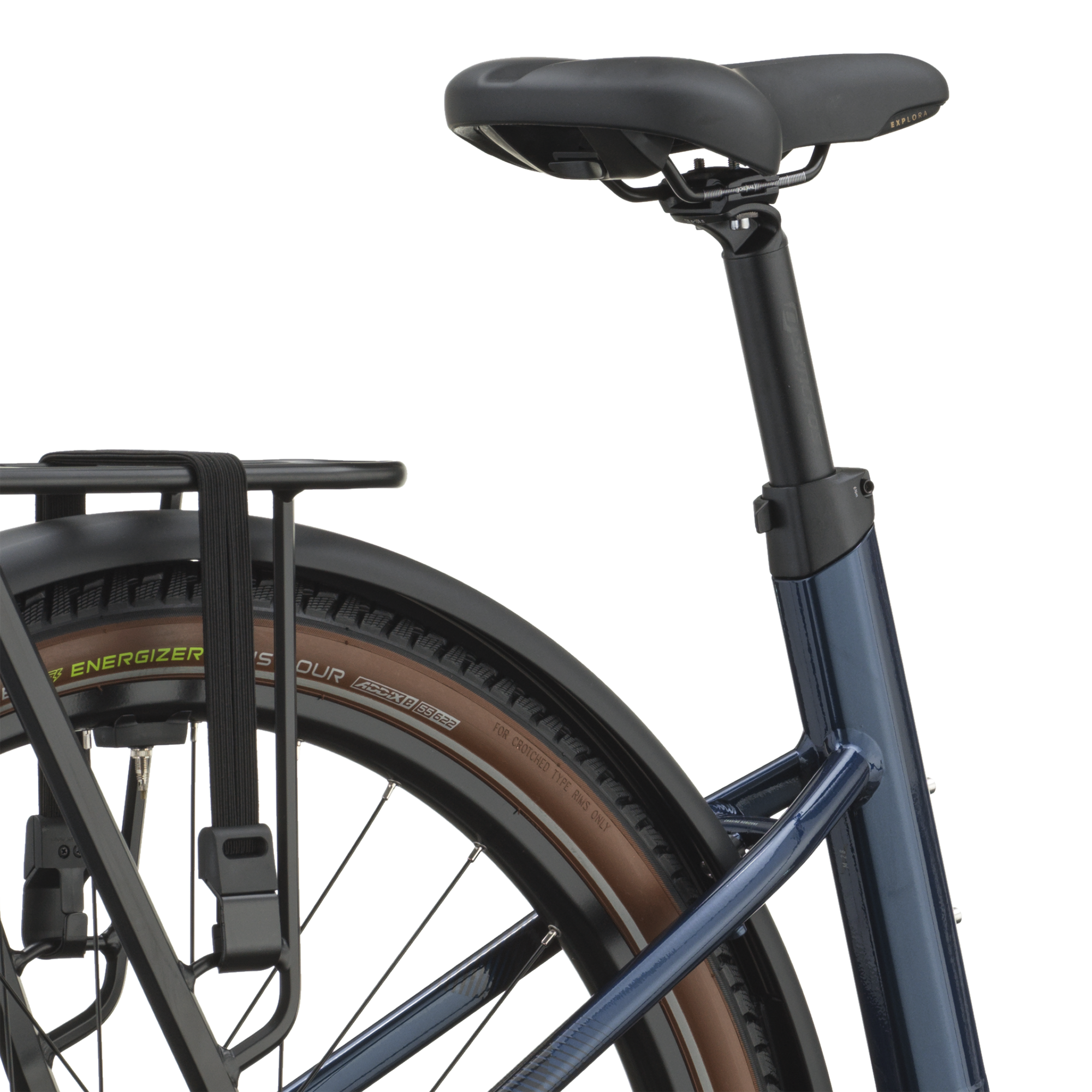

- Racktime rear rack with SNAPIT 2.0 30 Kg, KID'n'CARRY ready
- Lights: Lezyne Hecto Pro, 400 Lumen, integrated rear light

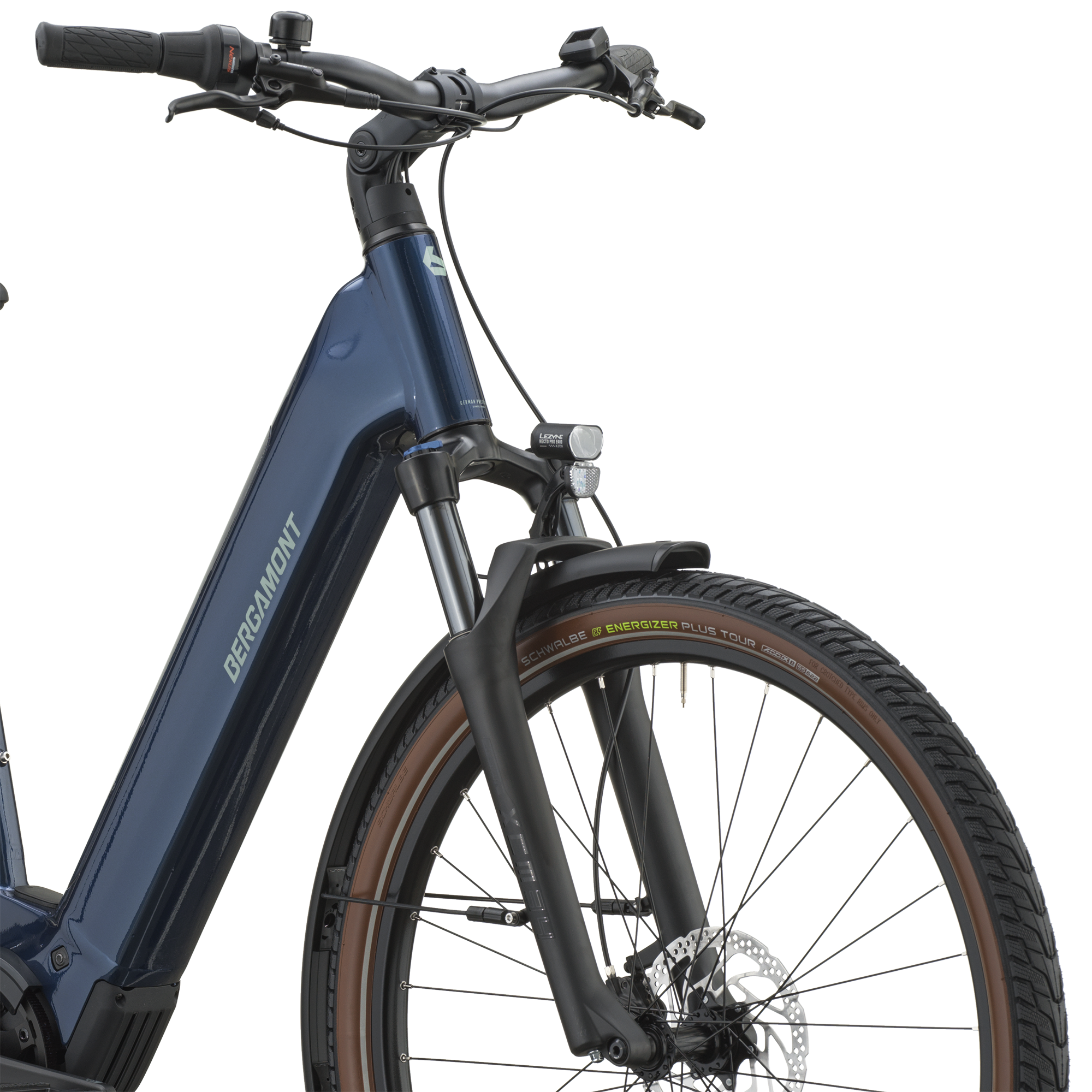

- SR Suntour coil suspension fork, 100mm travel
- 29" Schwalbe Energizer Plus Tour Perf tires
- Shimano hydraulic disc brakes
|
Specification |
Details |
|---|---|
|
Frame |
Alloy S-XL=29", 6061 Alloy custom butted tubing, Top extraction battery, 135mm with 46mm Beltline |
|
Fork |
SR Suntour XCM34 BOOST COIL LO, 100mm |
|
Fork Travel |
100mm |
|
Shifter |
Shimano Nexus 5 Revo Shifter |
|
Gears |
5 |
|
Front Brake |
Shimano BR-MT200 2-Piston |
|
Rear Brake |
Shimano BR-MT200 2-Piston |
|
Front Brake Rotor |
Shimano SM-RT30 CL, 180mm |
|
Rear Brake Rotor |
Shimano SM-RT30 CL, 160mm |
|
Front Rim |
X17 Disc |
|
Rear Rim |
X17 Disc |
|
Front Tire |
Schwalbe Energizer Plus Tour Perf, 55-622 |
|
Rear Tire |
Schwalbe Energizer Plus Tour Perf, 55-622 |
|
Front Hub |
Shimano HB-TC500 15x110mm |
|
Rear Hub |
Shimano Nexus Inter 5e |
|
Spokes |
Steel, Black |
|
Handlebar |
Syncros UC3.0 680mm, Rise 26mm, Backsweep 30° |
|
Handlebar Width |
680mm |
|
Additional Handlebar Values (Unverified Labels) |
30, 30 |
|
Stem |
JD, Adjustable, 31.8*90 mm −10°~+60°, SP Connect |
|
Stem Length |
90mm |
|
Headset |
Feimin, 28.8-56-62(39.8), Sealed Bearing, Alloy Cup |
|
Grips |
Urban Comfort |
|
Saddle |
Selle Royal Explora Moderate Wide 195mm |
|
Seatpost |
Syncros M3.0, 31.6mm, 350mm |
|
Crankset |
FSA CK 220 170mm |
|
Belt |
Gates CDX 130T |
|
Belt Sprocket |
Gates CDX, 32T |
|
Pedals |
Marwi SP-827 |
|
Front Light |
Lezyne Hecto Pro STVZO E400 |
|
Rear Light |
Lezyne STVZO Integrated |
|
Rear Rack |
Racktime carrier SNAPIT 2.0 30Kg KID'n'CARRY Ready |
|
Rack Capacity |
30kg |
|
Fenders |
Curana Apollo 65 |
|
Chaincase |
Chaincase cover |
|
Kickstand |
Ursus U-Mount |
|
Motor |
Bosch Performance Line PX (BDU347Y) |
|
Battery |
Bosch PowerTube 720 Wh |
|
Battery Capacity |
720Wh |
|
Battery Quantity |
1 |
|
Display |
Bosch Purion 200 |
|
Charger |
Bosch 2A Charger 230V |
