Product Description

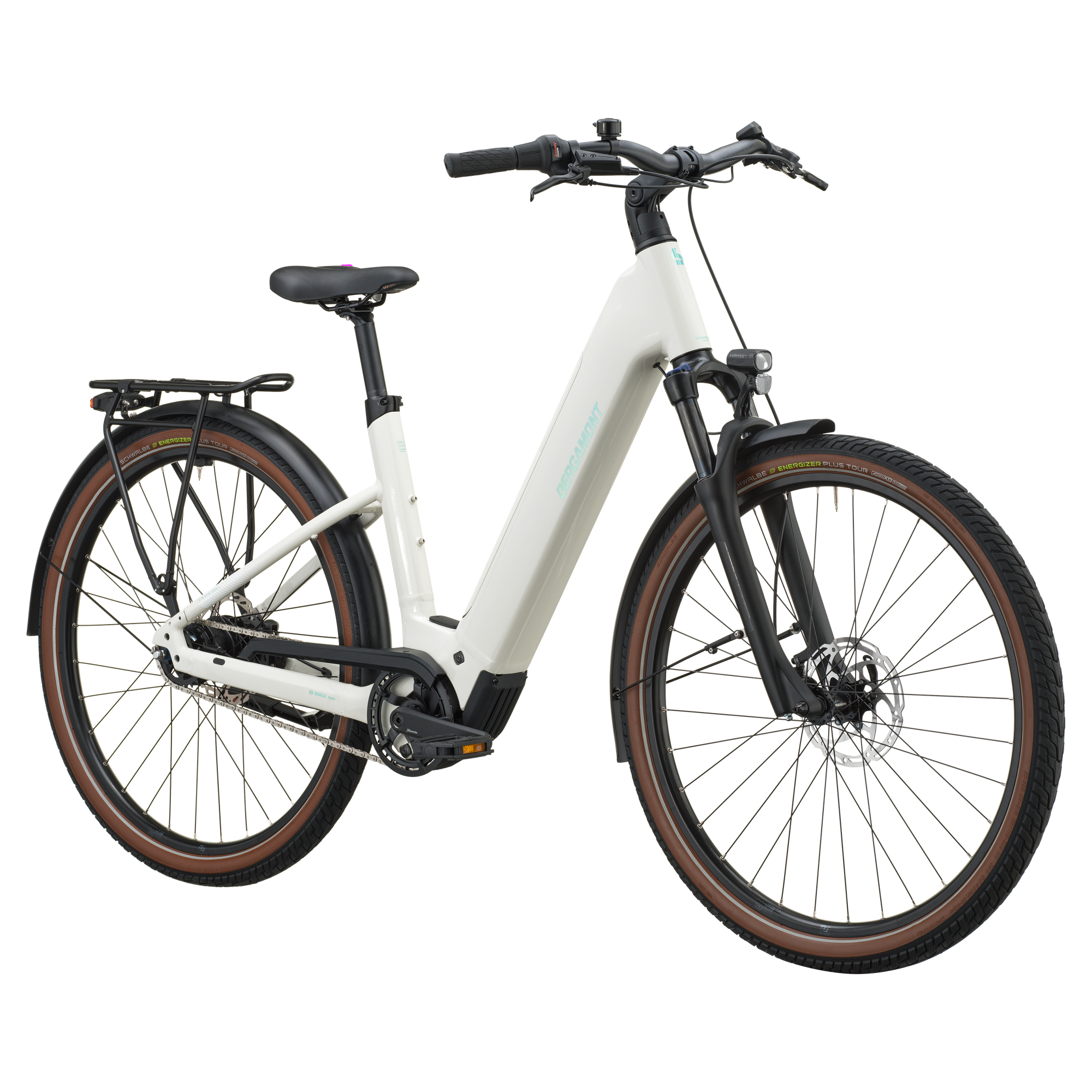

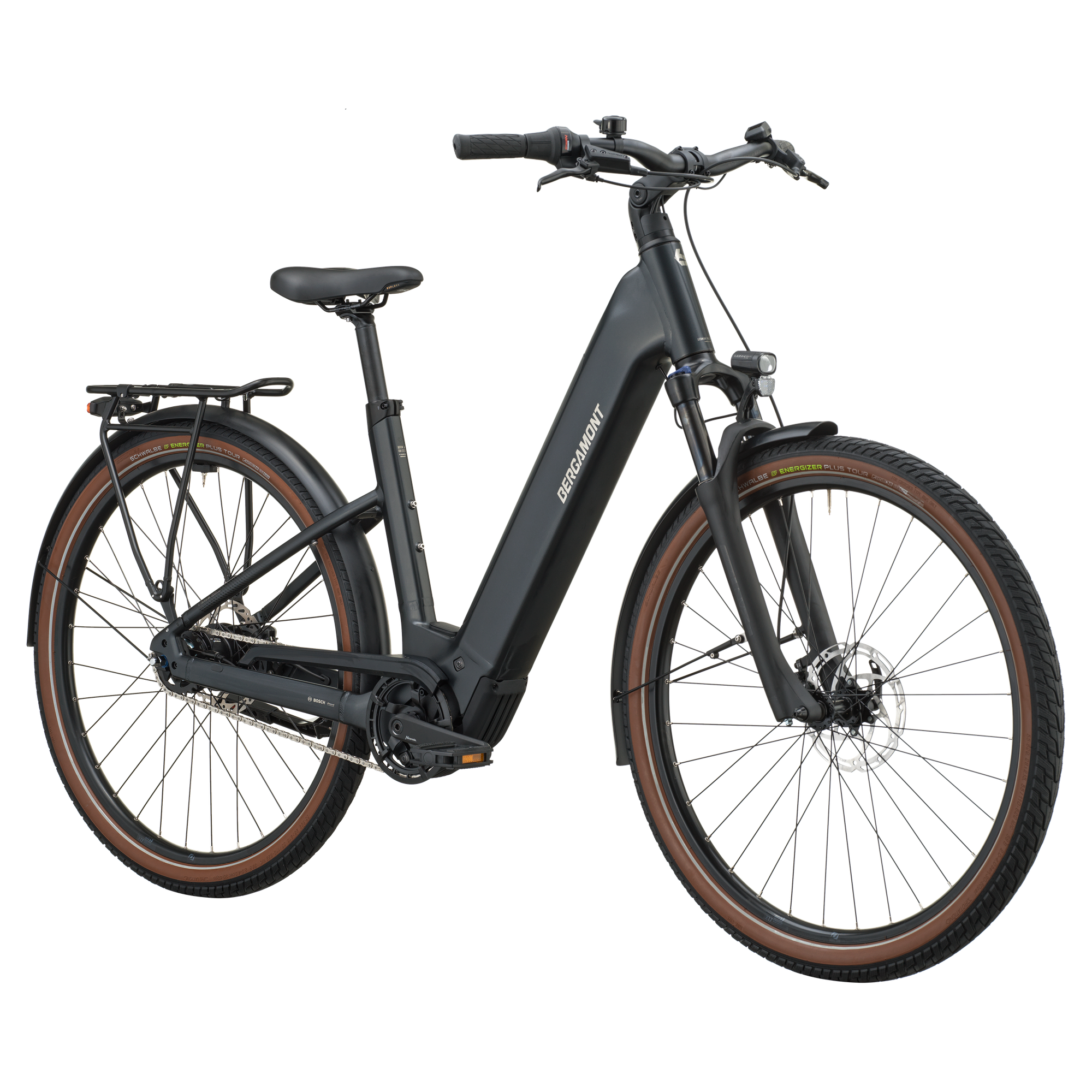

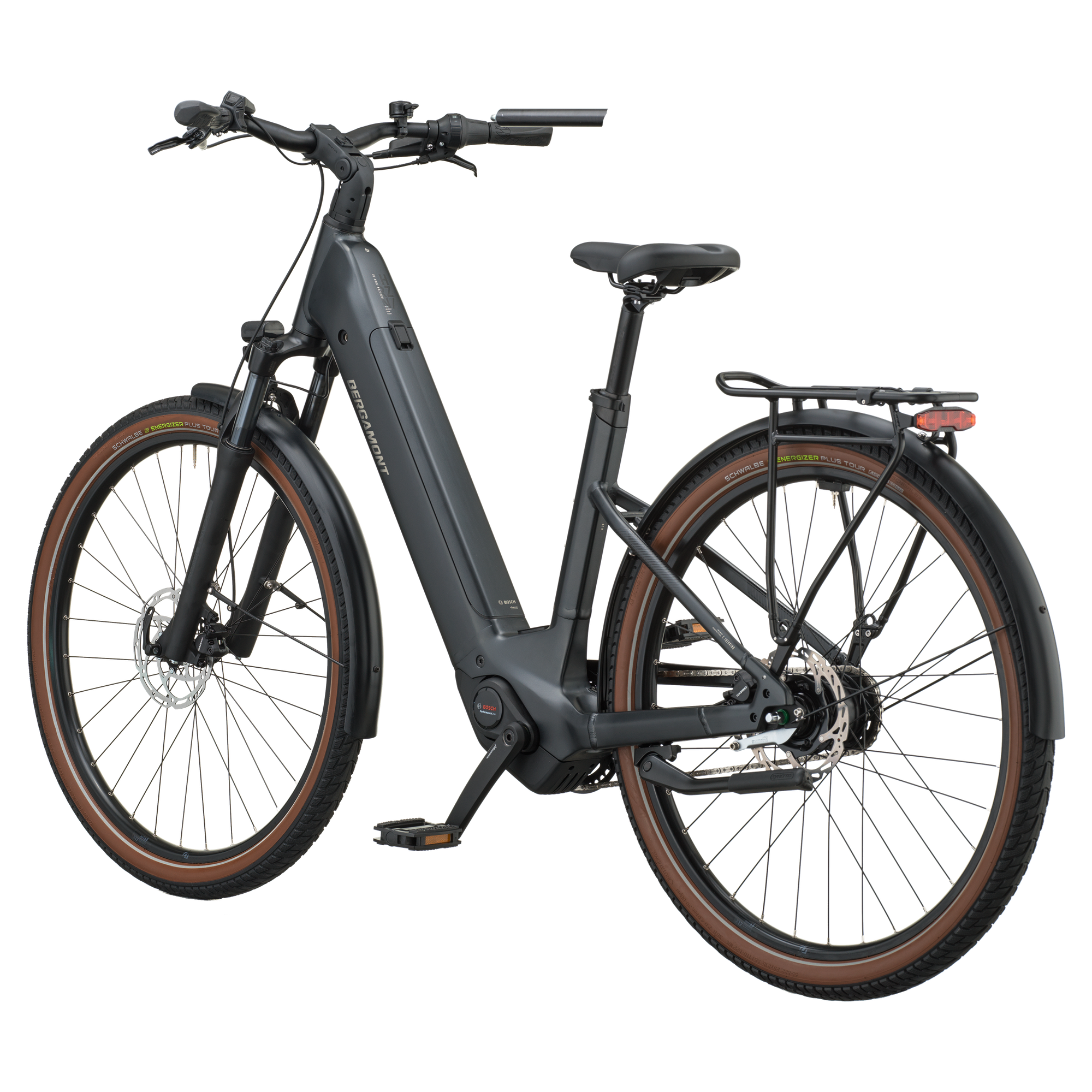

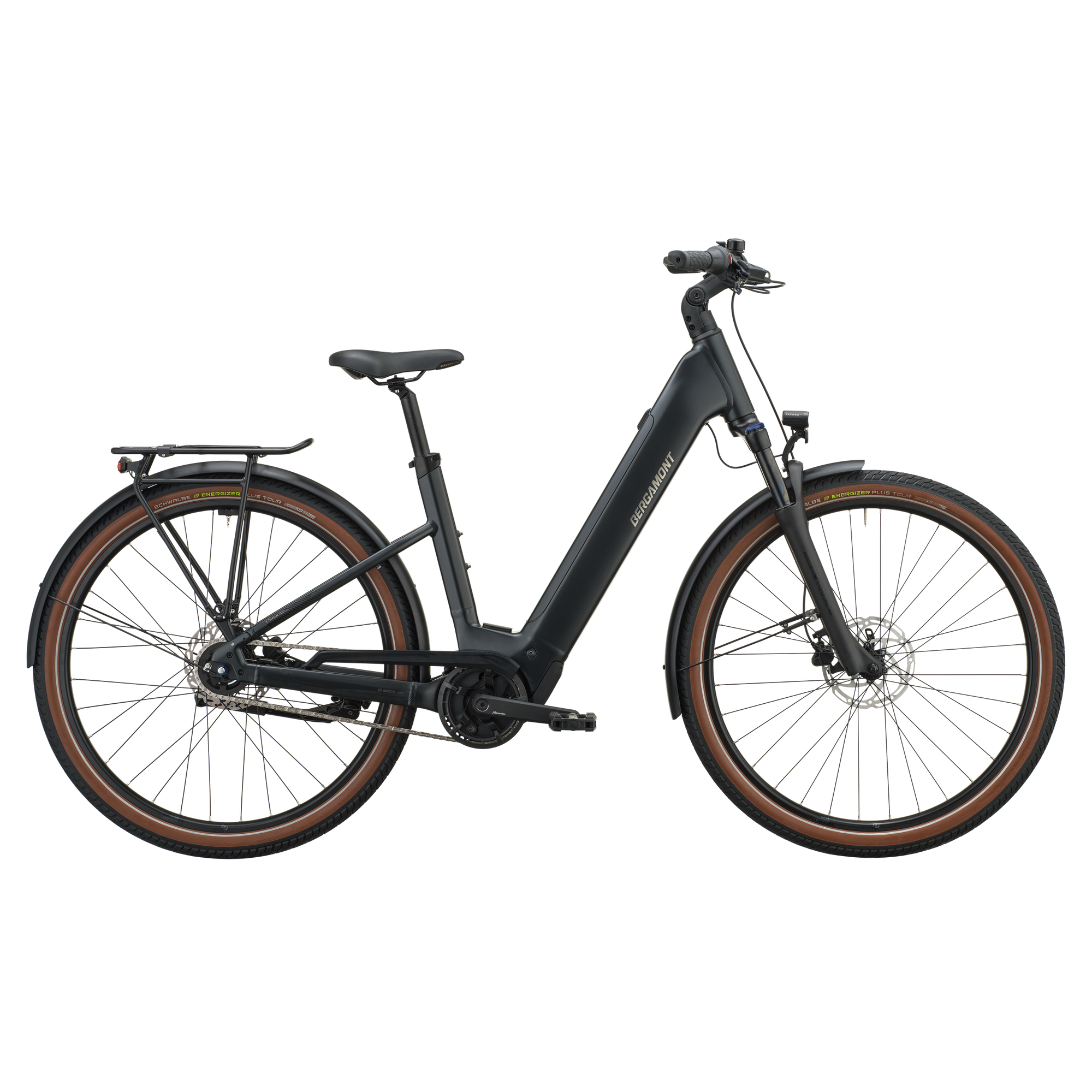

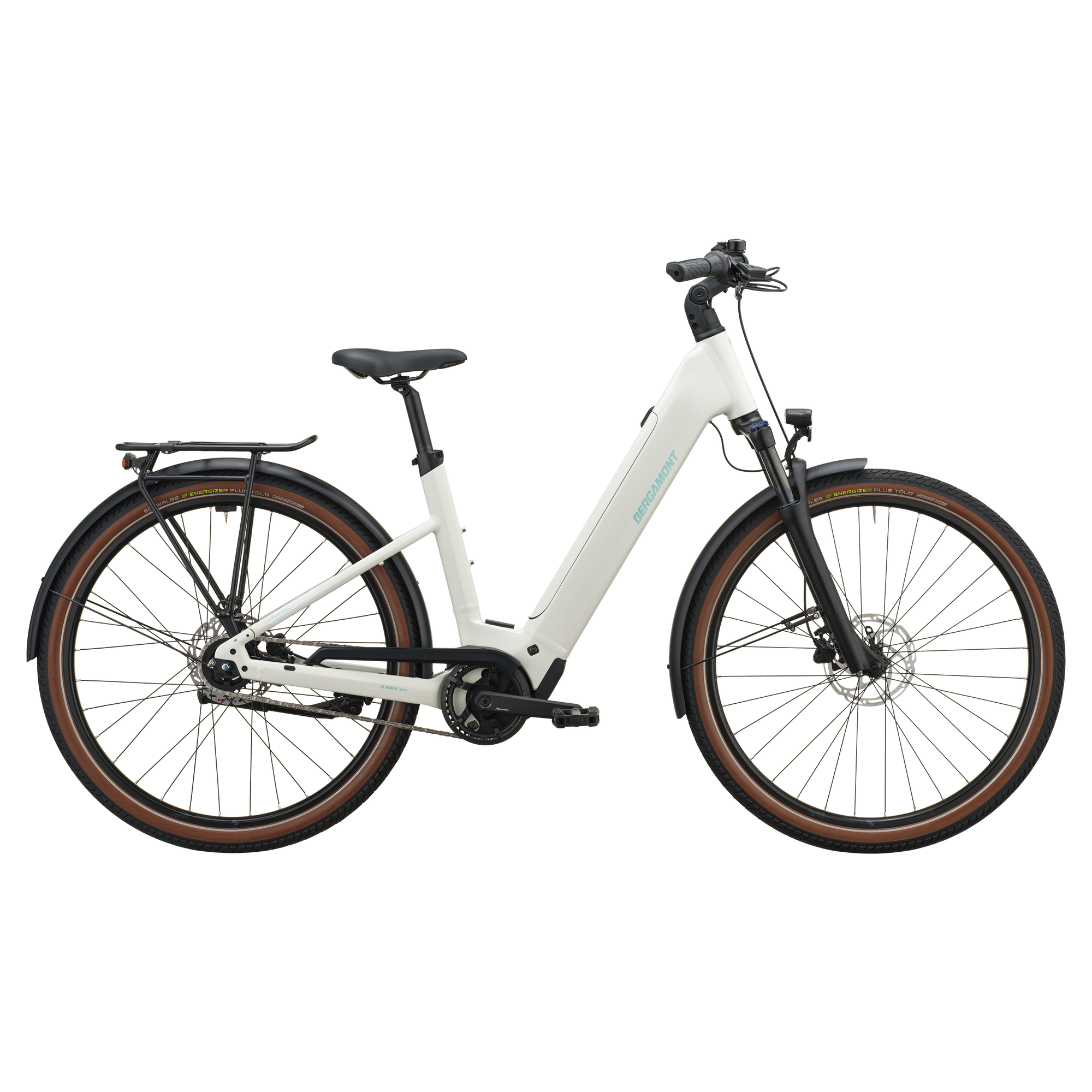

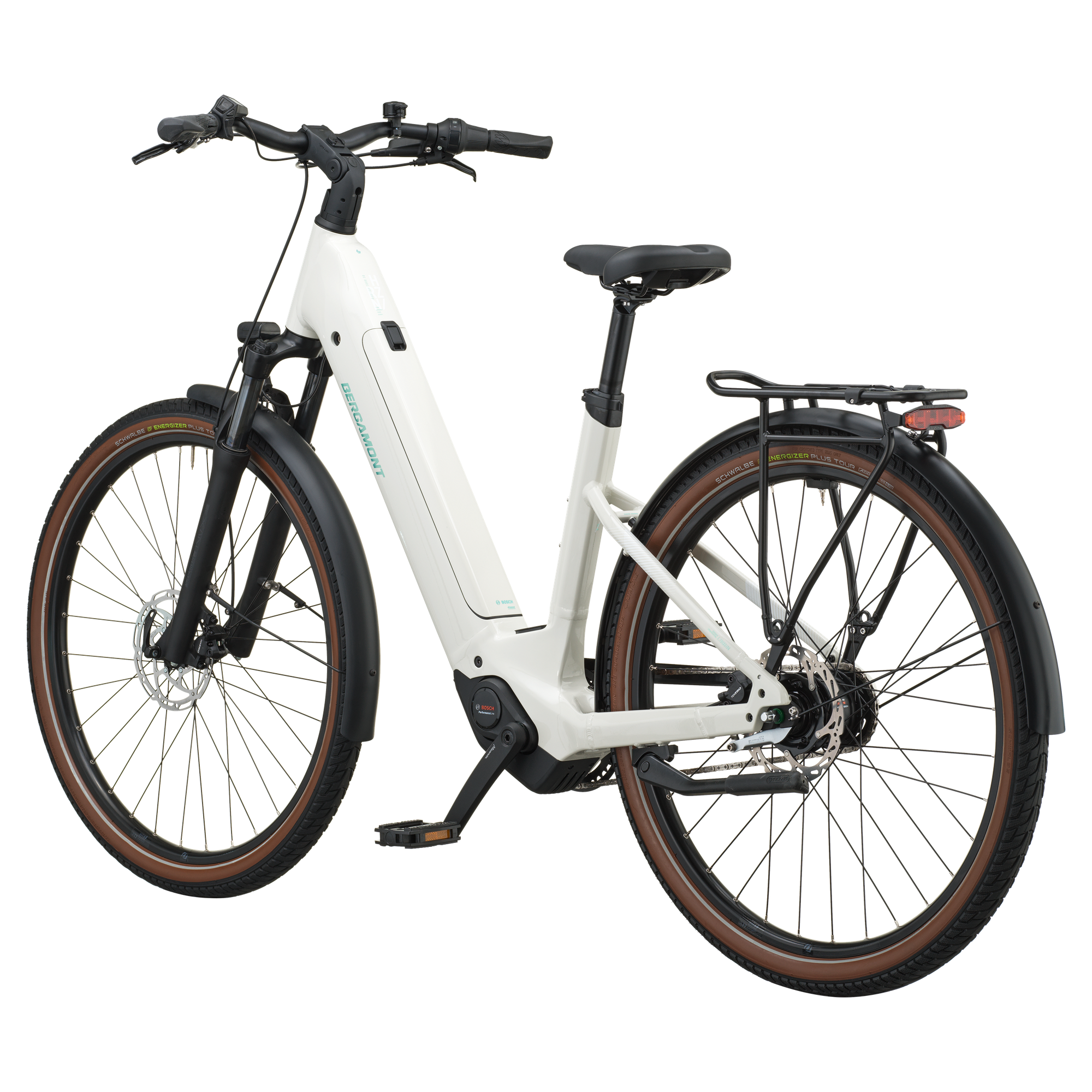

The Horizon Tour 30 Wave is built for comfortable, low-maintenance everyday riding, combining practical features with a low step-through frame that makes mounting and dismounting easy. LED lighting improves visibility in busy urban areas, while the Racktime carrier with KID'n'CARRY and SNAPIT 2.0 compatibility makes it simple to attach accessories or a child seat.
Its internal gear hub keeps shifting smooth and maintenance low, and the Shimano coaster brake system provides simple, intuitive braking with minimal upkeep. An adjustable stem helps you find a comfortable riding position, and SP Connect allows secure smartphone mounting for everyday journeys. Full-coverage fenders help keep you clean and dry, while a 100mm suspension fork absorbs rough tracks and unpaved sections for added comfort on longer routes. Schwalbe Energizer Plus tires offer strong puncture protection and secure traction for daily urban riding.
Power comes from the Bosch Performance Line drive unit, providing strong, quiet assistance for extended adventures. The 540Wh Bosch PowerTube battery sits neatly inside the frame and can be removed for off-bike charging, with the cover remaining in place to protect the compartment. The bike is also compatible with the Bosch PowerMore range extender, giving you the option to boost your range when needed. Thanks to the Bosch Smart System and eBike Flow App, you can easily access bike data, connectivity features and any available upgrades.
Key Features
- Alloy frame, top extraction battery

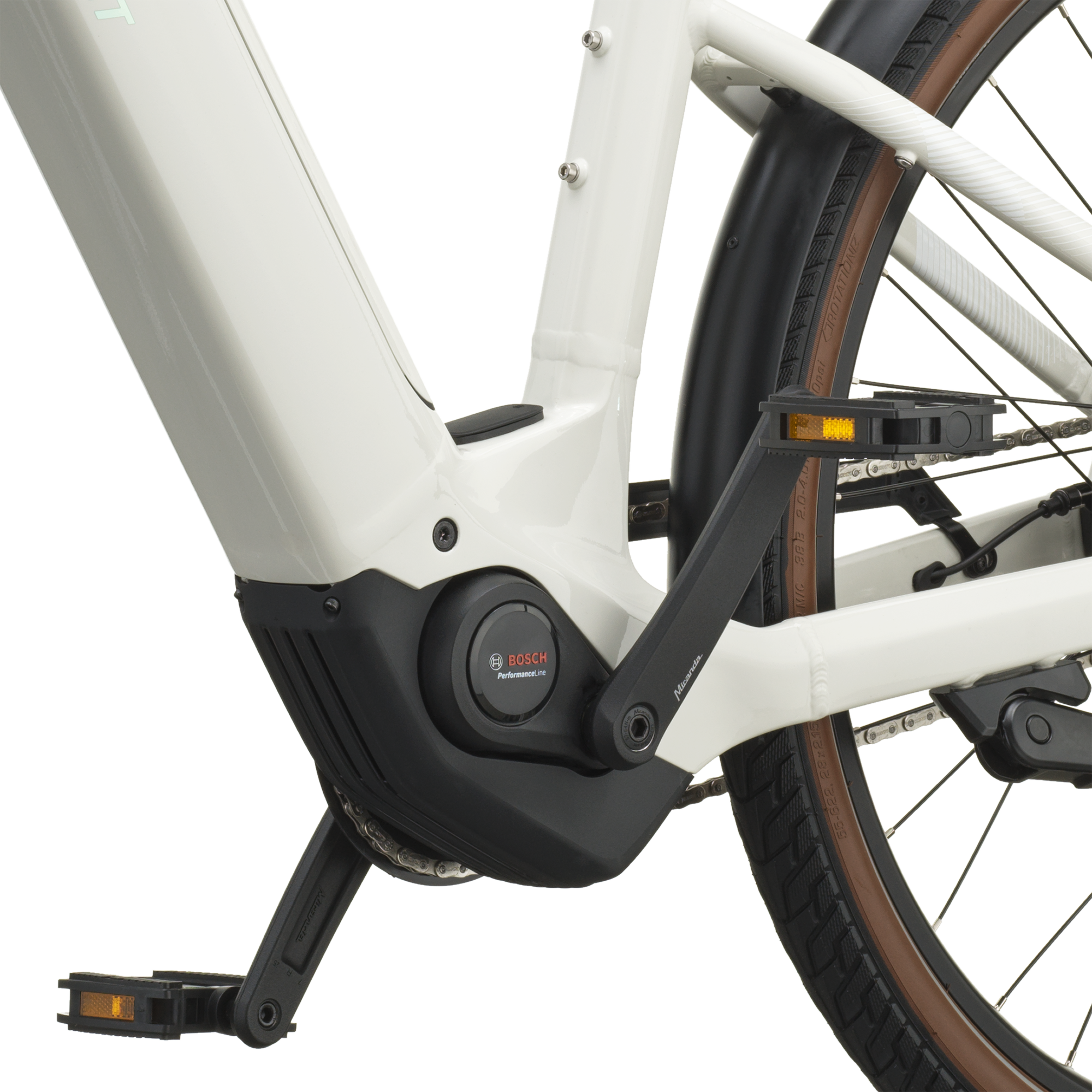

- Bosch Performance Line motor, 75Nm
- Bosch 540Wh removable battery
- Shimano Nexus 5 speed gear hub with coaster brake
- Adjustable stem, SP Connect
- Racktime rear rack with SNAPIT 2.0 30 Kg, KID'n'CARRY ready
- Lights: Lezyne Mini Lite, 350 Lumen, Superbright rear light

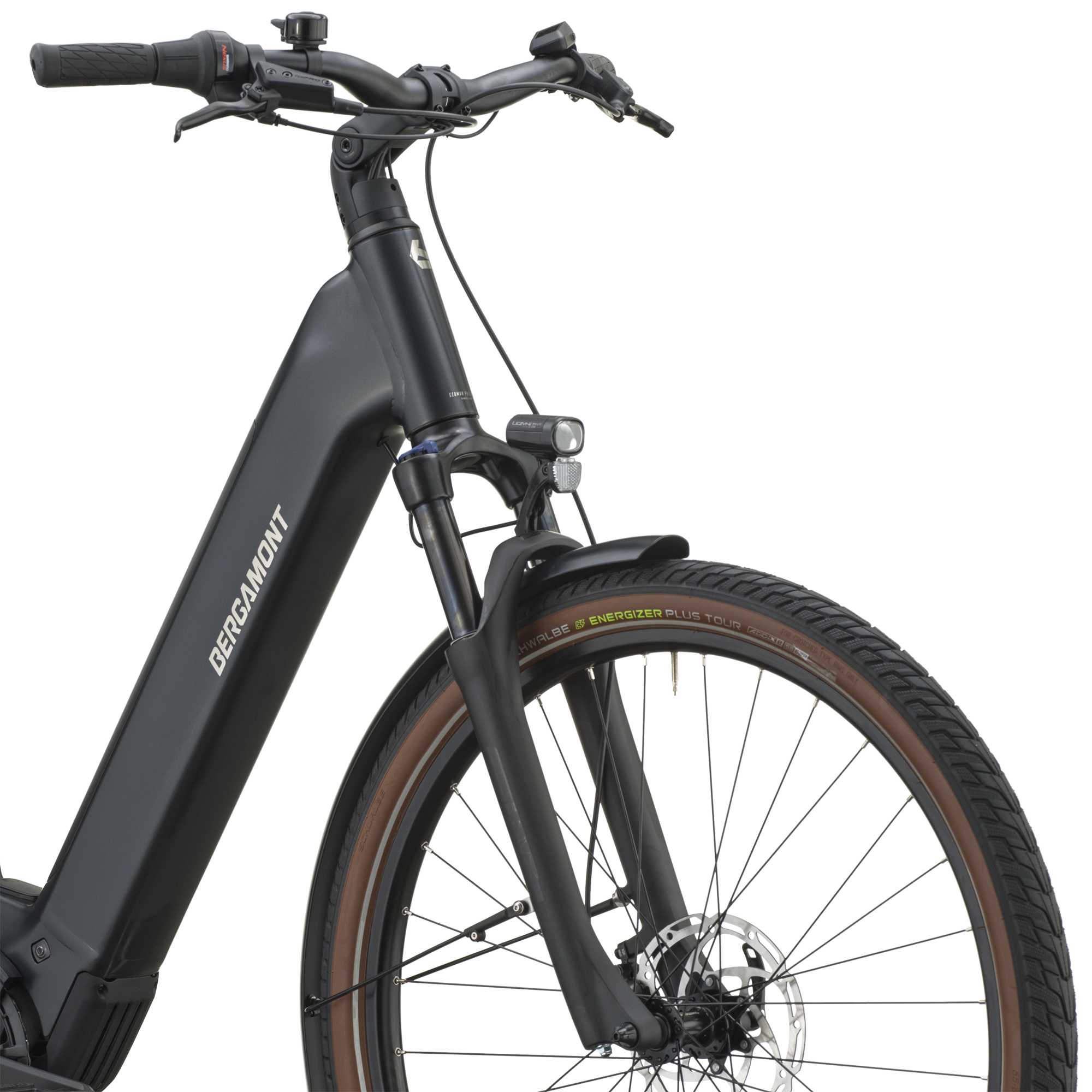

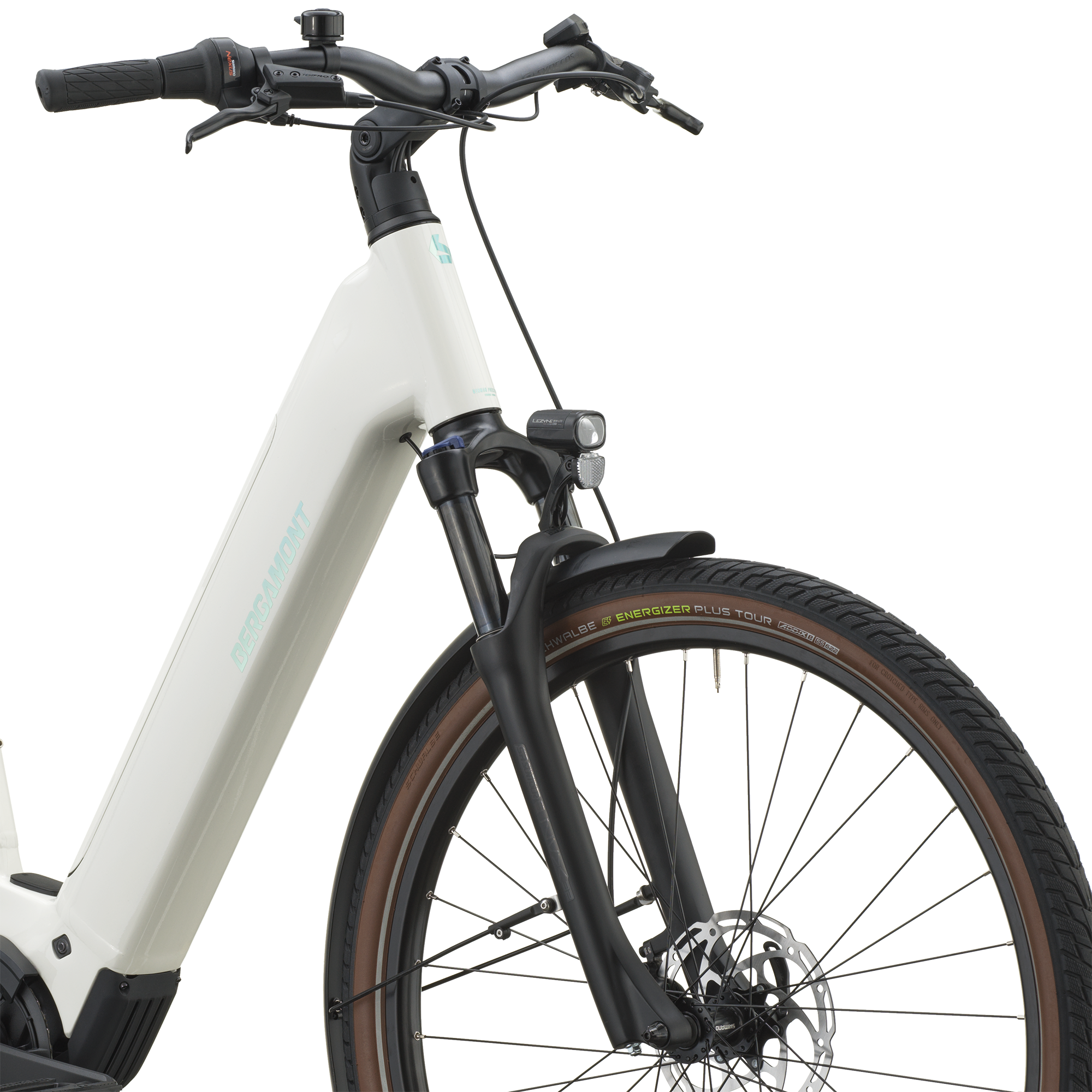

- SR Suntour coil suspension fork, 100mm travel
- 29" Schwalbe Energizer Plus Tour Perf tires
- Tektro hydraulic disc brakes
Specification |
Details |
|---|---|
|
Frame |
Alloy S-XL=29", 6061 Alloy custom butted tubing, Top extraction battery, 135mm with 46mm Beltline |
|
Fork |
SR Suntour NVX 32 5TA COIL LO, 100mm |
|
Fork Travel |
100mm |
|
Shifter |
Shimano Nexus 5 Revo Shifter |
|
Gears |
5 |
|
Front Brake |
Tektro HD-T280 |
|
Rear Brake |
Tektro HD-T280 |
|
Front Brake Rotor |
Tektro TR180-35 CL, 180mm |
|
Rear Brake Rotor |
Tektro TR180-47 5B, 180mm |
|
Front Rim |
X17 Disc |
|
Rear Rim |
X17 Disc |
|
Front Tire |
Schwalbe Energizer Plus Tour Perf, 55-622 |
|
Rear Tire |
Schwalbe Energizer Plus Tour Perf, 55-622 |
|
Front Hub |
Shimano HBQC400B58LL, 5x100mm |
|
Rear Hub |

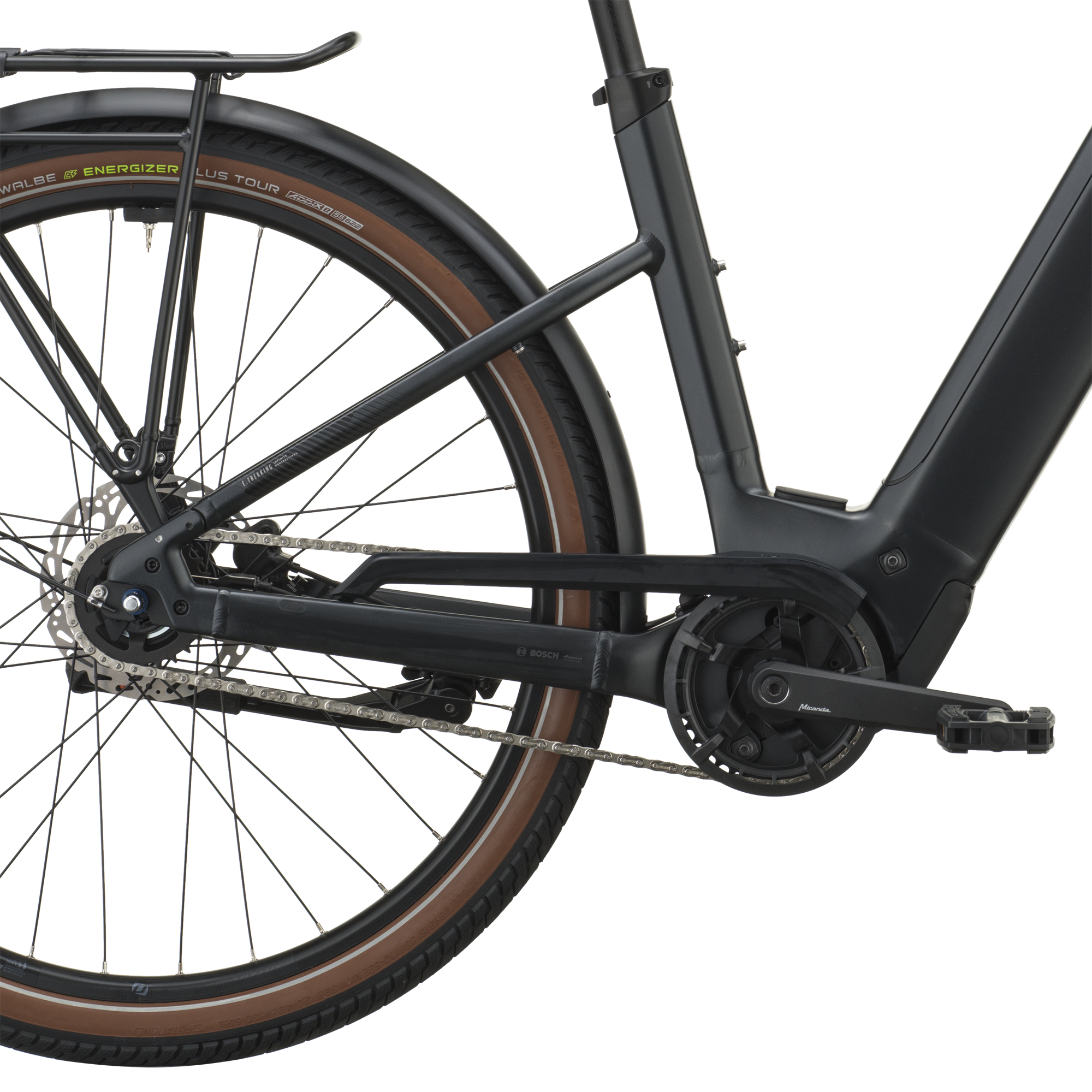

Shimano Nexus Inter 5e Coaster Brake |
|
Spokes |
Steel, Black |
|
Handlebar |
Syncros UC3.0 680mm, Rise 26mm, Backsweep 30° |
|
Handlebar Width |
680mm |
|
Additional Handlebar Values (Unverified Labels) |
30, 30 |
|
Stem |

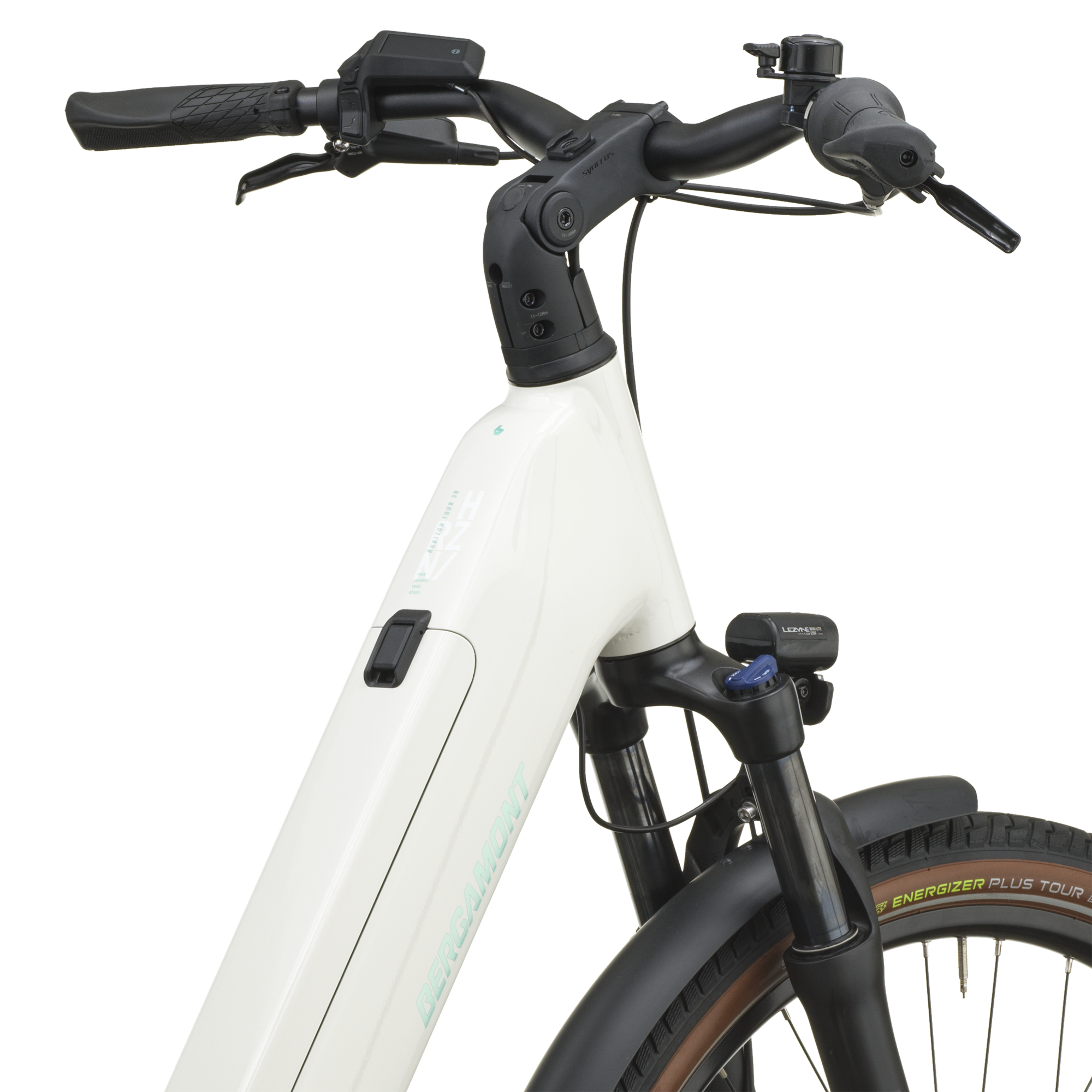

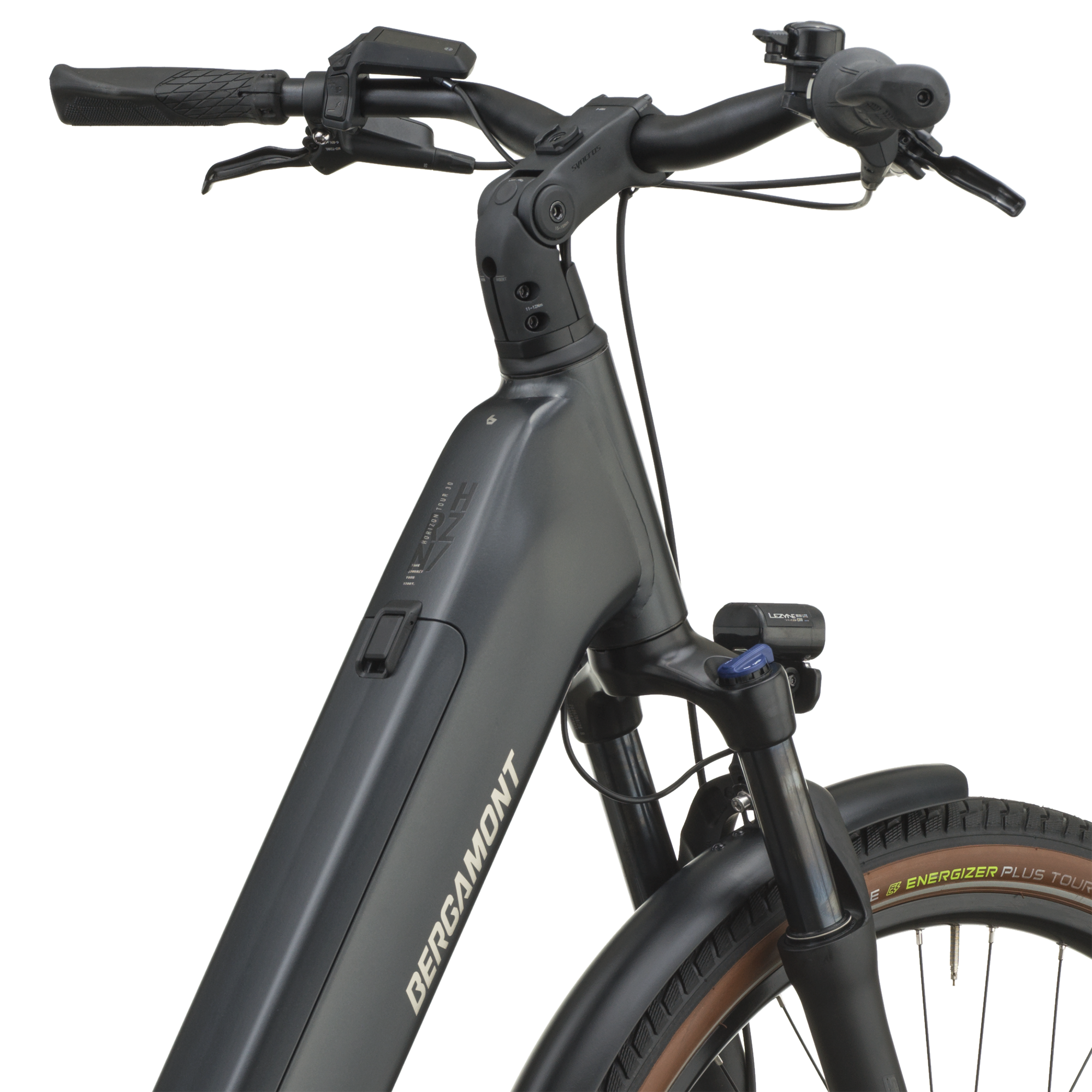

JD, Adjustable, 31.8*90 mm −10°~+60°, SP Connect |
|
Stem Length |
90mm |
|
Headset |
Feimin, 28.8-56-62(39.8/30), H887 Bearing Cup |
|
Grips |
Urban Comfort |
|
Saddle |

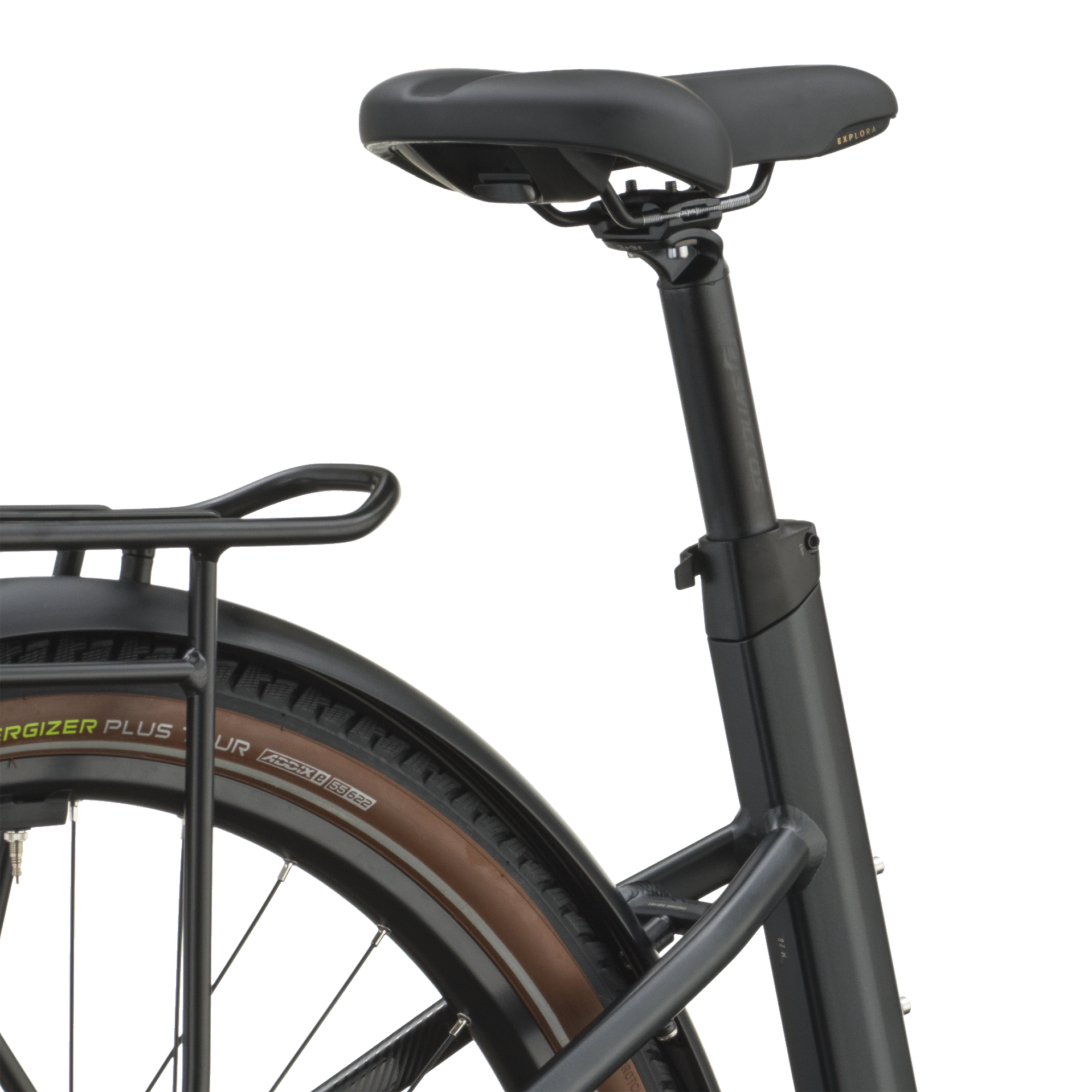

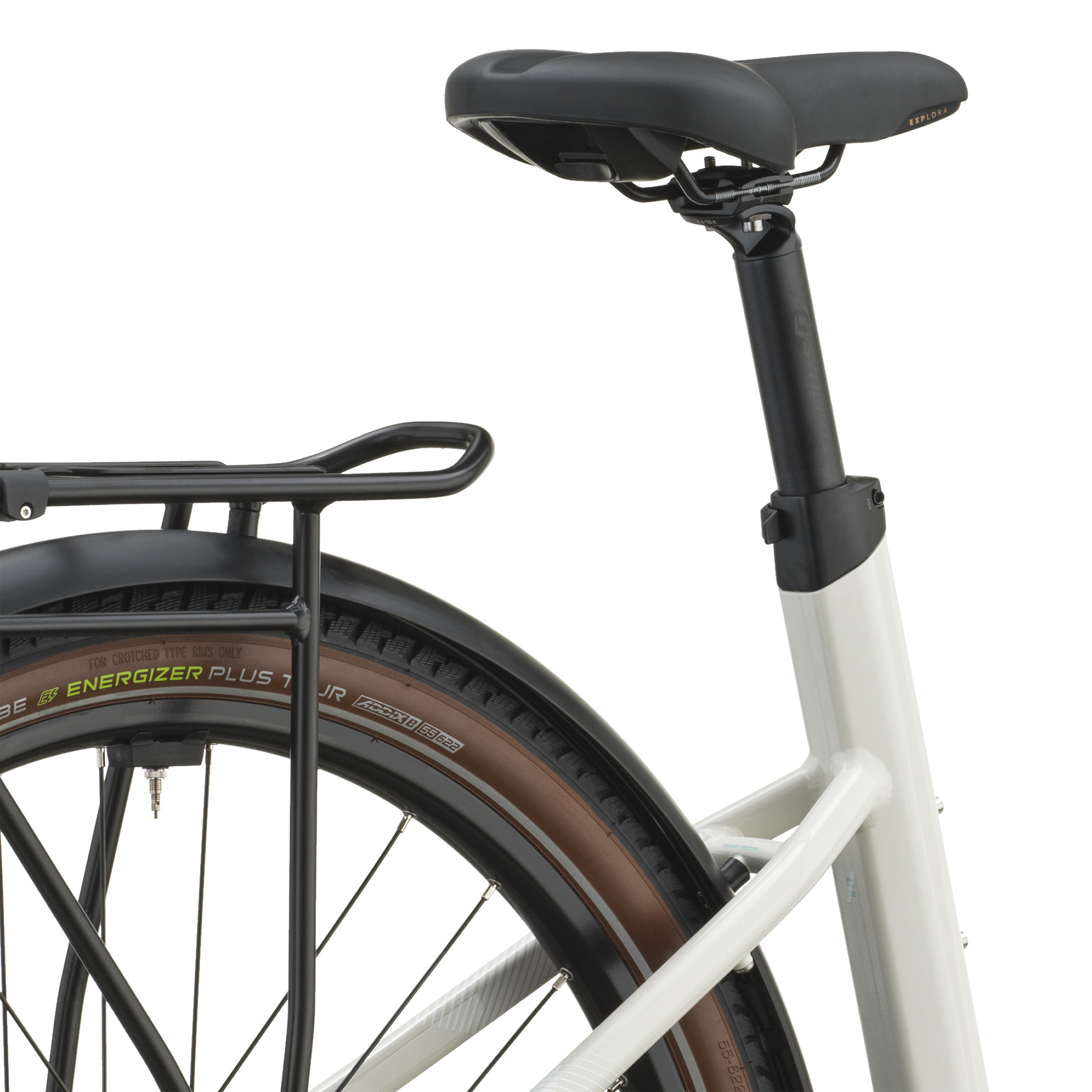

Selle Royal Explora Moderate Wide 195mm |
|
Seatpost |
Syncros M3.0, 31.6mm, 350mm |
|
Crankset |
Miranda Virage 170mm |
|
Chain |
KMC Z1 |
|
Rear Sprocket |
Shimano CSC700027, 27T |
|
Pedals |
Marwi SP-827 |
|
Front Light |
Lezyne Mini Lite STVZO E350 |
|
Rear Light |
Lezyne Superbright STVZO |
|
Rear Rack |
Racktime carrier SNAPIT 2.0 30Kg KID'n'CARRY Ready |
|
Rack Capacity |
30kg |
|
Fenders |
Metasol 65 |
|

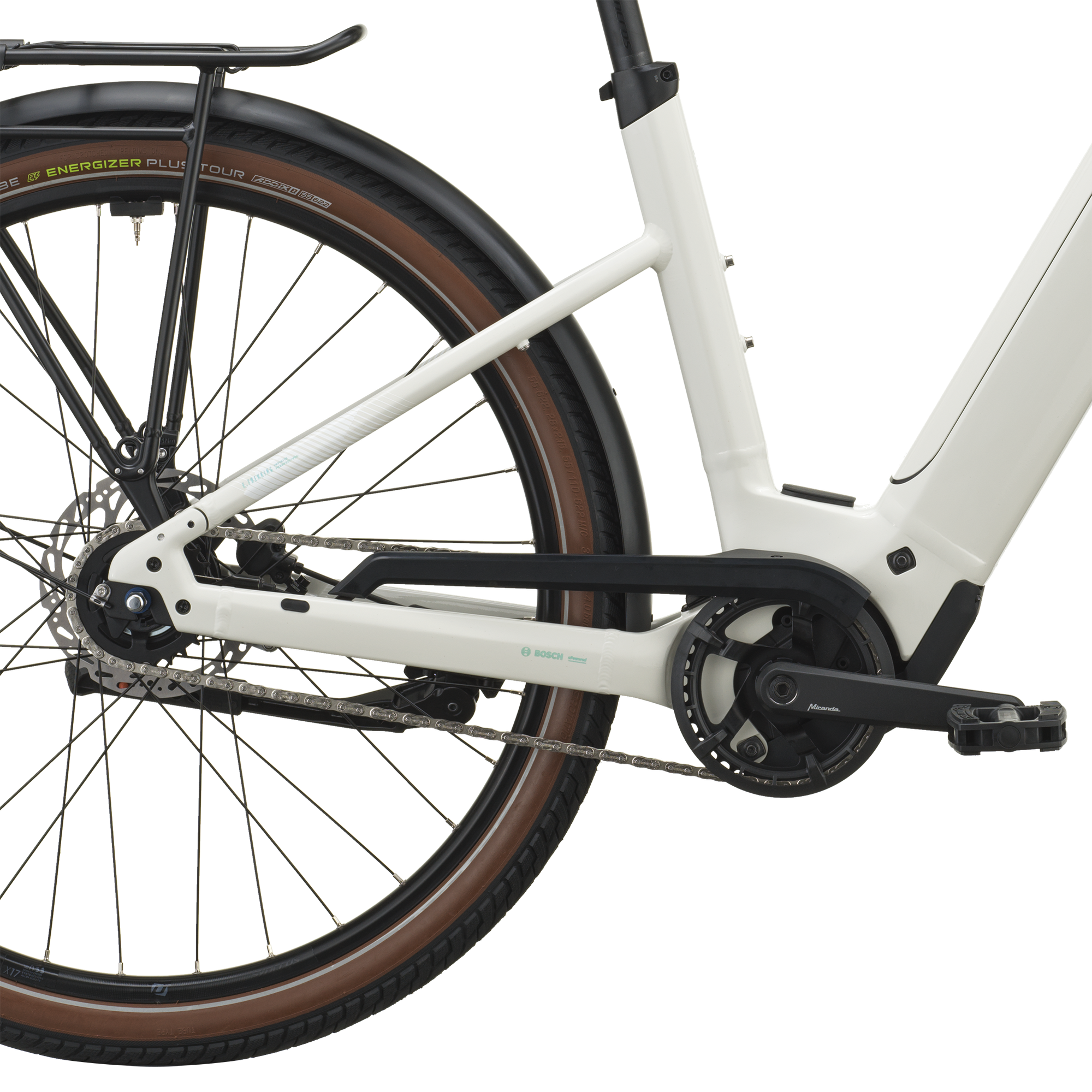

Chaincase |
Chaincase cover |
|
Kickstand |
Ursus U-Mount |
|
Motor |

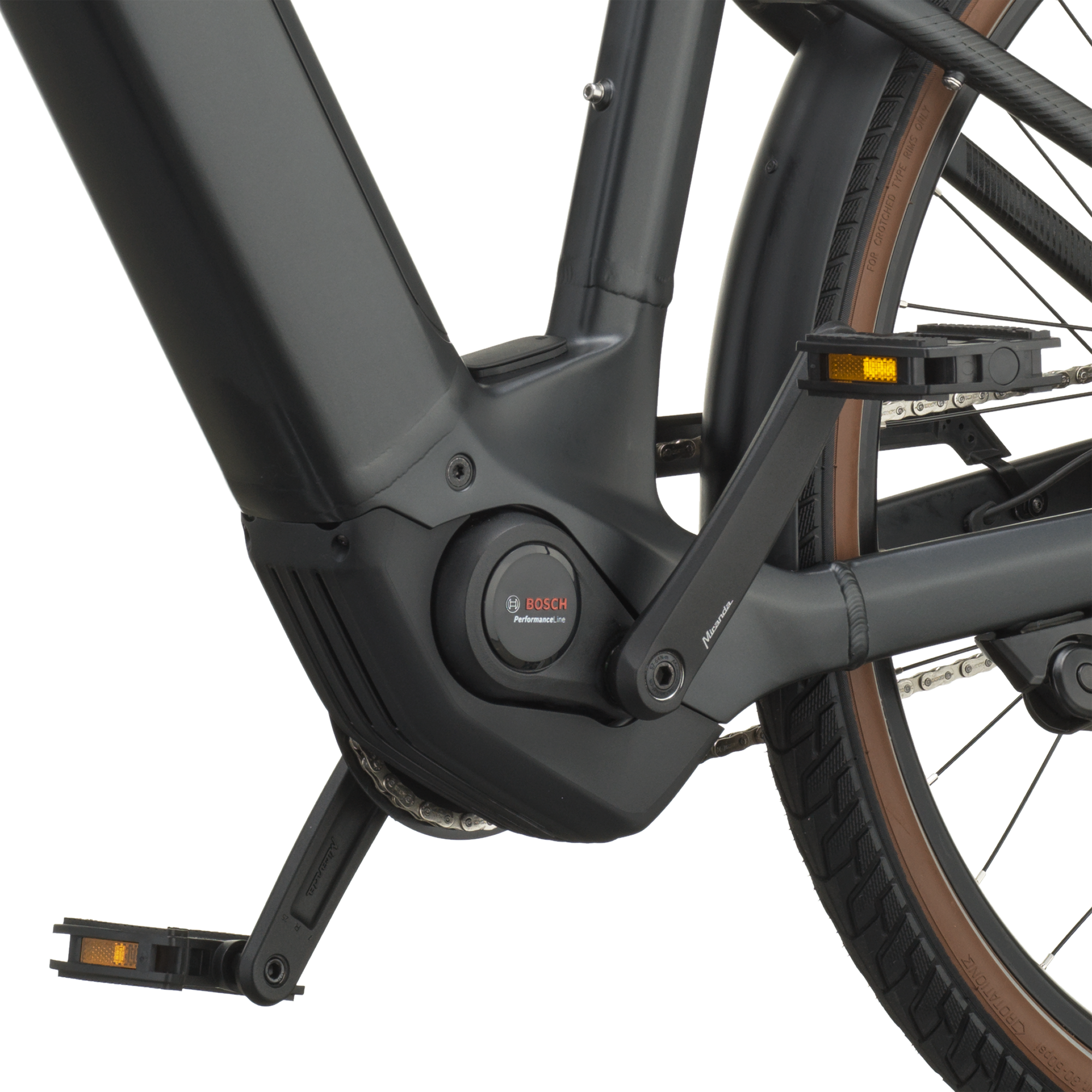

Bosch Performance Line (BDU346Y) |
|
Battery |
Bosch PowerTube 540 Wh |
|
Battery Capacity |
540Wh |
|
Battery Quantity |
1 |
|
Display |
Bosch Purion 200 |
|
Charger |
Bosch 2A Charger 230V |
