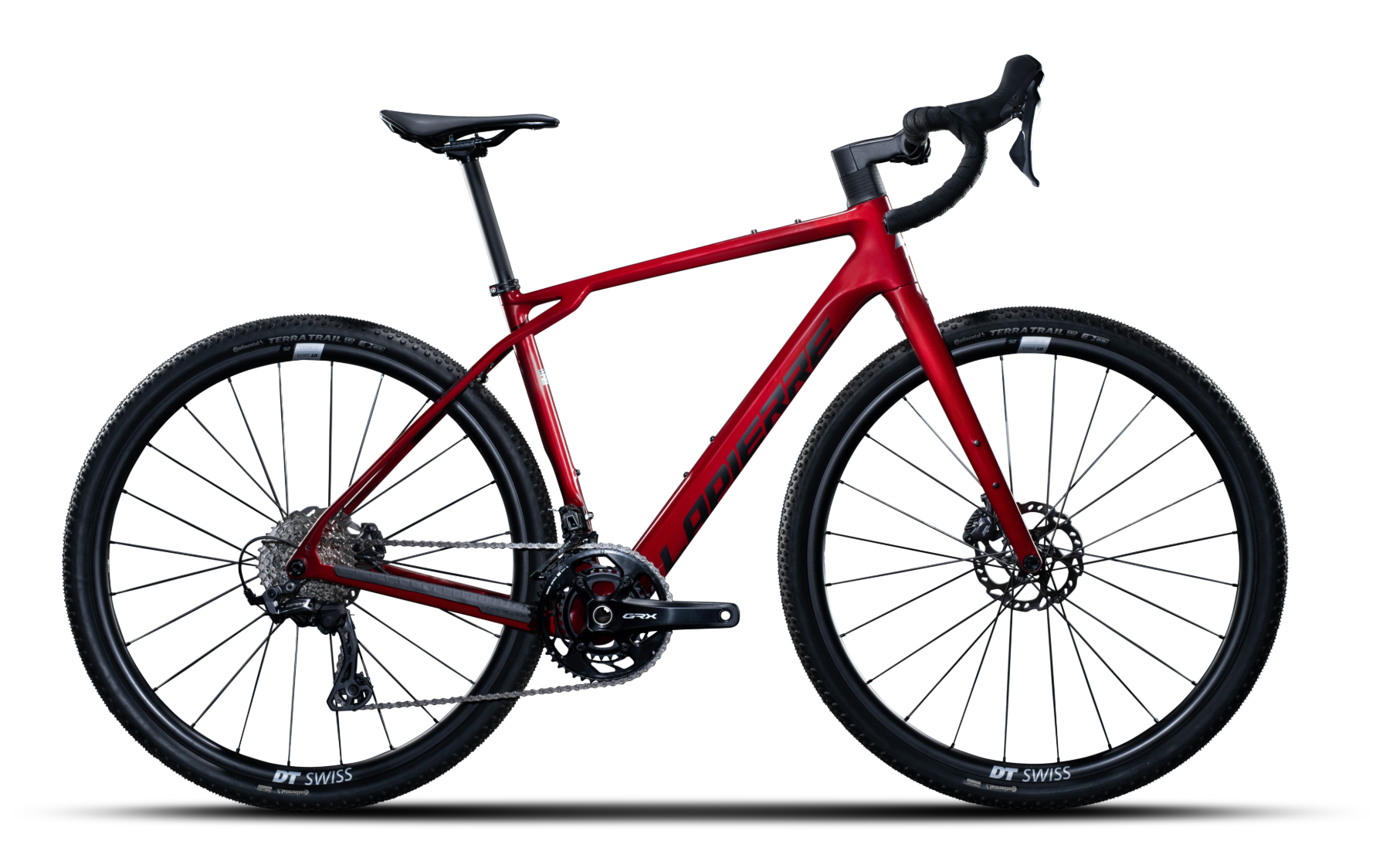

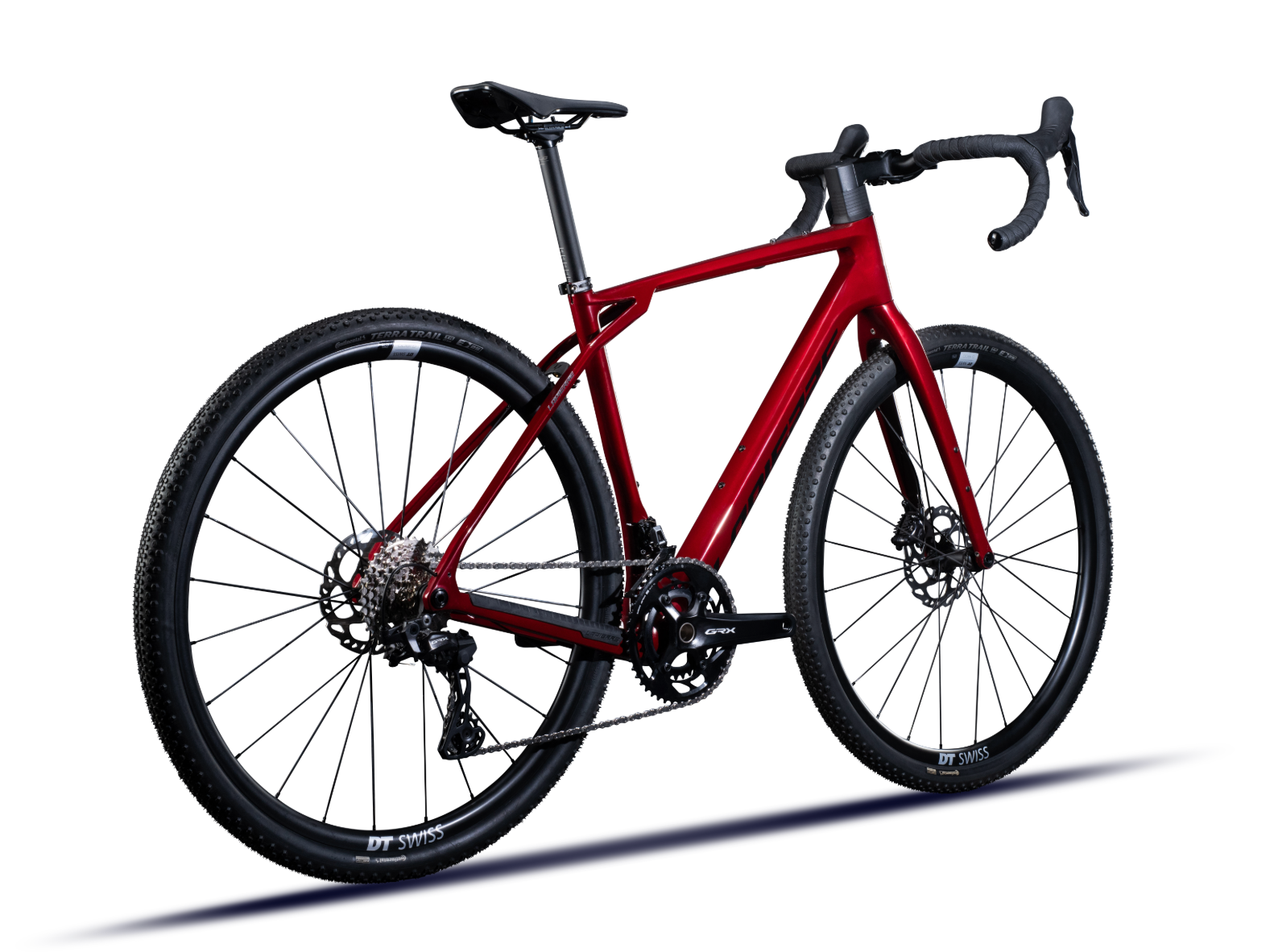

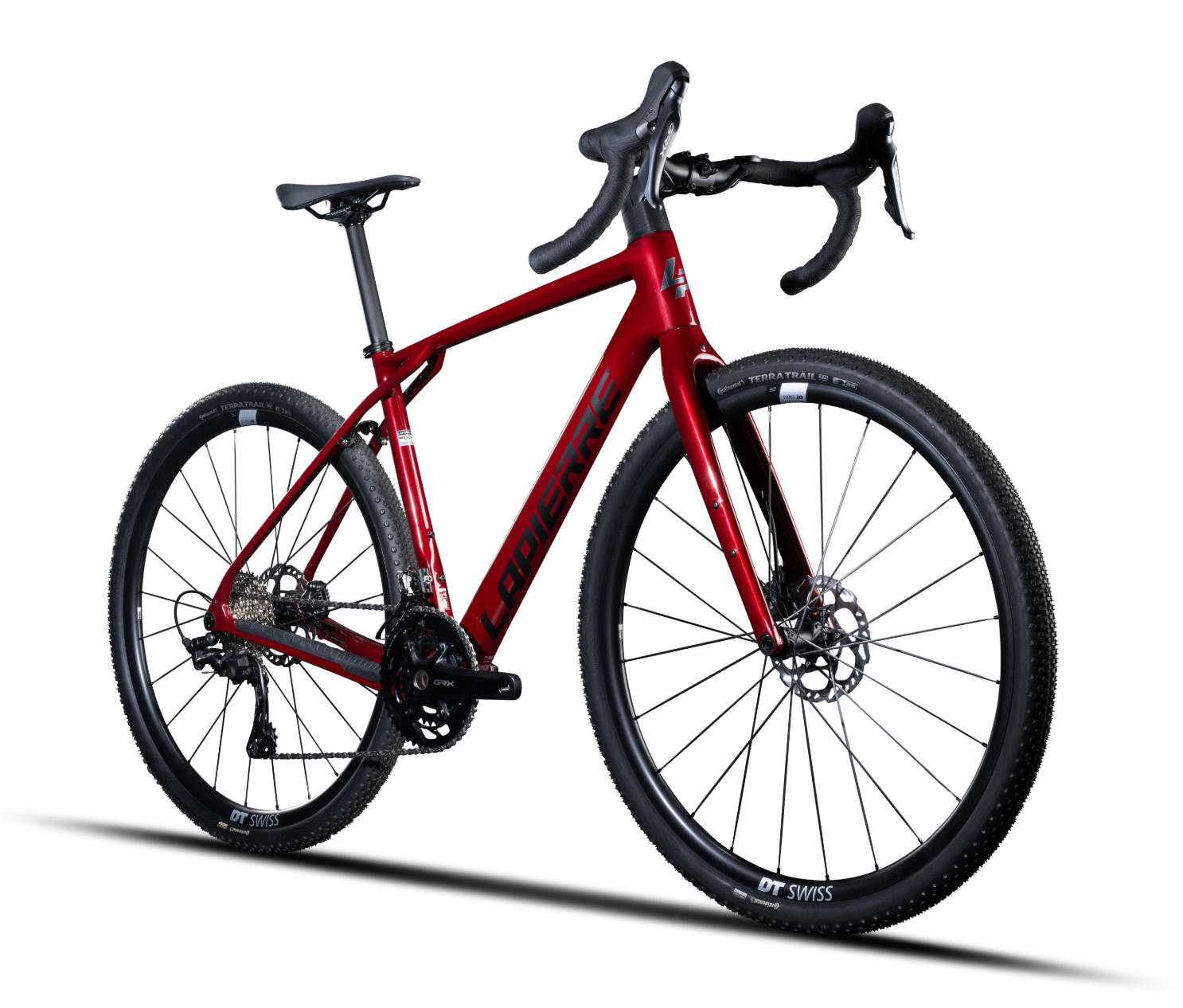

Gravel is the dust that fills your lungs, the sharp rattle of stones against the derailleur, the silent groans of total effort. It’s also a new vision of performance, one that resonates perfectly with the Crosshill CF 6.0 in its striking burgundy red finish. This carbon gravel bike feels straight out of a movie set—Mad Max or Dune, depending on your taste! It’s also a weapon designed to accompany you on your greatest sporting conquests, whether a long-distance road trip, a personal challenge, or a shared bikepacking expedition.
Everything about the Crosshill CF is tuned to match your exploits, with the certainty of creating some of your life’s most unforgettable memories. That was the case for our three athletes—Romain, Jiri, and Mathieu—whose bold project, crossing the Canary Islands by gravel bike, perfectly showcases the extraordinary capabilities of this machine.
3D Tubular Endurance Carbon Frame
Mudguard & Luggage Mounts

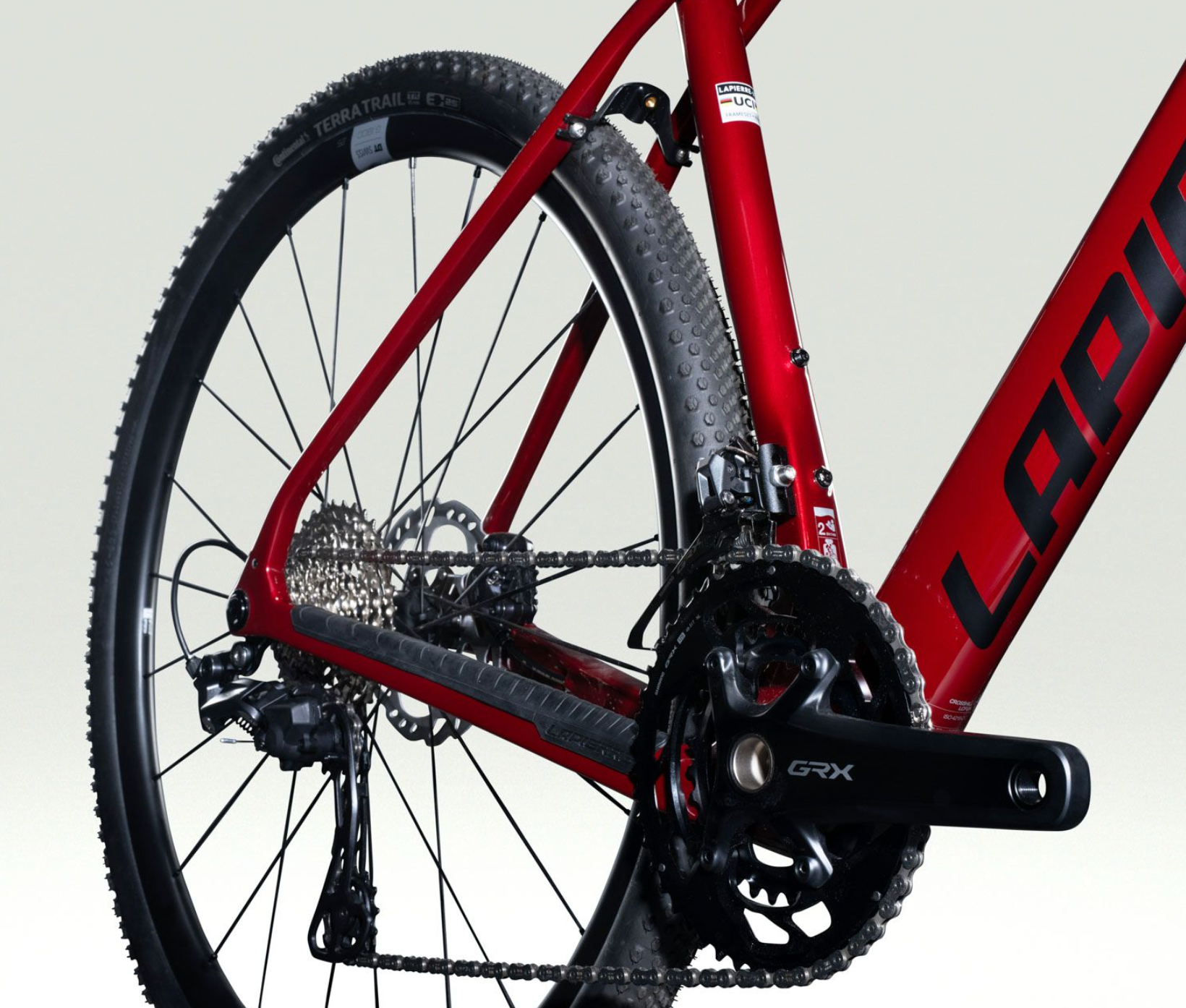

Shimano GRX Mechanical Groupset
DT Swiss G1800 Spline Alloy Wheelset
Lapierre Alloy Bar & Stem
Bike Geometry
-
Bottom bracket drop [mm]:
- · 71 mm
- · 70 mm
- Chain stay length [mm]: 430 mm
-
Head tube angle:
- · 71 degrees
- · 71.5 degrees
-
Head tube length [mm]:
- · 115 mm
- · 130 mm
- · 150 mm
- · 170 mm
-
Reach [mm]:
- · 373 mm
- · 380 mm
- · 386 mm
- · 390 mm
-
Stack [mm]:
- · 567 mm
- · 581 mm
- · 601 mm
- · 620 mm
-
Seat tube angle:
- · 73.5 degrees
- · 73 degrees
- · 72.5 degrees
-
Seat tube length [mm]:
- · 460 mm
- · 490 mm
- · 520 mm
- · 550 mm
-
Top tube length [mm]:
- · 541 mm
- · 552 mm
- · 570 mm
- · 585 mm
-
Wheelbase [mm]:
- · 1016 mm
- · 1027 mm
- · 1036 mm
- · 1045 mm
Brake system
- Brake Front Description: Shimano, Hydraulic Disc brake, GRX BR-RX820, 2 pistons, resin pad, 160 mm
- Brake Front Mount: Flat Mount
- Brake Rear Description: Shimano, Hydraulic Disc brake, GRX-BR-RX820, 2 pistons, resin pad, 160 mm
- Brake Rear Mount: Flat Mount
- Brake Lever Description: Shimano, GRX ST-RX820 Brake-Lever
- Brake Rotor Description: Shimano, SM-RT70 160 mm, Centerlock
Drivetrain
- Bottom Bracket Description: Shimano, PressFit, SM-BB72-41B
- Cassette Description: Shimano, GRX CS-HG710-12, HG
- Cassette Teeth: 11-36T
- Chain Description: Shimano, CN-M7100 12s
-
Crank Arm length:
- · 170
- · 175
- · 172.5
- Crankset Description: Shimano, GRX FC-RX820-2
- Crankset Teeth: 48-31T
- Crankset Type: double
- Derailleur Front Description: Shimano, GRX FD-RX820 Brazed on
- Derailleur Hanger Description: XLC, UDH-DO-A200
- Derailleur Rear Description: Shimano, GRX RD-RX820 12s, Shadow+
- Gear Description: Shimano, Derailleur
- Number Of Gears: 24
- Pedal Description: XLC, PD-R01 Race w.Reflector
- Pedal Inclusive: Yes
- Shifter Left Description: Shimano, Shift-brake lever, GRX ST-RX820-L Shift-Brake-Lever
- Shifter Right Description: Shimano, Shift-brake lever, GRX ST-RX820-R Shift-Brake-Lever
Frame and more
-
Framesize:
- · 46 cm
- · 49 cm
- · 52 cm
- · 55 cm
-
Framesize Convection:
- · S
- · M
- · L
- · XL
- Max loadable weight (KG): 110 kg
- Front Fork Description: Lapierre, Rigid Full Carbon Flatmount
- Front Fork Type: Non Suspension
- Frame Description: HIGH, Carbon, Uni
Handlebar and Saddle
- Handgrip Description: XLC, BT-G40 Elastomertape
- Handlebar Description: Lapierre, Drop bar, RA-118A, Dia. 31.8 mm, Rise: 12 mm
- Handlebar Diameter: 31.8 mm
- Handlebar Rise: 12
-
Handlebar Width:
- · 420 mm
- · 440 mm
- · 460 mm
- Headset Description: Acros, Integrated, IS52/IS52, ICR
- Saddle Description: Prologo, AKERO R PAS STEEL 150
- Seatpost Description: XLC, Non Suspension, SP-R30, Dia. 27.2 mm, L: 350 mm
- Stem Description: Lapierre, ST-344A, Dia. 31.8 mm, L: 80 mm, -10°
-
Stem Length:
- · 80 mm
- · 90 mm
- · 100 mm
- · 110 mm
Wheels and wheel components
- Tyre Description: Continental, Terra Trail, ShieldWall, 45-622
- Tyre Rear Description: Continental, Terra Trail, ShieldWall
- Wheelset Description: DT Swiss, G 1800 Spline, 24 mm, 12x100 mm, CL
- Wheelset Rear Description: DT Swiss, G 1800 Spline, 24 mm, 12x142 mm, CL, HG
- Wheelsize Description: 28, 28
