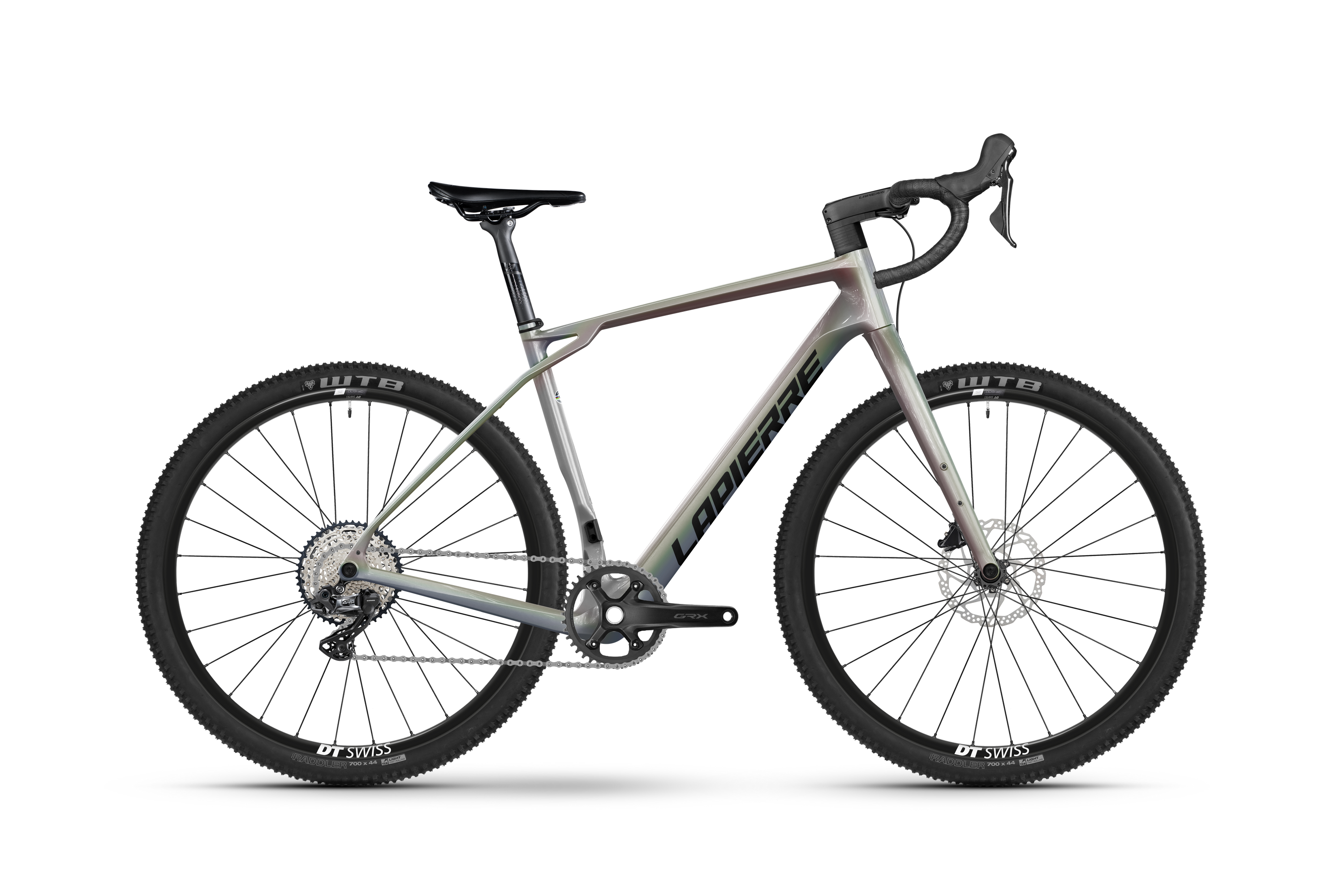

Gravel is dust that saturates the lungs, it's the dry clatter of stones against the derailleur, it's the silent groans of total effort. It's also a new vision of performance that resonates wonderfully with the new Crosshill CF. This carbon gravel bike is made for movie sets, Mad Max-style or Dune-style, whichever you prefer! It's also a weapon designed to accompany your greatest sporting conquests, whether on a long-distance road-trip, a personal challenge or a group bikepacking expedition. Everything about the Crosshill CF is in tune with your exploits, with the certainty of creating some of the finest memories of your life. This is the case for Romain, Jiri and Mathieu, whose crazy project to cross the Canary Islands on a Gravel bike sums up the extraordinary capabilities of this machine.
3D Tubular Endurance Carbon Frame
Mudguard & Luggage Mounts
Shimano GRX Di2 Groupset
DT Swiss GR 1600 Spline Alloy Wheelset
Lapierre Carbon Bar & Alloy Stem
Bike Geometry
-
Bottom bracket drop [mm]:
- · 71 mm
- · 70 mm
- Chain stay length [mm]: 430 mm
- Fork offset [mm]: 425 mm
- Fork total length [mm]: 45 mm
-
Head tube angle:
- · 71 degrees
- · 71.5 degrees
-
Head tube length [mm]:
- · 115 mm
- · 130 mm
- · 150 mm
- · 170 mm
-
Reach [mm]:
- · 373 mm
- · 380 mm
- · 386 mm
- · 390 mm
-
Stack [mm]:
- · 567 mm
- · 581 mm
- · 601 mm
- · 620 mm
-
Seat tube angle:
- · 73.5 degrees
- · 73 degrees
- · 72.5 degrees
-
Seat tube length [mm]:
- · 460 mm
- · 490 mm
- · 520 mm
- · 550 mm
-
Top tube length [mm]:
- · 541 mm
- · 552 mm
- · 570 mm
- · 585 mm
-
Wheelbase [mm]:
- · 1016 mm
- · 1027 mm
- · 1036 mm
- · 1045 mm
Brake system
- Brake Front Description: Shimano, Hydraulic Disc brake, GRX Di2 RX825, 160 mm
- Brake Rear Description: Shimano, Hydraulic Disc brake, GRX Di2 RX825, 160 mm
- Brake Rear Mount: Flat Mount
Drivetrain
- Bottom Bracket Description: Shimano, PressFit, BB72-41B
- Cassette Description: Shimano, Cassette, CS-HG710-12, HG
- Cassette Teeth: 11-36T
- Chain Description: Shimano, Chain, CN-M7100 12s
- Crankset Description: Shimano, GRX FC-RX820
- Crankset Teeth: 48-31T
- Crankset Type: double
- Derailleur Front Description: Shimano, GRX Di2 RX825 Brazed-On
- Derailleur Rear Description: Shimano, GRX Di2 RX825, 12s
- Gear Description: Shimano, Derailleur
- Number Of Gears: 24
- Pedal Description: VP, 360 Clips&Strap
- Shifter Left Description: Shimano, Shift-brake lever, GRX ST-825
- Shifter Right Description: Shimano, Shift-brake lever, GRX ST-825
Frame and more
-
Framesize:
- · 46 cm
- · 49 cm
- · 52 cm
- · 55 cm
-
Framesize Convection:
- · S
- · M
- · L
- · XL
- Max loadable weight (KG): 110 kg
- Front Fork Description: Lapierre, Carbon UD SL
- Front Fork Type: Non Suspension
- Frame Description: HIGH, Carbon, Gents
Handlebar and Saddle
- Handgrip Description: Lapierre
- Handlebar Description: Lapierre, Drop bar, Carbon gravel bar, Drop: 122 mm, Reach: 68 mm, Flare: 12°
- Headset Description: Acros, Integrated, Integrated
- Saddle Description: Fizik, Terra Argo X7 150mm
- Seatpost Description: Lapierre, Non Suspension, Alloy, Ø: 27.2 mm, L: 350 mm
- Stem Description: Lapierre, Alloy, internal routing, Ø: 31.8 mm, L: 80 mm
Wheels and wheel components
- Tyre Description: WTB, Raddler TCS LIGHT 60TPI, 44-622
- Tyre Rear Description: WTB, Raddler TCS LIGHT 60TPI
- Wheelset Description: DT Swiss, GR1600 Spline, 25 mm, 12x100 mm, CL, TR,
- Wheelset Material: Aluminium
- Wheelset Rear Description: DT Swiss, GR1600 Spline, 25 mm,12x142 mm, CL, TR, HG
- Wheelsize Description: 28, 28
