Scott Passage 10 Belt MY26

€3.899,00 EUR

Tax included. Shipping calculated at checkout.
If you would like to purchase your bike using Cycle To Work Scheme please Select "Request Quote" and follow the instructions
PRODUCT INFO

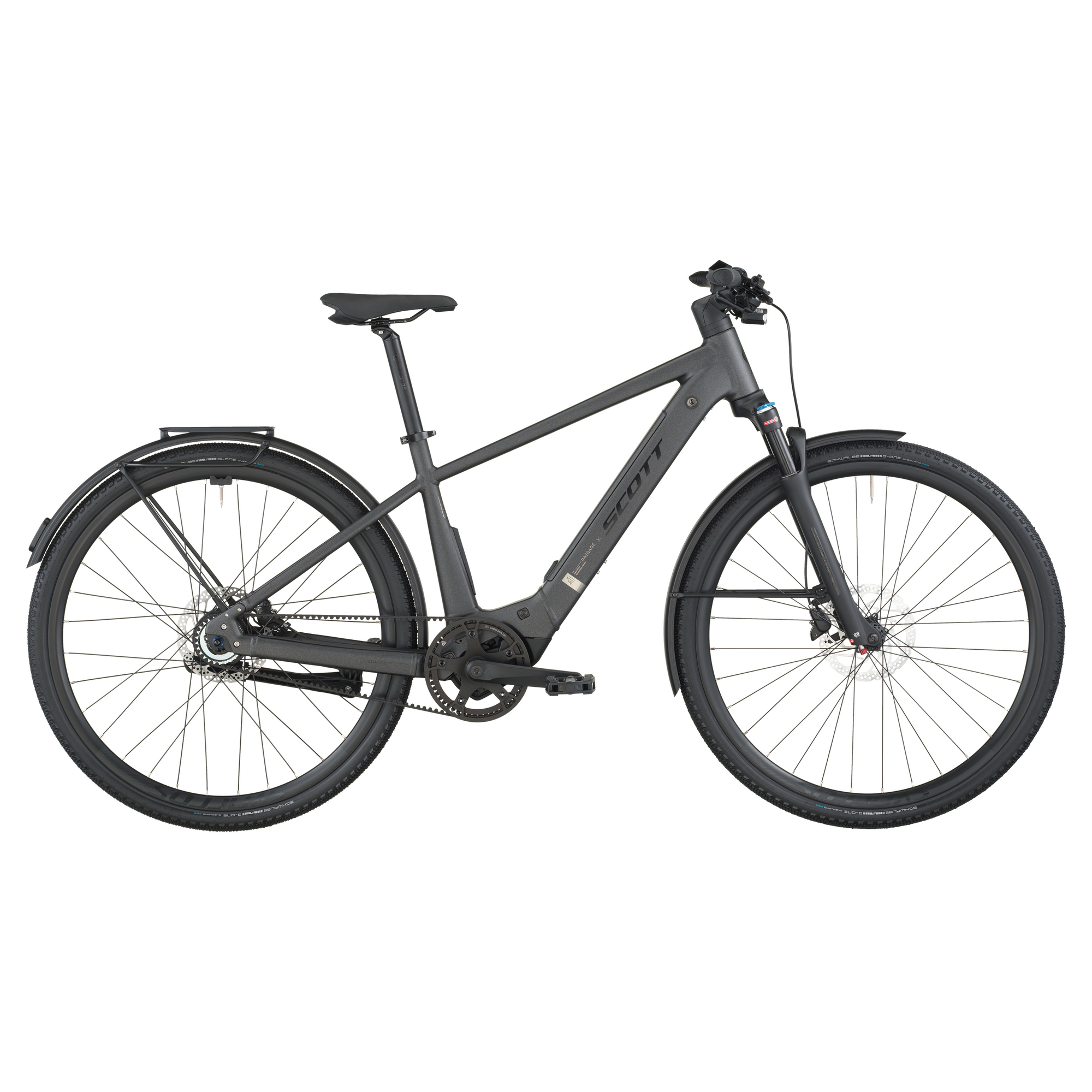

The Passage 10 Belt E-Bike is your ticket to electrified city riding and hassle-free home maintenance. We designed Passage in a trim build and a sleek frame that perfectly complements the lightweight Bosch SX motor. Together, they’re a dynamite duo that provide plenty of punch to spin up city hillsides or navigate traffic with ease.

On the ride, Passage feels weightless, thanks to a balanced geometry and even-weight distribution, the motor unit and 400Wh battery held low on the frame. The Bosch SX motor is also nice on the legs, featuring a narrower Q-factor that lets you have a natural pedaling style compared to larger e-bikes you’ll see in the city. If you encounter some rougher pavement as you’re zipping around town on the Passage, you can trust the 75mm suspension fork to give the cushion to maintain control. And if you’re going long, the rear rack sets you up to stow the day’s essentials.

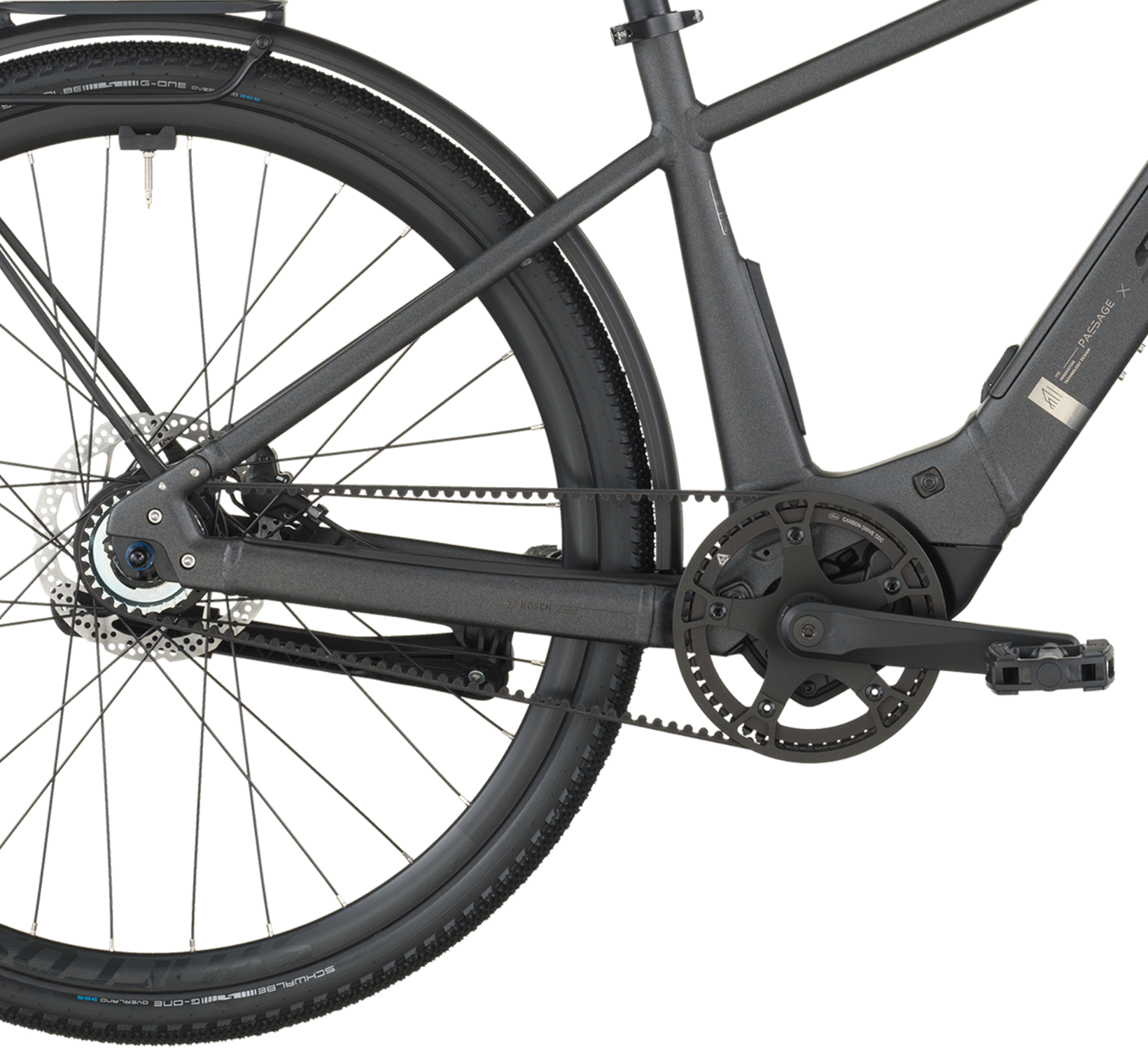

This Passage 10 uses a belt drivetrain that stays much cleaner than a traditional chain drivetrain, uses no lubricant, won’t snag on your clothing, and requires little to no maintenance. So when you’re ready to park Passage for the day, just kick out the kickstand and thank it for the effortless ride.

FrameAlloy S-XL=29", 6061 Alloy custom butted tubingTop extraction battery

Travel75mm

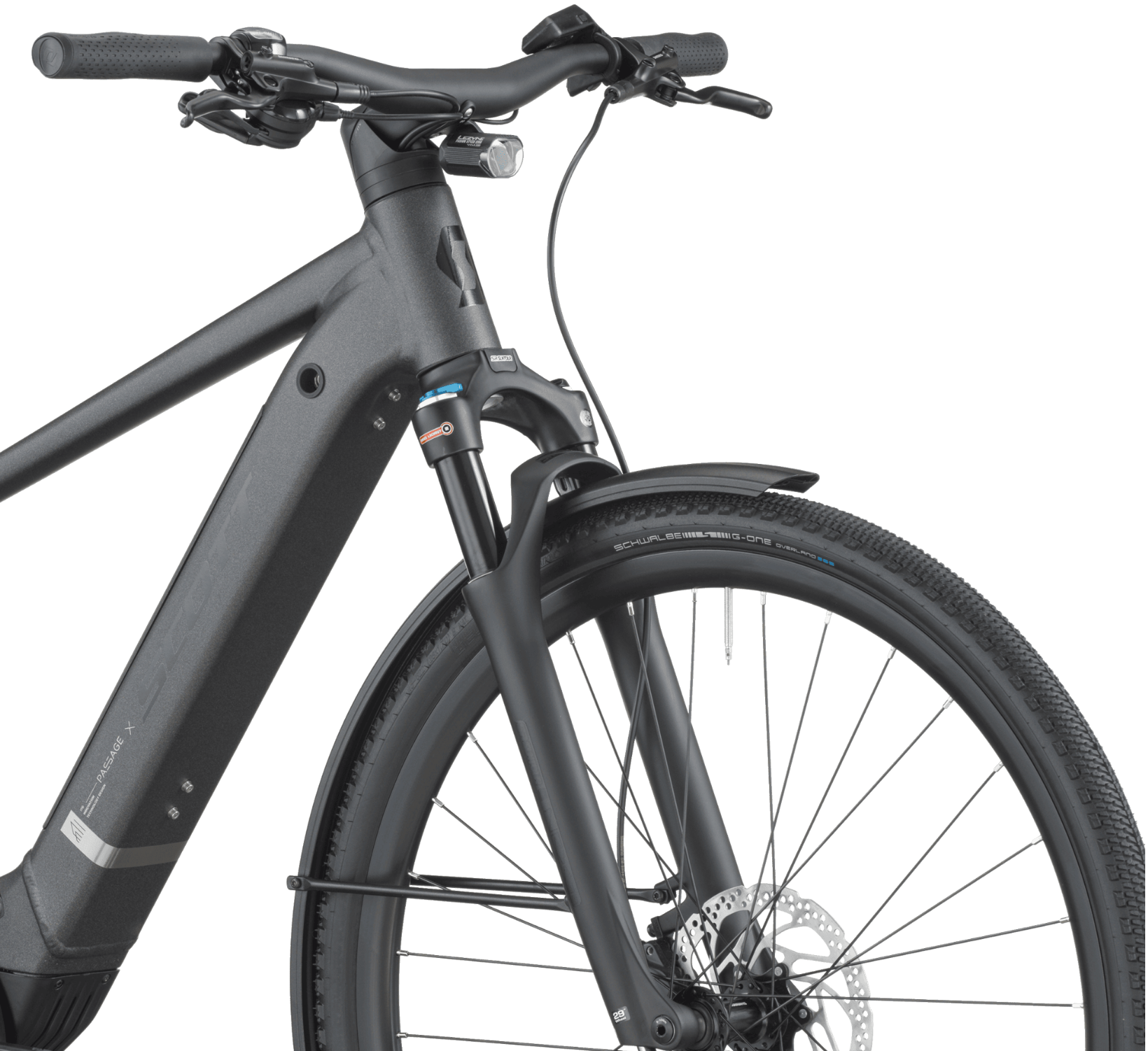

ForkSR Suntour NRX32-E Air LO R, Tapered , 15x100 bolt Axle, Remote Lock Out , Alloy Steerer, 75mm Travel

Drive UnitBosch Performance Line SX (BDU314Y)EU: 25kmh

BatteryCompact Tube 400Wh

DisplayBosch Purion 200

Charger2A Charger

ShiftersShimano Alfine SL-S503 Rapid Fire Plus

CranksetFSA CK-220 170mm

ChainringGates CDC 52T w/Guard

ChainGates CDC 125T

CassetteGates CDC 26T

BrakesShimano BR-MT200 Disc

RotorFront: SM-RT30 CL 180mm, Rear: SM-RT30 CL 160mm

HandlebarSyncros Welded Alloy Combo 680mm, Backsweep 9°, Upsweep 8°, 70mm, with front Light mount

SeatpostSyncros M3.0, 31.6

SeatSyncros Capilano

HeadsetAcros, 1.5"- 1.5"semi integ. OD 50/61mm, ID 44/55mm

Front HubShimano HBTC50015B CL, 15x100mm

Rear HubShimano Nexus 8 Speed

SpokesBlack Spokes

RimsSyncros X15 Disc

Front TireSchwalbe G-One Overland 365 Performance, 700x45C

Rear TireSchwalbe G-One Overland 365 Performance, 700x45C

LightsLezyne Fusion E550SM front lightRear Supernova TL3Z

RackRacktime Micro Rack SnapIt 2.0 8KG

PedalsMarwi SP-827

ExtrasAlumee alloy profile FenderPassage Kickstand

Approx weight in KG21.7

Approx weight in LBS47.84

Max. System Weight130kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.




Please note that bike specifications are subject to change without prior notice.
