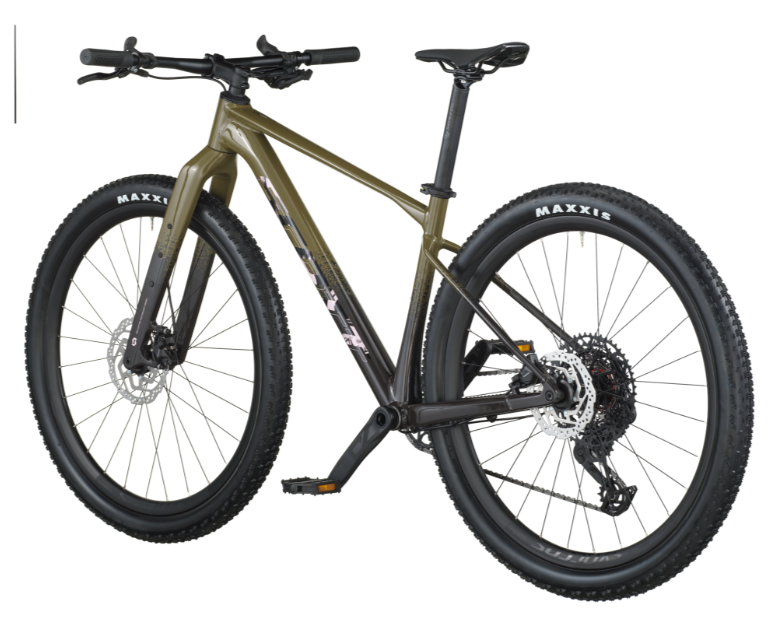

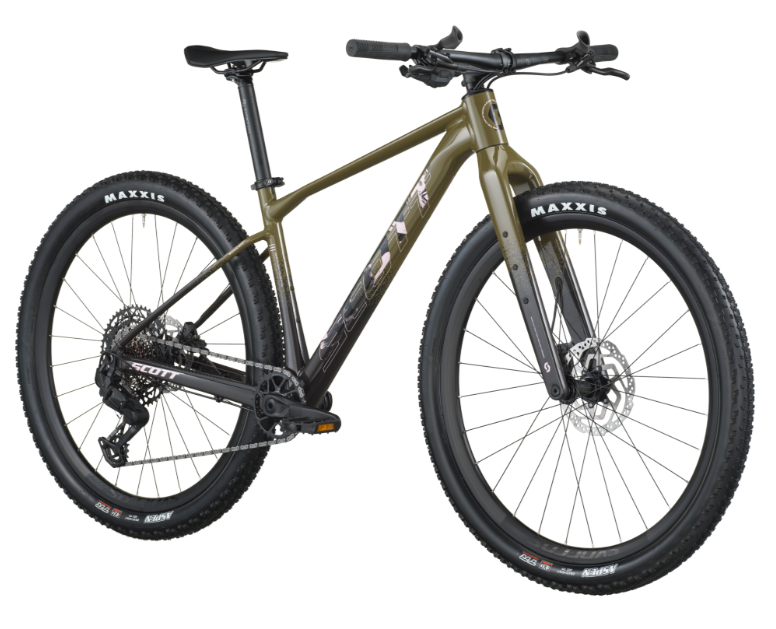

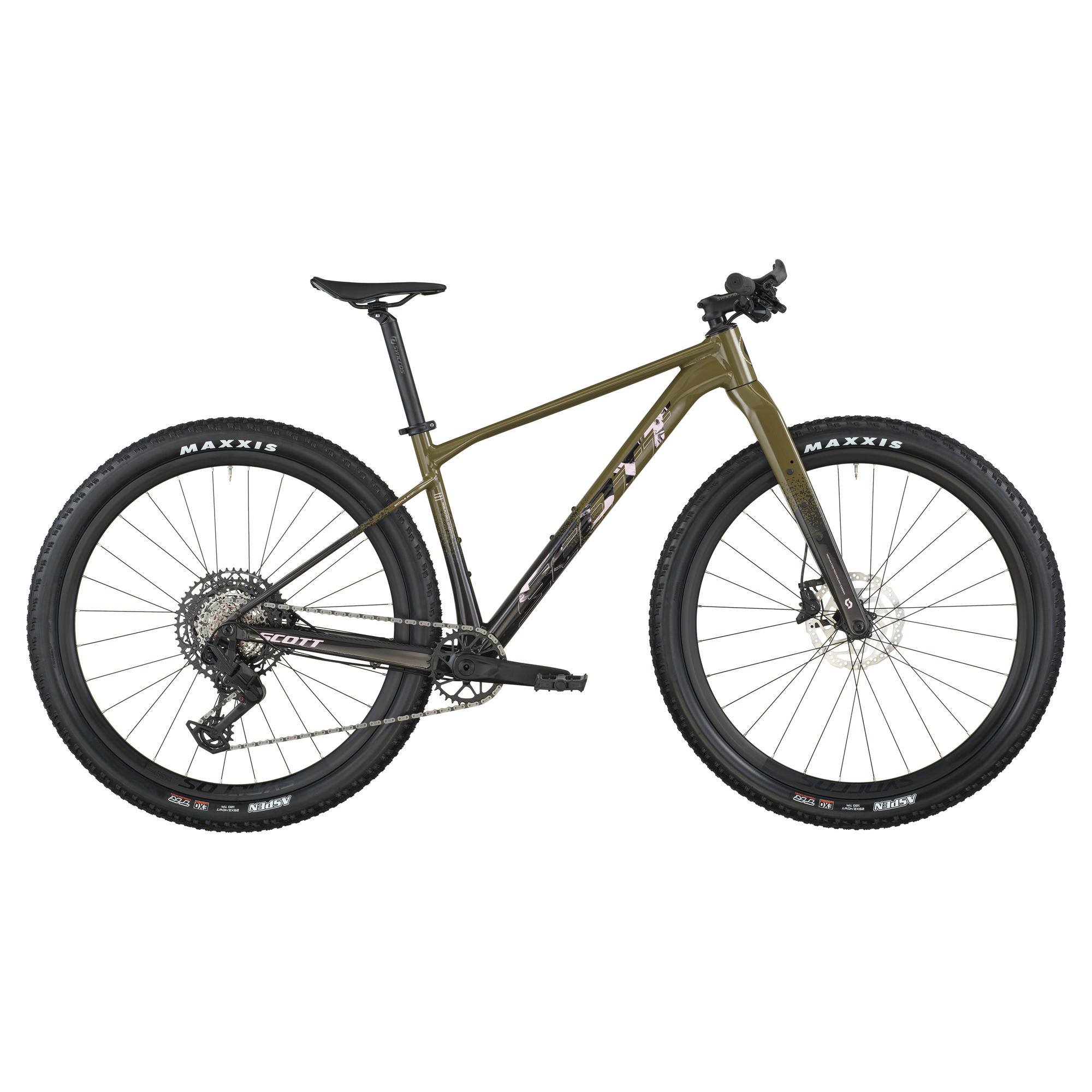

The Scale Gravel was put on this planet for going on adventures with attitude. Designed to go the distance over any and all types of terrain, the Scale Gravel is lightweight with agile handling and features multiple mounting options.
Frame Scale Alloy 6061 Custom Butted Tubing, Syncros Cable Integration SystemBB92, UDH Interface, 12x148mm with 55mm Chainline
Fork Scale Rigid HMFPostmount Disc StandardTapered Carbon steerer
Rear Derailleur SRAM Eagle 70 Transmission 12 Speed
Shifters SRAM Eagle 70 Trigger
Crankset SRAM Eagle 70 TransmissionDUB, 55mm CL, 34T
Chainguide SCOTT custom
BB-Set SRAM DUB PF 92 MTB Wide, shell 41x92mm
Chain SRAM CN Eagle 70 Transmission
Cassette SRAM Eagle XS 1270 V2 Transmission 10-52
Brakes Shimano MT401 Disc Brake
Rotor Shimano SM-RT10 CL, 180/F and 160/R
Handlebar Syncros Alloy 6061T shape Flat, 9°, 740mmSyncros Performance XC lock-on grips
H'stem Syncros DC 3.0Syncros Cable Integration System0° rise, 6061 Alloy, 31.8mm, 1 1/8"
Seatpost Syncros, 31.6x400mm
Seat Syncros Belcarra V2.5 Cut Out
Headset Syncros - Acros OE Cable Routing HS SystemOD 50/62mm, ID 42/56mm
Hub (Front)Formula CL-811, 15x110mm
Hub (Rear)Formula CL-3248, 12x148mm
Spokes Stainless Black 15G, 1.8mm
Rims Syncros X-28, 28H, Tubeless ready
Front Tire Maxxis Aspen, 29x2.4", 120TPI Foldable BeadTubeless Ready, EXO
Rear Tire Maxxis Aspen, 29x2.4", 120TPI Foldable BeadTubeless Ready, EXO
Accessories Spirgrips+ Inner Bar ends
Approx weight in KG11.4 (Tubless setup without pedals)
Approx weight in LBS25.13 (Tubless setup without pedals)
Max. System Weight 120kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
Please note that bike specifications are subject to change without prior notice.
