The perfect bridge between urban cruising and mountain biking. The SCOTT Axis 10 is designed for versatility: a Bosch Performance CX motor paired with a removable 800Wh battery, delivering the power you need for weekend adventures, while an integrated SP connection on the stem lets you attach and secure your phone in seconds, so it's always with you—directions always in view.

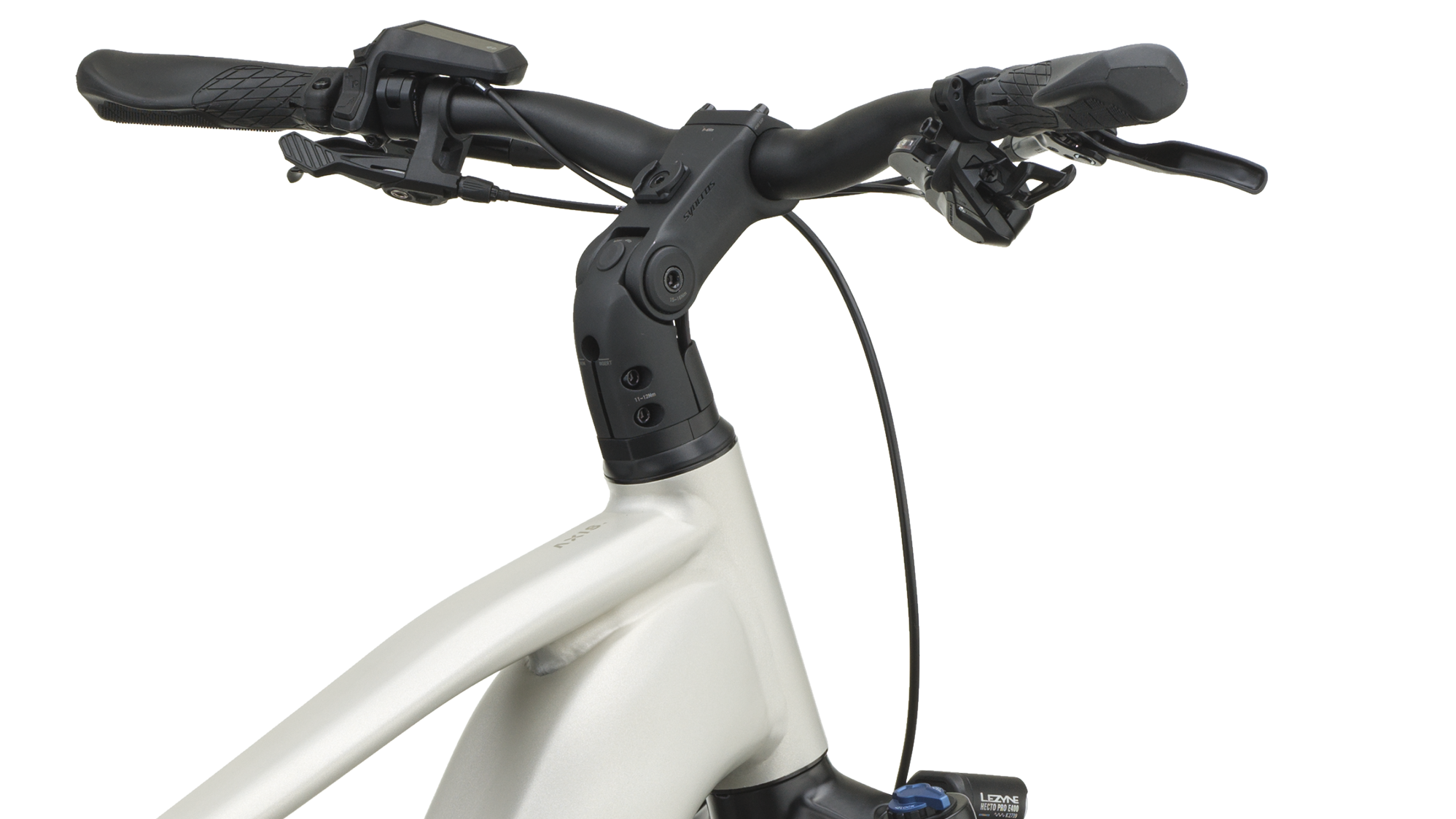

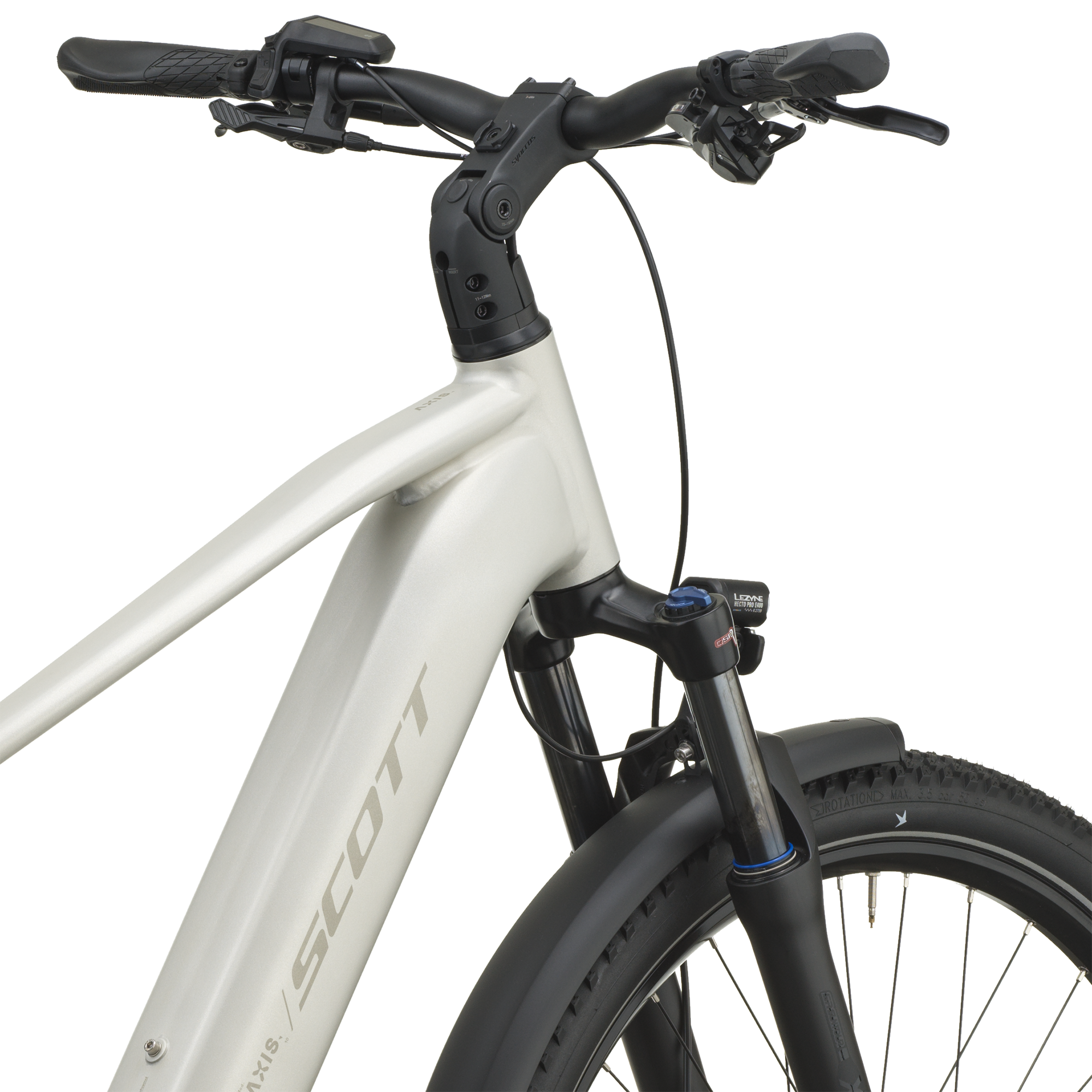

Want to find your perfect fit? The stem is fully adjustable for a relaxed riding position or a more sporty position to get up to speed.

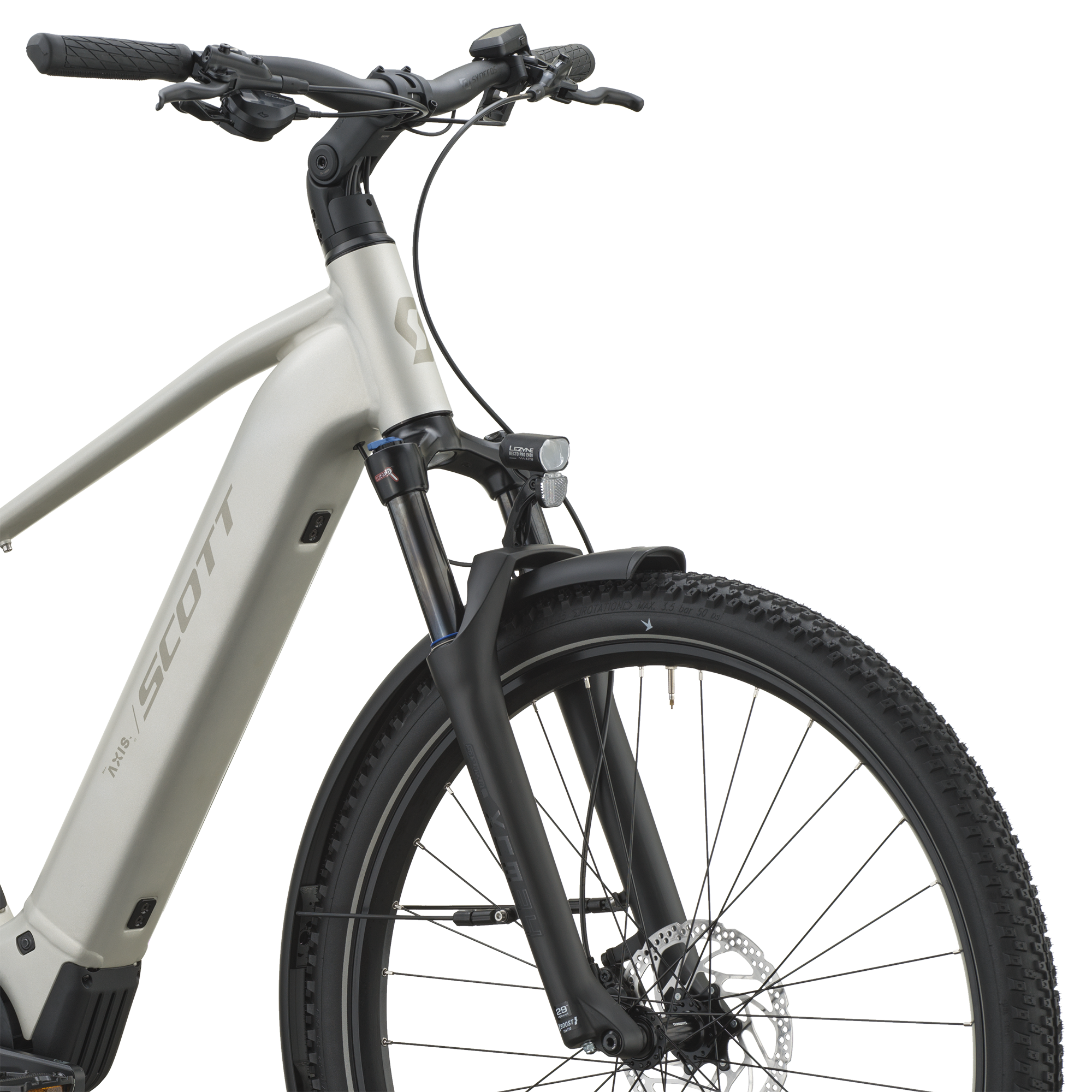

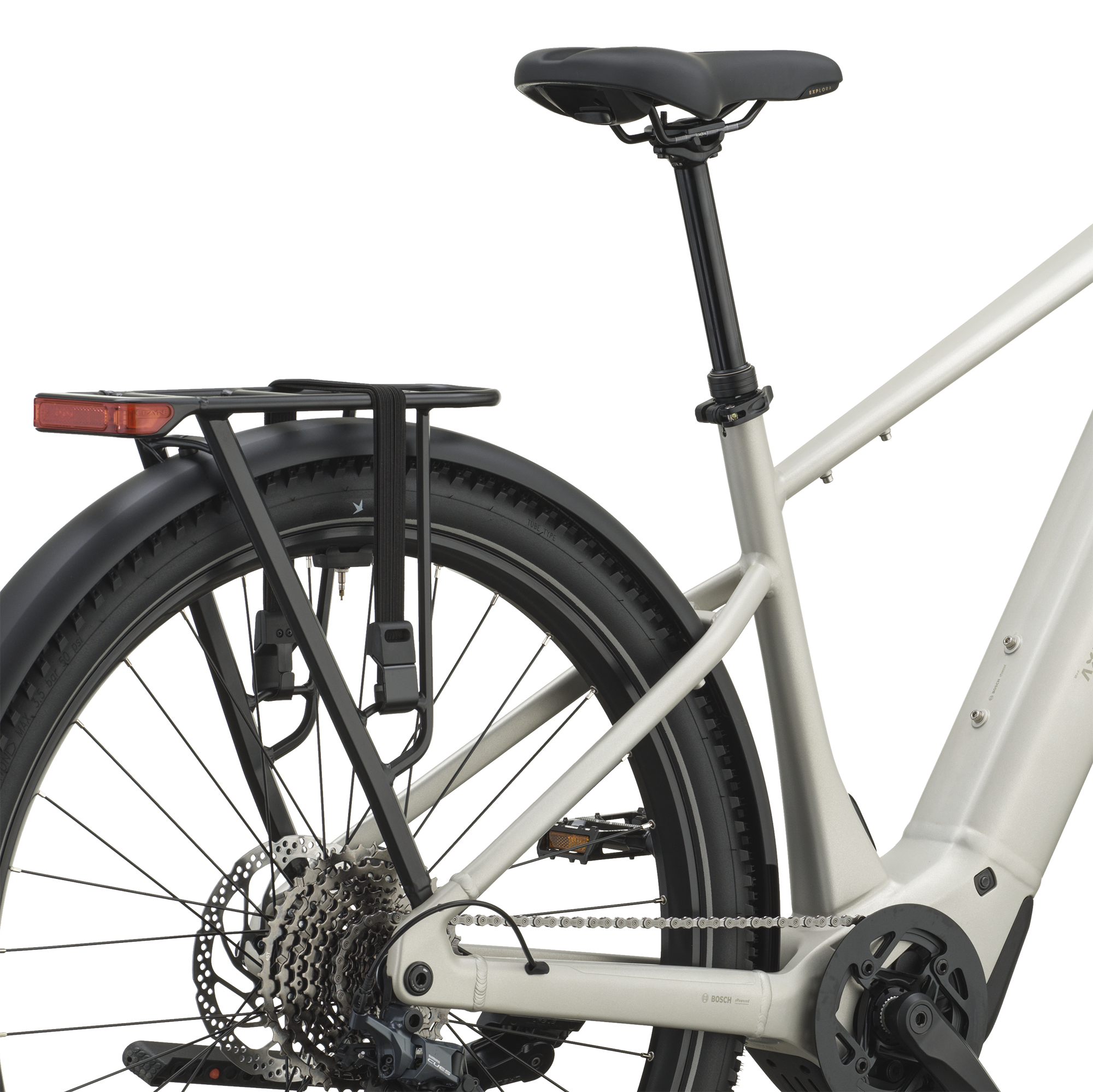

Traveling with the family or hauling extra gear? The rack is compatible with Racktime SNAPIT 2.0, KID'n’CARRY systems and supports 30kg, while the Syncros Thru-Axle supports towing a cargo trailer. Bring your child, dogs, or any cargo you'd like. The front fork light position allows you to add a front basket, giving you illumination without sacrificing utility.
Choose between two sleek frame shapes, where the wave style offers a lower standover height for effortless mounting and remounting. Each frame maintains Axis' signature ride and handling. Ride Axis.
Please note that bike specifications are subject to change without prior notice.
What’s New
- What's new: Geometry Frame Update, XXL size, SP connect, Kid 'n Carry Ready, Adjustable stem
Frame and Suspension
- Frame: Alloy S-XXL=29", 6061 Alloy custom butted tubing, Side extraction battery, UDH Interface, 12x148mm with 52mm Chainline
- Travel: 120mm
- Fork: SR Suntour XCM34 BOOST AIR LO
Motor and Battery

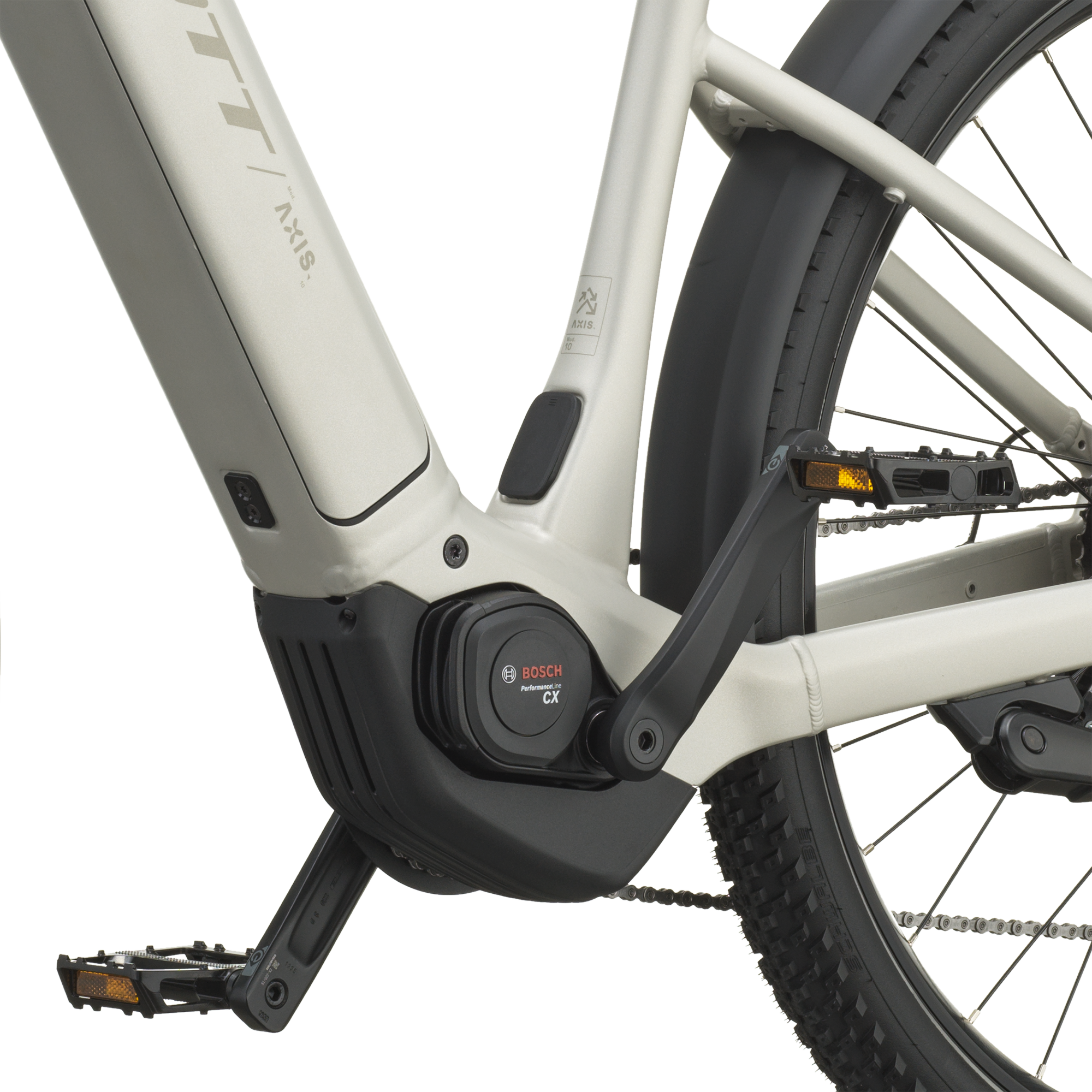

- Drive Unit: Bosch Performance Line CX (BDU384Y)
- Battery: Bosch PowerTube 800Wh
- Display: Bosch Purion 200
- Charger: Bosch 4A Charger 230V

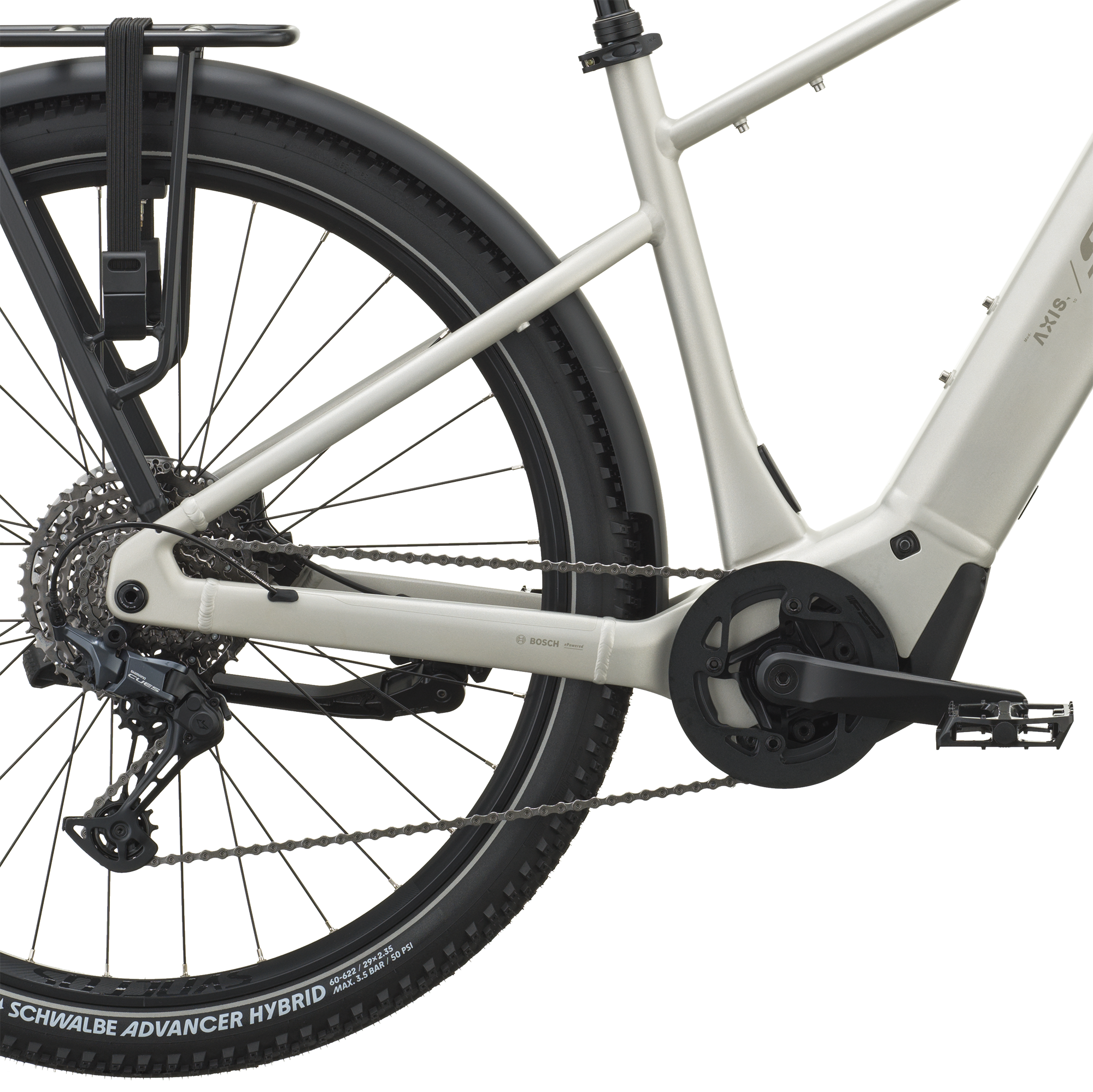

Drivetrain
- Rear Derailleur: Shimano Cues RD-U8000 11-Speed
- Shifters: Shimano Cues SL-U6000-11
- Crankset: FSA CK 220 165mm
- Chainring: FSA 36T with Chain Guard
- Chain: Shimano CN-LG500
- Cassette: Shimano Cues CS-LG400, 11-Speed 11-45T
Brake System
- Brakes: Shimano BR-MT420 4-Piston
- Front Disc Rotor: Shimano SM-RT30 CL, 180mm
- Rear Disc Rotor: Shimano SM-RT30 CL, 180mm
Cockpit and Seating
- Grips: Urban Comfort
- Handlebar: Syncros UC3.0 680mm, Rise 12mm, Backsweep 15°
- H'stem: JD, Adjustable, 31.8*90 mm −10°~+60°, SP Connect
- Seatpost: Syncros Dropper Post SP-M302-AL2, 31.6mm
- Seat: Selle Royal Explora Moderate 170mm
- Headset: Feimin, 28.8-56-62(39.8), Sealed Bearing, Alloy Cup
Wheels and Tires
- Front Hub: Shimano HB-TC500 15x110mm
- Rear Hub: Shimano FH-TC500 148mm
- Spokes: Stainless Black 13G
- Front Rim: X18 Disc
- Rear Rim: X18 Disc
- Front Tire: Schwalbe Advancer 60-622
- Rear Tire: Schwalbe Advancer 60-622
Lights and Equipment
- Front Light: Lezyne Hecto Pro STVZO E400
- Rear Light: Lezyne STVZO Integrated
- Rack: Racktime carrier SNAPIT 2.0 30Kg KID'n'CARRY Ready
- Fender: Curana Apollo 75
- Pedals: VP VPE-506
Extras and Accessories
- Extras: Ursus U-Mount Kickstand
Weight
- Approx weight in KG: 28.2
- Approx weight in LBS: 62.17
- Max. System Weight: 160kg
- Note: The overall weight includes the bike, the rider, the equipment and possible additional luggage.
