The perfect bridge between urban cruising and mountain biking. The SCOTT Axis 30 Wave is designed for versatility: a Bosch Performance motor paired with a 540Wh removable battery delivering the power you need for weekend adventures, while an integrated SP connection on the stem lets you attach and secure your phone in seconds, so it's always with you—directions always in view.

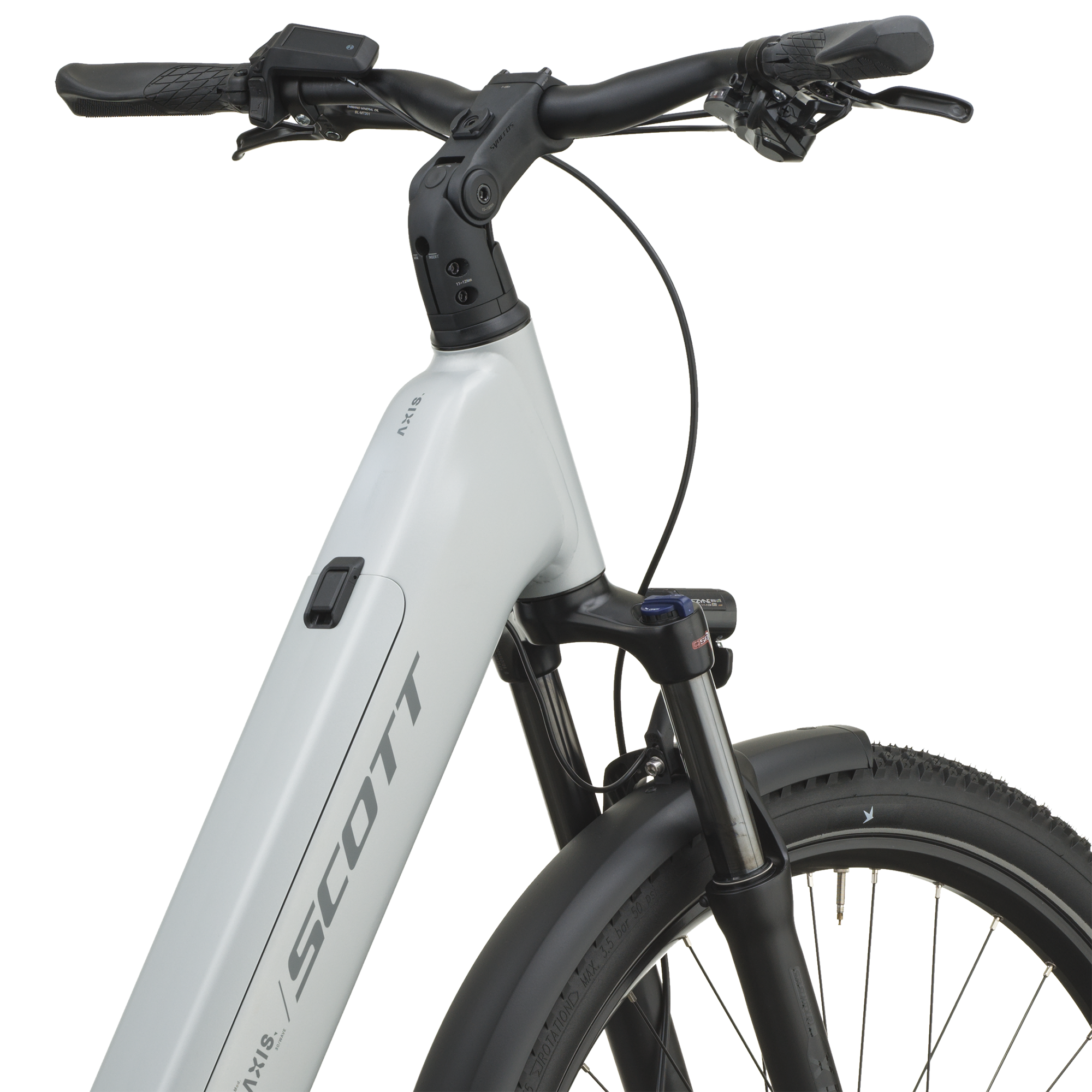

Want to find your perfect fit? The stem is fully adjustable for a relaxed riding position or a sporty position to get up to speed.

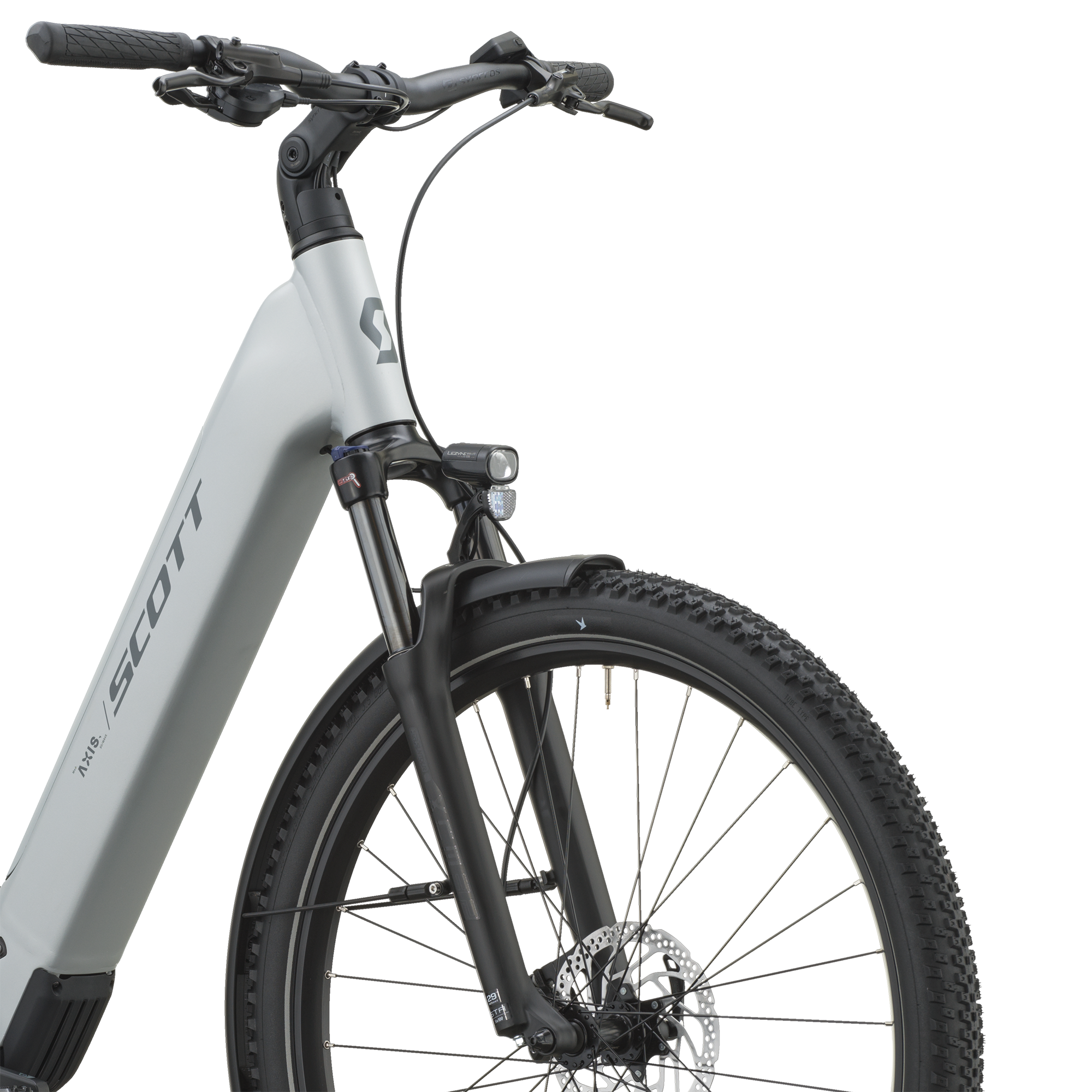

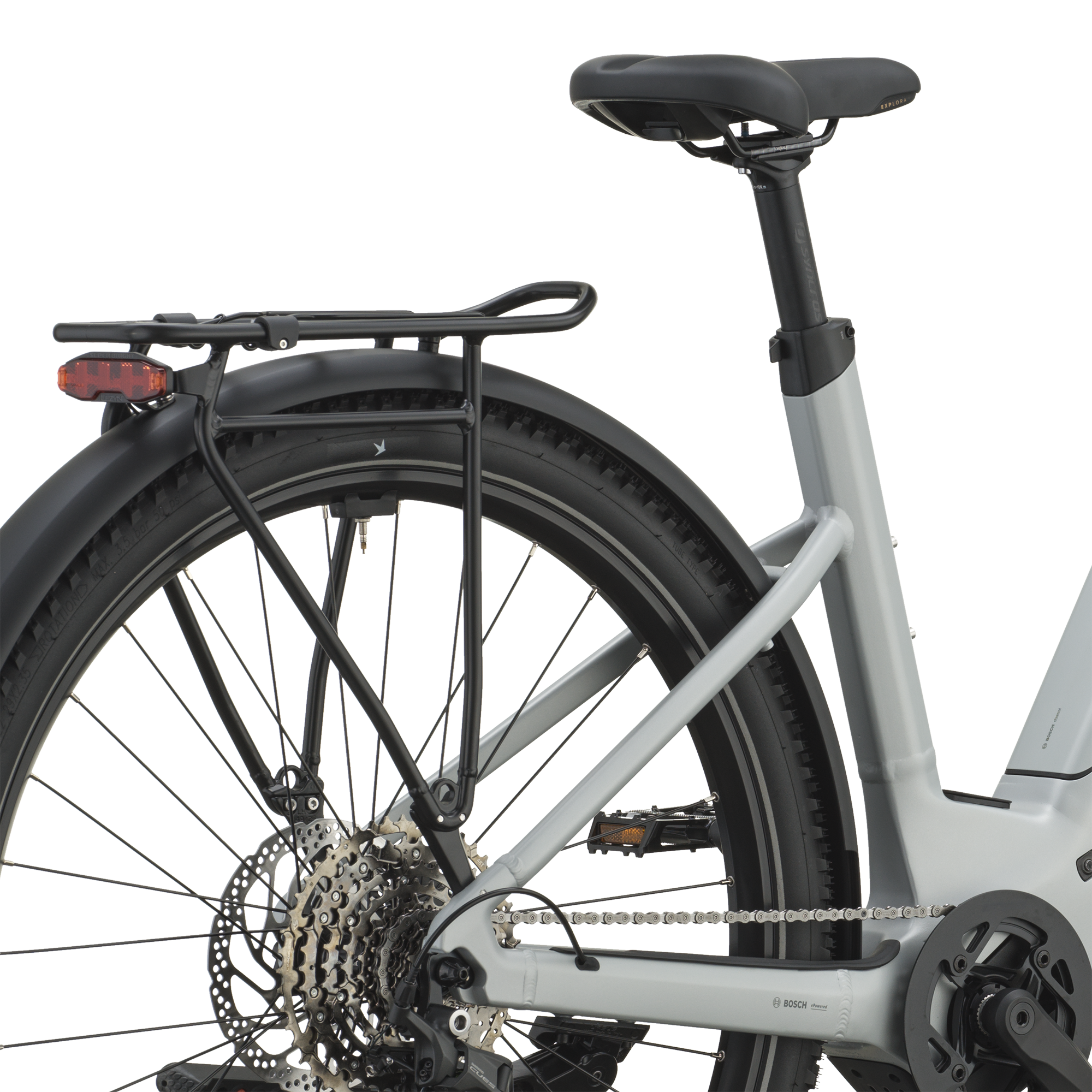

Traveling with the family or hauling extra gear? The rack is compatible with Racktime SNAPIT 2.0, KID'n’CARRY systems and supports 30kg, so you can bring your child or any cargo you'd like. The front fork light has been positioned so that a front basket can be added, giving you illumination without sacrificing utility.
The frame design of the Axis 30 Wave provides a lower standover height for effortless mounting and remounting. Ride Axis.
Please note that bike specifications are subject to change without prior notice.
What’s New
- What's new: SP Connect, Kid 'n Carry Ready, Adjustable stem
Frame and Suspension
- Frame: Alloy S-XL=29", 6061 Alloy custom butted tubing, Top extraction battery, UDH Interface, 12x148mm with 52mm Chainline
- Travel: 120mm
- Fork: SR Suntour XCM 32 5TA COIL LO
Motor and Battery

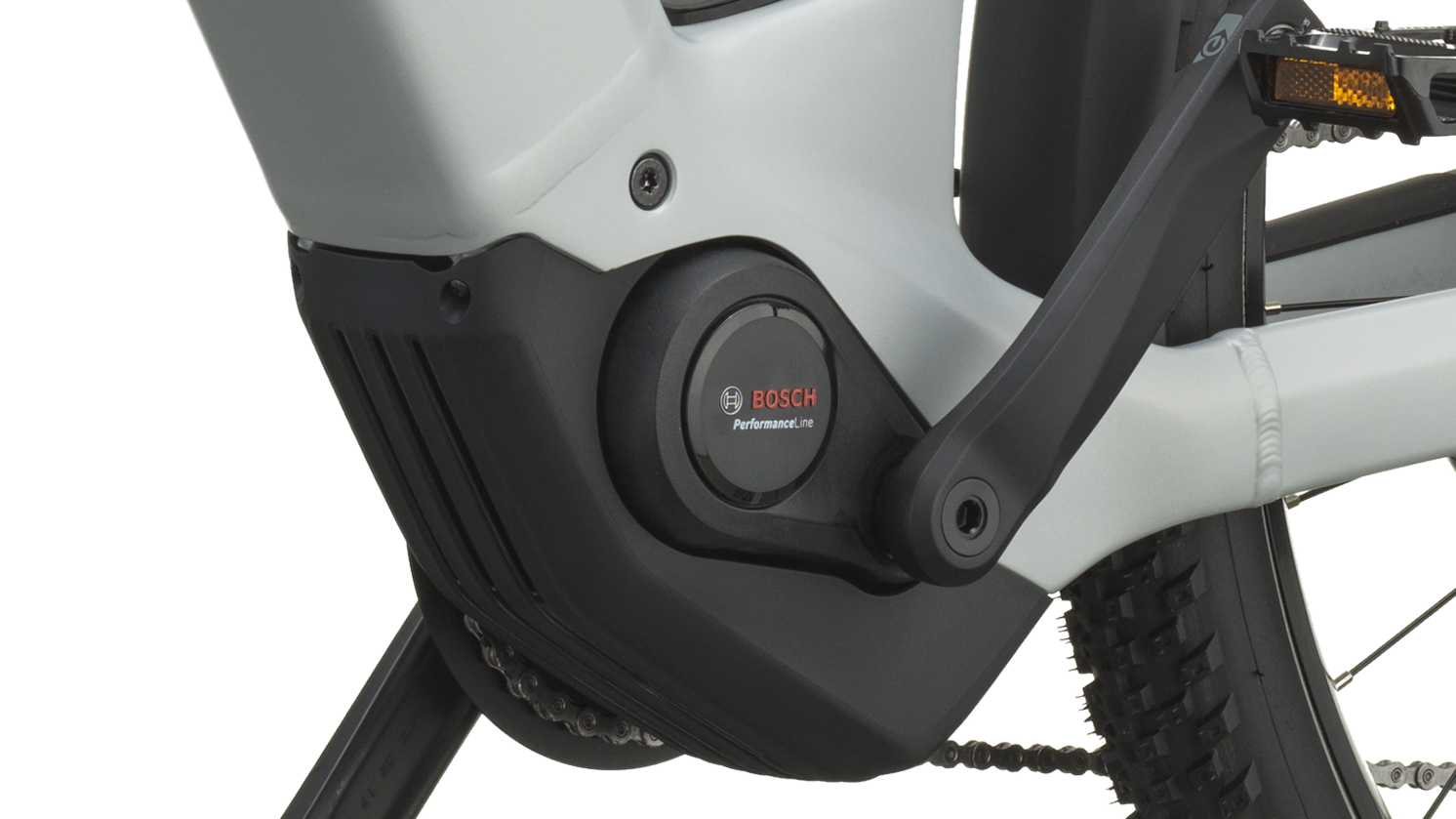

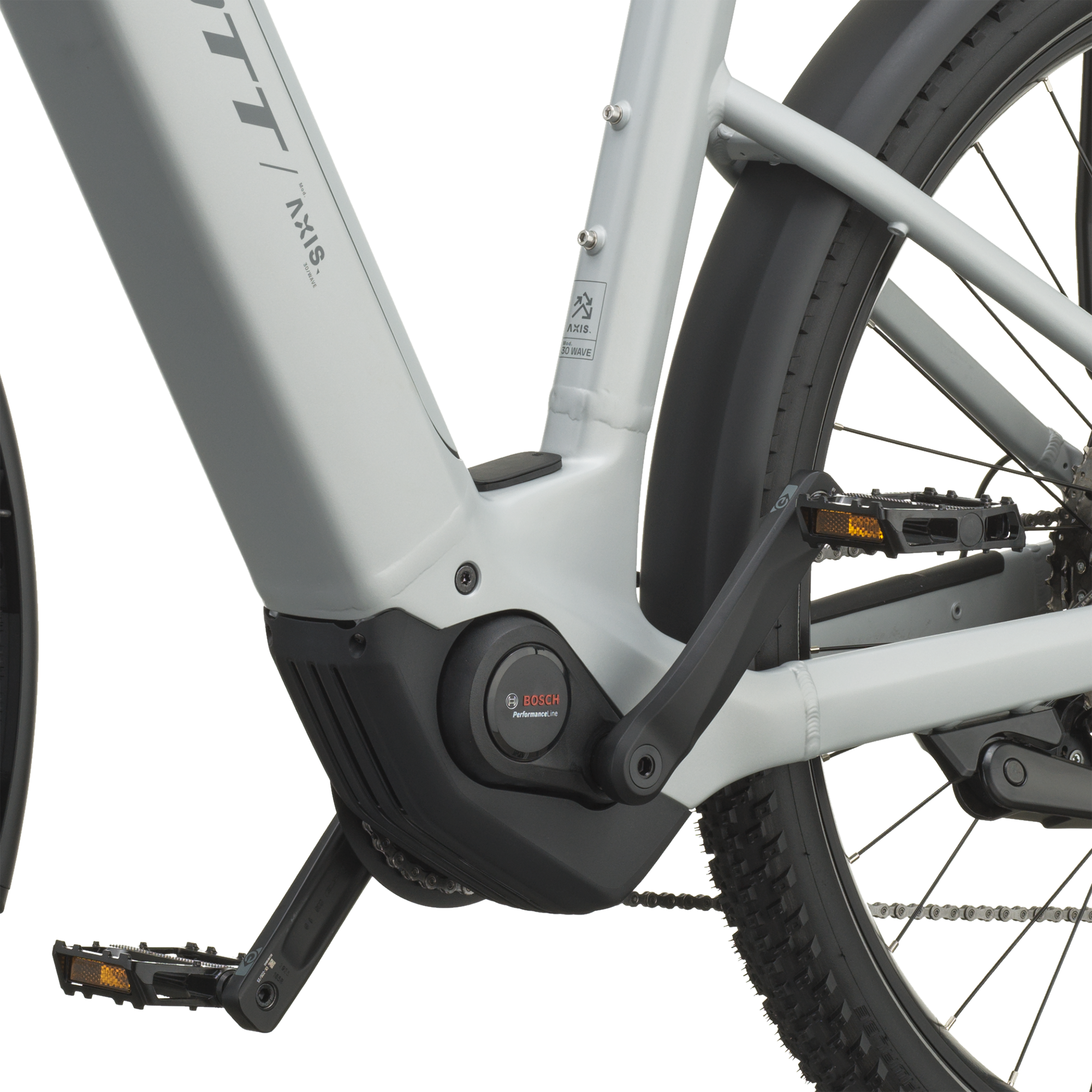

- Drive Unit: Bosch Performance Line (BDU346Y)
- Battery: Bosch PowerTube 540Wh
- Display: Bosch Purion 200
- Charger: Bosch 2A Charger 230V
Drivetrain
- Rear Derailleur: Shimano Cues RD-U4000 9-Speed
- Shifters: Shimano Cues SL-U4000 With Display
- Crankset: FSA CK 220 165mm
- Chainring: FSA 36T with Chain Guard
- Chain: Shimano CN-LG500
- Cassette: Shimano Cues CS-LG300, 9-Speed 11-46T
Brake System
- Brakes: Shimano BR-MT200 2-Piston
- Front Disc Rotor: Shimano SM-RT30 CL, 180mm
- Rear Disc Rotor: Shimano SM-RT30 CL, 180mm
Cockpit and Seating
- Grips: Urban Comfort
- Handlebar: Syncros UC3.0 680mm, Rise 19mm, Backsweep 15°
- H'stem: JD, Adjustable, 31.8*90 mm −10°~+60°, SP Connect
- Seatpost: Syncros M3.0, 31.6mm, 350mm
- Seat: Selle Royal Explora Moderate Wide 195mm
- Headset: Feimin, 28.8-56-62(39.8/30), H887 Bearing Cup
Wheels and Tires
- Front Hub: Shimano HB-TC500 15x110mm
- Rear Hub: Shimano FH-QC400-HM QR
- Spokes: Stainless Black 13G
- Front Rim: X18 Disc
- Rear Rim: X18 Disc
- Front Tire: Schwalbe Advancer 60-622
- Rear Tire: Schwalbe Advancer 60-622
Lights and Equipment
- Front Light: Lezyne Mini Lite STVZO E350
- Rear Light: Lezyne Superbright STVZO
- Rack: Racktime carrier SNAPIT 2.0 30Kg KID'n'CARRY Ready
- Fender: Curana Apollo 75
- Pedals: VP VPE-506
Extras and Accessories
- Extras: Ursus U-Mount Kickstand
Weight
- Approx weight in KG: 29.8
- Approx weight in LBS: 65.7
- Max. System Weight: 160kg
- Note: The overall weight includes the bike, the rider, the equipment and possible additional luggage.
