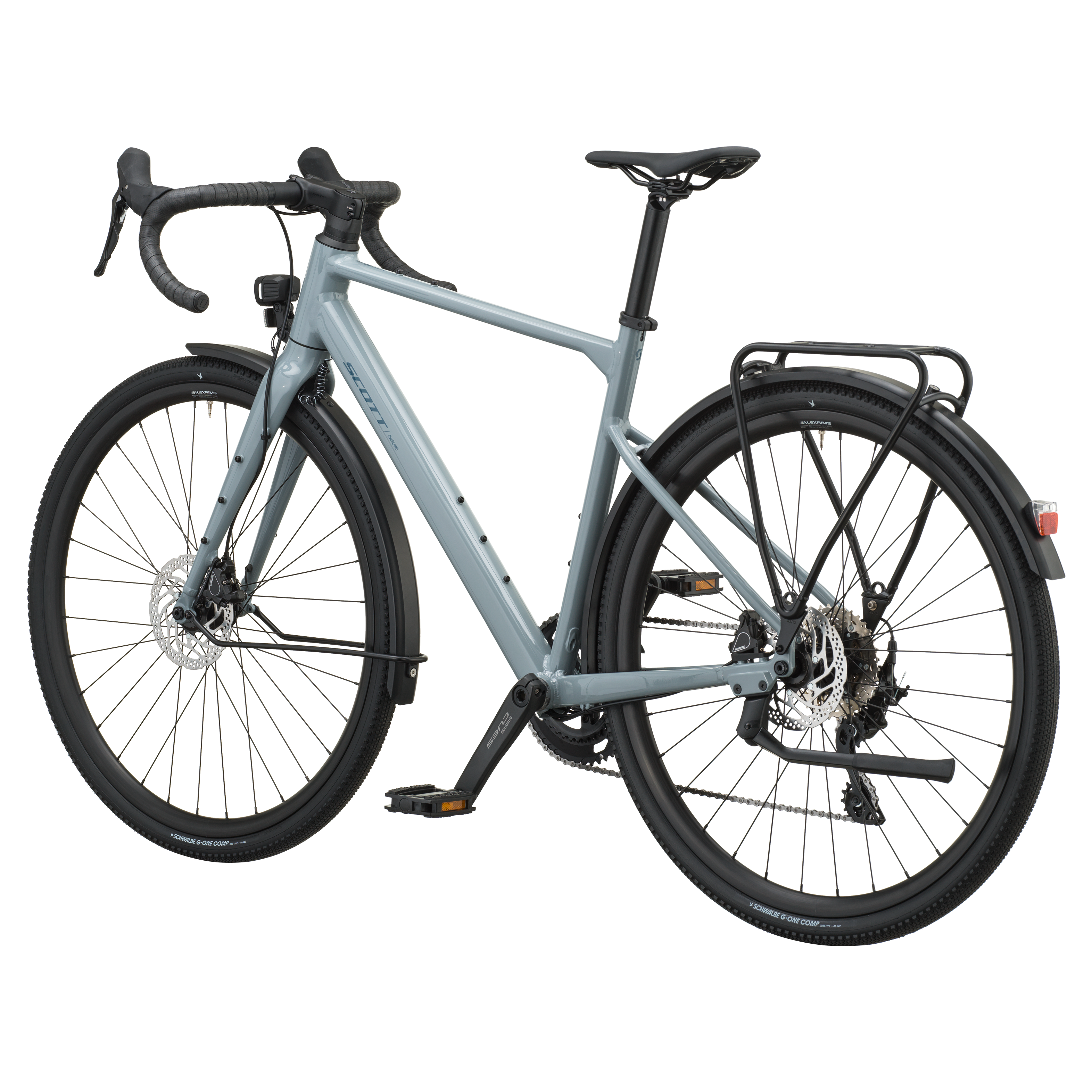

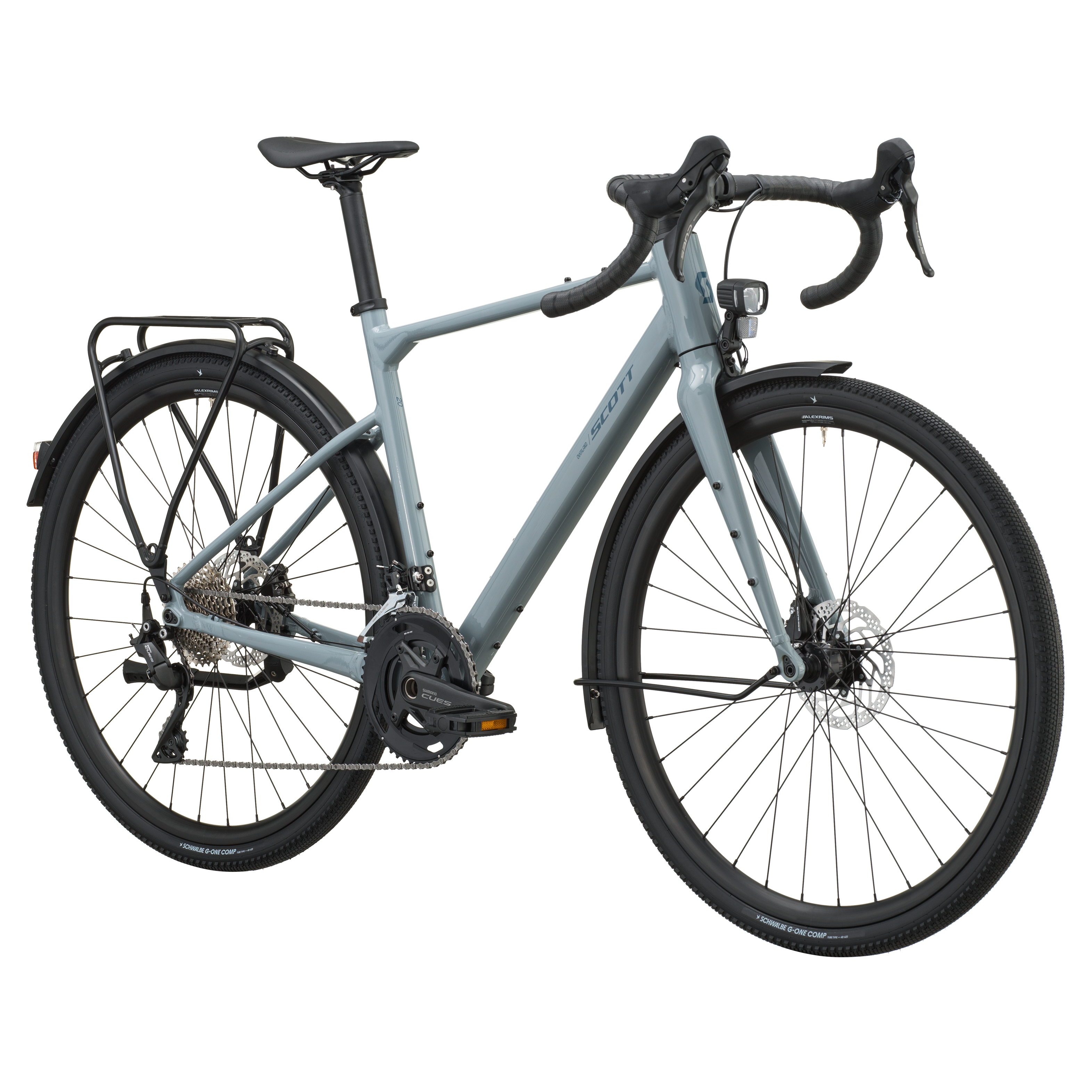

The SCOTT Overland 20 is a gravel bike built to handle every off-road adventure, from quick spins to long-haul journeys. Its durable alloy frame delivers the speed and endurance you need for gravel routes, while proven materials ensure reliable performance over rough terrain.
Whether you’re packing for a day ride, an overnight trip, or a longer expedition, you’ll have the capacity to carry what you need. Front-fork mounts support up to 3kg on each side, and the rear rack can handle an additional 20kg of gear. Need even more space? An optional front rack adds 10kg of capacity, and a top-tube bag keeps smaller items within easy reach.
Visibility is always assured with front and rear lights powered by a dynamo hub—no batteries needed. The lights charge as you ride, so you can see and be seen, no matter how long your journey lasts.
The Overland 20 ships with 40mm tires to offer a smooth yet responsive ride across varied surfaces. For rougher terrain, remove the fenders to clear up to 50mm tread, allowing you to fit wider tires for extra grip and control on less-maintained paths. The Shimano 10-speed drivetrain provides precise shifting and durability, ensuring a reliable ride mile after mile.
Whether you’re commuting, touring, or seeking new challenges, it’s designed to adapt to your needs—making it the perfect companion for any adventure.
Please note that bike specifications are subject to change without prior notice.
Frame and Suspension
- Frame: 28", ultra lite AL-6061
- Fork: Allroad alloy, 12x100 mm axle, 1 1/8" alloy steerer

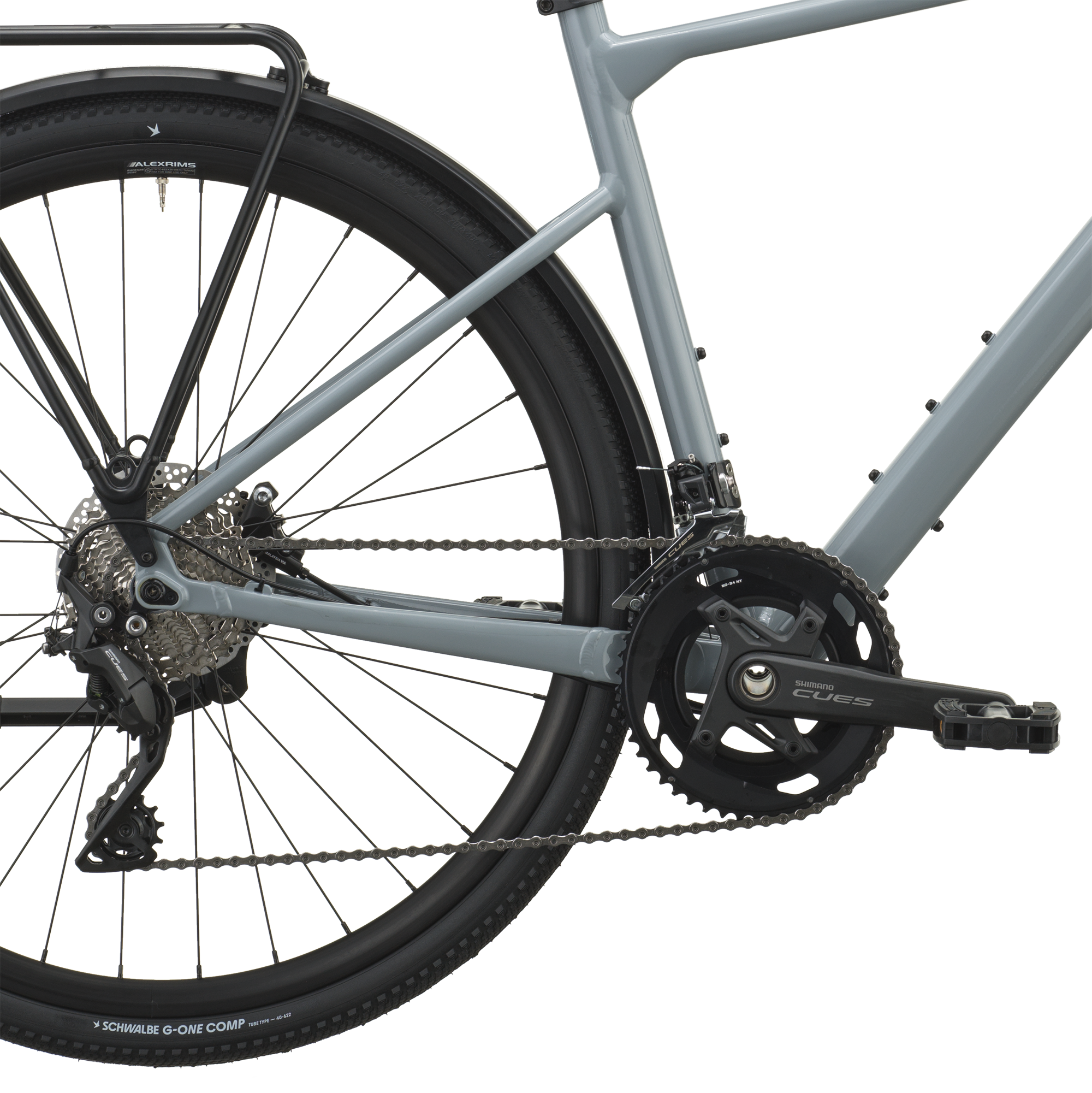

Drivetrain
- Rear Derailleur: Shimano Cues RD-U6040, 22 Speed
- Front Derailleur: Shimano Cues FD-U6030
- Shifters: Shimano Cues BR-RS405, Shimano ST-U6030 22 Speed

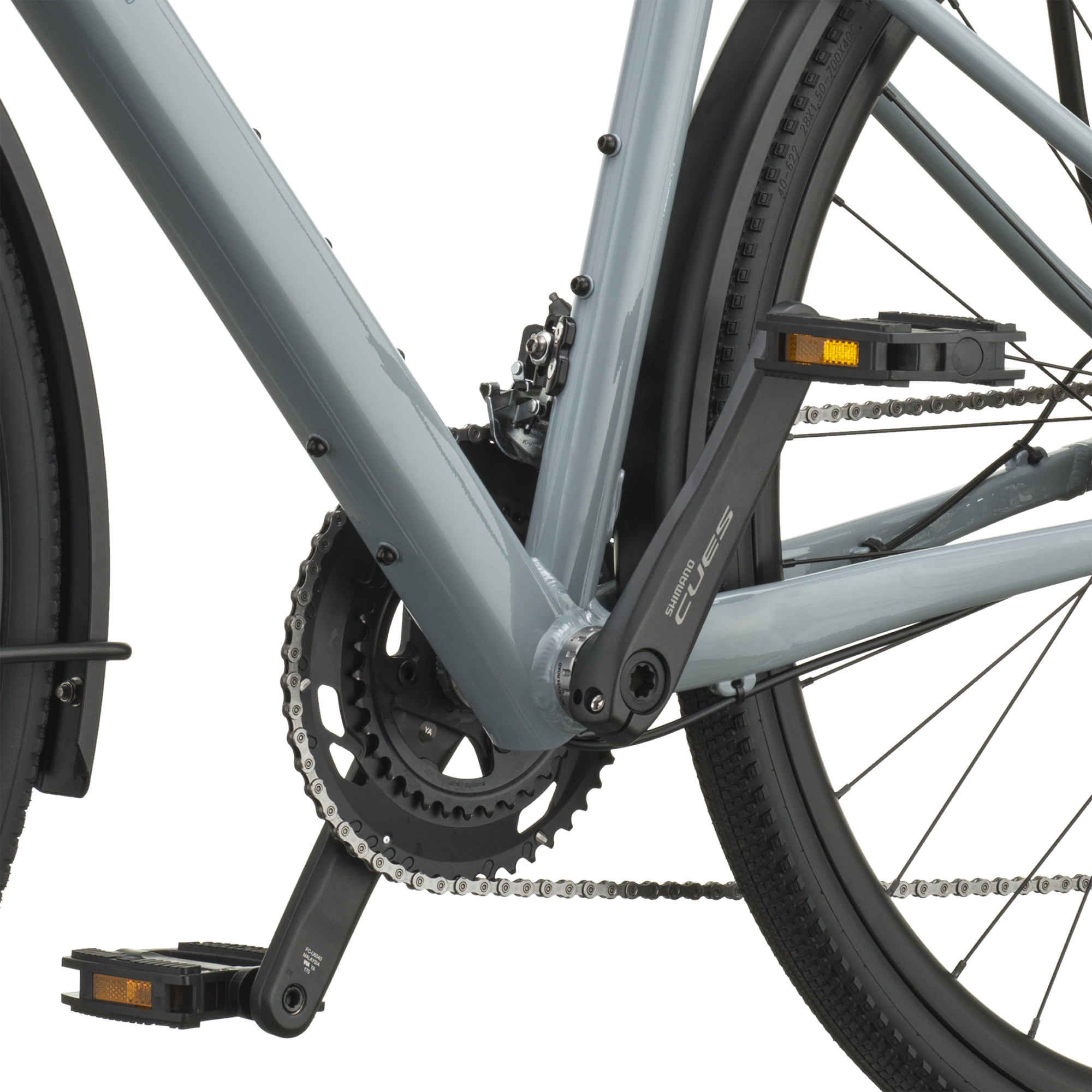

- Crankset: Shimano Cues FC-U6040, 50-34T
- BB-Set: Shimano BB-RS501 BSA
- Chain: Shimano CN-LG500
- Cassette: Shimano CS-RS400, 11-36
Brake System
- Brakes: Shimano Cues BR-RS405 Hyd. Disc
- Front Disc Rotor: Shimano RT-CL300, 160mm
- Rear Disc Rotor: Shimano RT-CL300, 160mm
Cockpit and Seating
- Grips: Syncros RC Bartape
- Handlebar: Syncros Creston 2.0 X, Alloy 31.8mm
- H'stem: Syncros, 1 1/8", four Bolt 31.8mm, GoPro Mount
- Seatpost: Syncros alloy, 10mm offset, 31.6x400mm
- Seat: Syncros Tofino R 2.5
- Headset: Acros AZA-812
Wheels and Tires
- Front Hub: Shutter Precision PL-7, 32h, Thru axle
- Rear Hub: Formula CL Disc 32 H
- Spokes: Black 2mm
- Front Rim: Syncros Race X25 Disc 32H
- Rear Rim: Syncros Race X25 Disc 32H
- Front Tire: Schwalbe G-One Comp, 700x40C
- Rear Tire: Schwalbe G-One Comp, 700x40C
Lights and Equipment

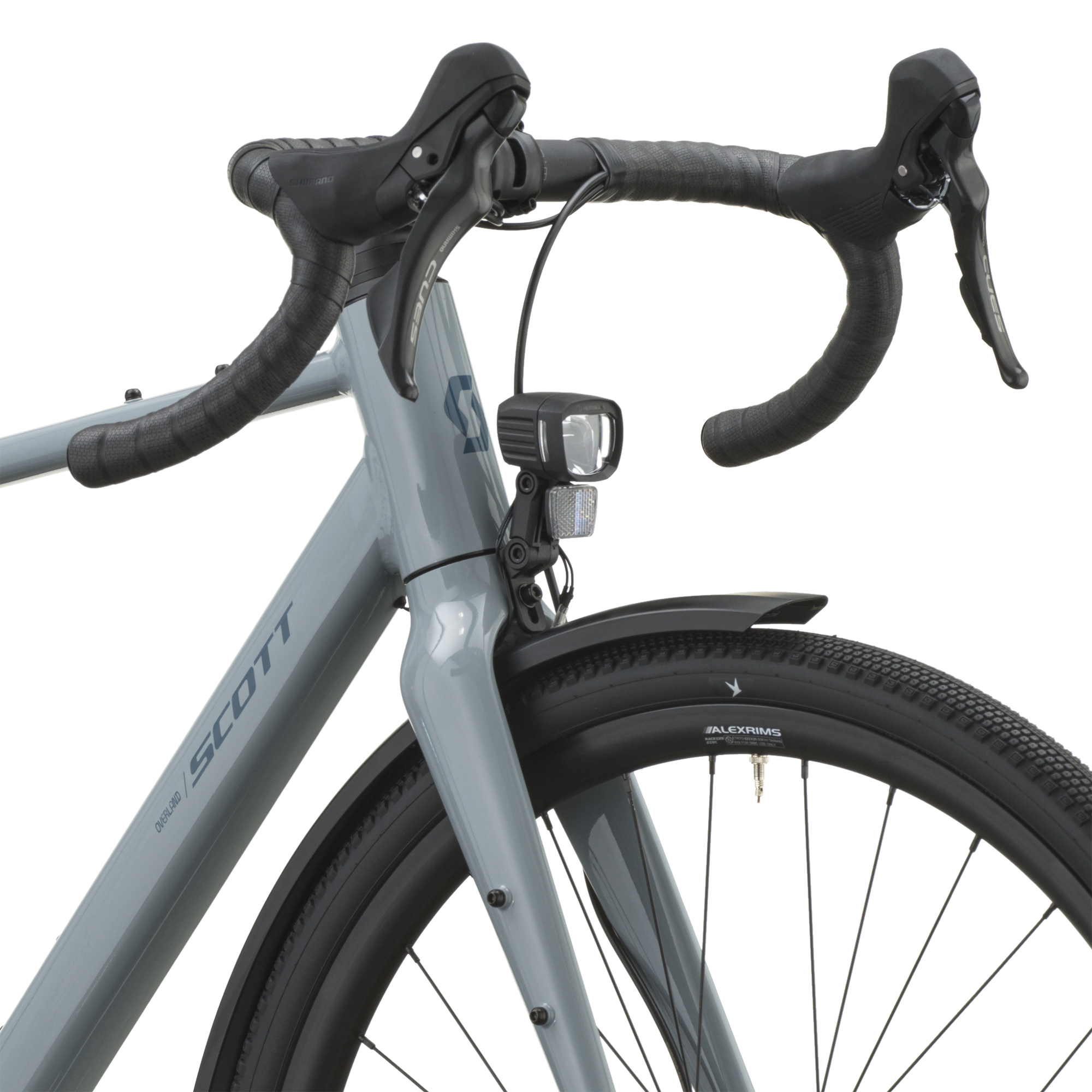

- Front Light: Hermanns MR5
- Rear Light: Hermanns H-Trace
- Rack: Racktime carrier SnapIt 2.0 20Kg
- Fender: Fenderset, alloy
- Pedals: Marwi SP-827
Weight
- Approx weight in KG: 14.1
- Approx weight in LBS: 31.09
- Max. System Weight: 120kg
- Note: The overall weight includes the bike, the rider, the equipment and possible additional luggage.
