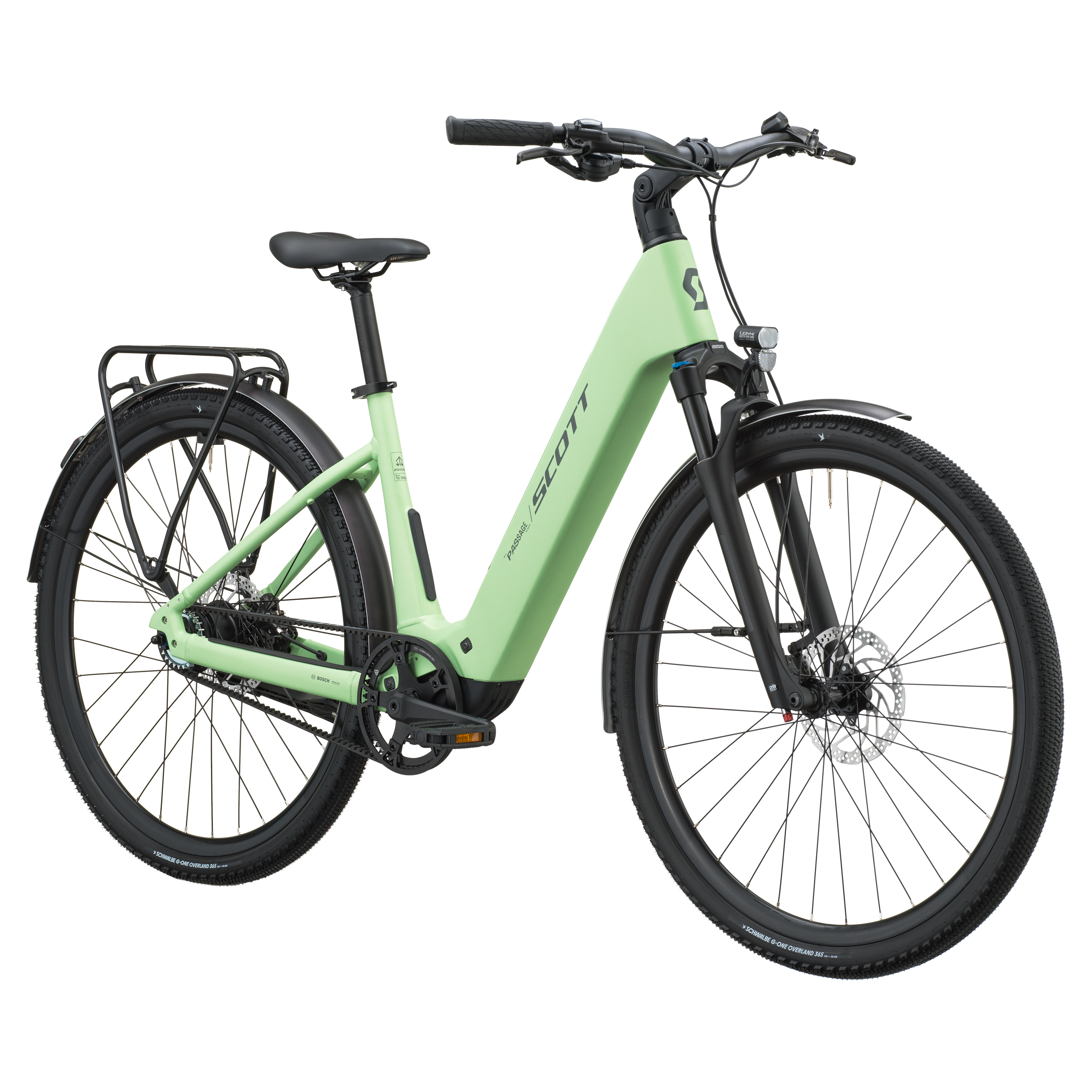

The SCOTT Passage 10 Belt Wave E-Bike is your ticket to easy, fun, city riding and low-maintenance living. Its frame shape allows for easy mounting and dismounting, while its trim build and sleek design perfectly house the lightweight Bosch Performance SX motor and a removable 400Wh battery. On the road, Passage looks and feels light and agile thanks to its balanced geometry and low center of gravity. The Bosch motor’s narrower design lets you enjoy a natural pedaling style, and when pavement gets rough, the 75mm suspension fork cushions each bump, keeping control smooth and steady.

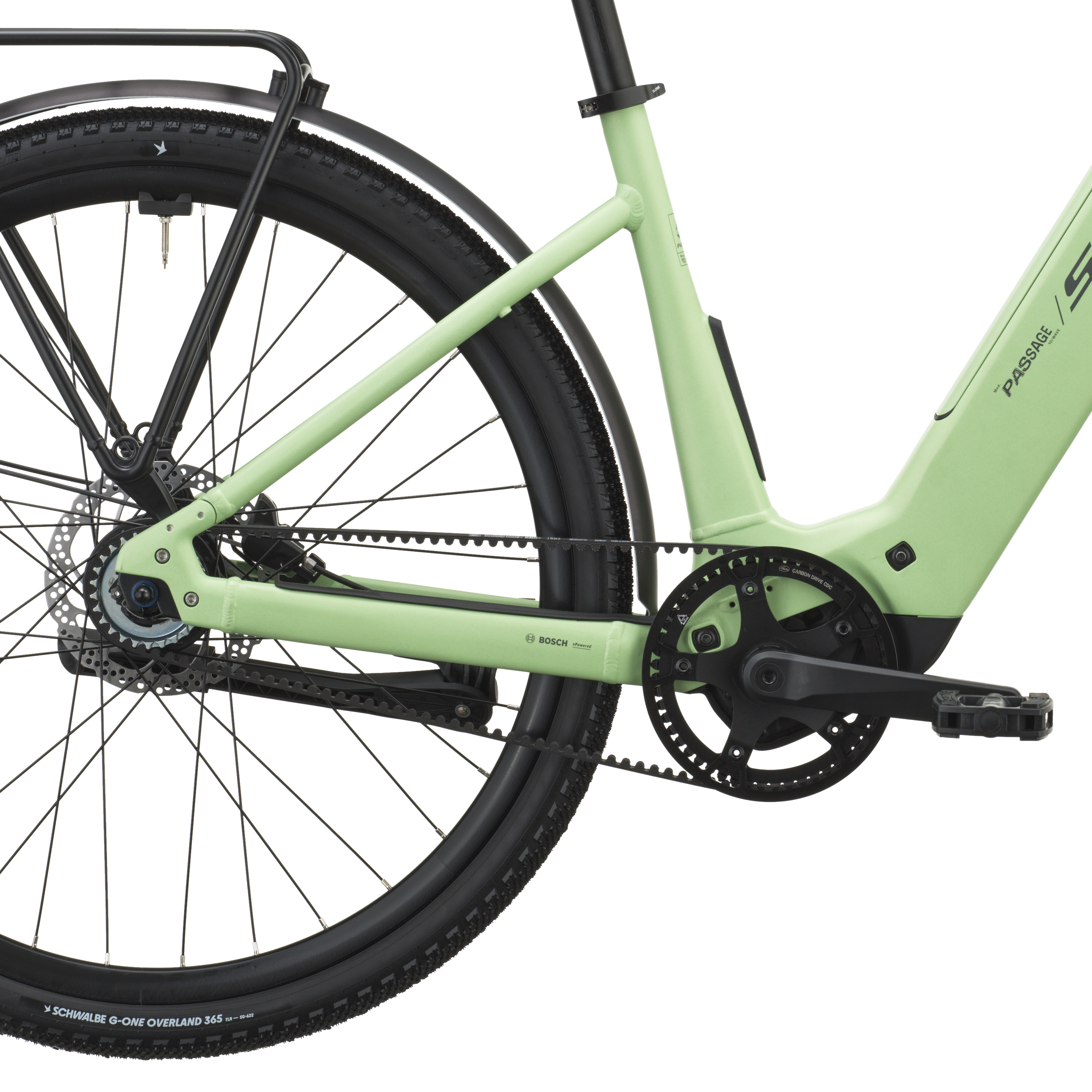

The Passage's belt drive stays cleaner than a traditional drivetrain, needs no lube, won't snag on clothing, and demands very little upkeep. So, enjoy worry-free E-Biking, and when you're ready to park the bike for the day, just swing out the kickstand. Along with its Wave design, additional practicality is built in: an adjustable stem lets you customize your fit for a relaxed, comfortable posture or a sportier riding position, while an integrated SP connection provides a secure spot for your phone and keeps navigation in view. The rear rack holds up to 20kg, giving you room for groceries and essentials.
Please note that bike specifications are subject to change without prior notice.
What’s New
- What's new: SP Connect, Carrier 20Kg, 50x622 Tires, Adjustable Stem
Frame and Suspension
- Frame: Alloy S-XL=29", 6061 Alloy custom butted tubing, Top extraction battery
- Travel: 75mm
- Fork: SR Suntour NRX32 E AIR LO
Motor and Battery

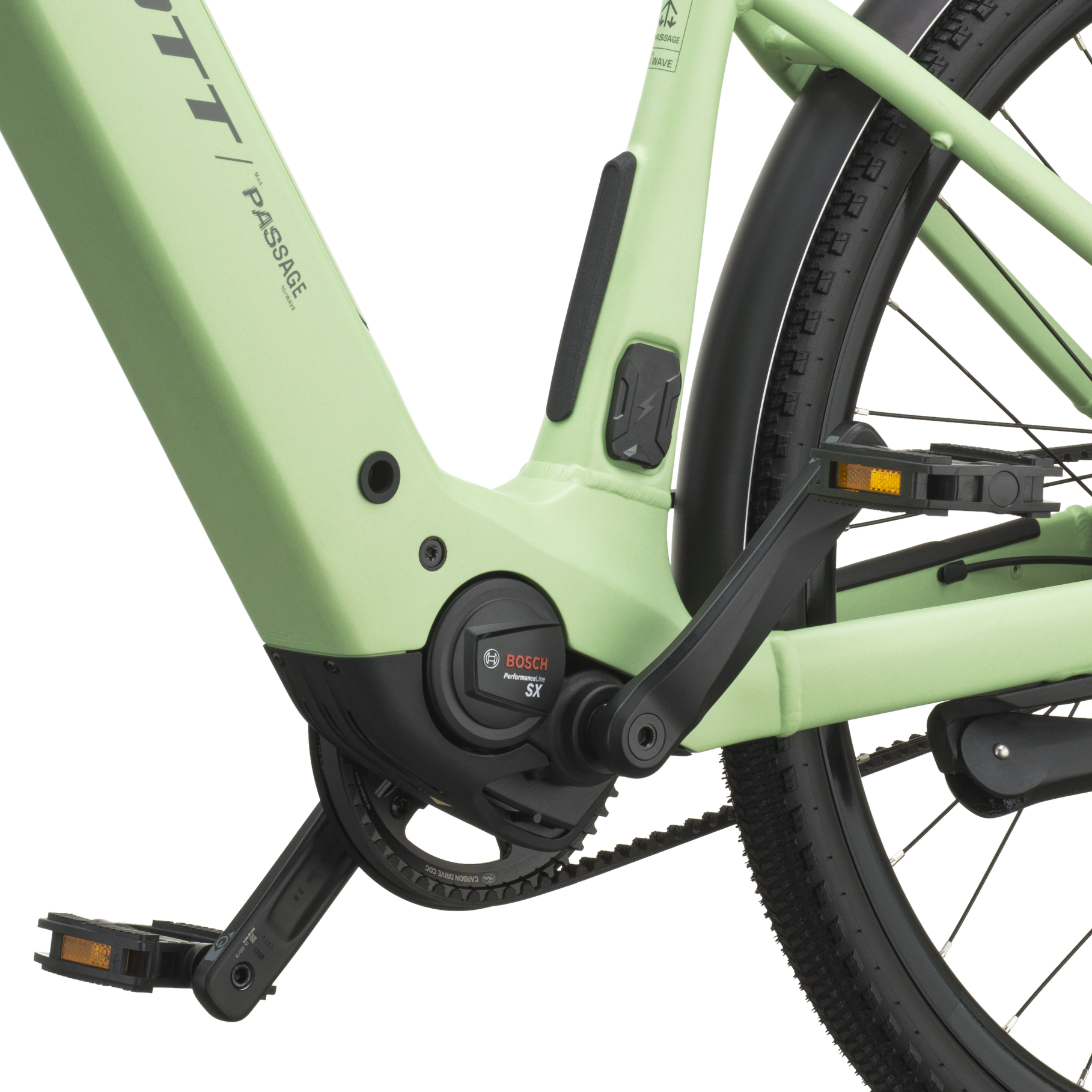

- Drive Unit: Bosch Performance Line SX
- Battery: Compact Tube 400Wh
- Display: Bosch Purion 200
- Charger: Bosch 2A Charger 230V
Drivetrain
- Rear Derailleur: Shimano Nexus 8 Speed Disc
- Shifters: Shimano Alfine SL-S503 Rapid Fire Plus
- Crankset: FSA CK 220 170mm
- Chainring: Gates CDC 52T w/Guard
- Chain: Gates CDC 125T
- Cassette: Gates CDC 26T
Brake System
- Brakes: Shimano BR-MT201 2-Piston
- Front Disc Rotor: Shimano SM-RT30 CL, 180mm
- Rear Disc Rotor: Shimano SM-RT30 CL, 160mm
Cockpit and Seating
- Grips: Urban Comfort
- Handlebar: Syncros UC3.0 680mm, Rise 26mm, Backsweep 30°
- H'stem: JD, Adjustable, 31.8*90 mm −10°~+60°, SP Connect
- Seatpost: Syncros M3.0, 31.6mm, 350mm
- Seat: Selle Royal Explora Athletic 155mm
- Headset: Feimin, 28.8-56-62(39.8), Sealed Bearing, Alloy Cup
Wheels and Tires
- Front Hub: Shimano HBTC50015B CL, 15x100mm
- Spokes: Stainless Black 13G
- Front Rim: X15 Disc
- Rear Rim: X15 Disc
- Front Tire: Schwalbe G-One Overland 365 Perf, 700x50C
- Rear Tire: Schwalbe G-One Overland 365 Perf, 700x50C
Lights and Equipment
- Front Light: Lezyne Hecto Pro STVZO E400
- Rear Light: Supernova TL3Z
- Rack: Racktime carrier Snapit 2.0 20Kg
- Fender: Curana C-Lite 55
- Pedals: Marwi SP-827
Extras and Accessories
- Extras: Hebie IC Kickstand
Weight
- Approx weight in KG: 22.5
- Approx weight in LBS: 49.6
- Max. System Weight: 130kg
- Note: The overall weight includes the bike, the rider, the equipment and possible additional luggage.
