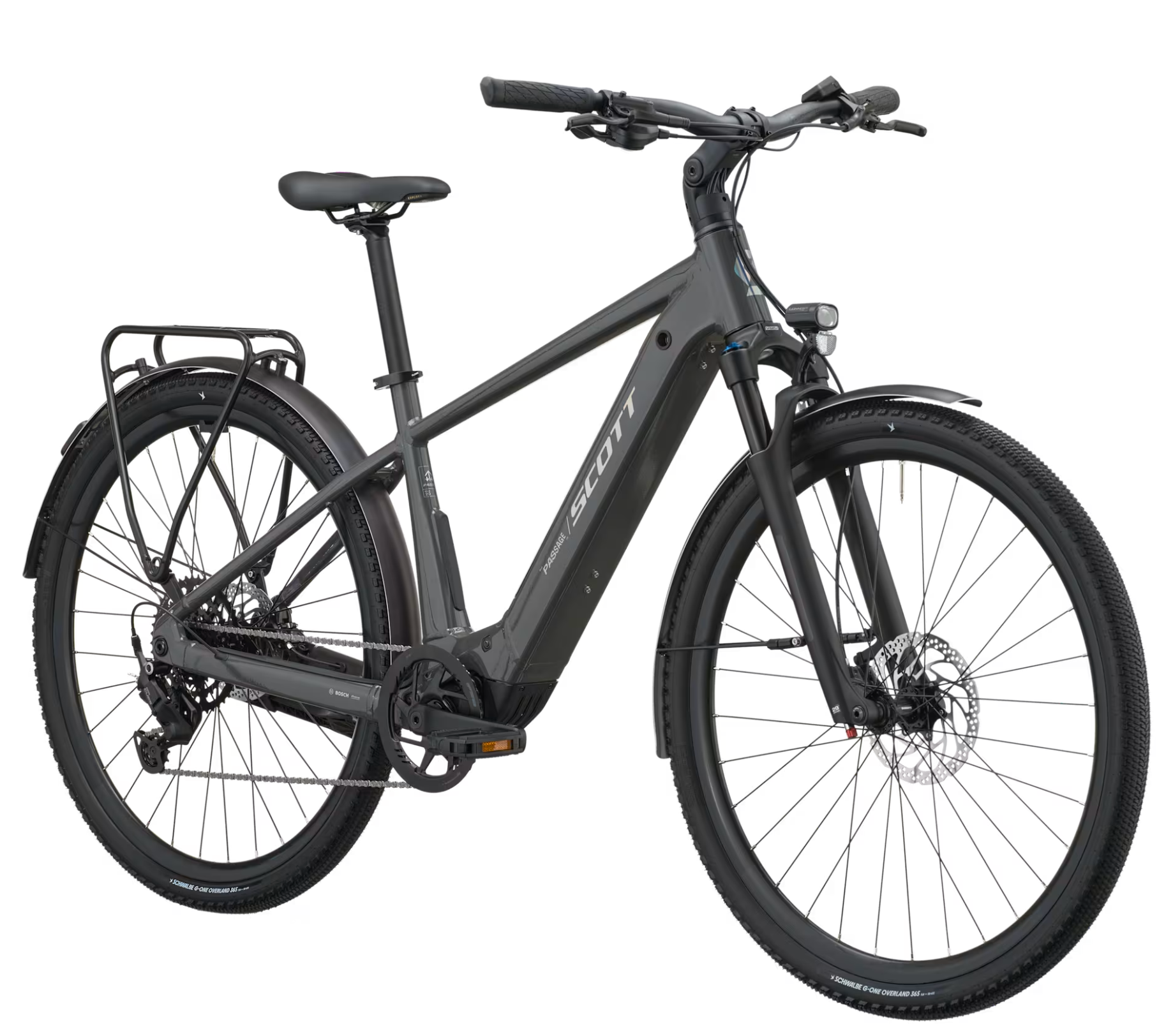

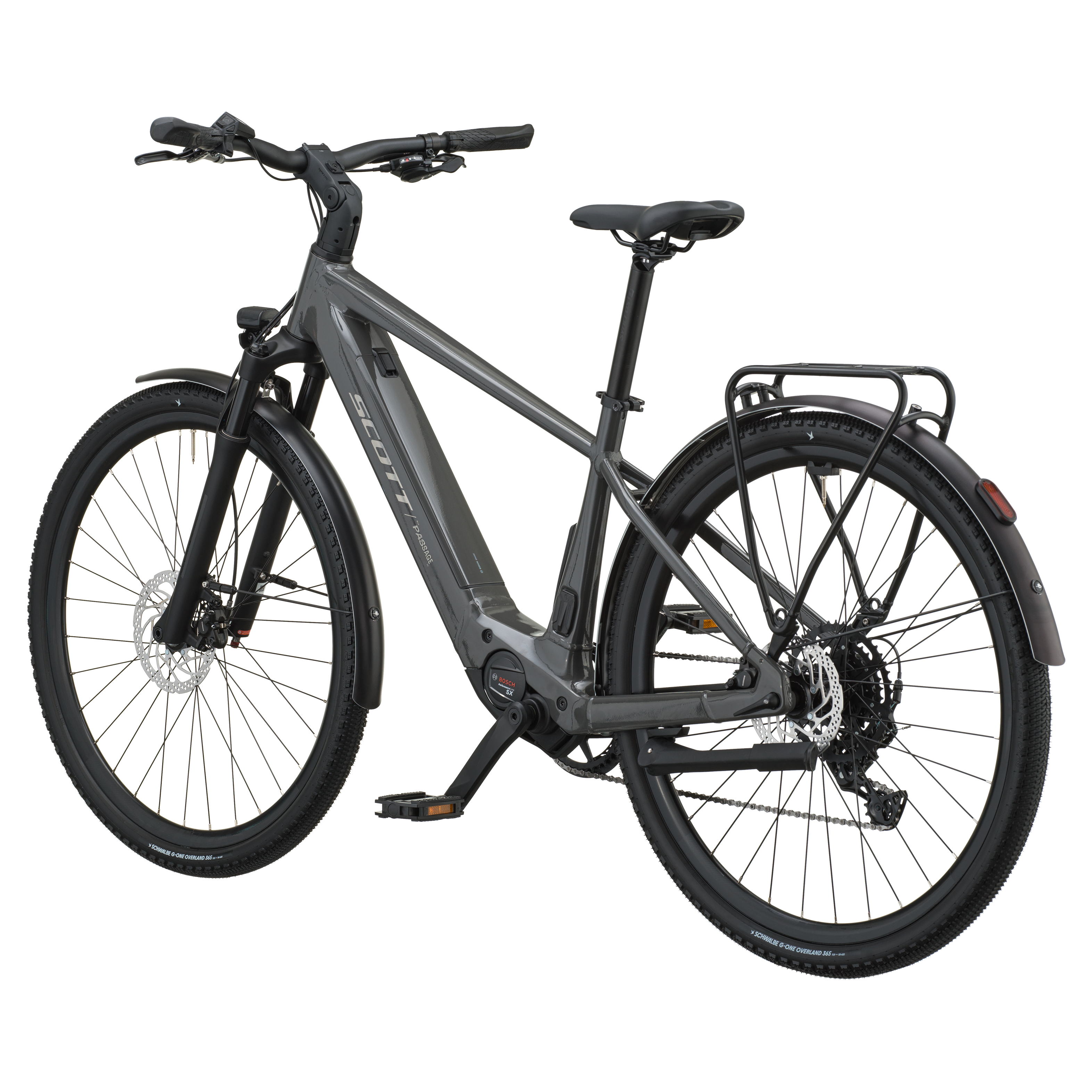

The SCOTT Passage 20 E-Bike makes city riding feel natural and responsive. We crafted it with a trim build and sleek frame that perfectly houses the lightweight Bosch Performance SX motor and a removable 400Wh battery.
Combined, you'll have the handling you want for local rides and the range to take on everyday trips with confidence. Comfort is built in: a 75mm suspension fork softens rough pavement, 45mm tires add stability and durability, and a 9-speed drivetrain brings range for your terrain.
On the road, the Passage 20 accelerates smoothly and offers plenty of control. The trim frame and lightweight look and feel give it a nimble ride quality you can enjoy.
An adjustable stem lets you customize your riding position to suit your posture, and an integrated SP connection keeps your phone securely mounted and navigation in view.
A rear rack supports up to 20kg, making it easy to carry groceries and other essentials.
All these features come together in a sleek package that feels like a well-balanced ride—just with a helpful electric boost when you want it.
Please note that bike specifications are subject to change without prior notice.
What’s New
- What's new: SP Connect, Carrier 20Kg, Adjustable Stem, 50x622 Tires, XXL size
Frame and Suspension
- Frame: Alloy S-XXL=29", 6061 Alloy custom butted tubing, Top extraction battery
- Travel: 75mm

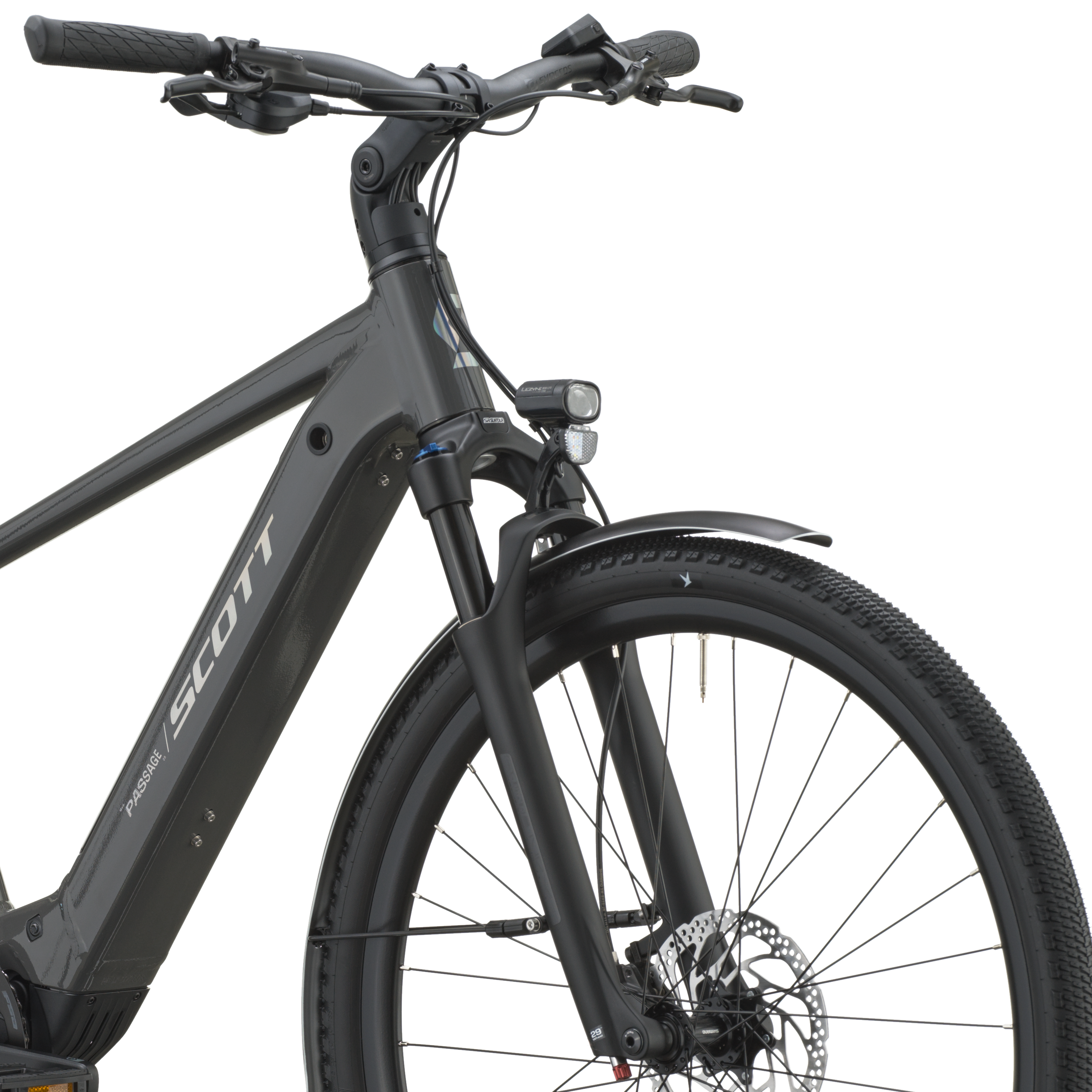

- Fork: SR Suntour NRX32 E AIR LO
Motor and Battery

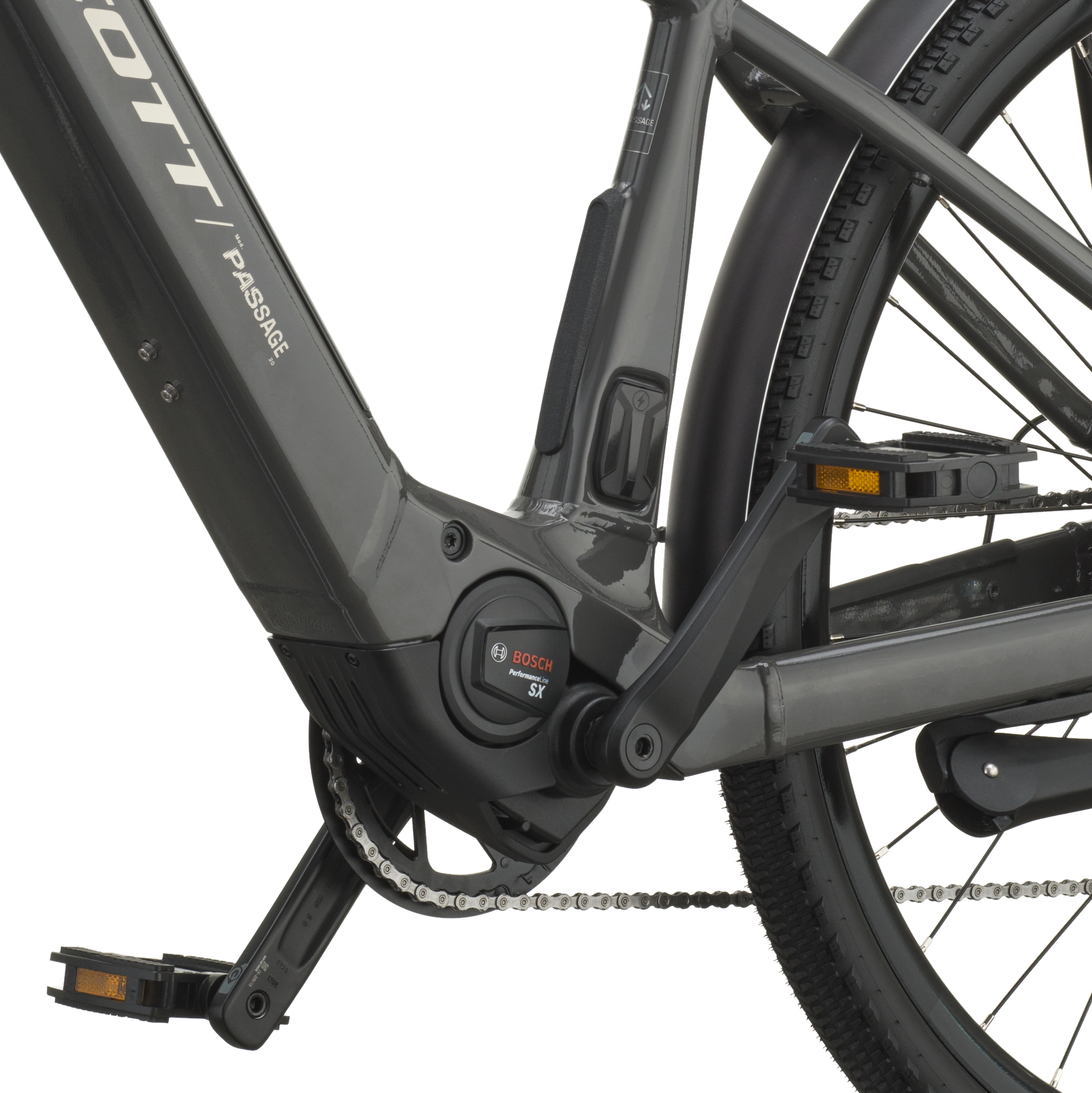

- Drive Unit: Bosch Performance Line SX
- Battery: Compact Tube 400Wh
- Display: Bosch Purion 200
- Charger: Bosch 2A Charger 230V

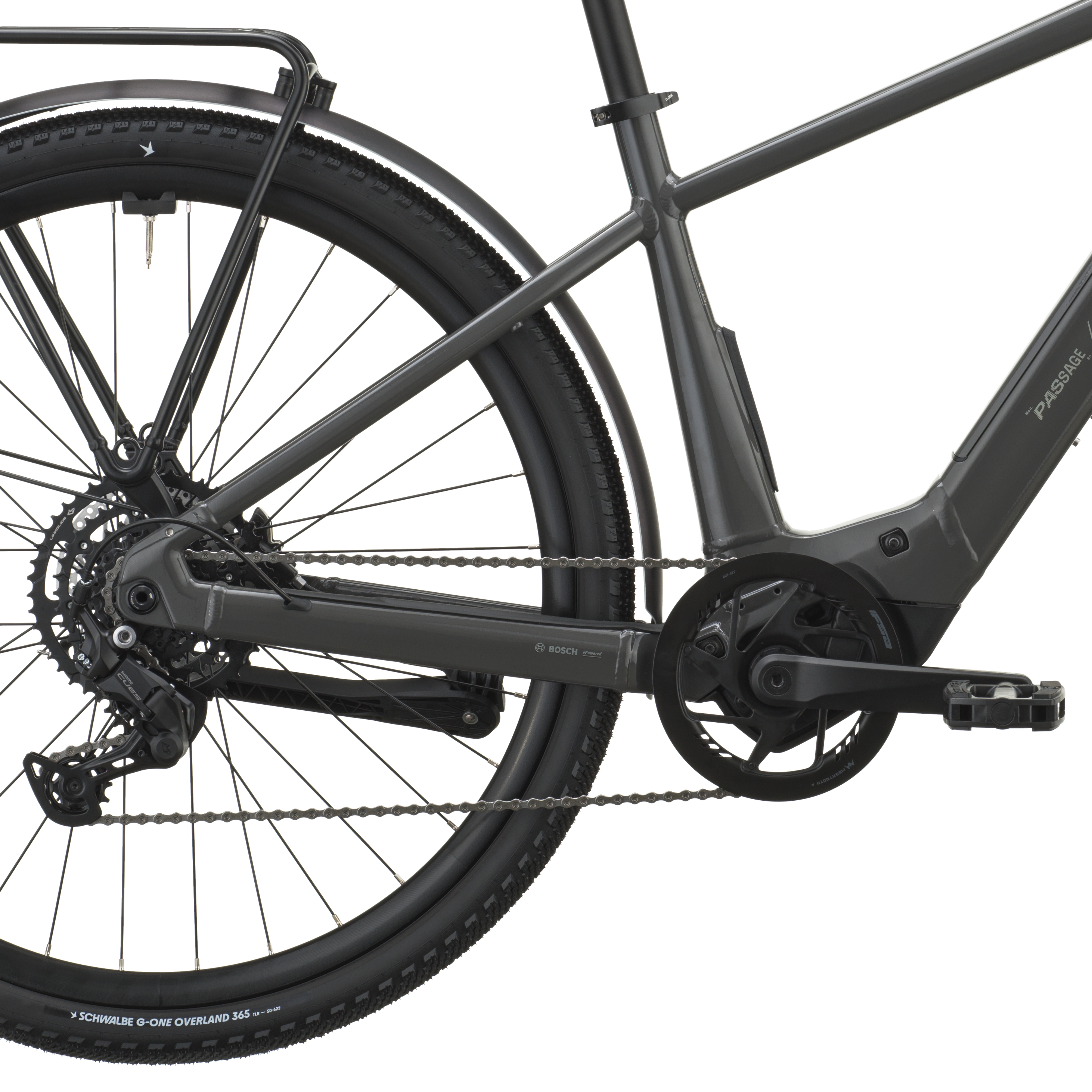

Drivetrain
- Rear Derailleur: Shimano Cues RD-U4000 9-Speed
- Shifters: Shimano Cues SL-U4000 With Display
- Crankset: FSA CK 220 170mm
- Chainring: FSA 42T DM With Chainguard
- Chain: Shimano CN-LG500
- Cassette: Shimano Cues CS-LG300, 9-Speed 11-46T
Brake System
- Brakes: Shimano BR-MT201 2-Piston
- Front Disc Rotor: Shimano SM-RT30 CL, 180mm
- Rear Disc Rotor: Shimano SM-RT30 CL, 160mm
Cockpit and Seating
- Grips: Urban Comfort
- Handlebar: Syncros UC3.0 680mm, Rise 12mm, Backsweep 15°

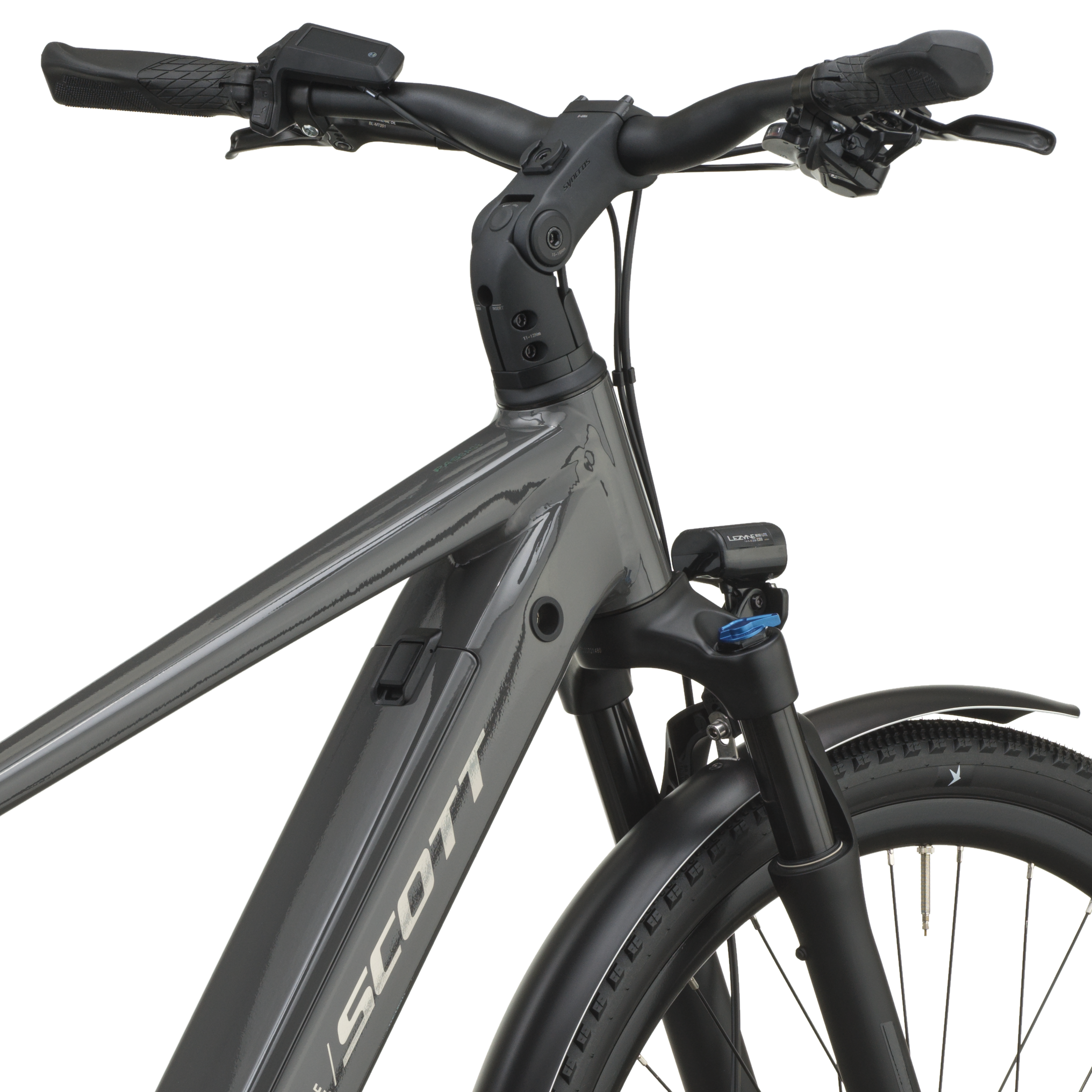

- H'stem: JD, Adjustable, 31.8*90 mm −10°~+60°, SP Connect

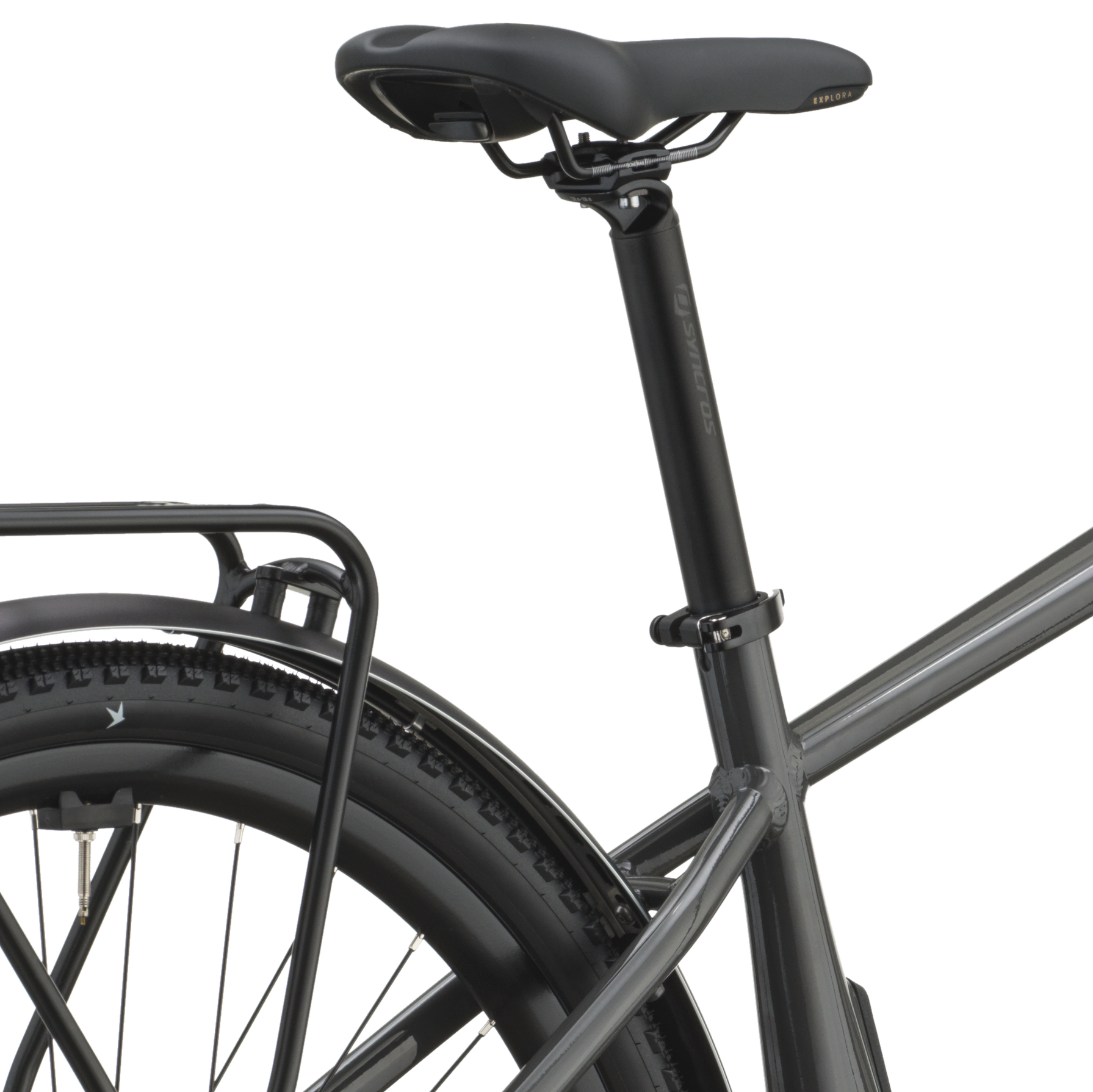

- Seatpost: Syncros M3.0, 31.6mm, 350mm
- Seat: Selle Royal Explora Athletic 155mm
- Headset: Feimin, 28.8-56-62(39.8/30), H887 Bearing Cup
Wheels and Tires
- Front Hub: Shimano HBTC50015B CL, 15x100mm
- Rear Hub: Shimano FH-TC500 142mm
- Spokes: Stainless Black 13G
- Front Rim: X15 Disc
- Rear Rim: X15 Disc
- Front Tire: Schwalbe G-One Overland 365 Perf, 700x50C
- Rear Tire: Schwalbe G-One Overland 365 Perf, 700x50C
Lights and Equipment
- Front Light: Lezyne Mini Lite STVZO E350
- Rear Light: Supernova TL3Z

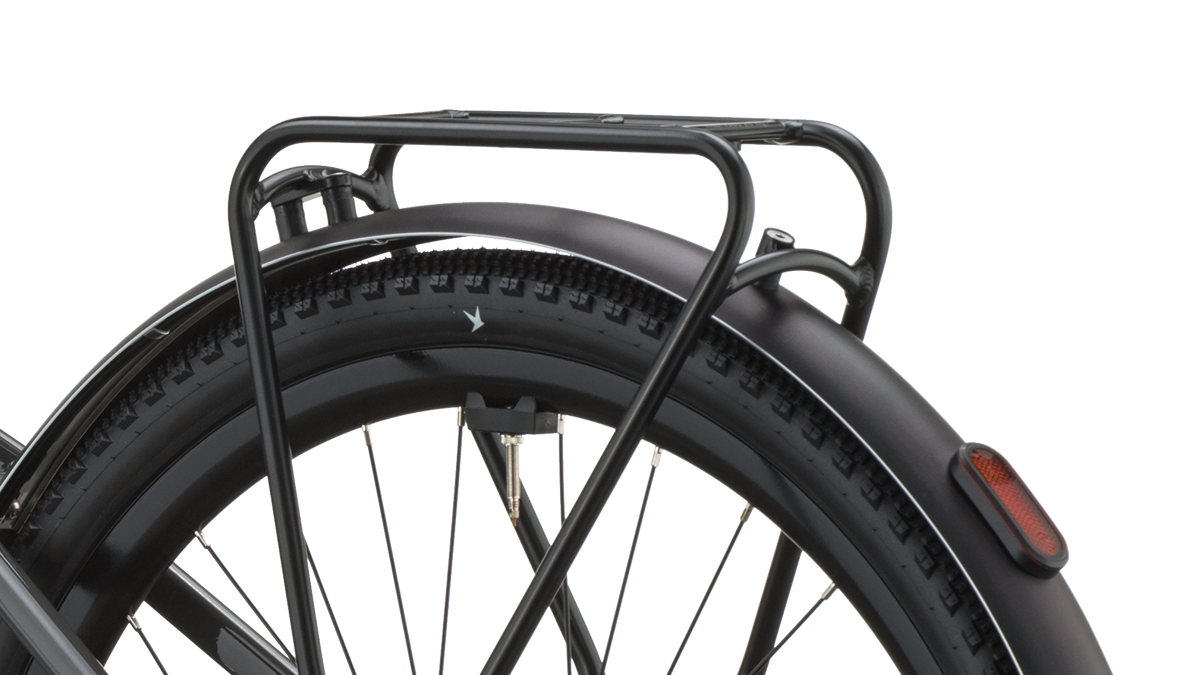

- Rack: Racktime carrier Snapit 2.0 20Kg
- Fender: Curana C-Lite 55
- Pedals: Marwi SP-827
Extras and Accessories
- Extras: Hebie IC Kickstand
Weight
- Approx weight in KG: 21.8
- Approx weight in LBS: 48.06
- Max. System Weight: 130kg
- Note: The overall weight includes the bike, the rider, the equipment and possible additional luggage.
