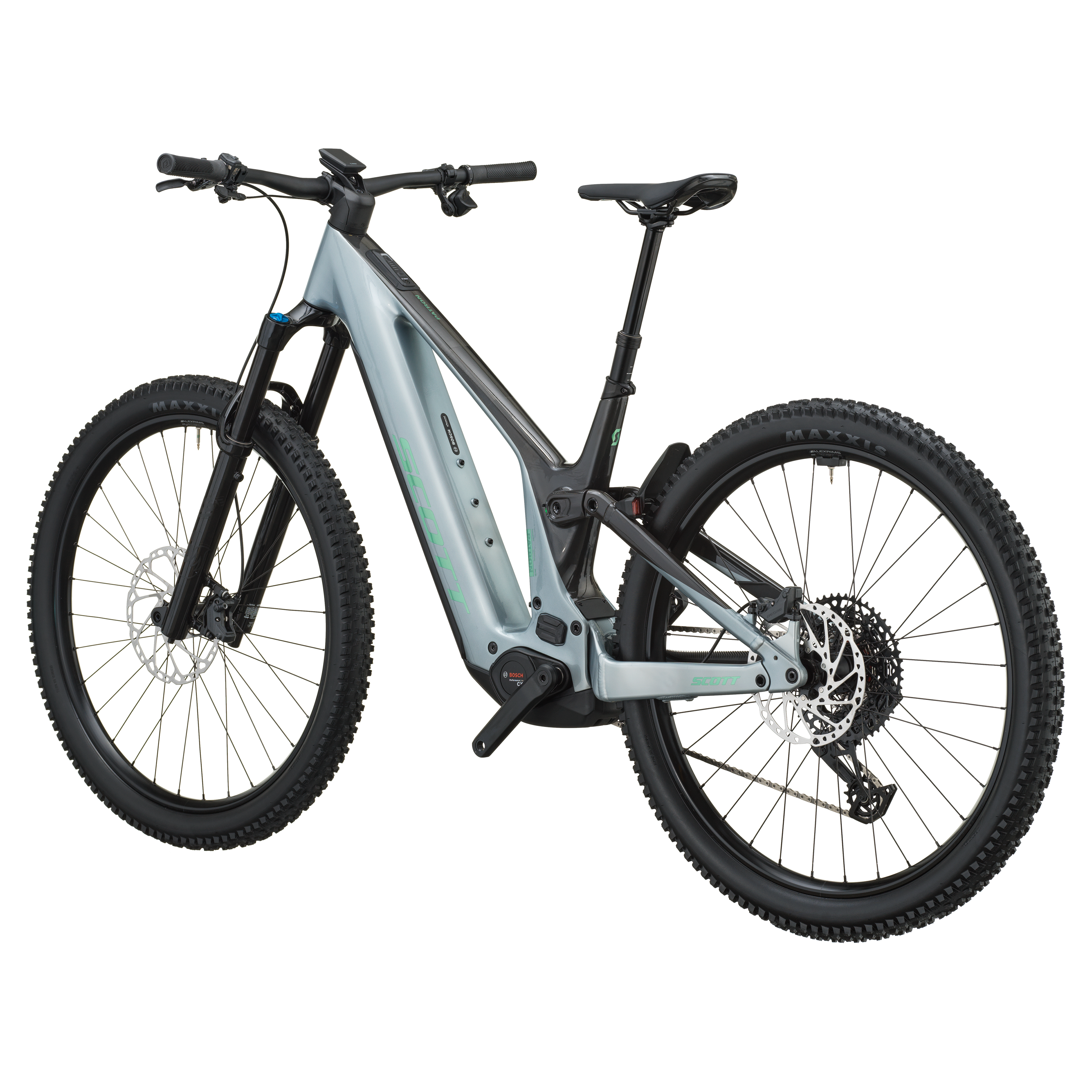

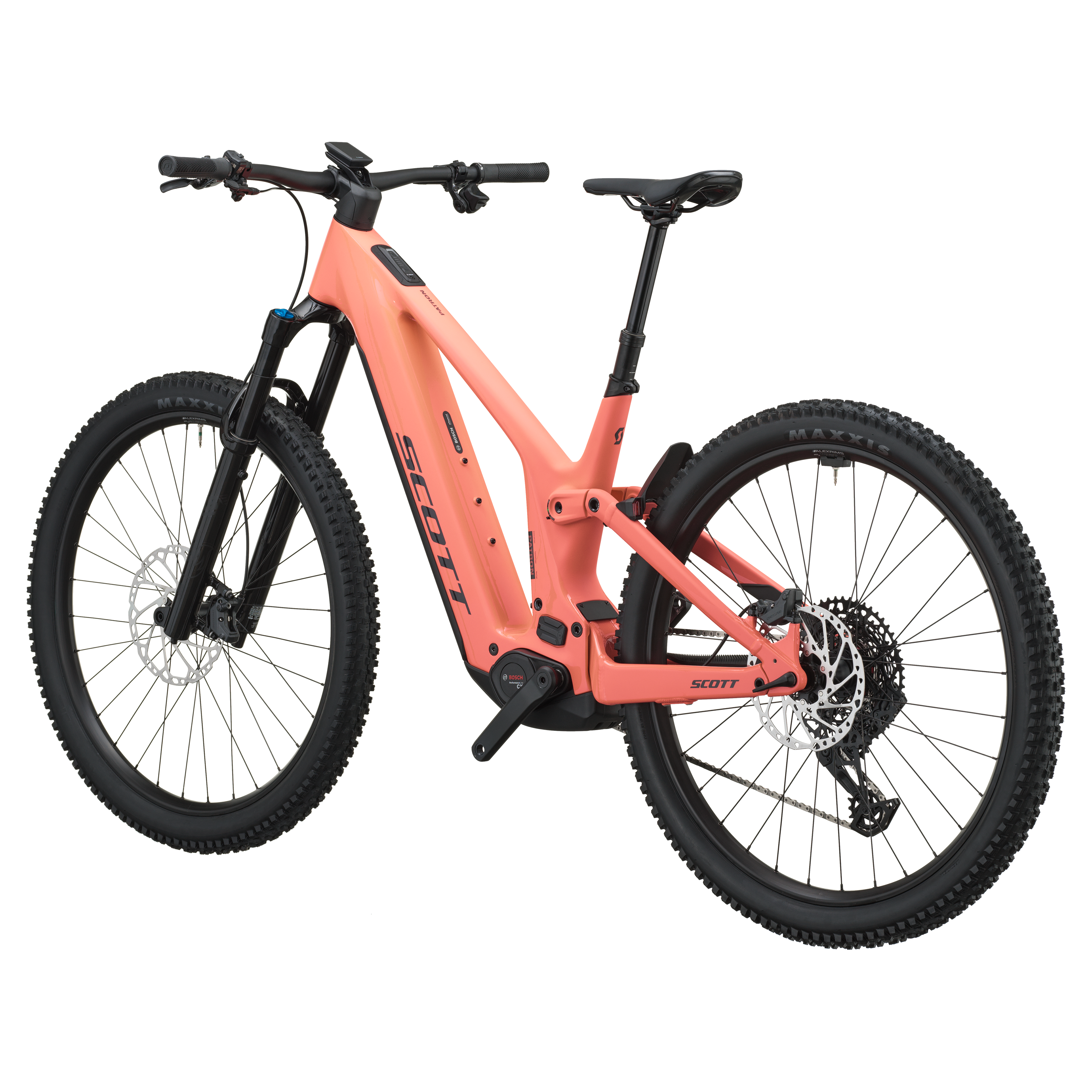

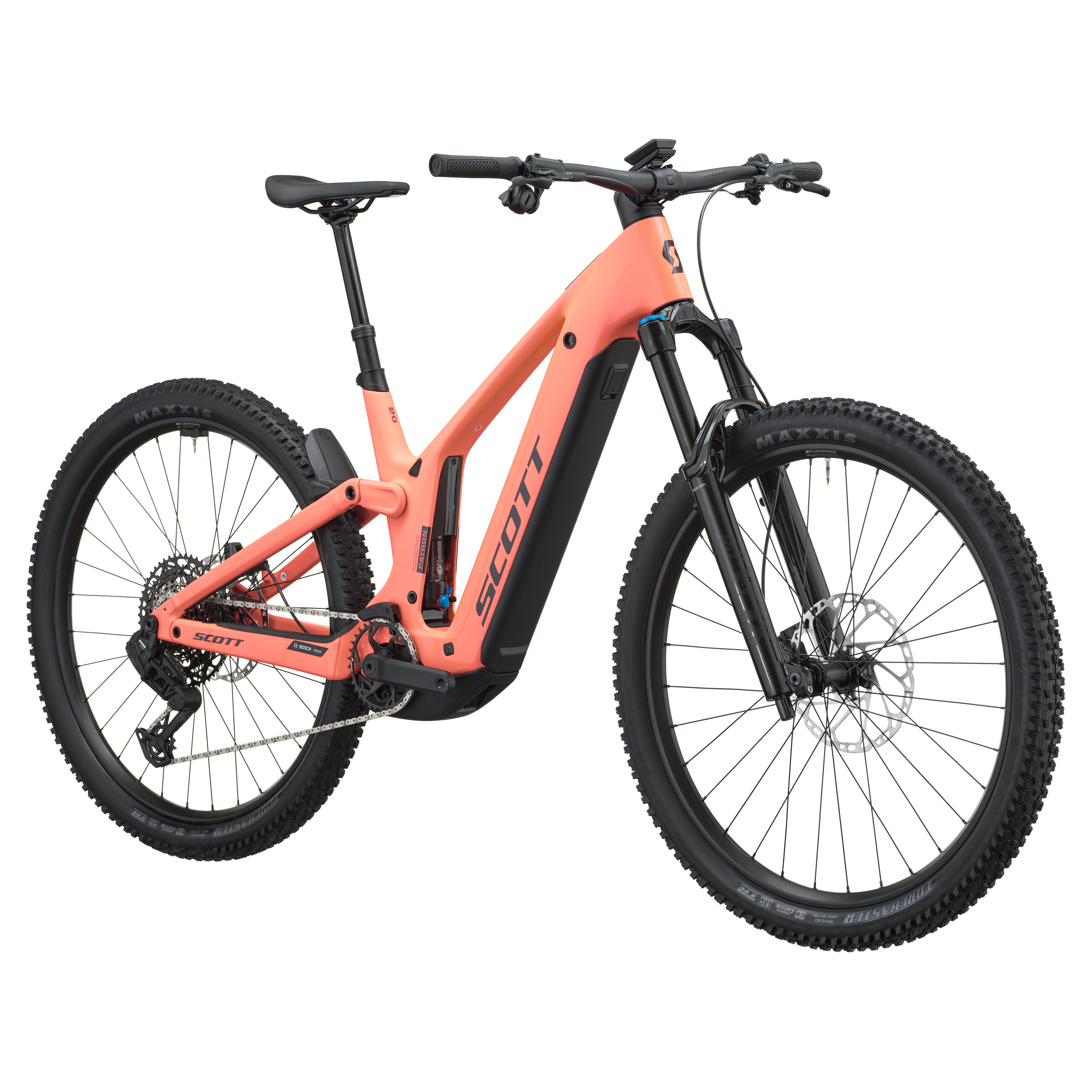

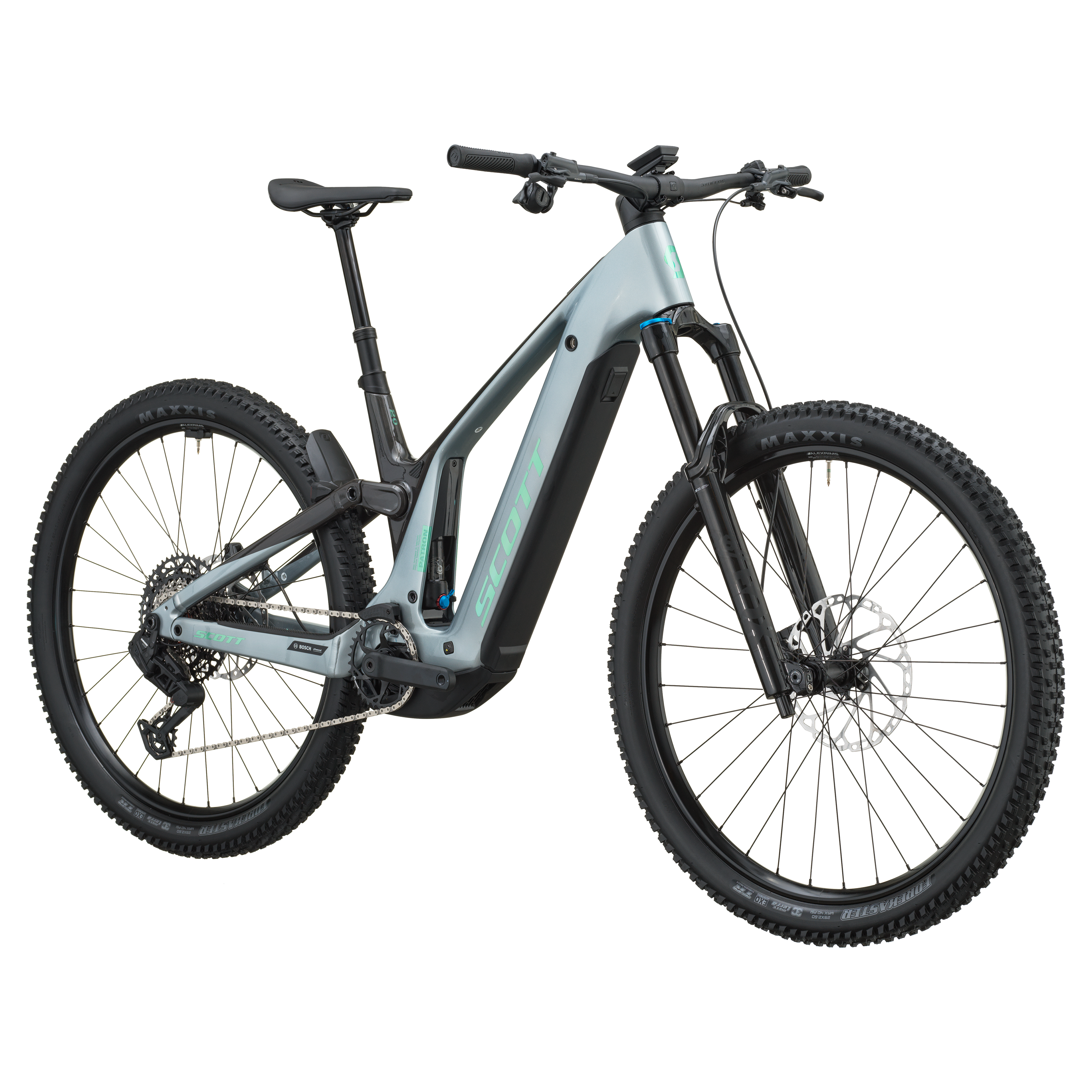

The best of all worlds. Do it all with the Patron eRIDE 920.
Ready to tackle any climb with ease and scream back down with sure footed and confidence inspiring handling. 150mm of front and rear travel gobbles up the terrain while our TracLoc technology allows you to adjust the suspension on the fly to give you an efficient ride in all conditions.
Careful engineering and design makes this E-Bike a dream to work on with clever integration, easily removable battery and great access to the shock. The cover keeps everything clean, reducing service intervals.
Being an E-Bike, the Bosch CX drive unit provides up to 100Nm of power while the 800Wh battery gives you the range to conquer any ride from time crunched hour of power to all day epics. The decision is yours.
Please note that bike specifications are subject to change without prior notice.
What’s New
- What's new: Bosch Performance Upgrade 2.0 / up to 120Nm / up to 600% support
Frame and Suspension
- Frame: Carbon Main Frame, alloy SST-CST, Integrated Suspension Technology, Virtual 4 Link kinematic, Adjustable head angle, Syncros Cable Integration System, Bosch Smart System, UDH Interface, 12x148mm with 55mm Chainline, Bosch PowerMore Ready
- Travel: Front travel: 150 mm / Rear travel: 150 mm

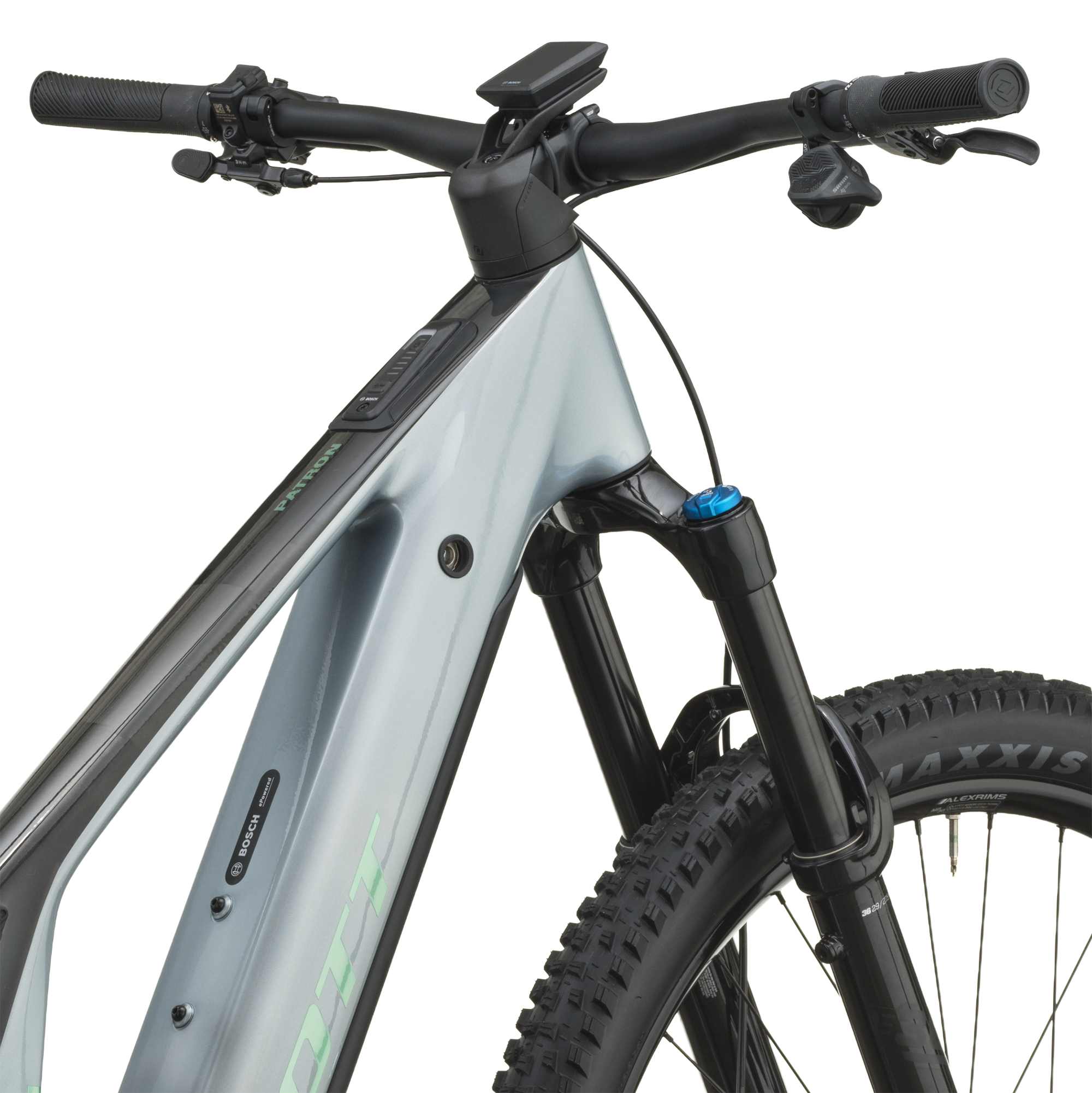

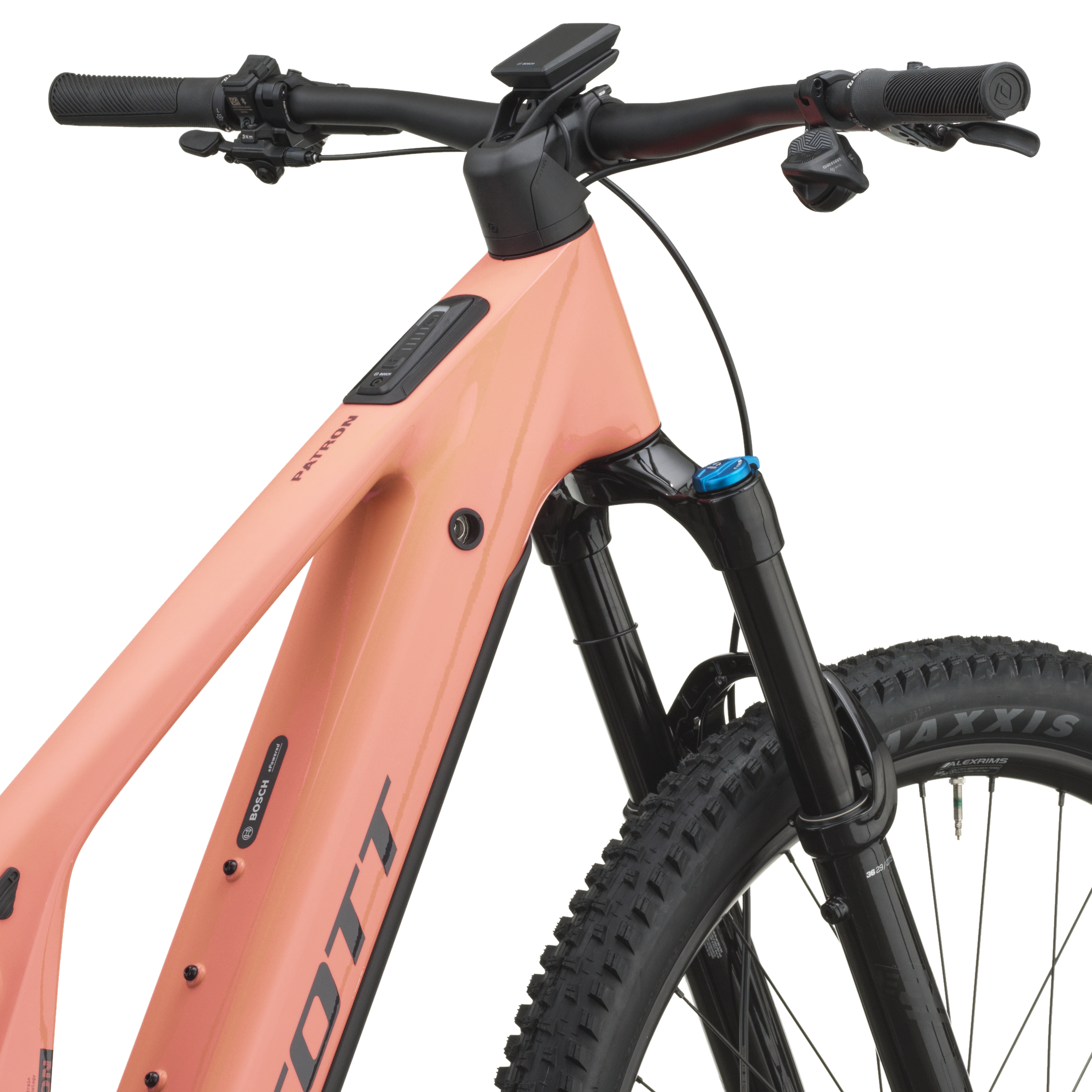

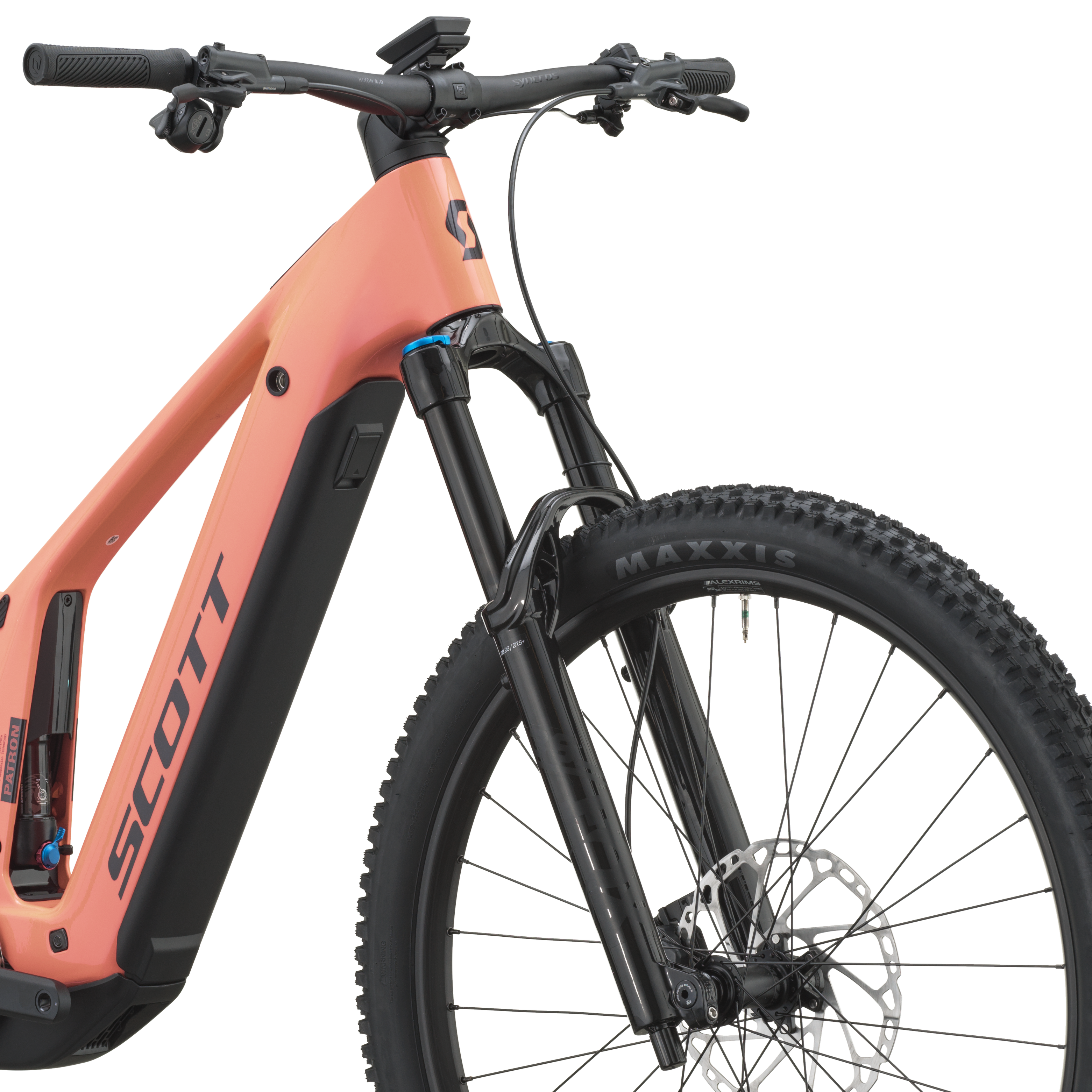

- Fork: Fox 36 Rhythm, eOptimized, Grip, Comp & Reb Adj, QR Axle 15x110mm axle, tapered steerer
- Rear Shock: Fox Float Performance EVOL, LSR, 2P Lever
Motor and Battery

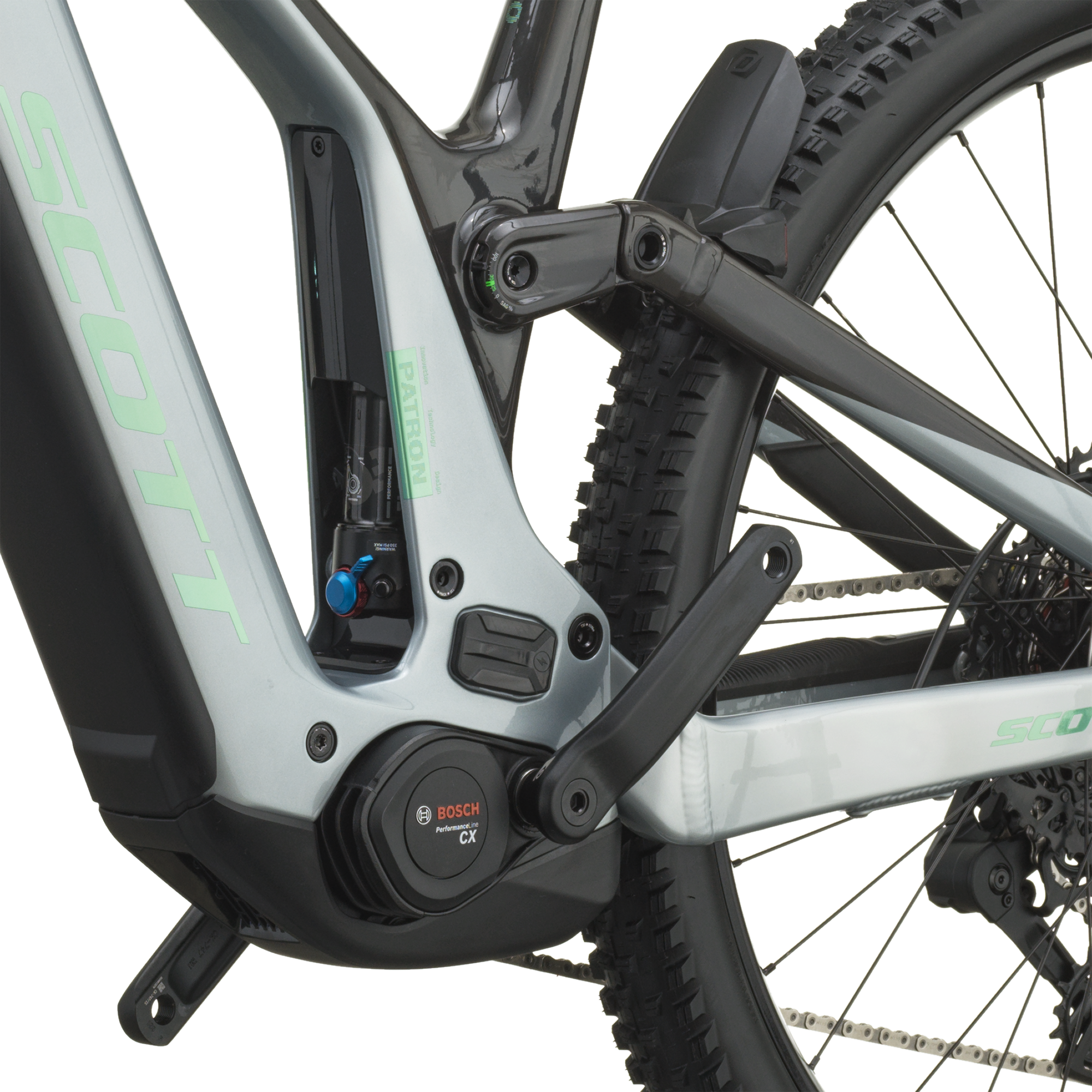

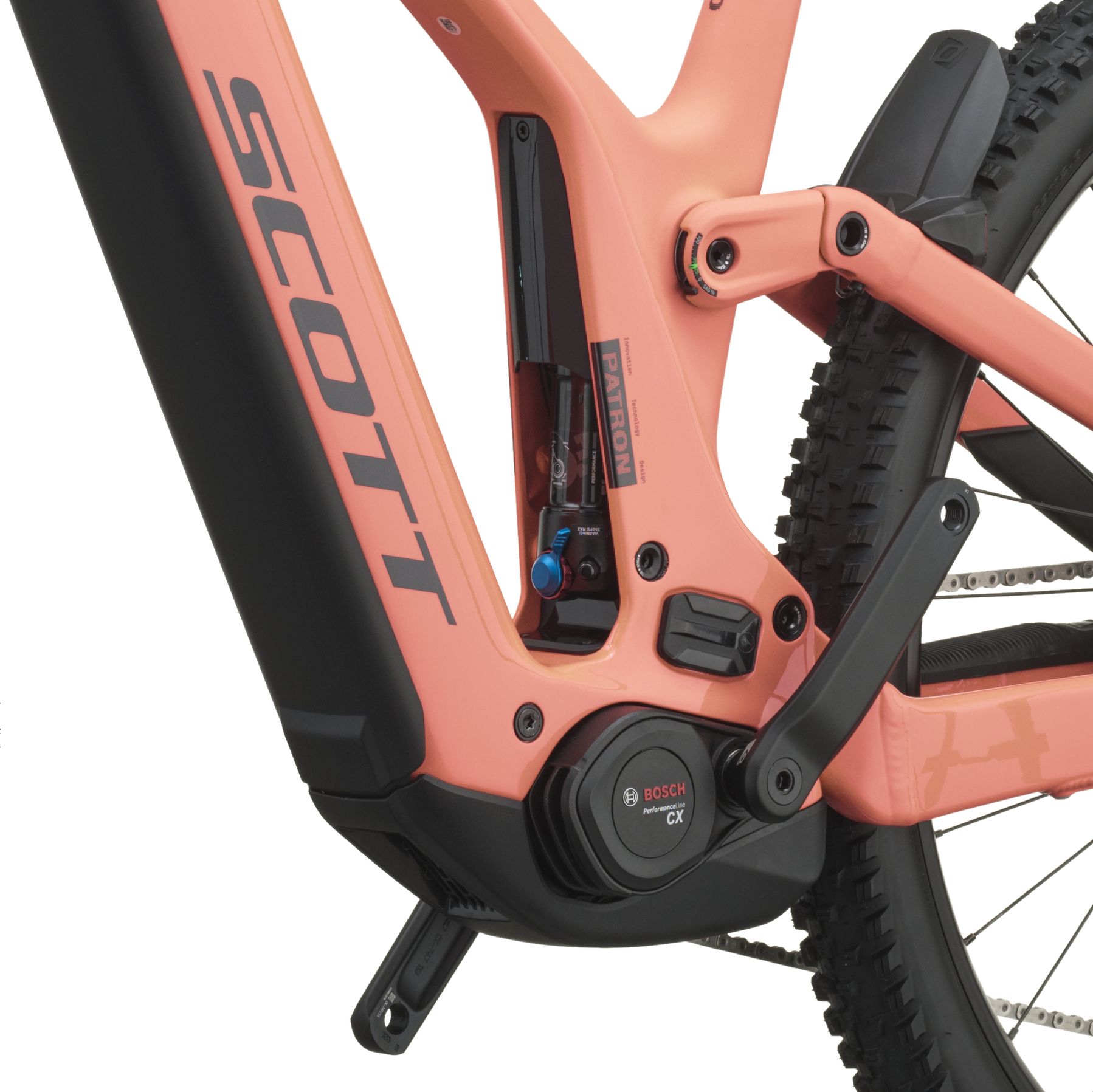

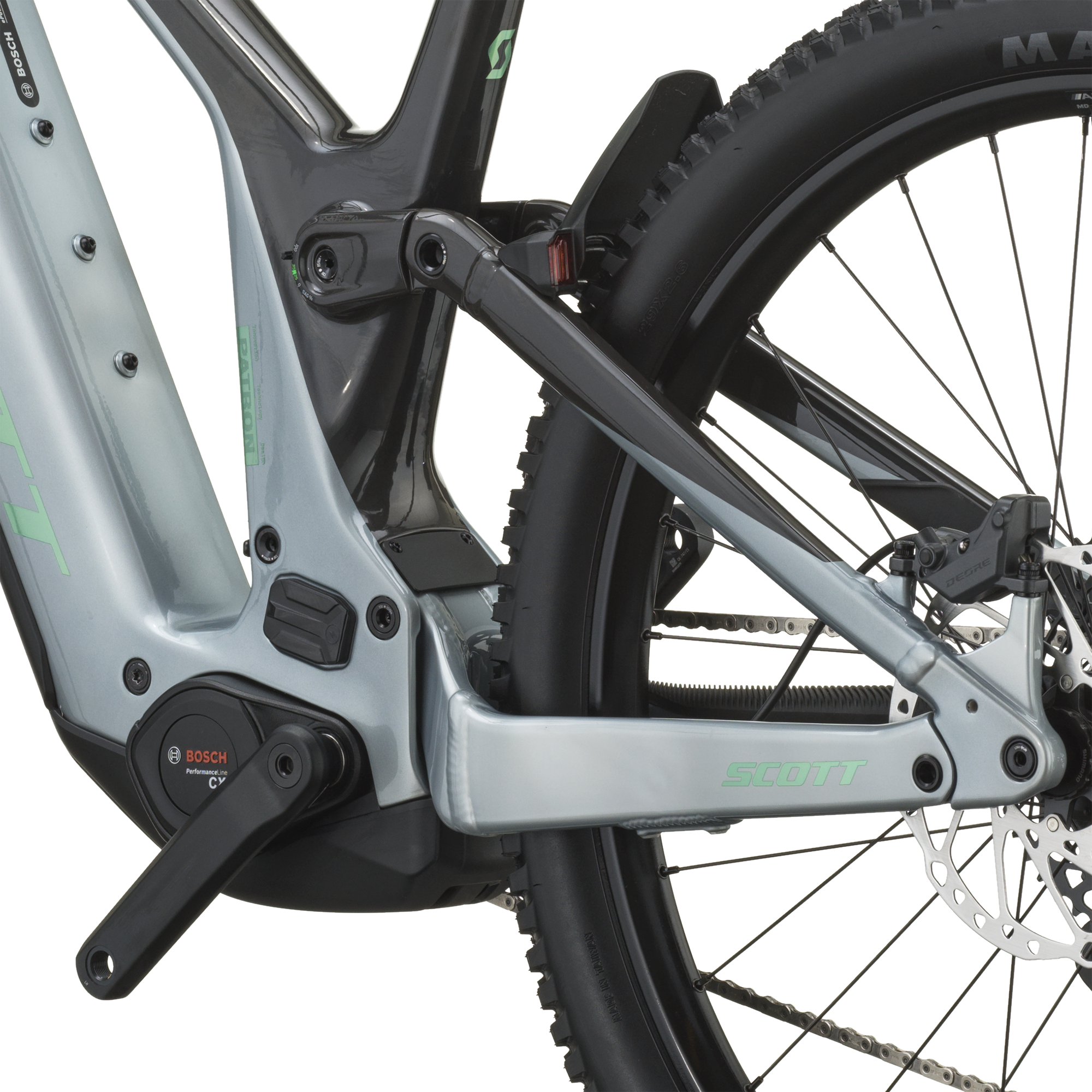

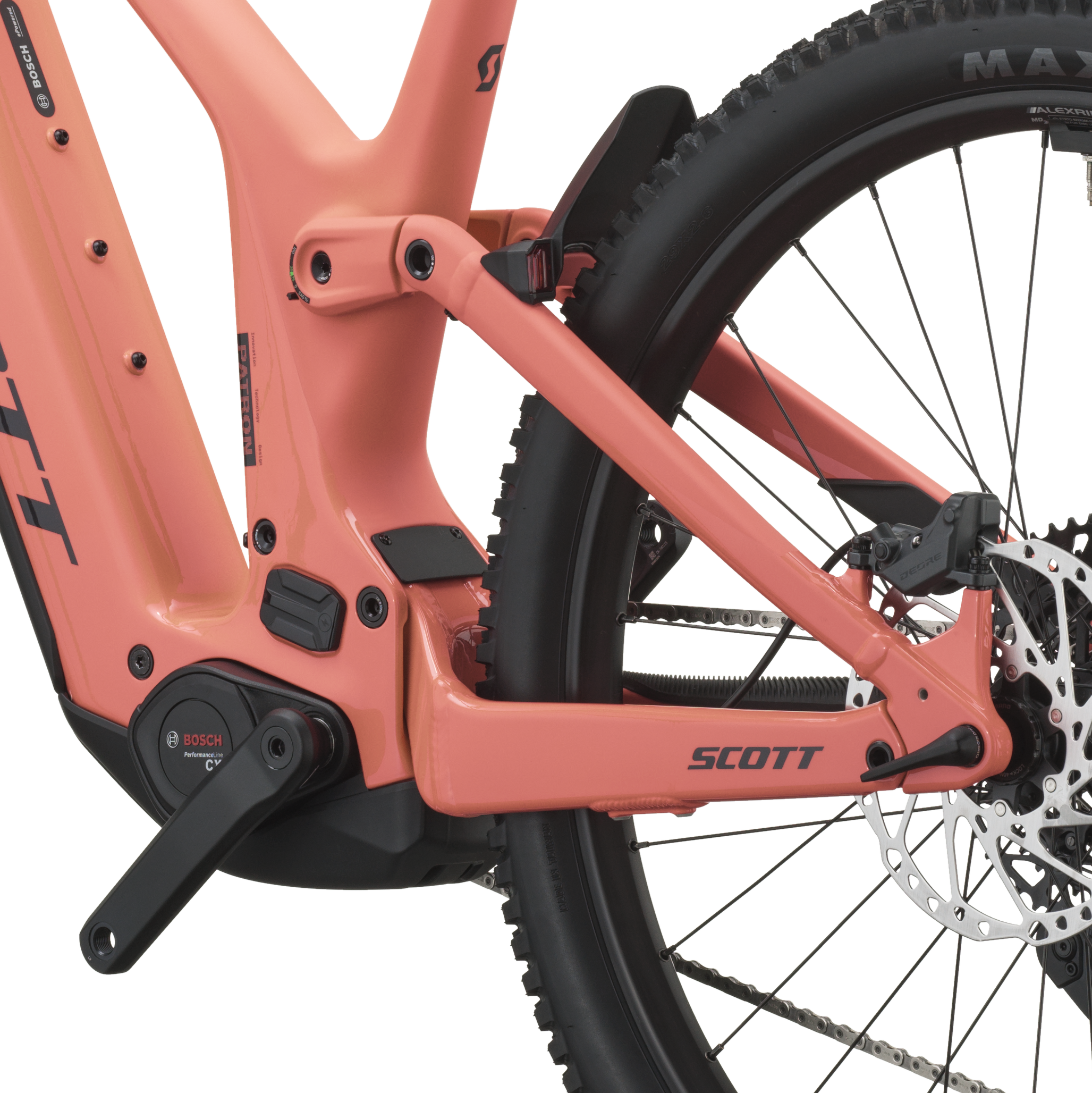

- Drive Unit: Bosch Performance Line CX (BDU384Y)
- Battery: Bosch PowerTube 800Wh
- Display: Bosch Kiox 300
- Charger: Bosch 4A Charger 230V
Drivetrain

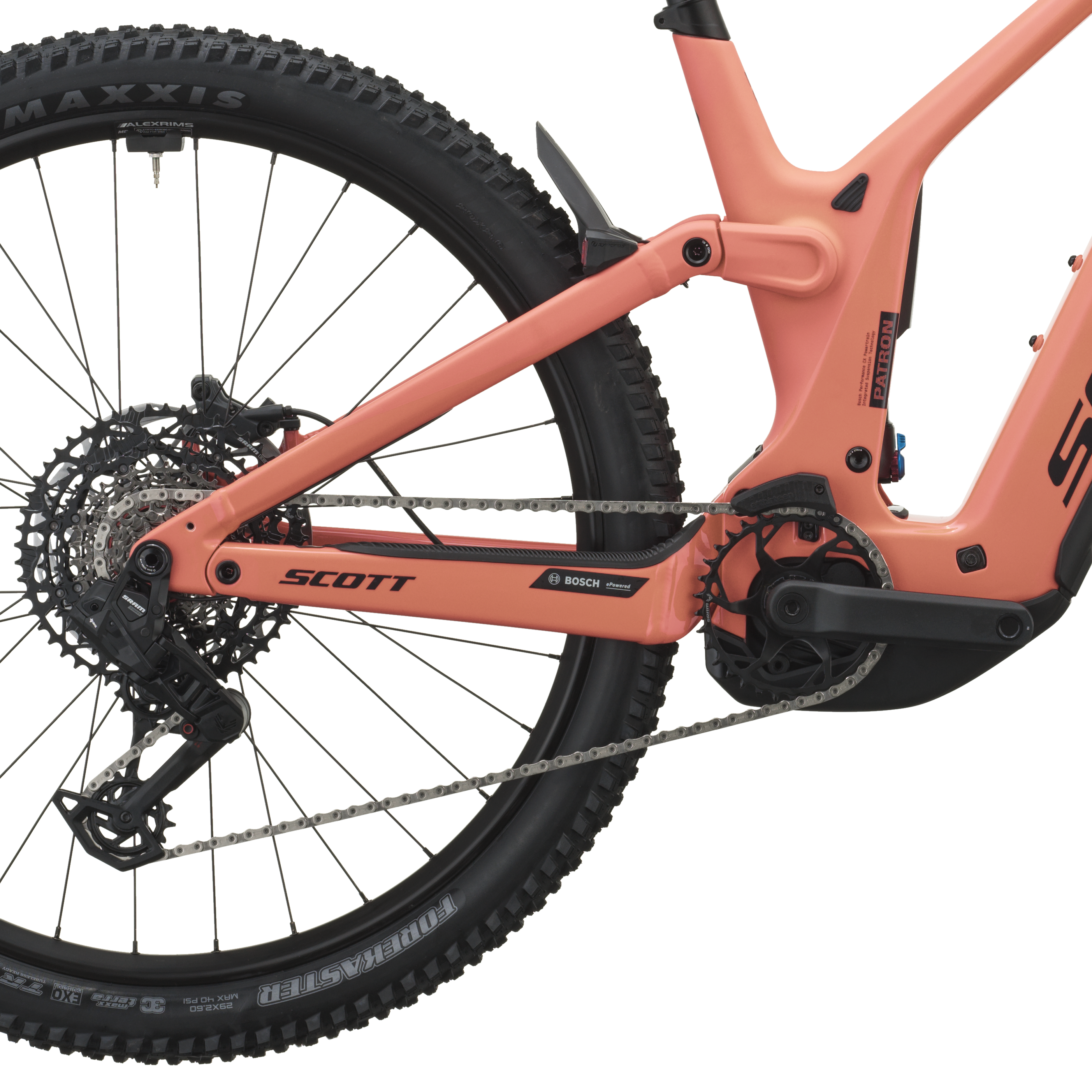

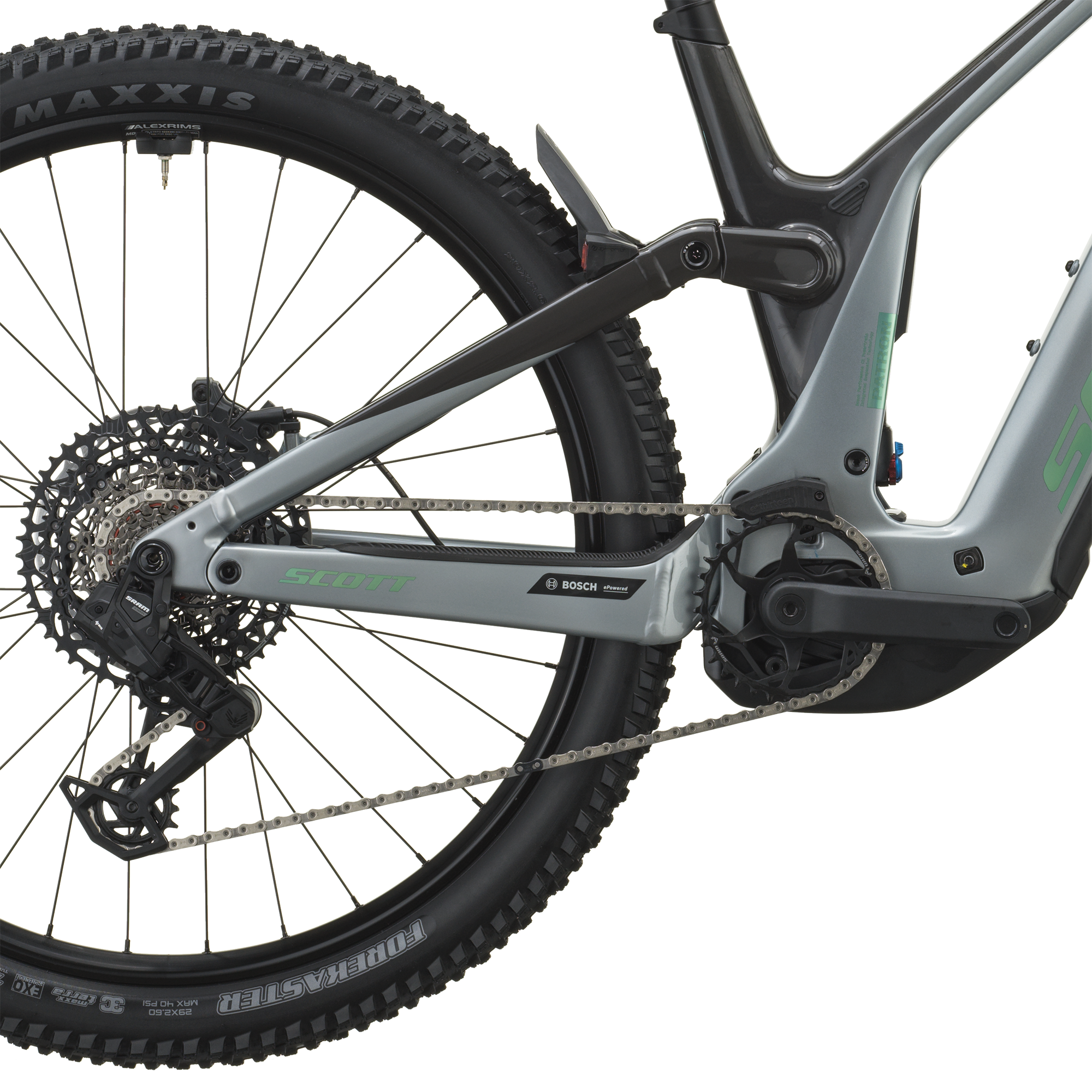

- Rear Derailleur: SRAM S1000 Eagle AXS Transmission 12 Speed, Wireless Electronic Shift System
- Shifters: SRAM AXS Rocker Pod Controller
- Crankset: FSA alloy
- Chainguide: e*thirteen, e*spec Slider
- Chainring: SRAM Direct Mount Bosch 34T
- Chain: SRAM GX Eagle Transmission
- Cassette: SRAM Eagle XS-1270 Transmission, 10-52T
Brake System
- Brakes: Shimano Deore BR-M6220 4-Piston
- Front Disc Rotor: Shimano SM-RT64 rotor 220mm
- Rear Disc Rotor: Shimano SM-RT64 rotor 203mm
Cockpit and Seating
- Grips: Syncros Performance XC Lock-On
- Handlebar: Syncros Hixon 2.0 alloy 6061 D.B, 12mm Rise, back sweep 8°, 780mm
- H'stem: Syncros AM 2.0, Syncros Cable Integration System, 4° rise, 6061 alloy, 31.8mm, 1 1/8"
- Seatpost: Syncros dropper post SP-M302-AL2, 31.6mm
- Seat: Syncros Tofino-E 2.0
- Headset: Syncros - Acros Angle adjust & Cable Routing HS System, Stainless, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB
Wheels and Tires
- Front Hub: Formula CL-811, 15x110mm
- Rear Hub: Formula ECT-148S, Boost 148x12mm
- Spokes: Stainless Black
- Front Rim: Alex Rims MD30 Disc 29" 32H, Black, Tubeless Ready
- Rear Rim: Alex Rims MD30 Disc 29" 32H, Black, Tubeless Ready
- Front Tire: Maxxis Forekaster 29x2.6", 60TPI Foldable, Tubeless Ready, EXO 3C maxx Terra
- Rear Tire: Maxxis Forekaster 29x2.6", 60TPI Foldable, Tubeless Ready, EXO 3C maxx Terra
Extras and Accessories
- Accessories: Milkit Sealant
Weight
- Approx weight in KG: 24.3
- Approx weight in LBS: 53.57
- Max. System Weight: 130kg
- Note: The overall weight includes the bike, the rider, the equipment and possible additional luggage.
