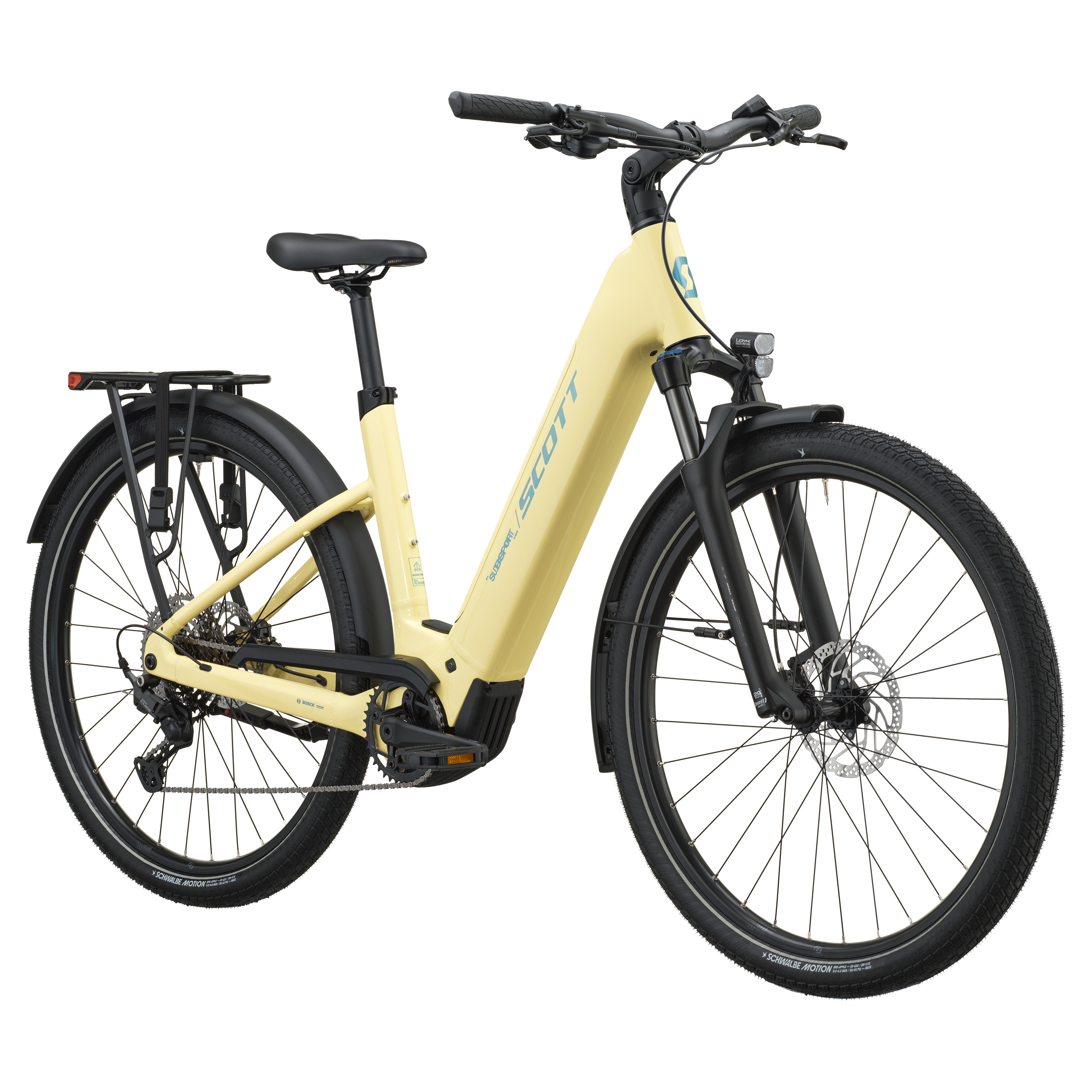

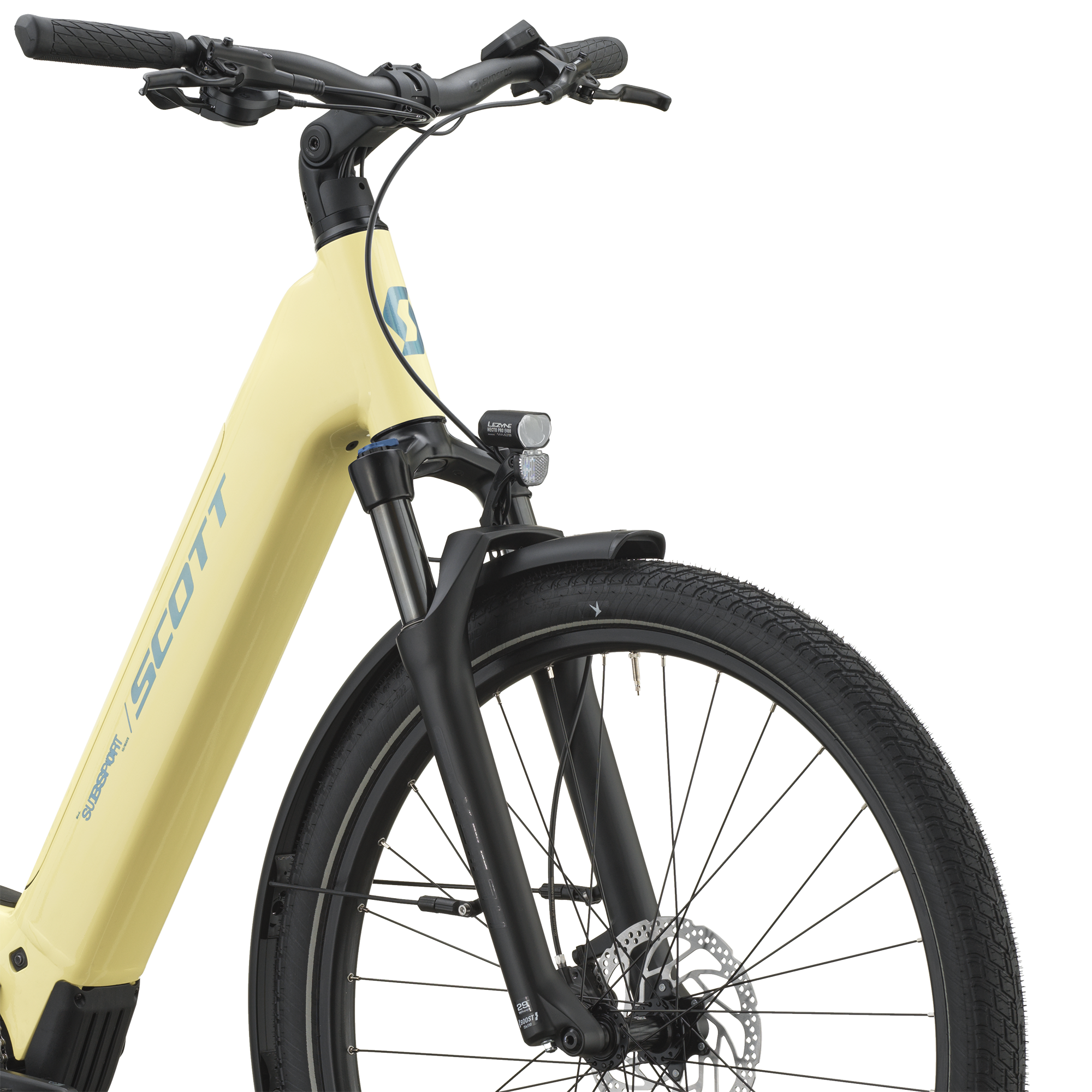

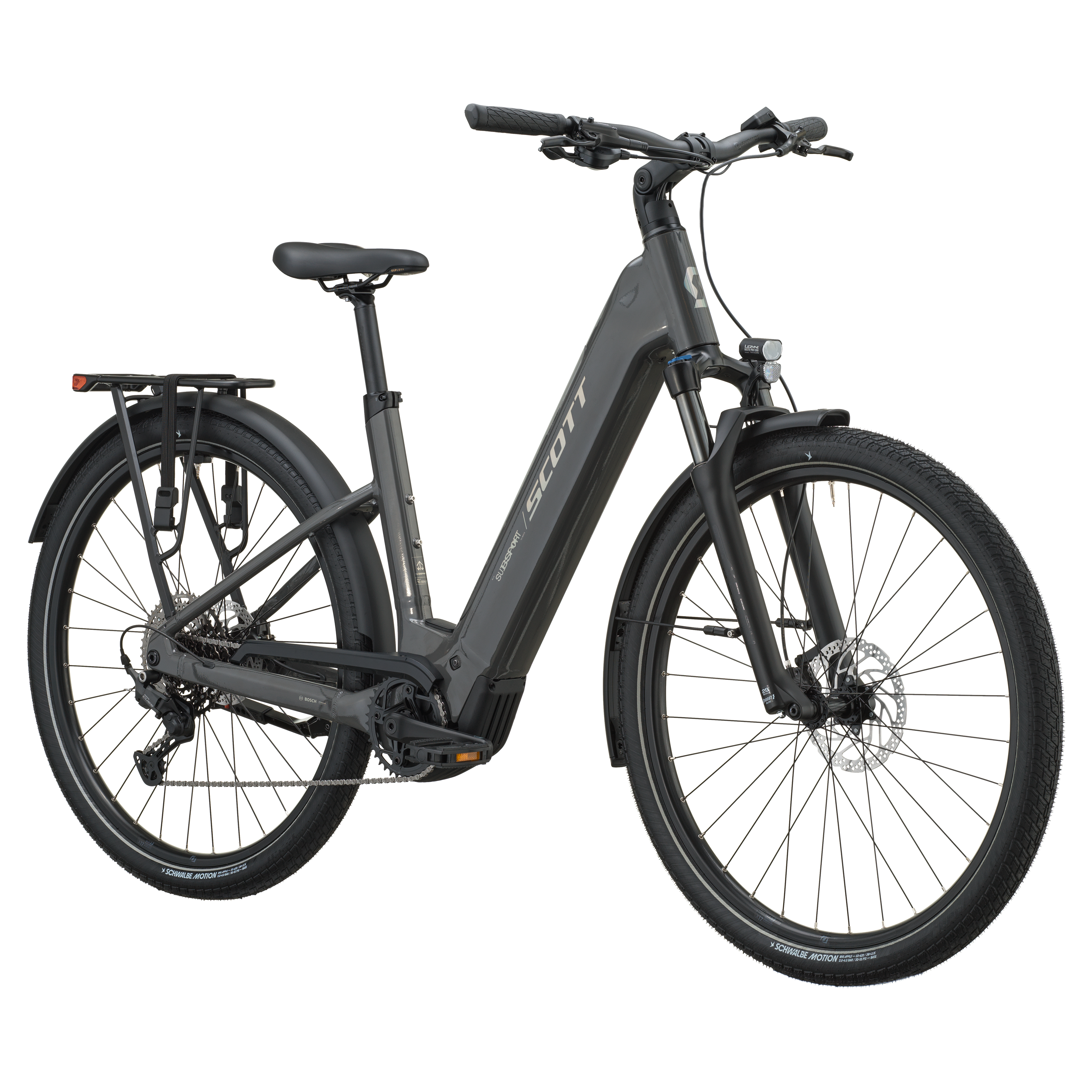

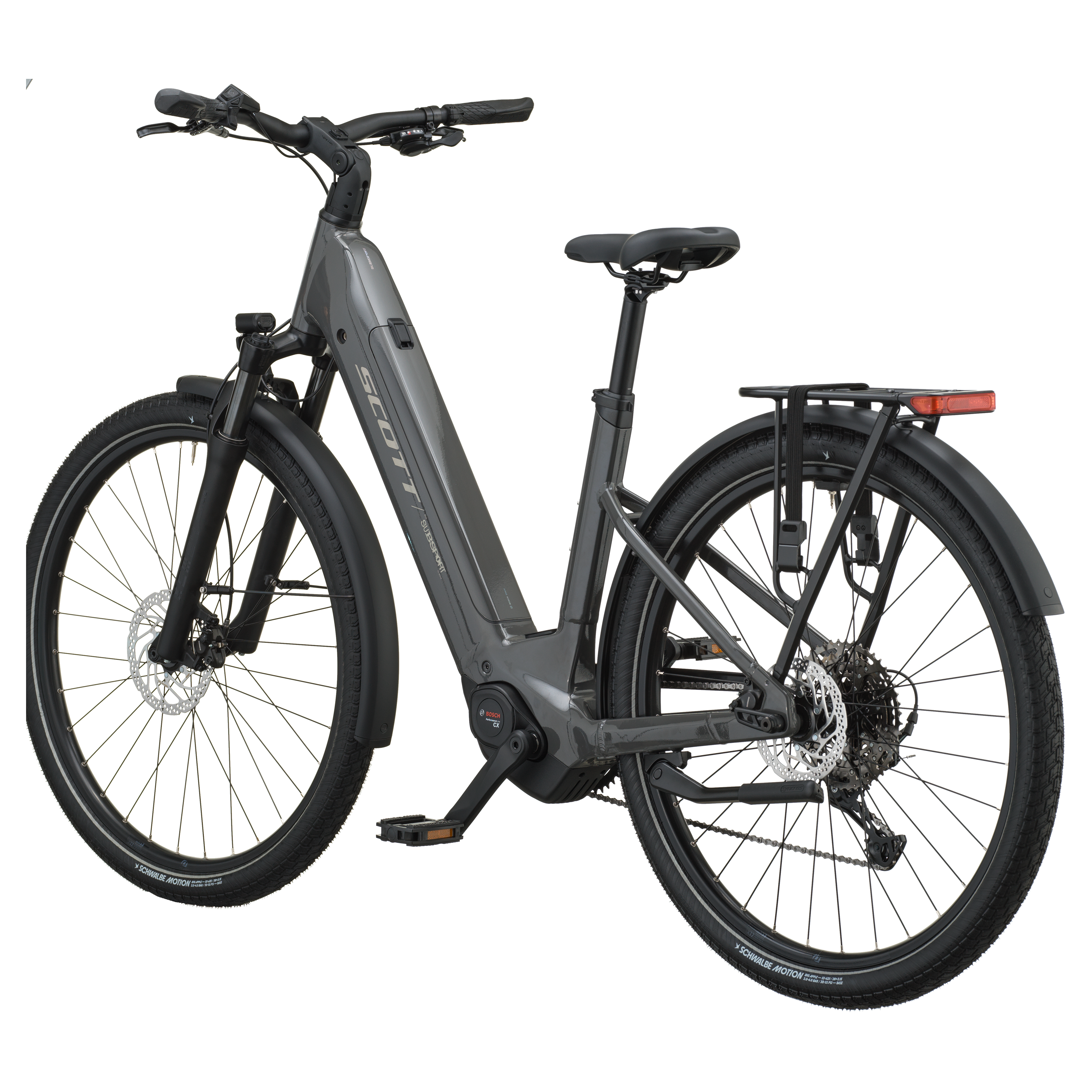

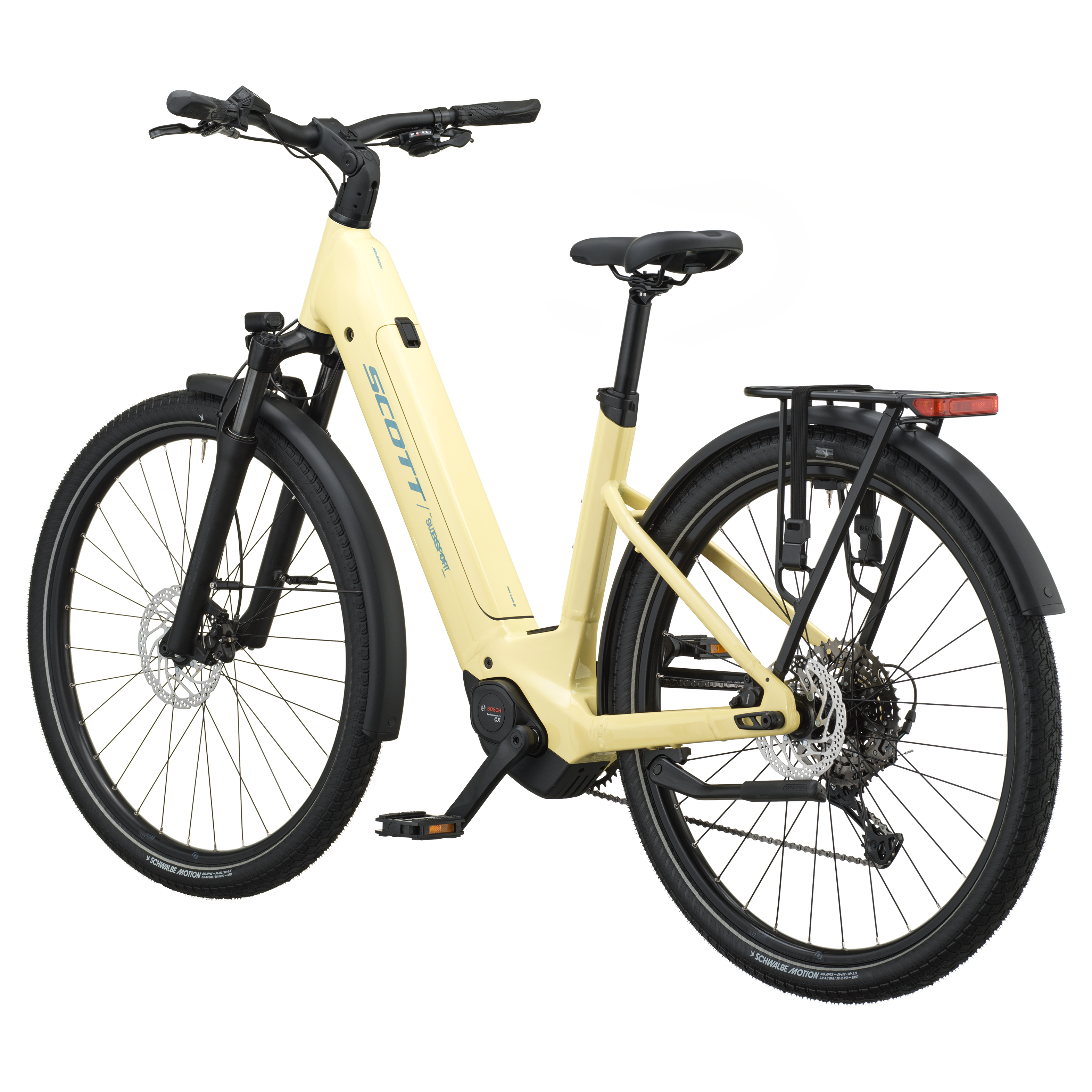

The SCOTT SUB Sport 10 Wave E-Bike invites you to move confidently through the city. Crafted with a low step-through frame that makes getting on and off easy, it's the perfect choice to elevate your ride.
Power comes from the Bosch Performance CX drive unit paired with a removable 800 Wh battery, delivering a natural-feeling and a range that comfortably covers daily trips and longer adventures alike. Multiple assist modes let you adjust the support level for any situation, while the balanced geometry and front suspension mean you can glide through congested streets with ease.

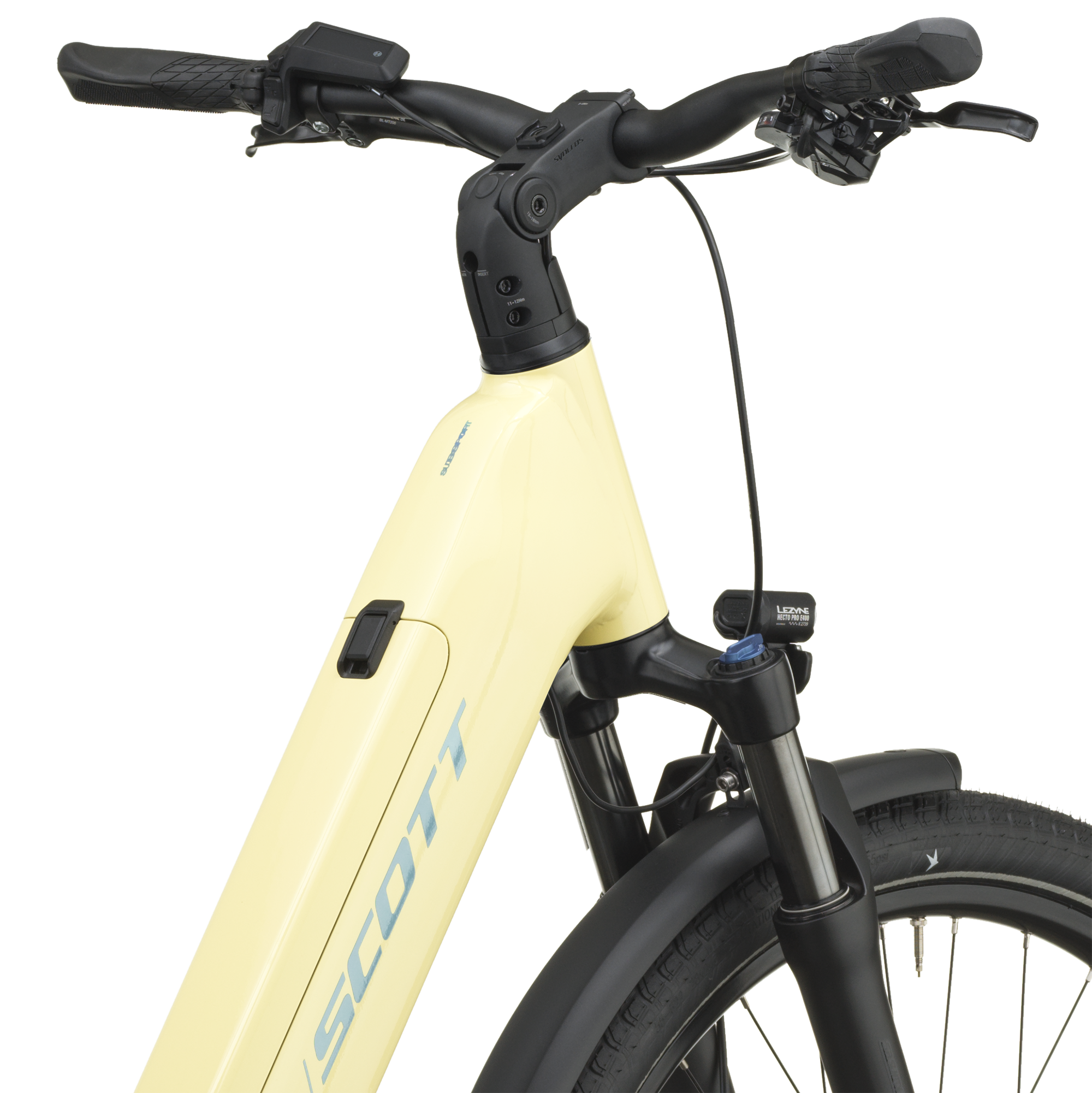

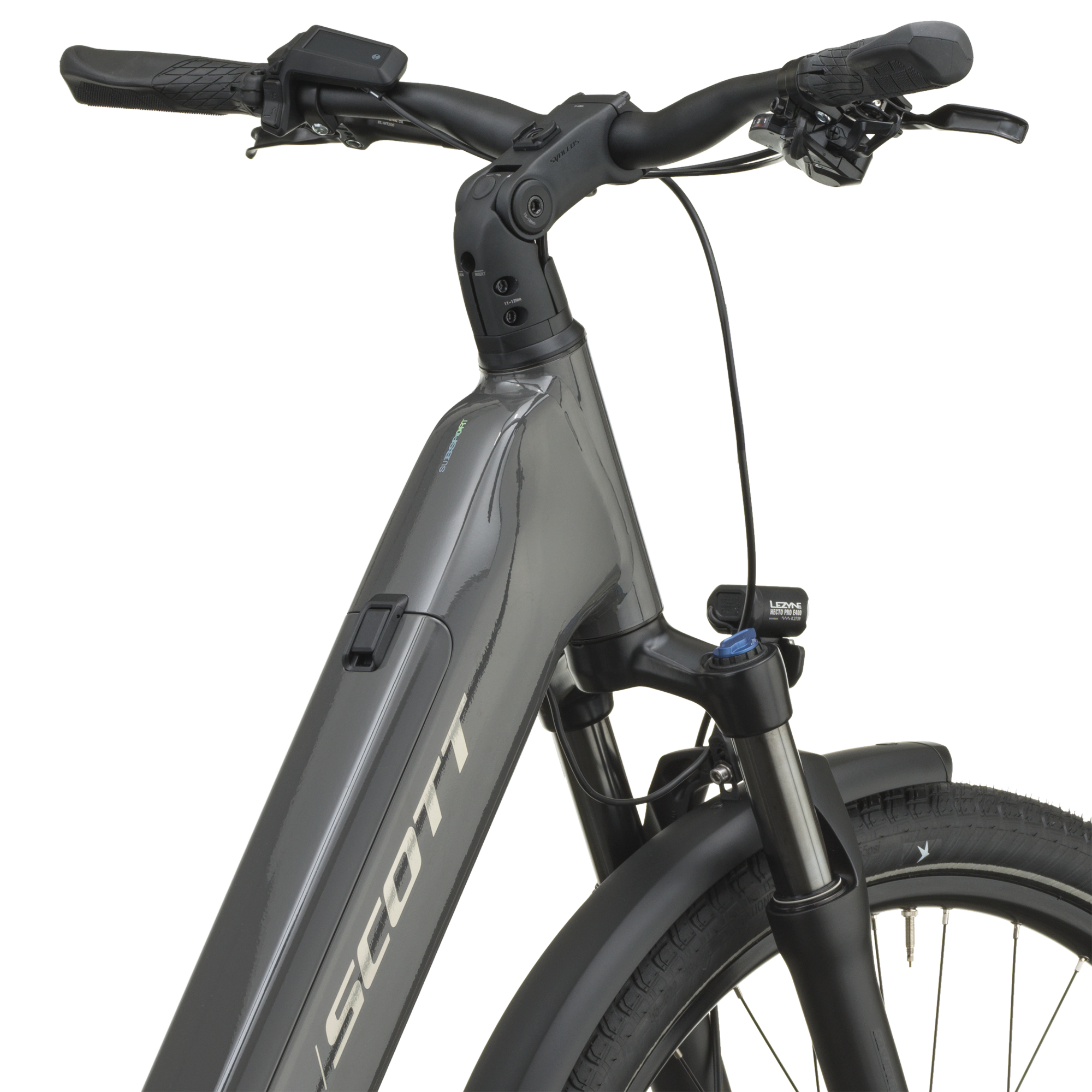

The stem is fully adjustable, so you can switch between a relaxed, comfortable posture and a sportier riding position. Integrated with an SP connection, the stem securely holds your phone, keeping navigation visible and your hands free.
The rear rack supports up to 30kg and is compatible with Racktime SNAPIT 2.0 and KID'n’CARRY systems, making it easy to carry groceries, gear, or a child seat. In addition, the bike offers trailer capacity, giving you even more flexibility for larger loads.

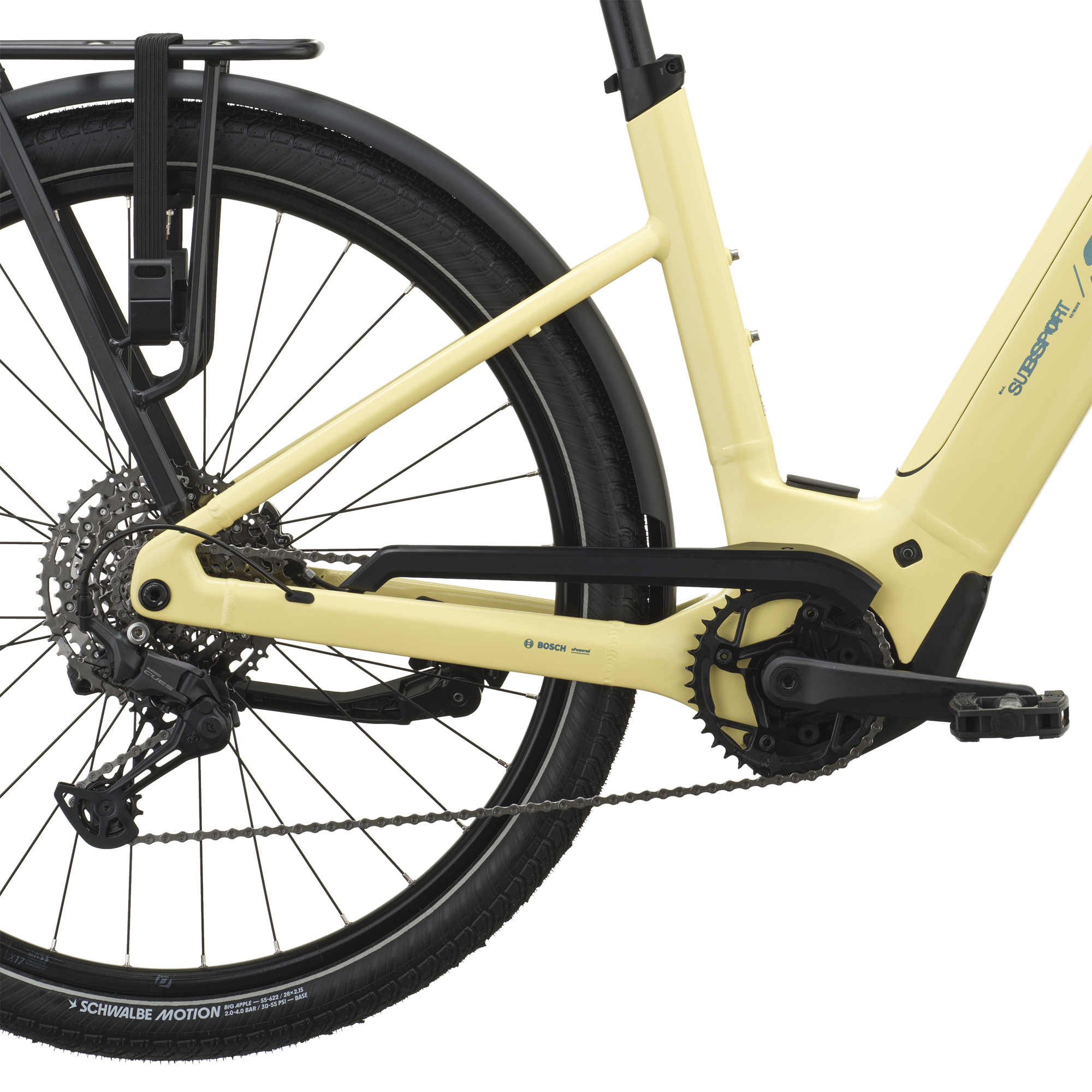

Coupled with Shimano’s reliable 10-speed drivetrain, the SUB Sport 10 Wave delivers smooth shifting and is always ready to support your lifestyle.
Please note that bike specifications are subject to change without prior notice.
What’s New
- What's new: SP connect, Kid 'n Carry Ready, Bike Trailer Ready
Frame and Suspension
- Frame: Alloy S-XL=29", 6061 Alloy custom butted tubing, Side extraction battery, UDH Interface, 12x148mm with 52mm Chainline
- Travel: 100mm

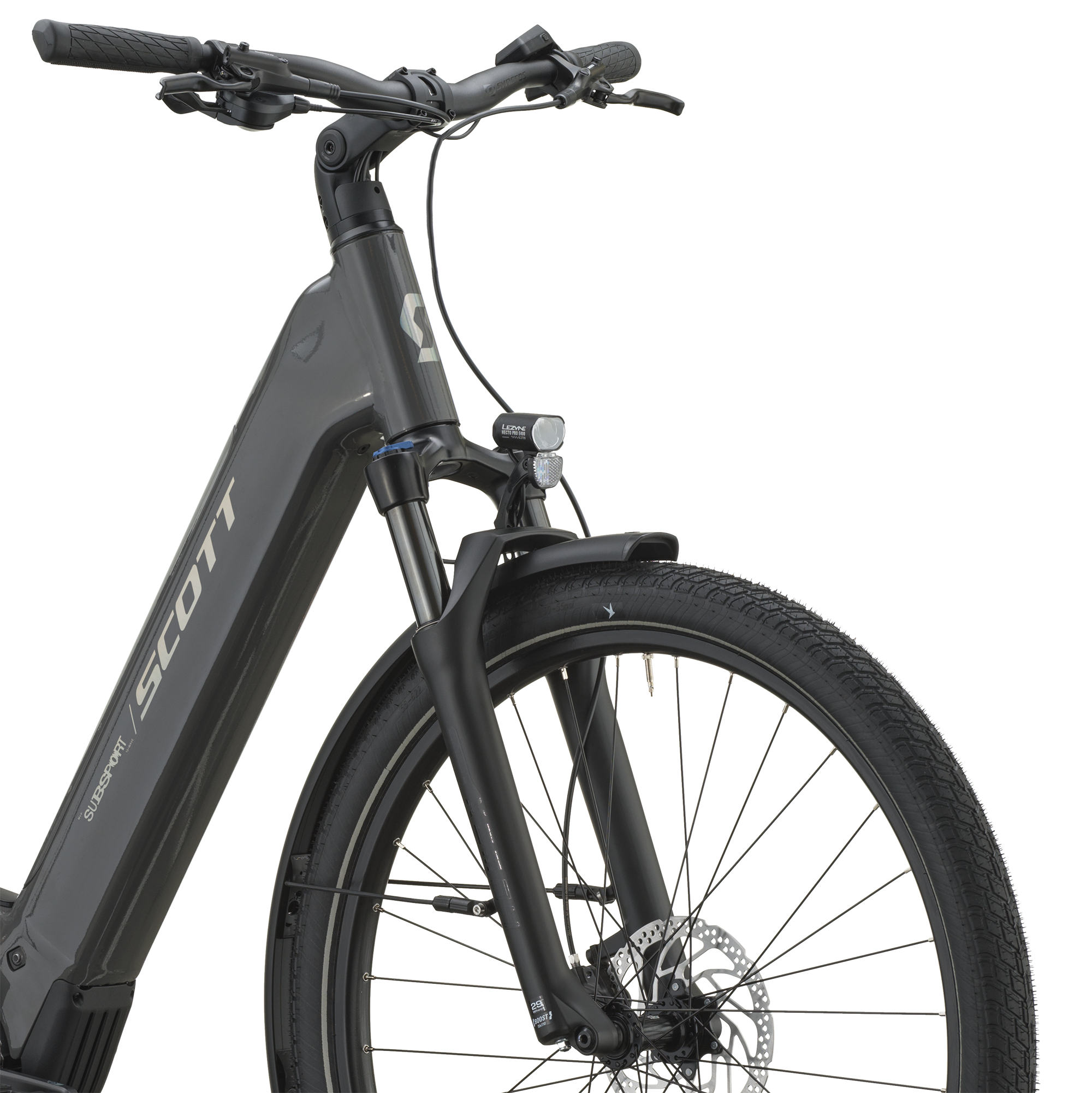

- Fork: SR Suntour XCM34 BOOST AIR LO
Motor and Battery

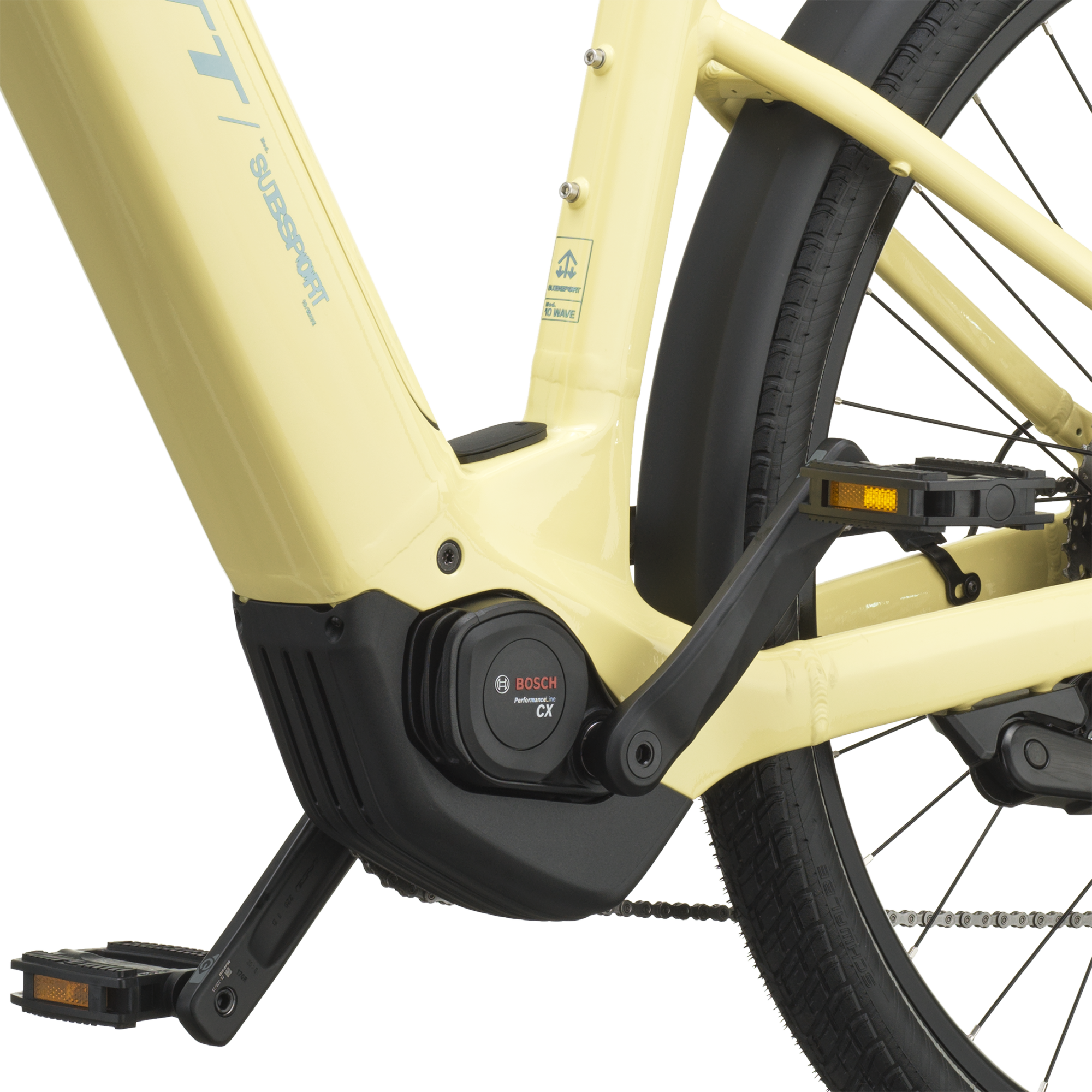

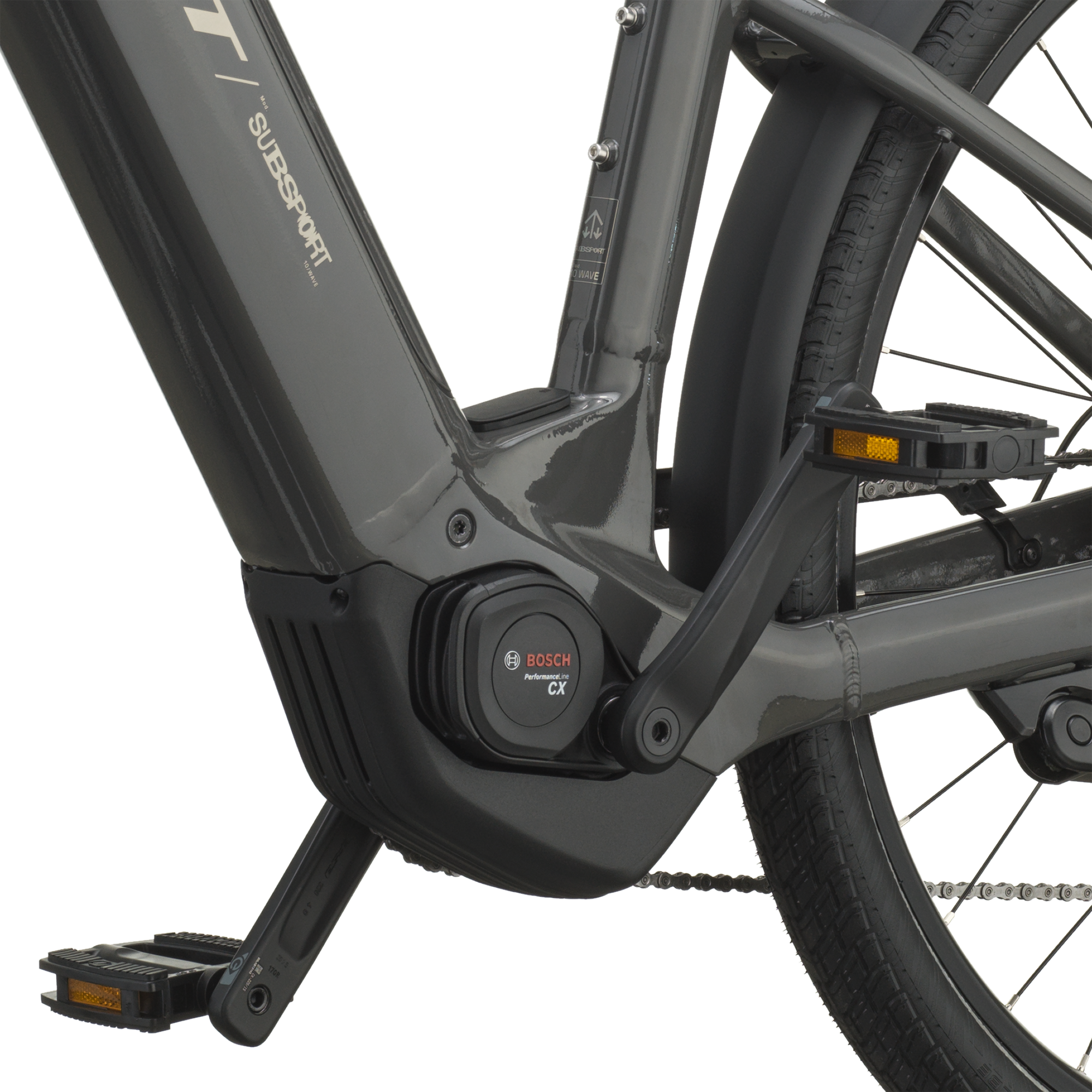

- Drive Unit: Bosch Performance Line CX (BDU384Y)
- Battery: Bosch PowerTube 800Wh
- Display: Bosch Purion 200
- Charger: Bosch 4A Charger 230V

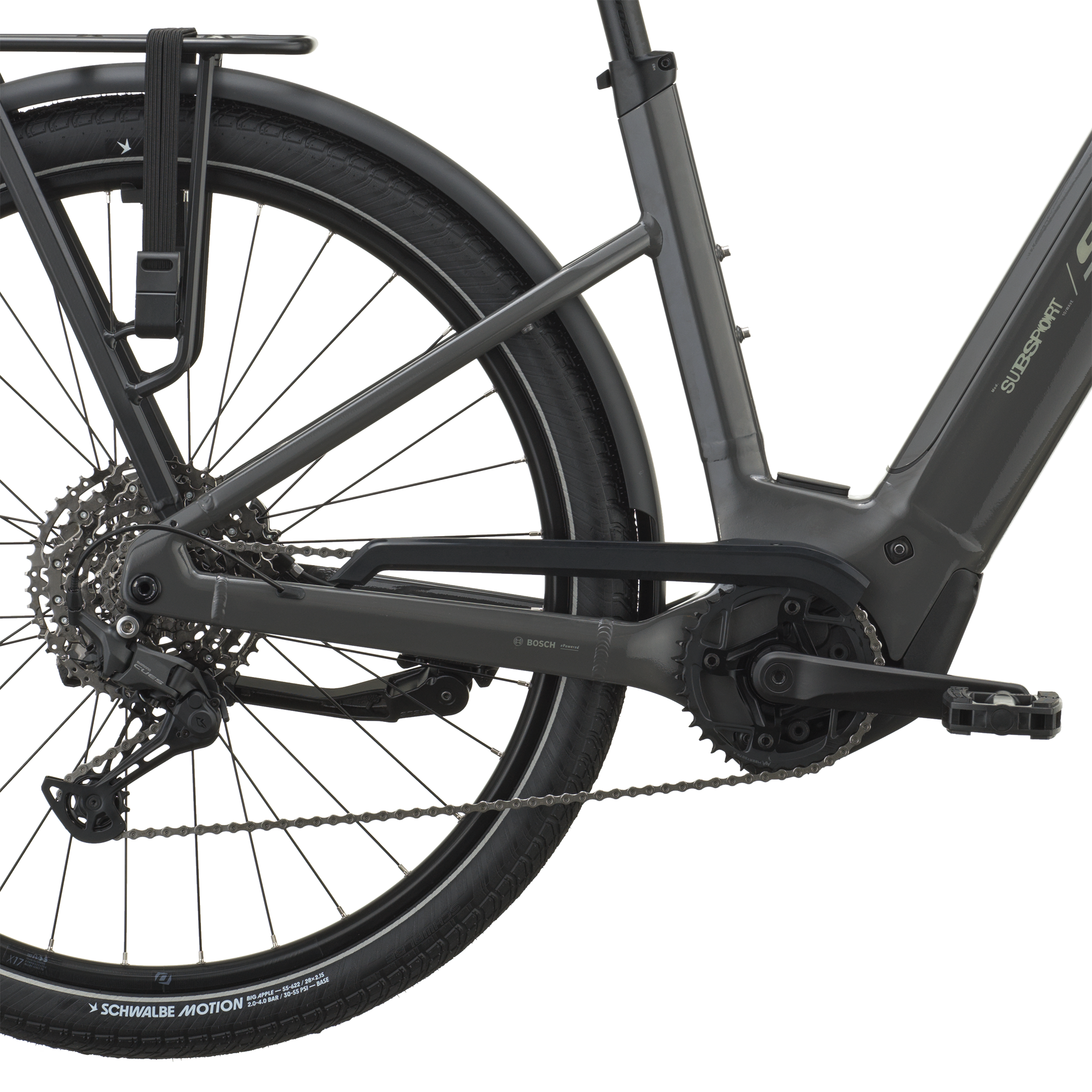

Drivetrain
- Rear Derailleur: Shimano Cues RD-U6000 10/11-Speed
- Shifters: Shimano Cues SL-U6000 With Display
- Crankset: FSA CK 220 170mm
- Chainguide: Chaincase cover
- Chainring: FSA 38T w/o Chain Guard
- Chain: Shimano CN-LG500
- Cassette: Shimano Cues CS-LG400, 10-Speed 11-48T
Brake System
- Brakes: Shimano BR-MT200 2-Piston
- Front Disc Rotor: Shimano SM-RT30 CL, 180mm
- Rear Disc Rotor: Shimano SM-RT30 CL, 160mm
Cockpit and Seating
- Grips: Urban Comfort
- Handlebar: Syncros UC3.0 680mm, Rise 26mm, Backsweep 30°
- H'stem: JD, Adjustable, 31.8*90 mm −10°~+60°, SP Connect

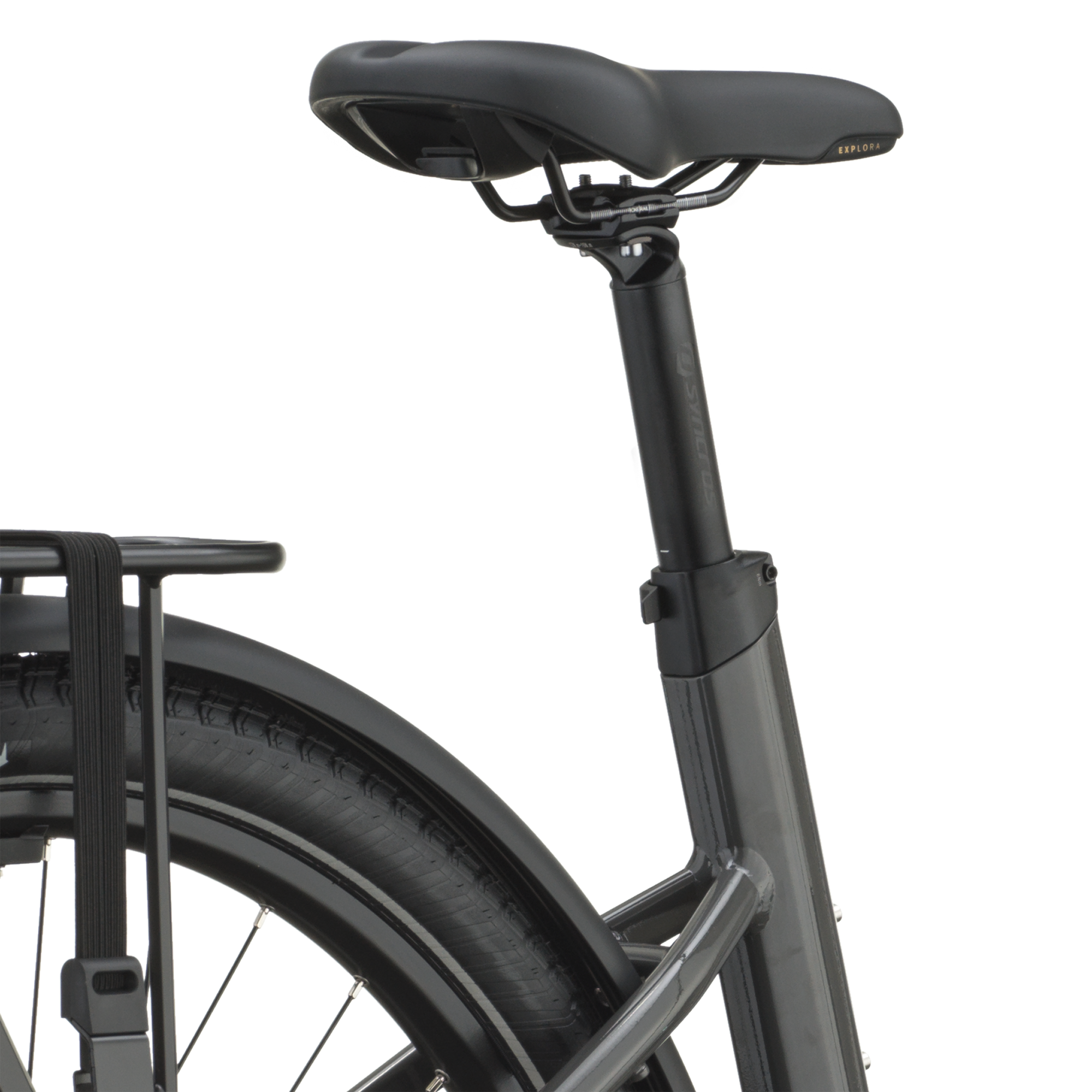

- Seatpost: Syncros M3.0, 31.6mm, 350mm
- Seat: Selle Royal Explora Moderate Wide 195mm
- Headset: Feimin, 28.8-56-62(39.8), Sealed Bearing, Alloy Cup
Wheels and Tires
- Front Hub: Shimano HB-TC500 15x110mm
- Rear Hub: Shimano FH-TC500 148mm
- Spokes: Stainless Black 13G
- Front Rim: X18 Disc
- Rear Rim: X18 Disc
- Front Tire: Schwalbe Big Apple Performance, 55-622
- Rear Tire: Schwalbe Big Apple Performance, 55-622
Lights and Equipment
- Front Light: Lezyne Hecto Pro STVZO E400
- Rear Light: Lezyne STVZO Integrated
- Rack: Racktime carrier SNAPIT 2.0 30Kg KID'n'CARRY Ready
- Fender: Curana Apollo 65
- Pedals: Marwi SP-827
Extras and Accessories
- Extras: Ursus U-Mount Kickstand
Weight
- Approx weight in KG: 30.6
- Approx weight in LBS: 67.46
- Max. System Weight: 160kg
- Note: The overall weight includes the bike, the rider, the equipment and possible additional luggage.
