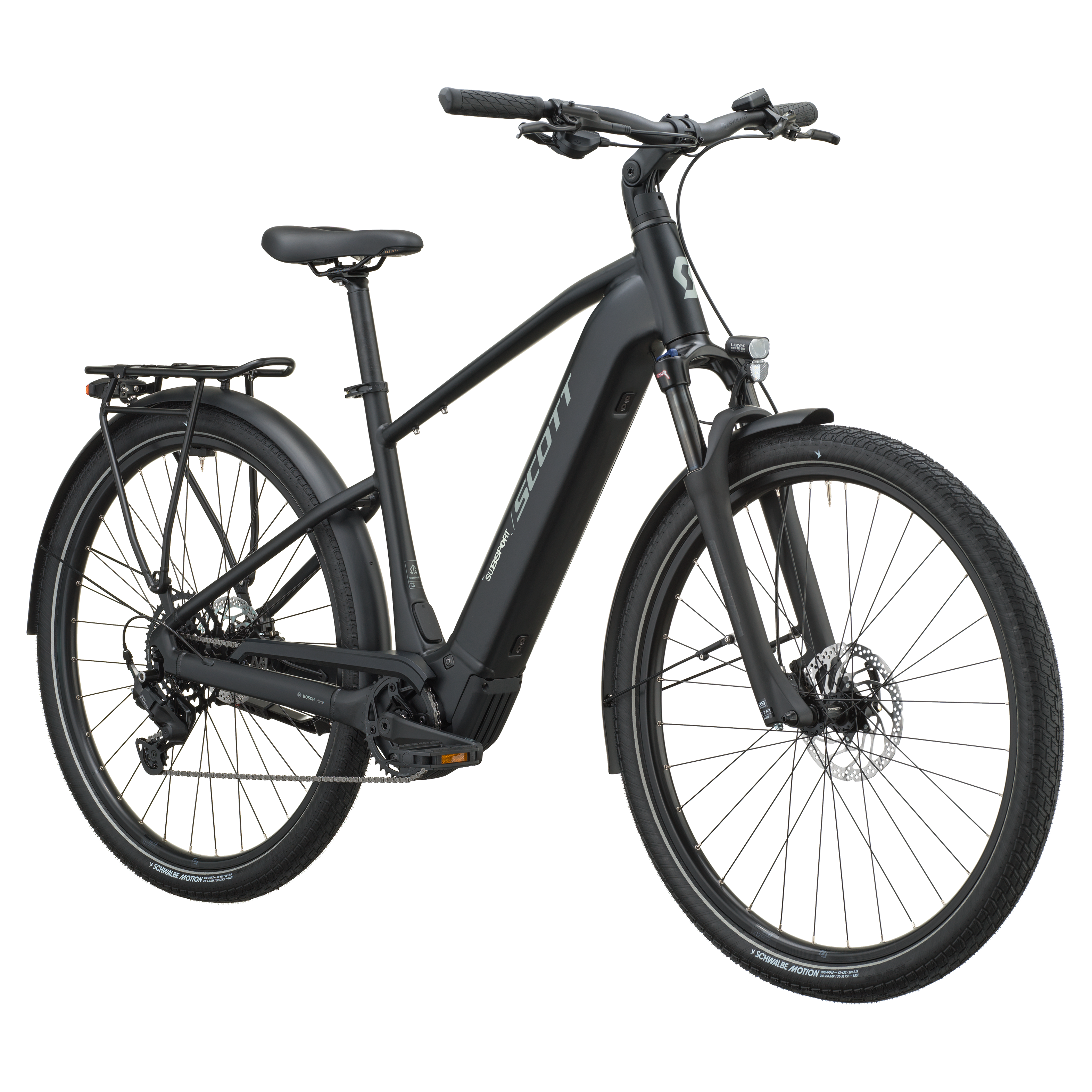

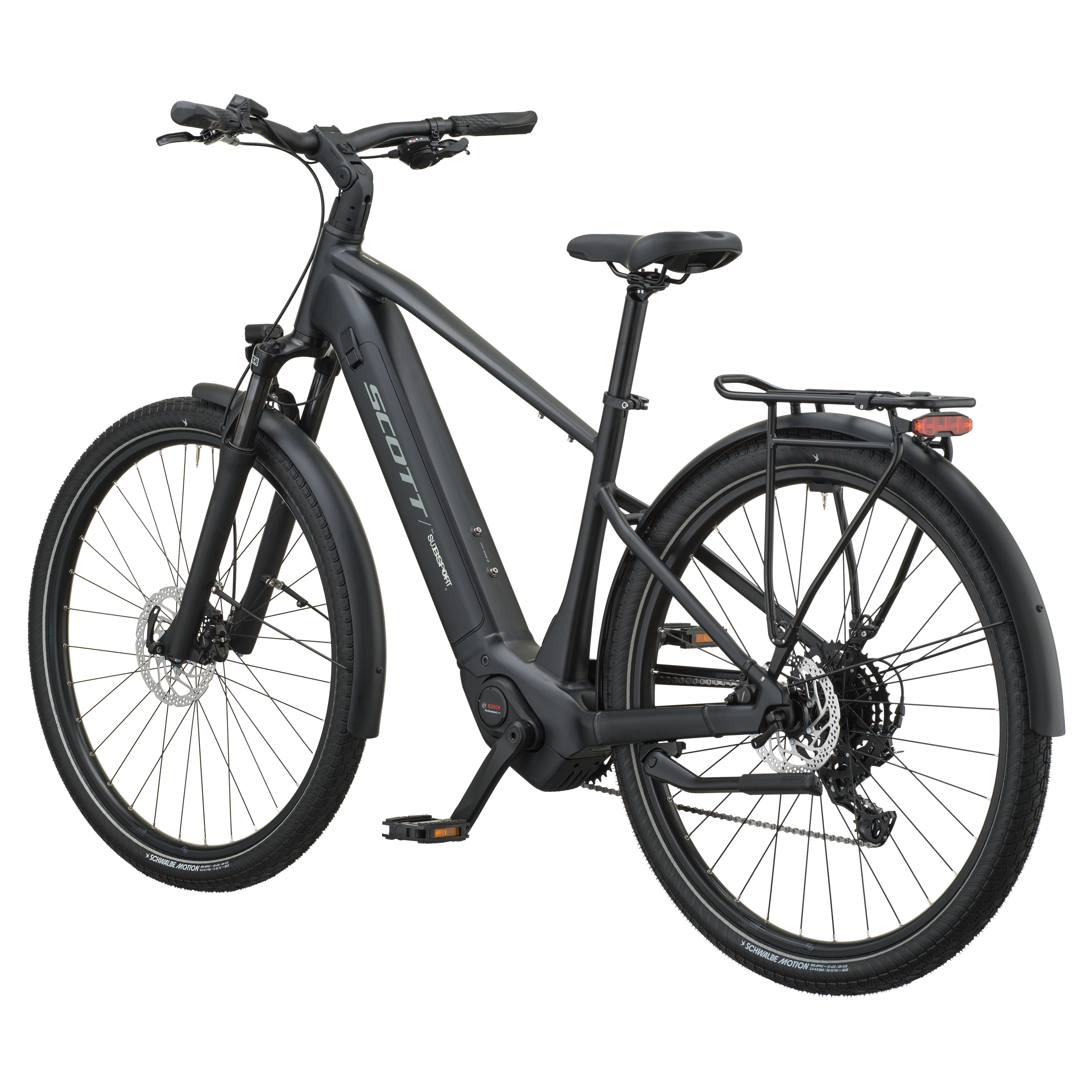

The SCOTT SUB Sport 30 E-Bike turns everyday riding into a comfortable, supported, and enjoyable experience.
Bosch's Performance motor, paired with a removable 540Wh battery, provides a naturally smooth acceleration and a range that comfortably handles commutes as well as longer, leisurely rides around town. With multiple assist modes, you can adjust the level of boost you need—whether you’re conquering a hill with confidence or conserving energy for a further destination.

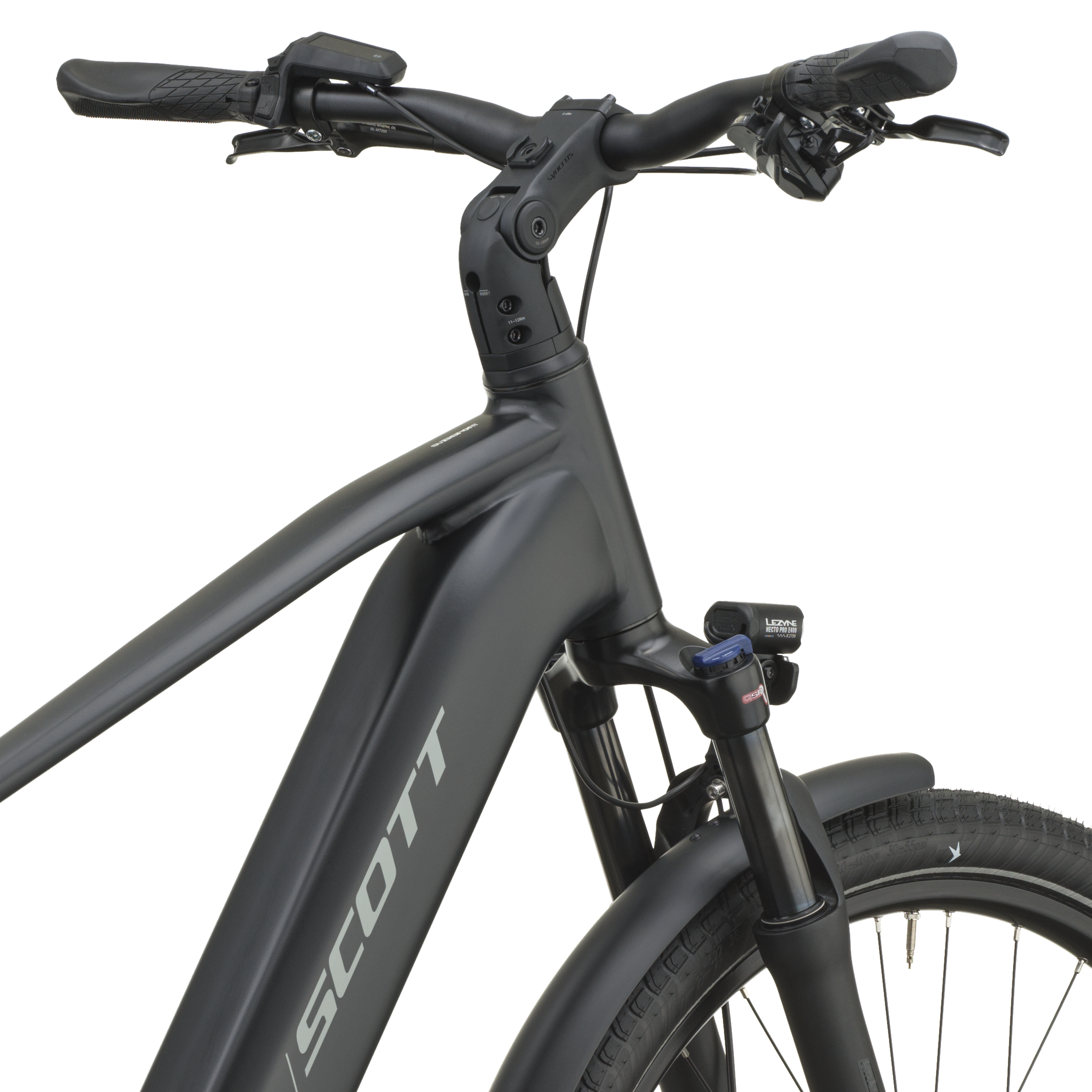

The stem is fully adjustable, letting you transition from a relaxed, ergonomic posture to a sportier, more responsive riding position. An integrated SP connection securely holds your phone, keeping navigation in clear view and your hands free for a safer, more attentive ride.

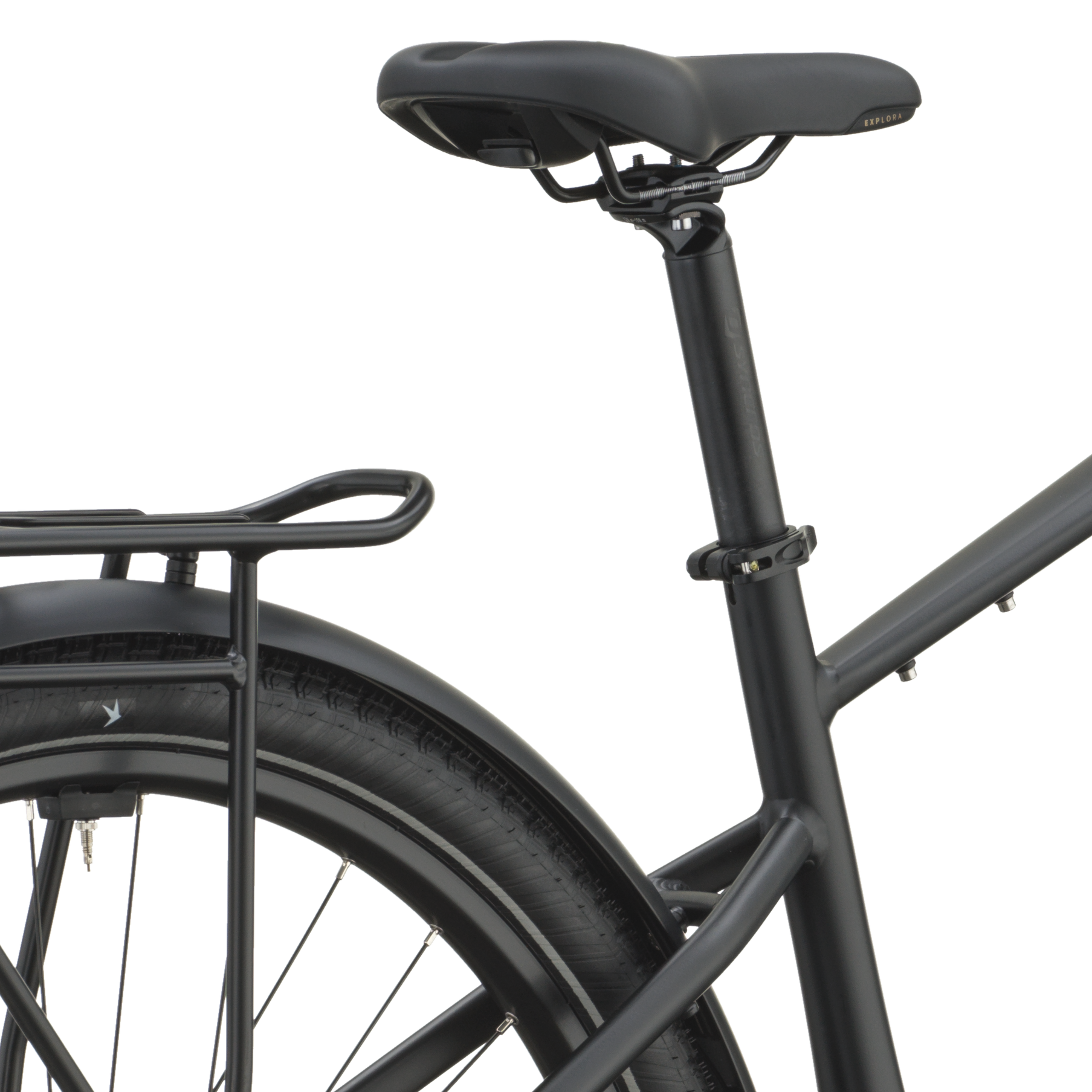

The rear rack supports up to 30kg and is compatible with Racktime SNAPIT 2.0 and KID'n’CARRY systems, so loading up groceries, supplies, or a child’s seat is stress-free.

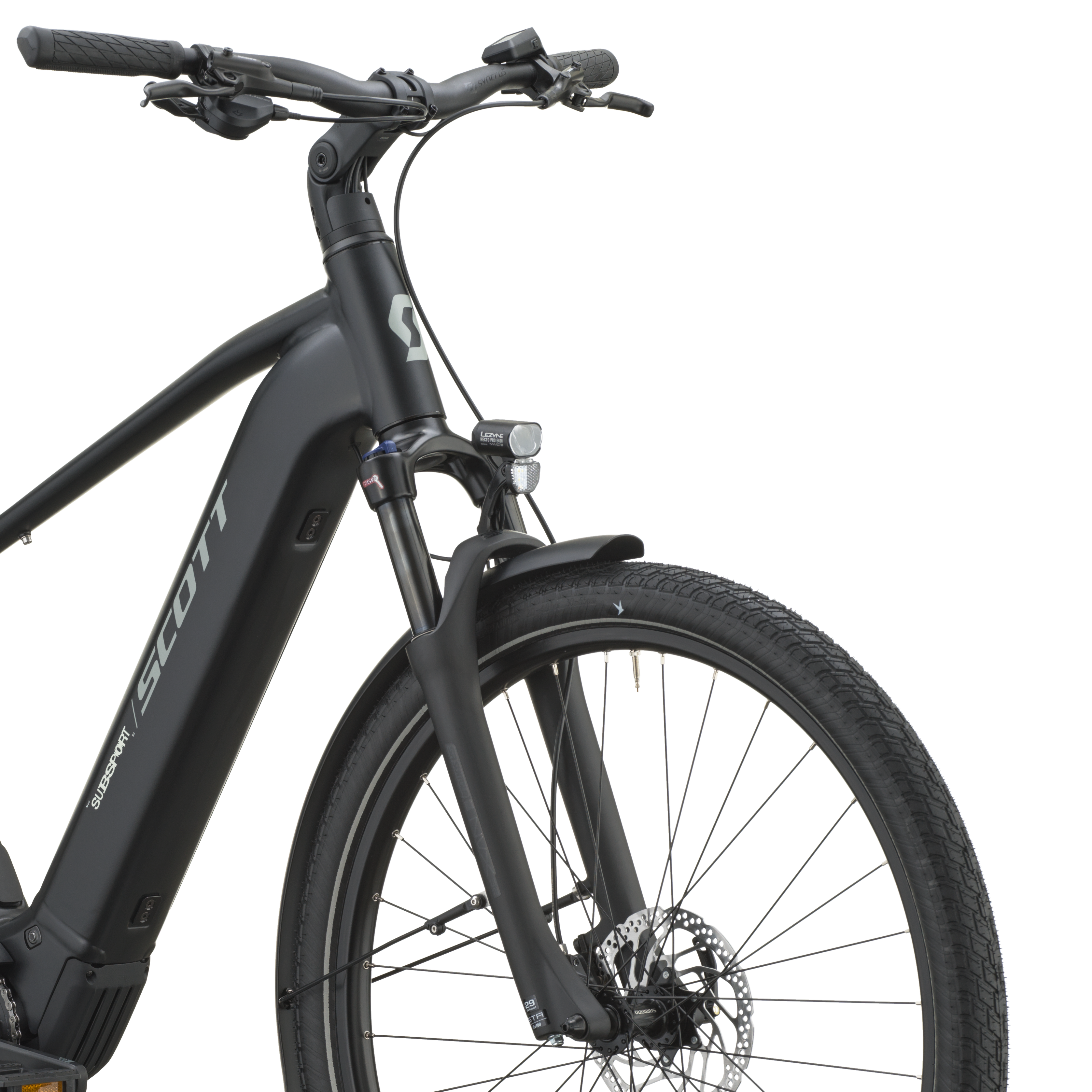

The front light is positioned on the fork to free up space for a front basket, giving you additional carrying capacity.

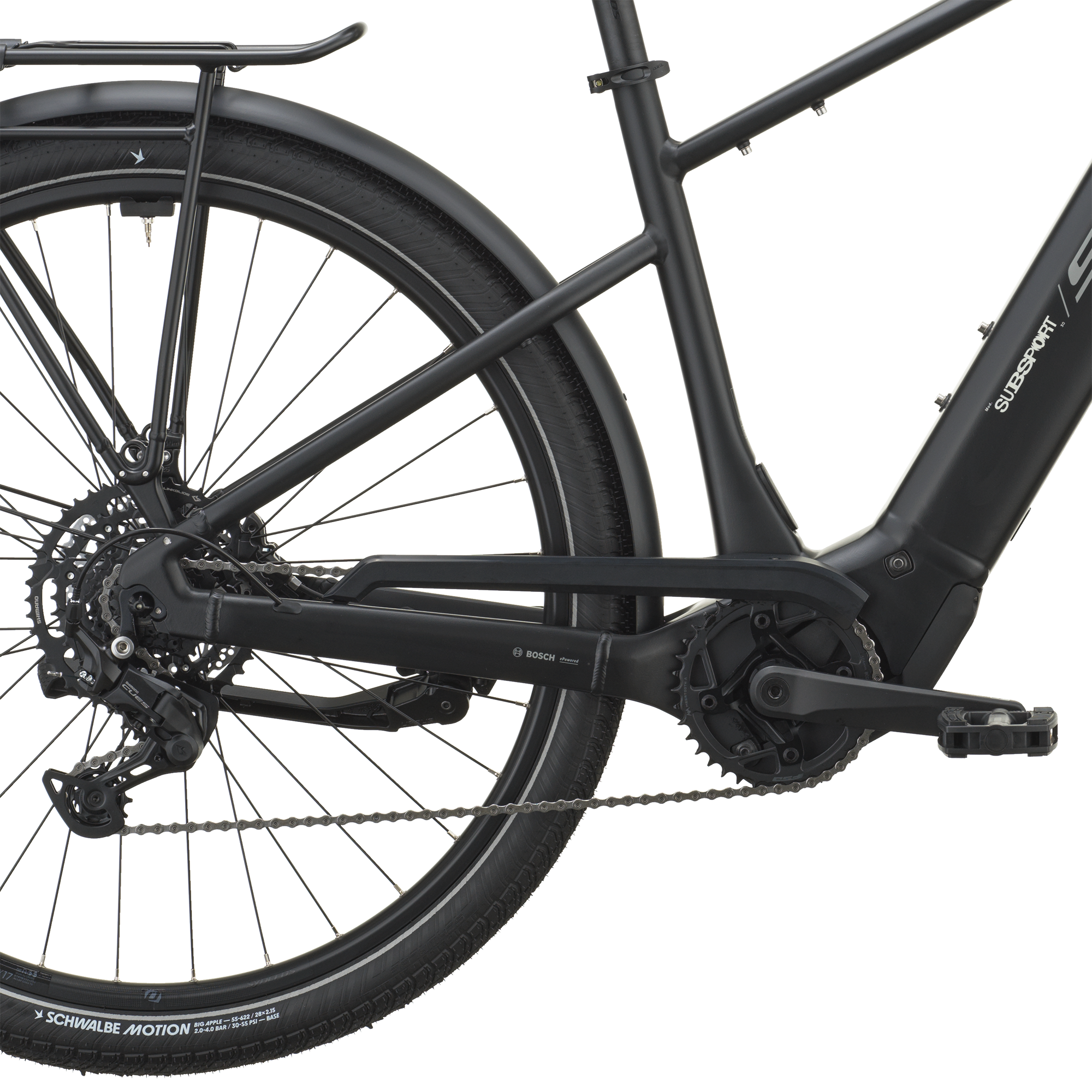

A front-suspension fork cushions rough patches, while Shimano’s dependable 9-speed drivetrain supplies precise gearing for any terrain you encounter.
Please note that bike specifications are subject to change without prior notice.
What’s New
- What's new: Geometry Frame Update, XXL size, SP connect, Kid 'n Carry Ready
Frame and Suspension
- Frame: Alloy S-XXL=29", 6061 Alloy custom butted tubing, Side extraction battery, UDH Interface, 141mm QR with 52mm Chainline
- Travel: 100mm
- Fork: SR Suntour NVX 32 5TA COIL LO
Motor and Battery

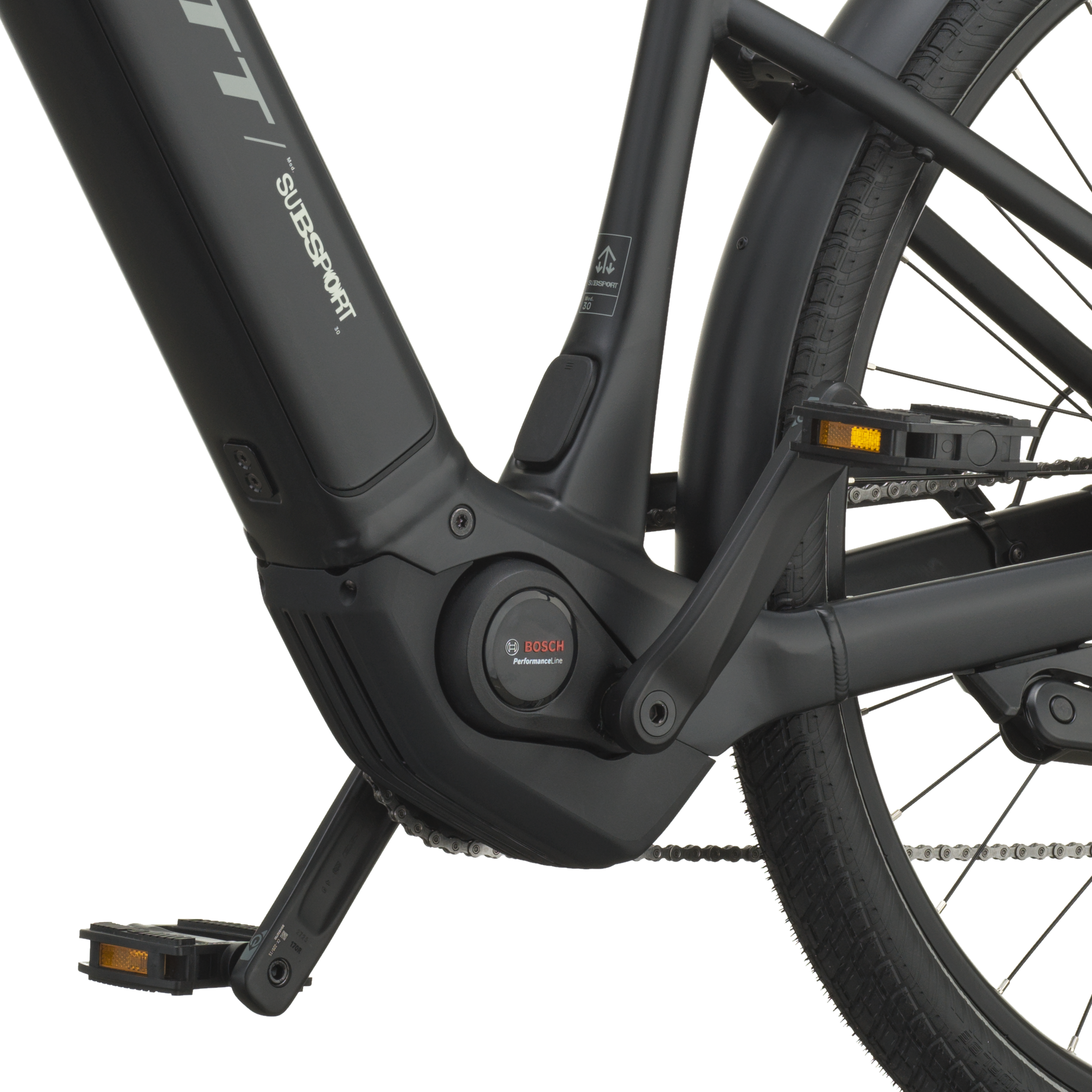

- Drive Unit: Bosch Performance Line (BDU346Y)
- Battery: Bosch PowerTube 540Wh
- Display: Bosch Purion 200
- Charger: Bosch 2A Charger 230V
Drivetrain
- Rear Derailleur: Shimano Cues RD-U4000 9-Speed
- Shifters: Shimano Cues SL-U4000 With Display
- Crankset: FSA CK 220 170mm
- Chainguide: Chaincase cover
- Chainring: FSA 38T w/o Chain Guard
- Chain: Shimano CN-LG500
- Cassette: Shimano Cues CS-LG300, 9-Speed 11-46T
Brake System
- Brakes: Shimano BR-MT200 2-Piston
- Front Disc Rotor: Shimano SM-RT30 CL, 180mm
- Rear Disc Rotor: Shimano SM-RT30 CL, 160mm
Cockpit and Seating
- Grips: Urban Comfort
- Handlebar: Syncros UC3.0 680mm, Rise 12mm, Backsweep 15°
- H'stem: JD, Adjustable, 31.8*90 mm −10°~+60°, SP Connect
- Seatpost: Syncros M3.0, 31.6mm, 350mm
- Seat: Selle Royal Explora Moderate 170mm
- Headset: Feimin, 28.8-56-62(39.8/30), H887 Bearing Cup
Wheels and Tires
- Front Hub: Shimano HBQC400B58LL, 5x100mm
- Rear Hub: Shimano FH-QC400-HM QR
- Spokes: Stainless Black 13G
- Front Rim: X18 Disc
- Rear Rim: X18 Disc
- Front Tire: Schwalbe Big Apple Performance, 55-622
- Rear Tire: Schwalbe Big Apple Performance, 55-622
Lights and Equipment
- Front Light: Lezyne Mini Lite STVZO E350
- Rear Light: Lezyne Superbright STVZO
- Rack: Racktime carrier SNAPIT 2.0 30Kg KID'n'CARRY Ready
- Fender: Metasol 65
- Pedals: Marwi SP-827
Extras and Accessories
- Extras: Ursus U-Mount Kickstand
Weight
- Approx weight in KG: 27.7
- Approx weight in LBS: 61.07
- Max. System Weight: 160kg
- Note: The overall weight includes the bike, the rider, the equipment and possible additional luggage.
