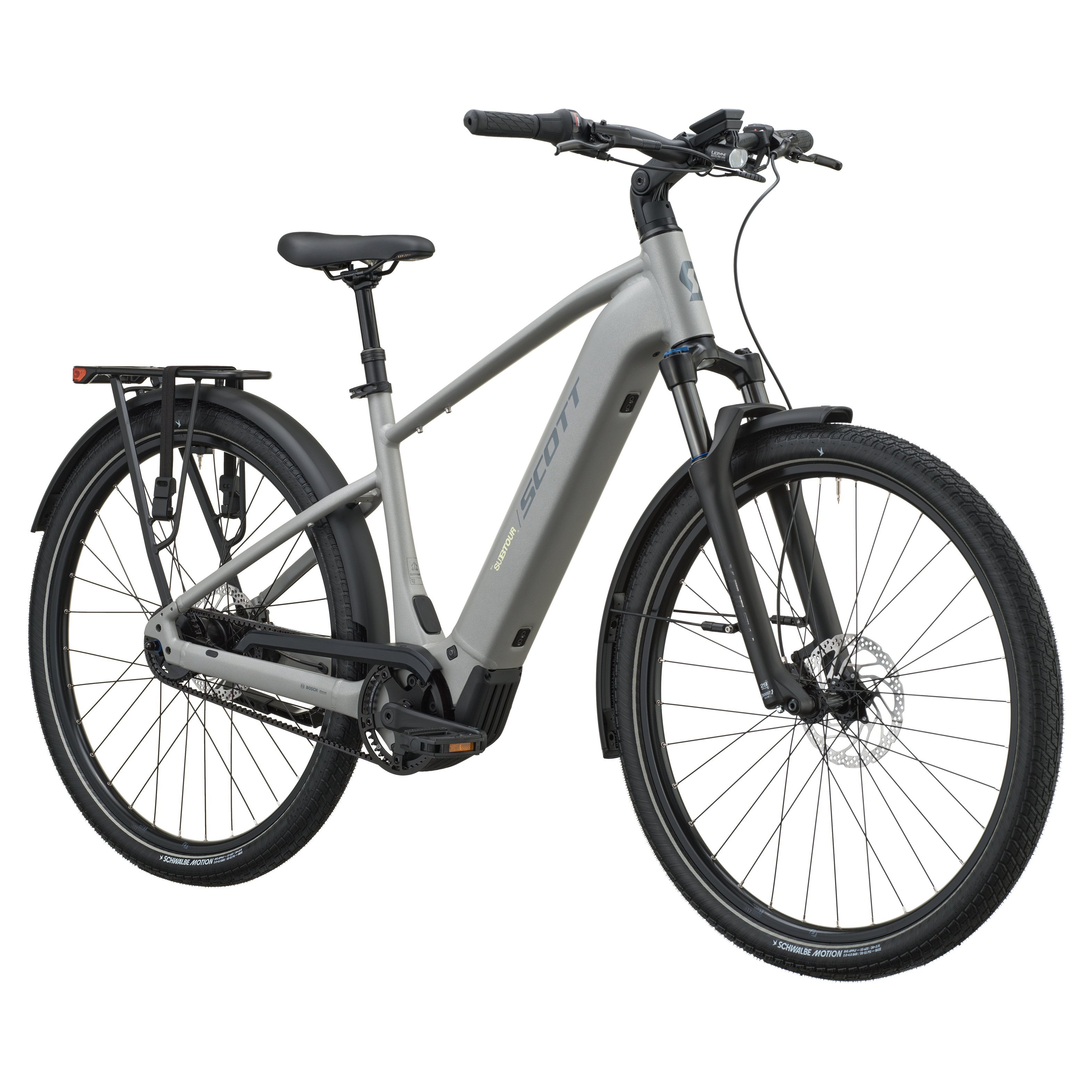

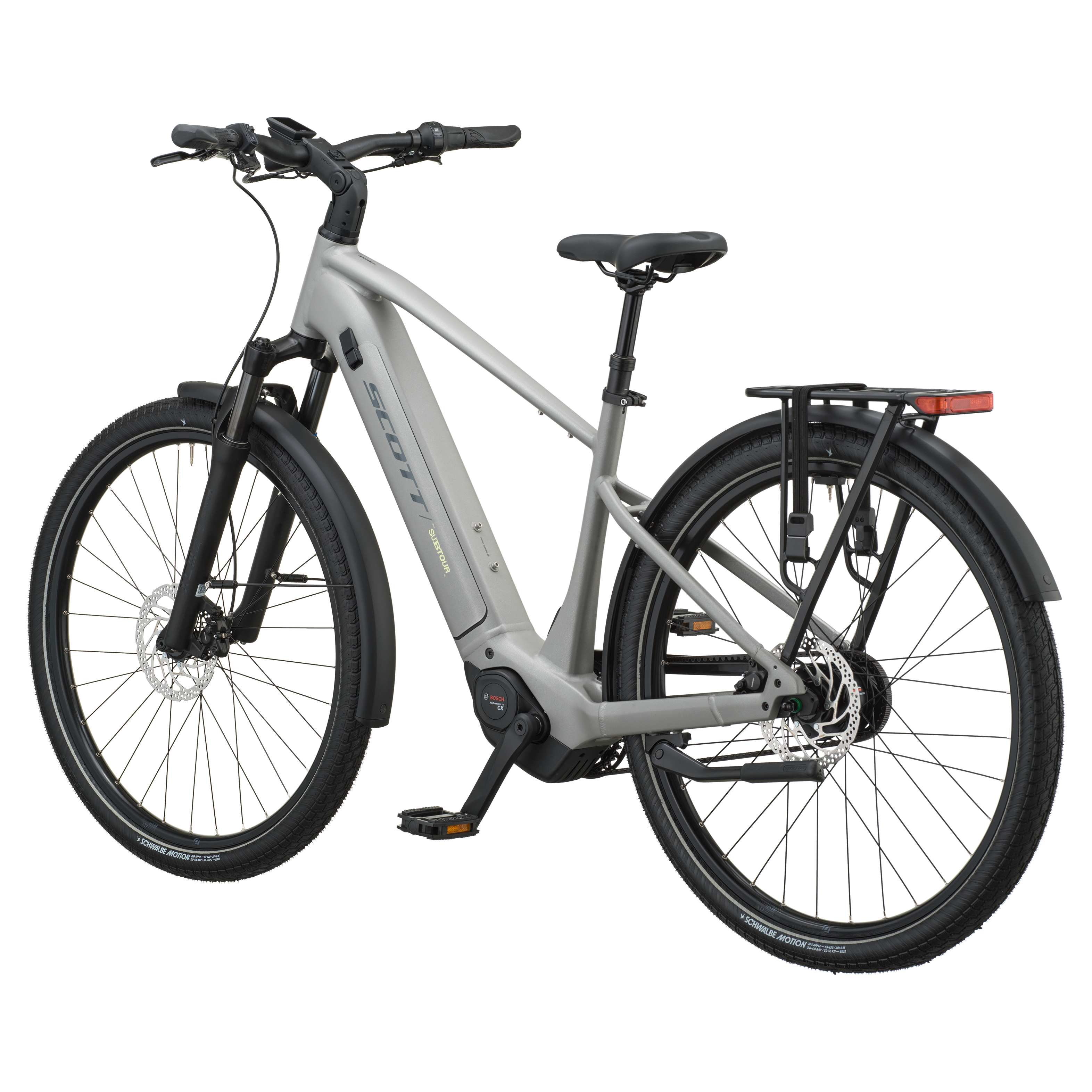

The SCOTT Sub Tour 10 E-Bike. Whether you’re commuting to the office, tackling a full day of errands, or venturing beyond the city limits, the SUB Tour delivers the power and confidence to handle it all with Bosch’s Performance CX motor and a removable 800Wh battery.

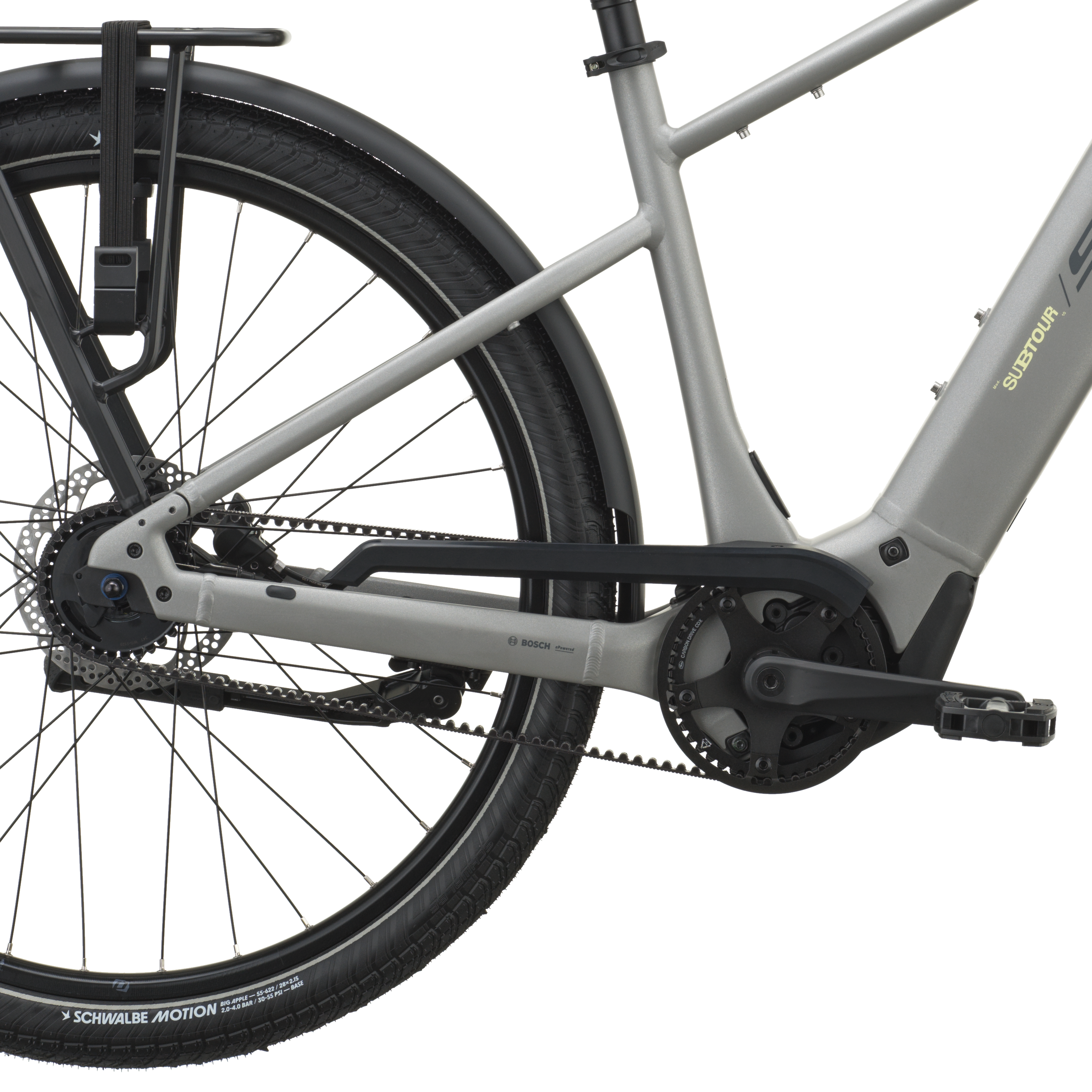

Extended high reliability and durability comes from the belt-drive drivetrain connected to an internal gearing hub, which also reduces maintenance intervals. A front suspension fork smooths out rough roads for a truly enjoyable ride.
An integrated SP connection on the stem lets you attach and secure your phone in seconds, so it's always with you—directions always in view.
The rear rack supports up to 30kg and it is compatible with Racktime SNAPIT 2.0, and KID'n'CARRY systems—perfect for hauling groceries, gear, or fitting a child seat.
Additionally, an adjustable stem lets you customize your fit for a comfortable upright posture or a sportier riding position, whichever suits your style.
The SUB Tour 10 E-Bike is your everyday companion, inviting you to embrace movement and enjoy every journey.
Please note that bike specifications are subject to change without prior notice.
What’s New
- What's new: Geometry Frame Update, XXL size, SP connect, Kid 'n Carry Ready
Frame and Suspension
- Frame: Alloy S-XXL=29", 6061 Alloy custom butted tubing, Side extraction battery, 135mm with 46mm Beltline
- Travel: 100mm

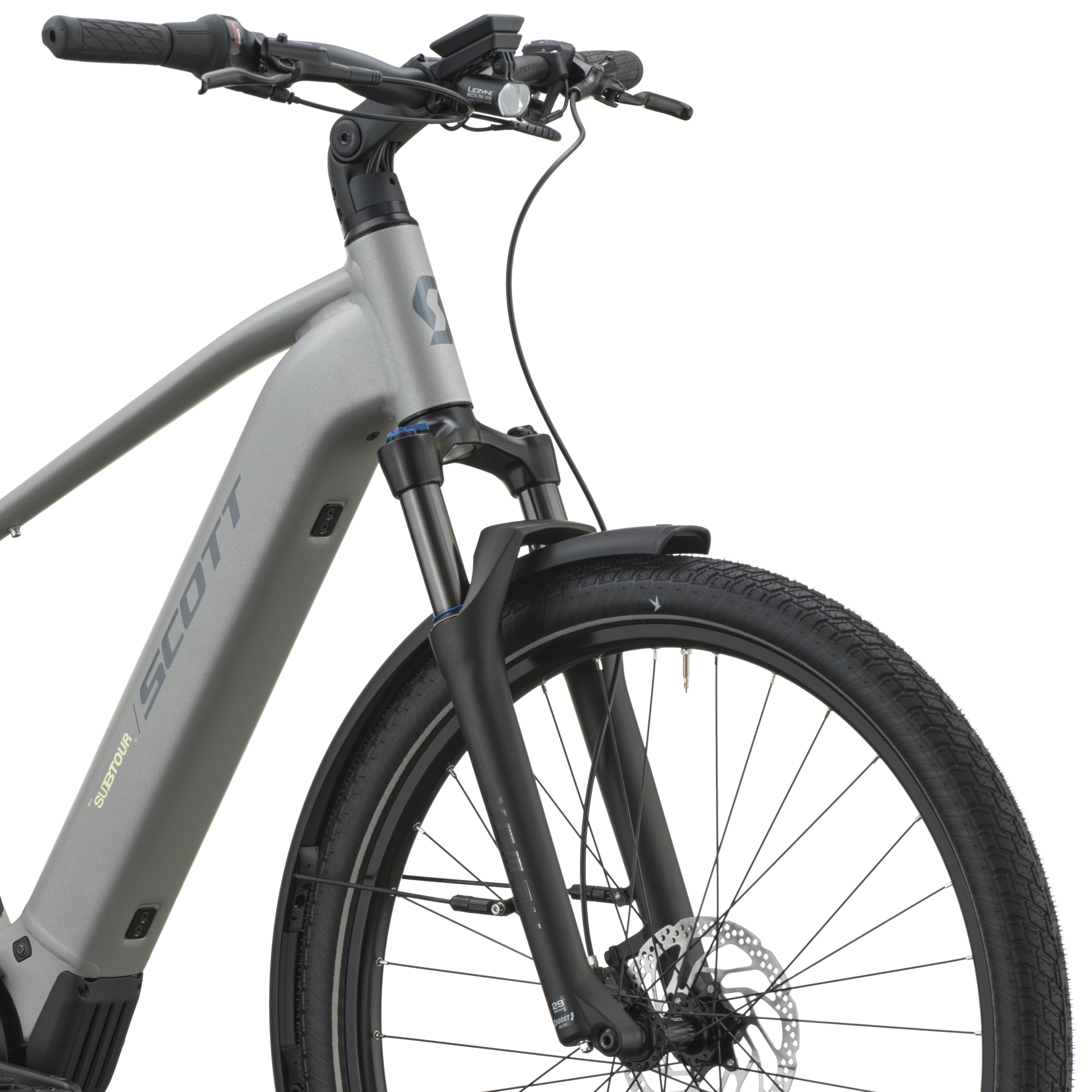

- Fork: SR Suntour XCM34 BOOST AIR LO
Motor and Battery

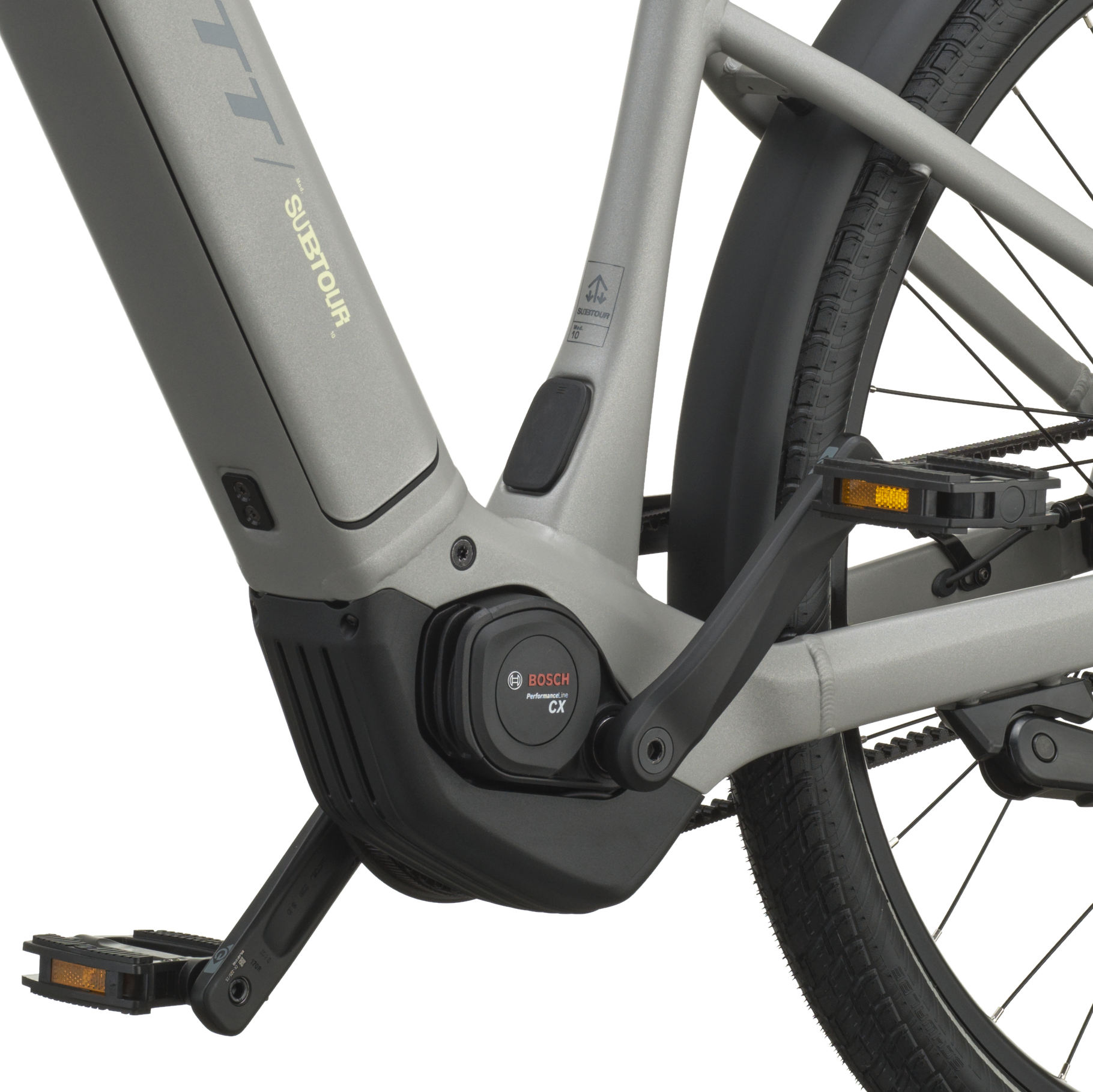

- Drive Unit: Bosch Performance Line CX (BDU384Y)
- Battery: Bosch PowerTube 800Wh
- Display: Bosch Kiox 300
- Charger: Bosch 4A Charger 230V
Drivetrain
- Rear Derailleur: Shimano Nexus Inter 5e
- Shifters: Nexus 5 Revo Shifter
- Crankset: FSA CK 220 170mm
- Chainguide: Chaincase cover
- Chainring: Gates CDX 46T w/Guard
- Chain: Gates CDX 130T
- Cassette: Gates CDX 32T
Brake System
- Brakes: Shimano BR-MT200 2-Piston
- Front Disc Rotor: Shimano SM-RT30 CL, 180mm
- Rear Disc Rotor: Shimano SM-RT30 CL, 160mm
Cockpit and Seating
- Grips: Urban Comfort
- Handlebar: Syncros UC3.0 680mm, Rise 12mm, Backsweep 15°

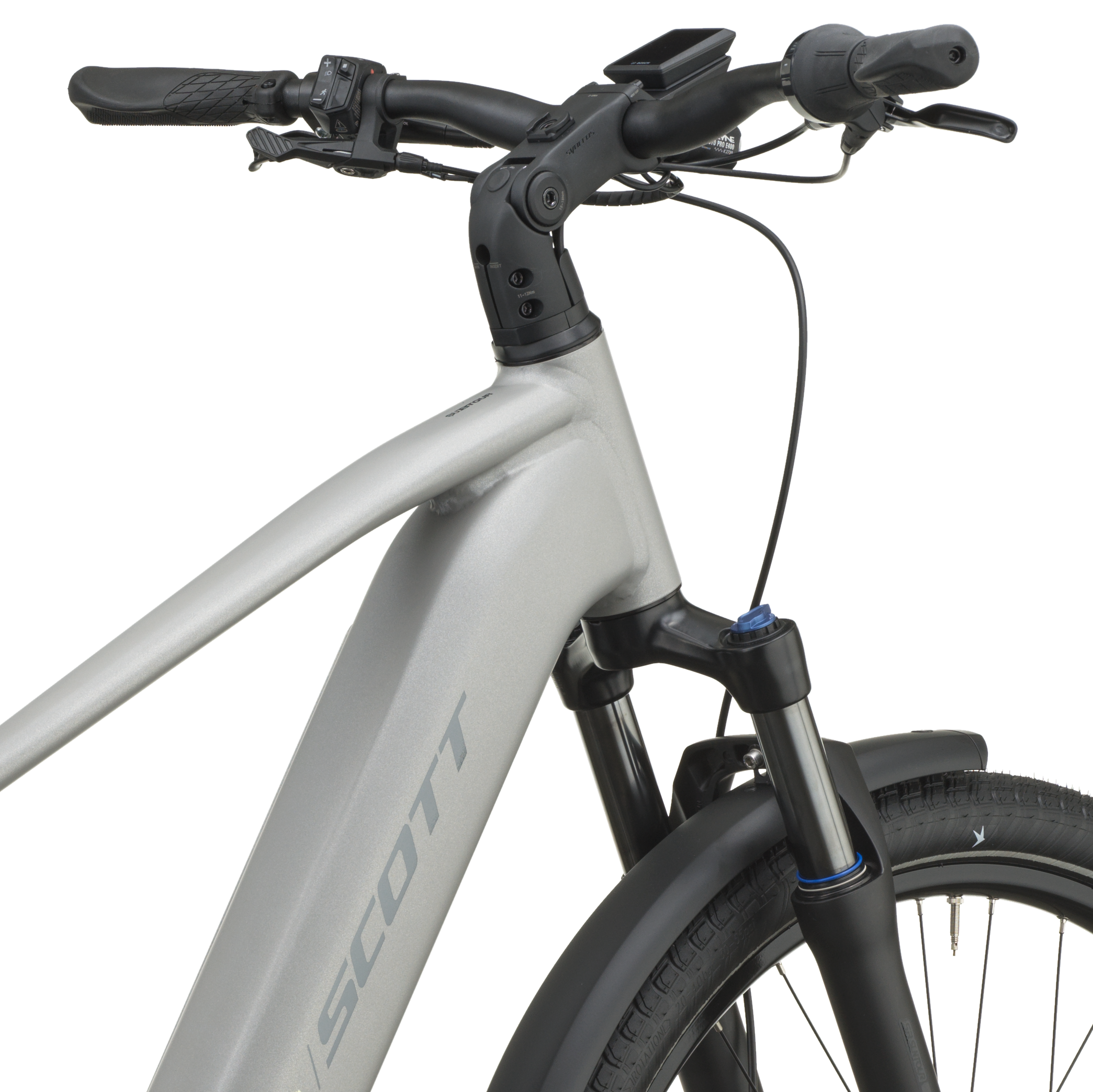

- H'stem: JD, Adjustable, 31.8*90 mm −10°~+60°, Kiox 300, SP Connect

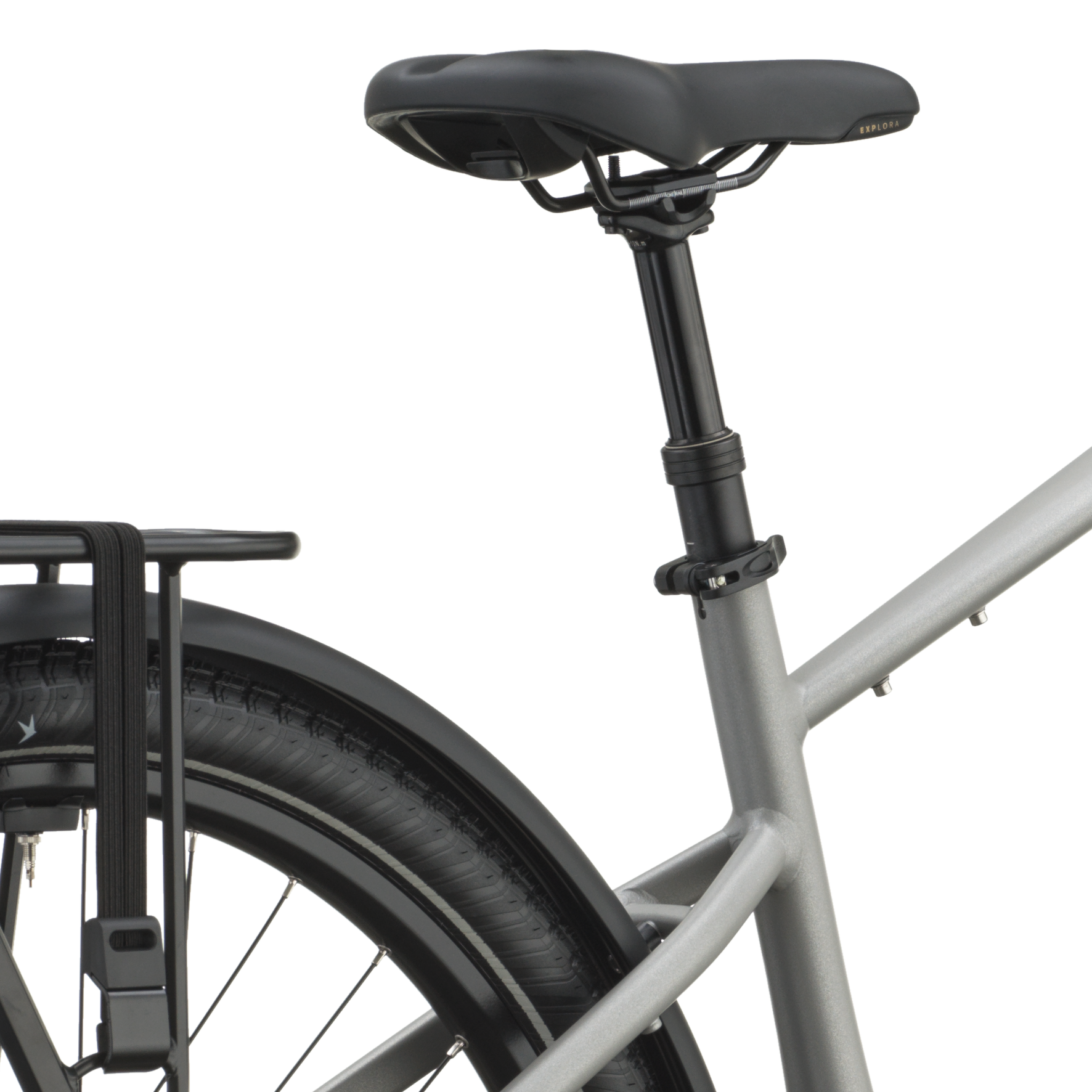

- Seatpost: Syncros Dropper Post SP-M302-AL2, 31.6mm
- Seat: Selle Royal Explora Moderate 170mm
- Headset: Feimin, 28.8-56-62(39.8), Sealed Bearing, Alloy Cup
Wheels and Tires
- Front Hub: Shimano HB-TC500 15x110mm
- Spokes: Stainless Black 13G
- Front Rim: X18 Disc
- Rear Rim: X18 Disc
- Front Tire: Schwalbe Big Apple Performance, 55-622
- Rear Tire: Schwalbe Big Apple Performance, 55-622
Lights and Equipment
- Front Light: Lezyne Hecto Pro STVZO E400
- Rear Light: Lezyne STVZO Integrated
- Rack: Racktime carrier SNAPIT 2.0 30Kg KID'n'CARRY Ready
- Fender: Curana Apollo 65
- Pedals: Marwi SP-827
Extras and Accessories
- Extras: Ursus U-Mount Kickstand
Weight
- Approx weight in KG: 28.1
- Approx weight in LBS: 61.95
- Max. System Weight: 160kg
- Note: The overall weight includes the bike, the rider, the equipment and possible additional luggage.
