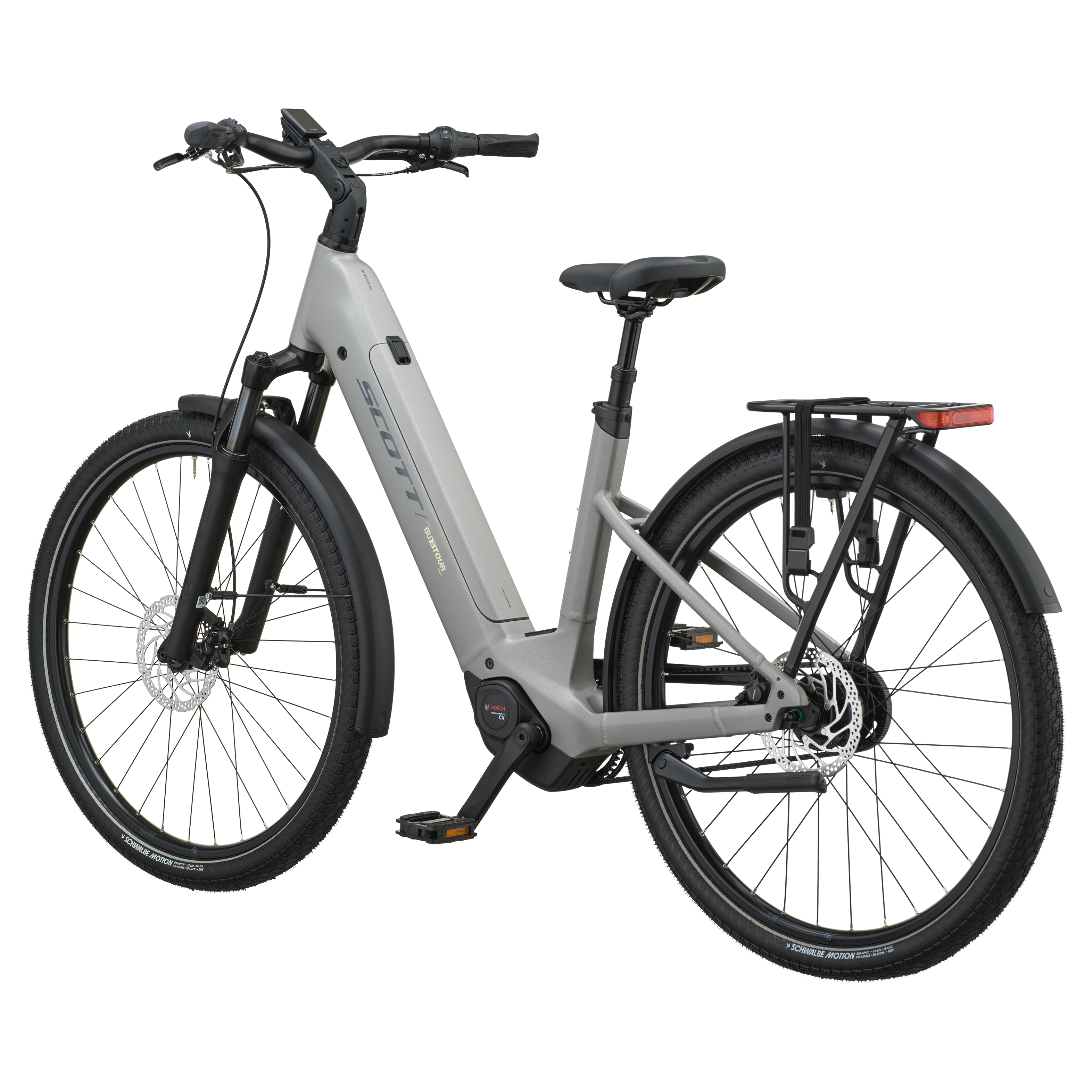

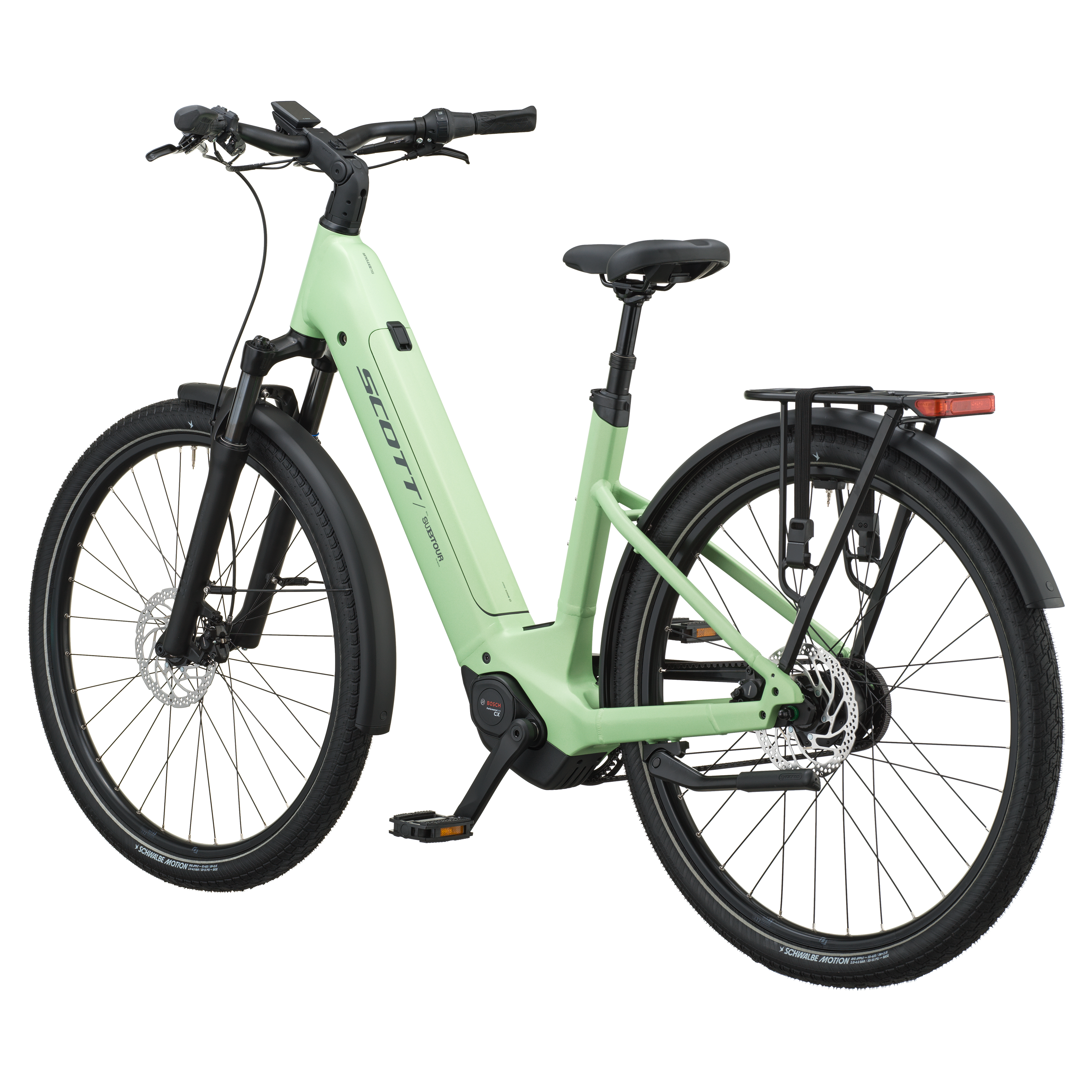

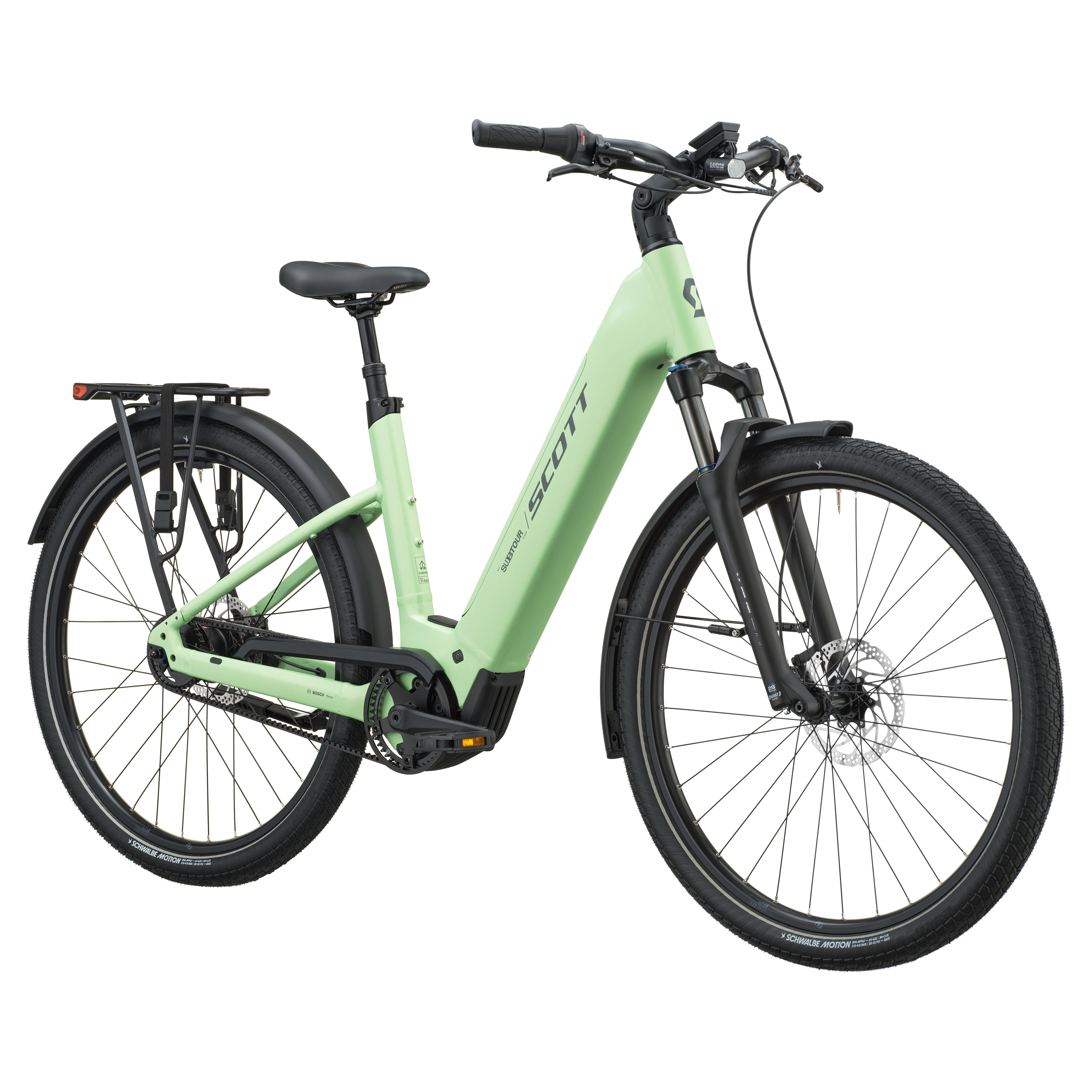

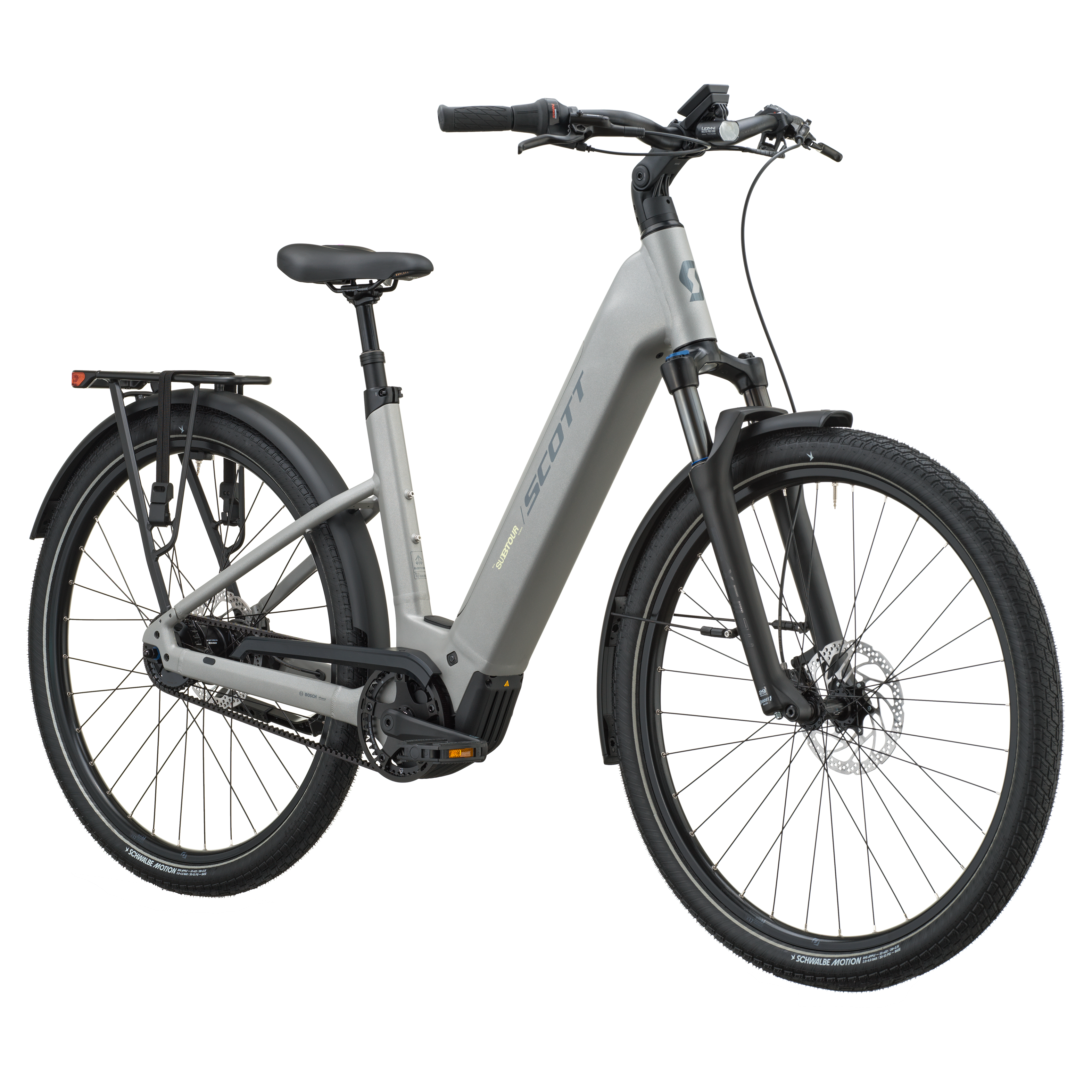

Glide through town with the SCOTT SUB Tour 10 Wave E-Bike. Its low step-through frame makes mounting and dismounting a breeze, meaning it is a design anyone in the family can enjoy.

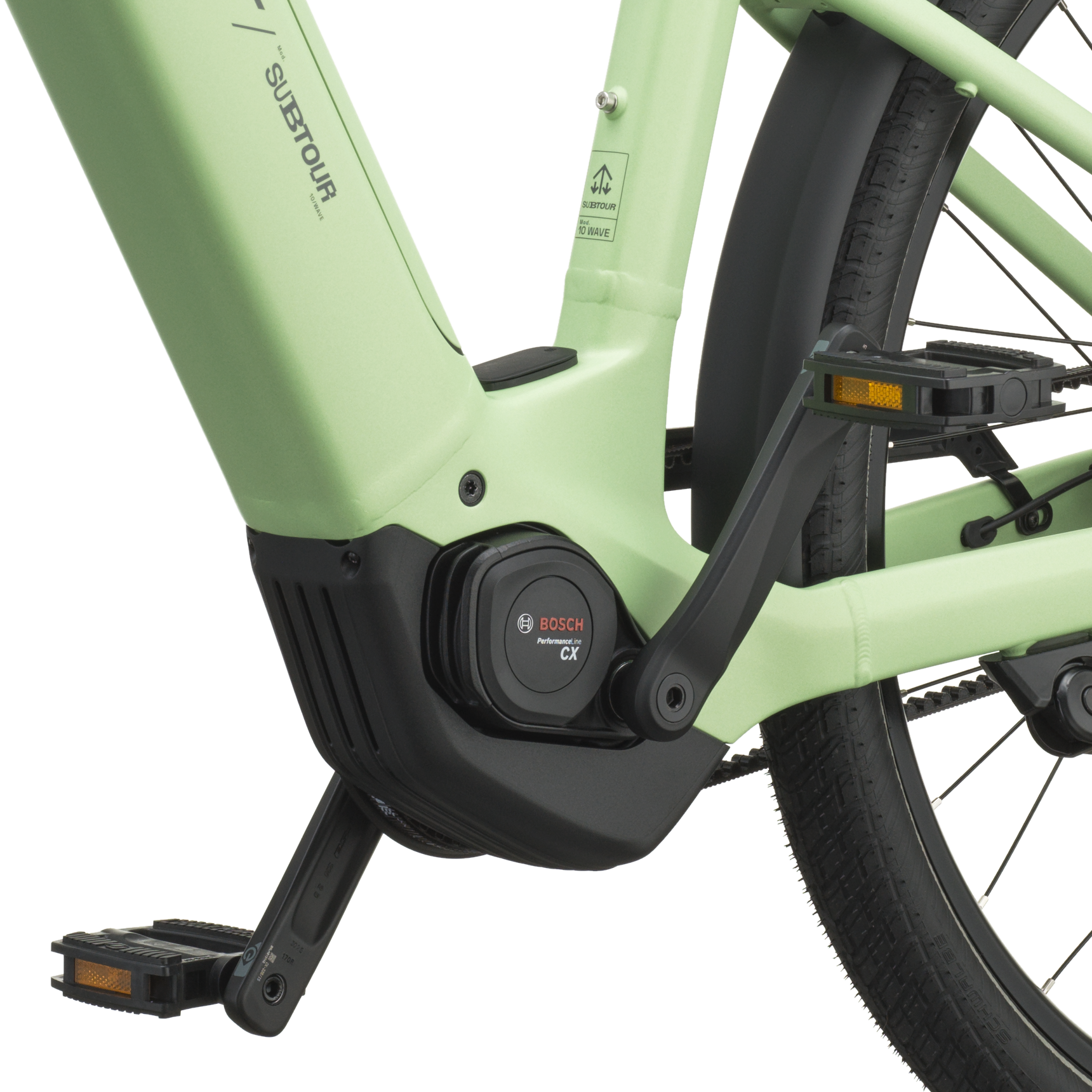

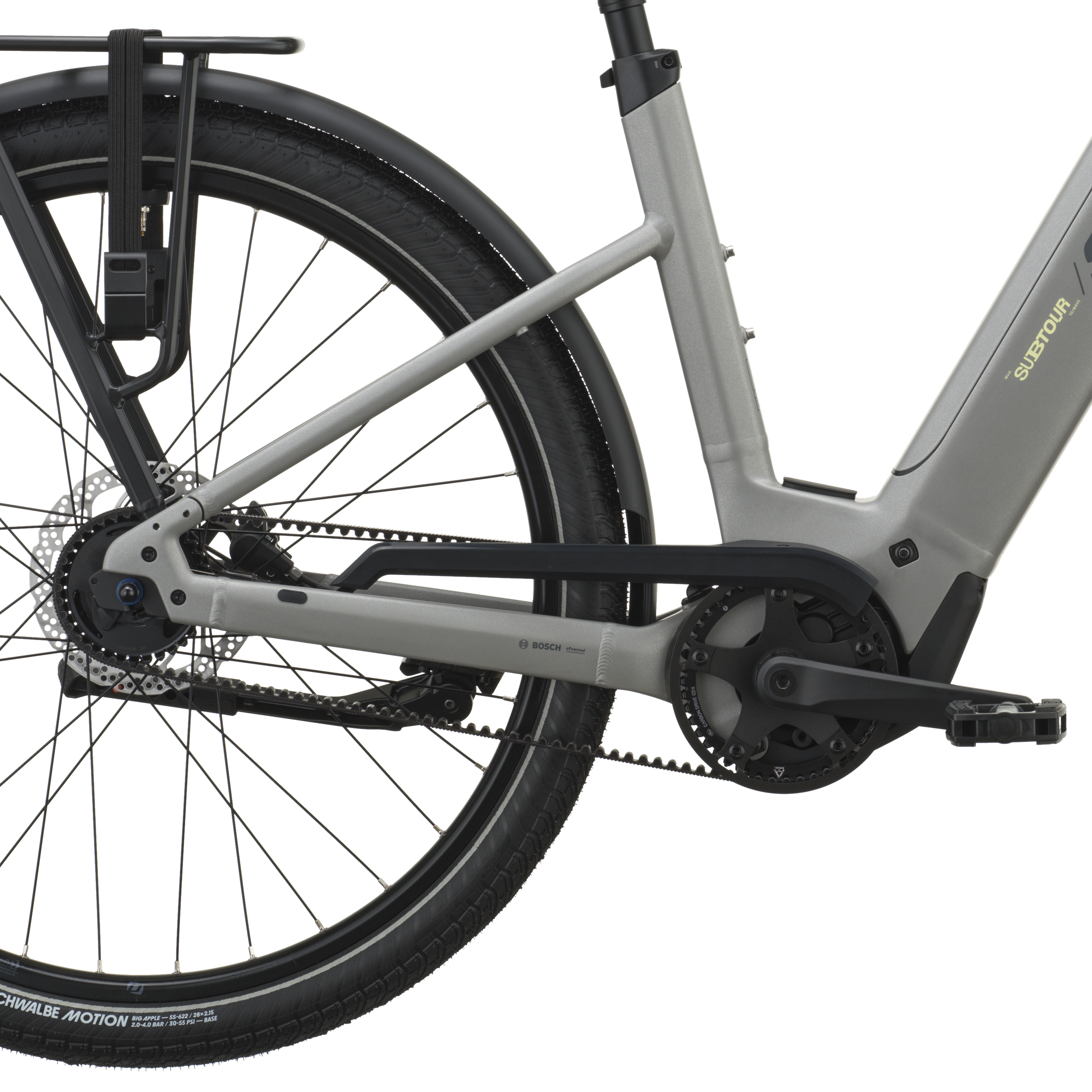

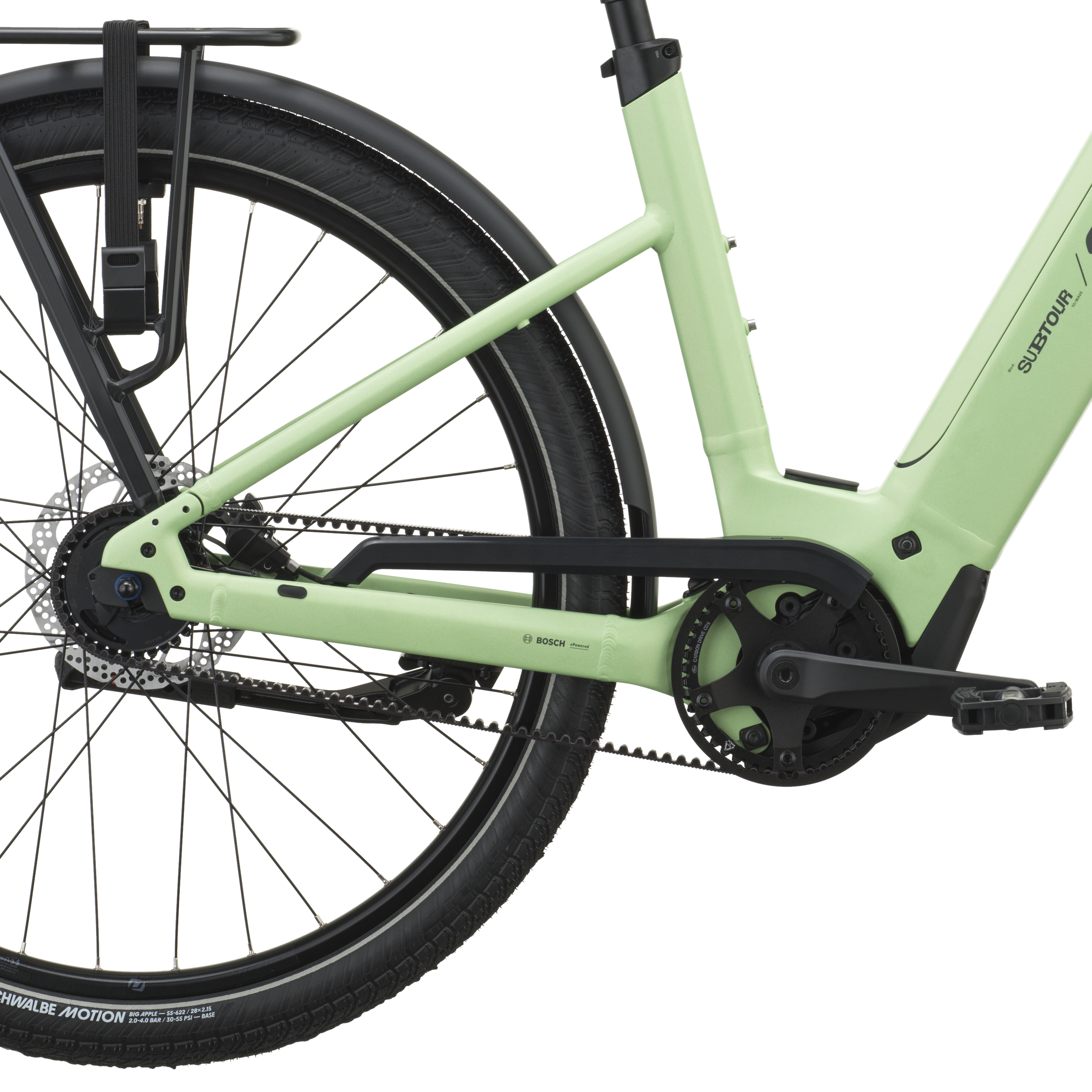

Powering the Sub Tour is Bosch’s Performance CX motor paired with a removable 800Wh battery, delivering smooth acceleration and confident power whenever you need it. That's all connected to a belt-drive for whisper-quiet, long-lasting, low-maintenance functionality.

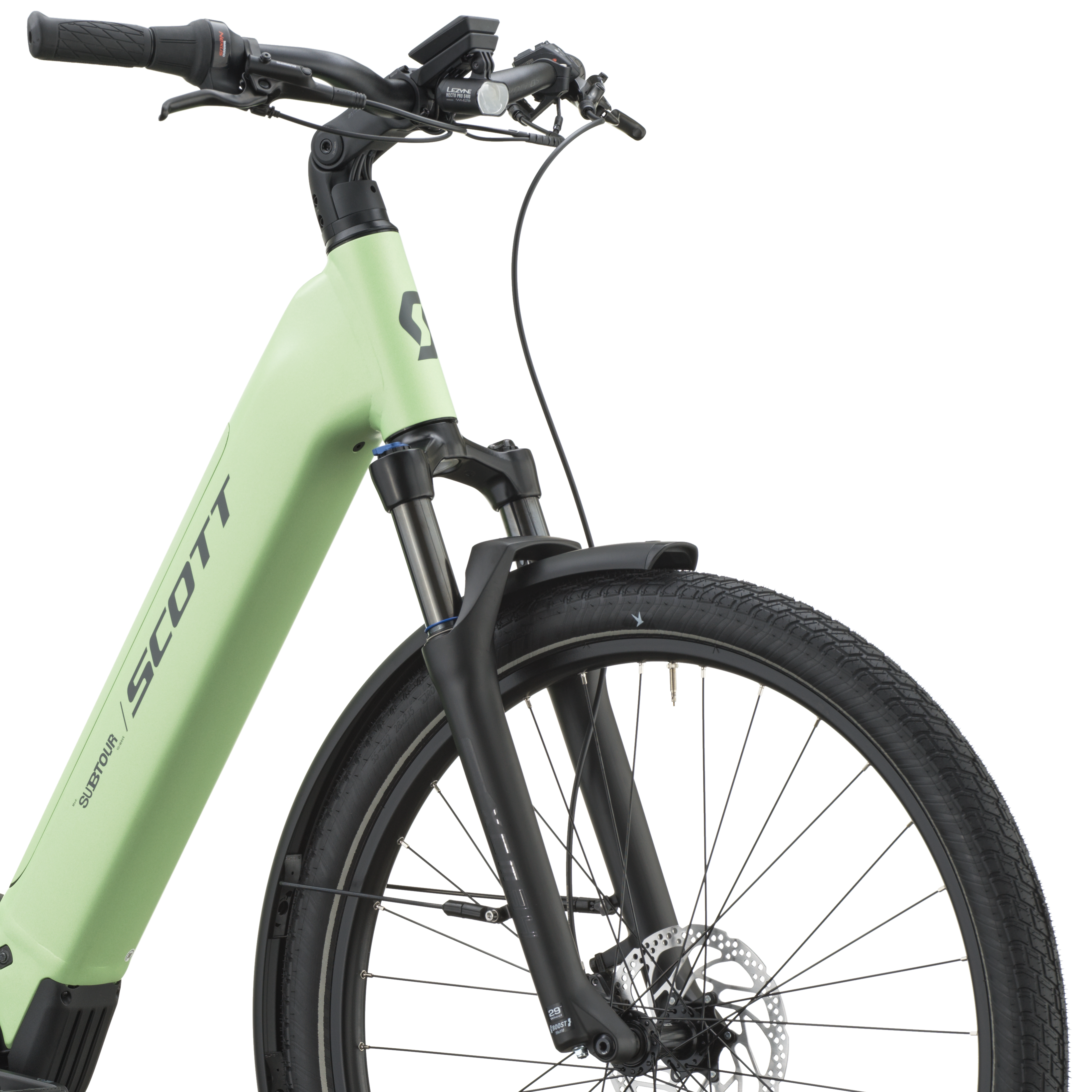

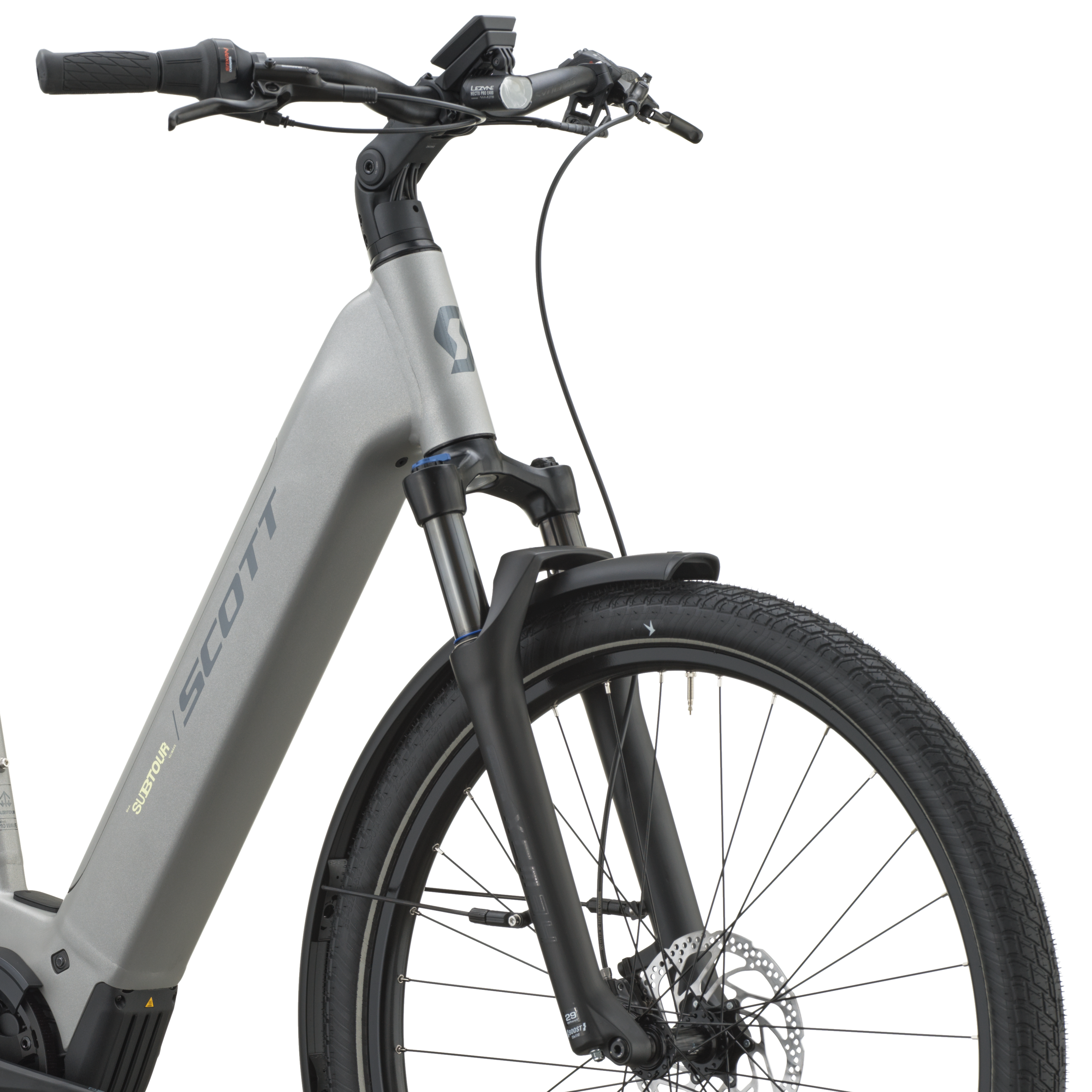

Inside the hub, a hidden gear cluster extends drivetrain life and reduces upkeep, while at the front a suspension fork smooths out rough surfaces for a truly pleasant ride.

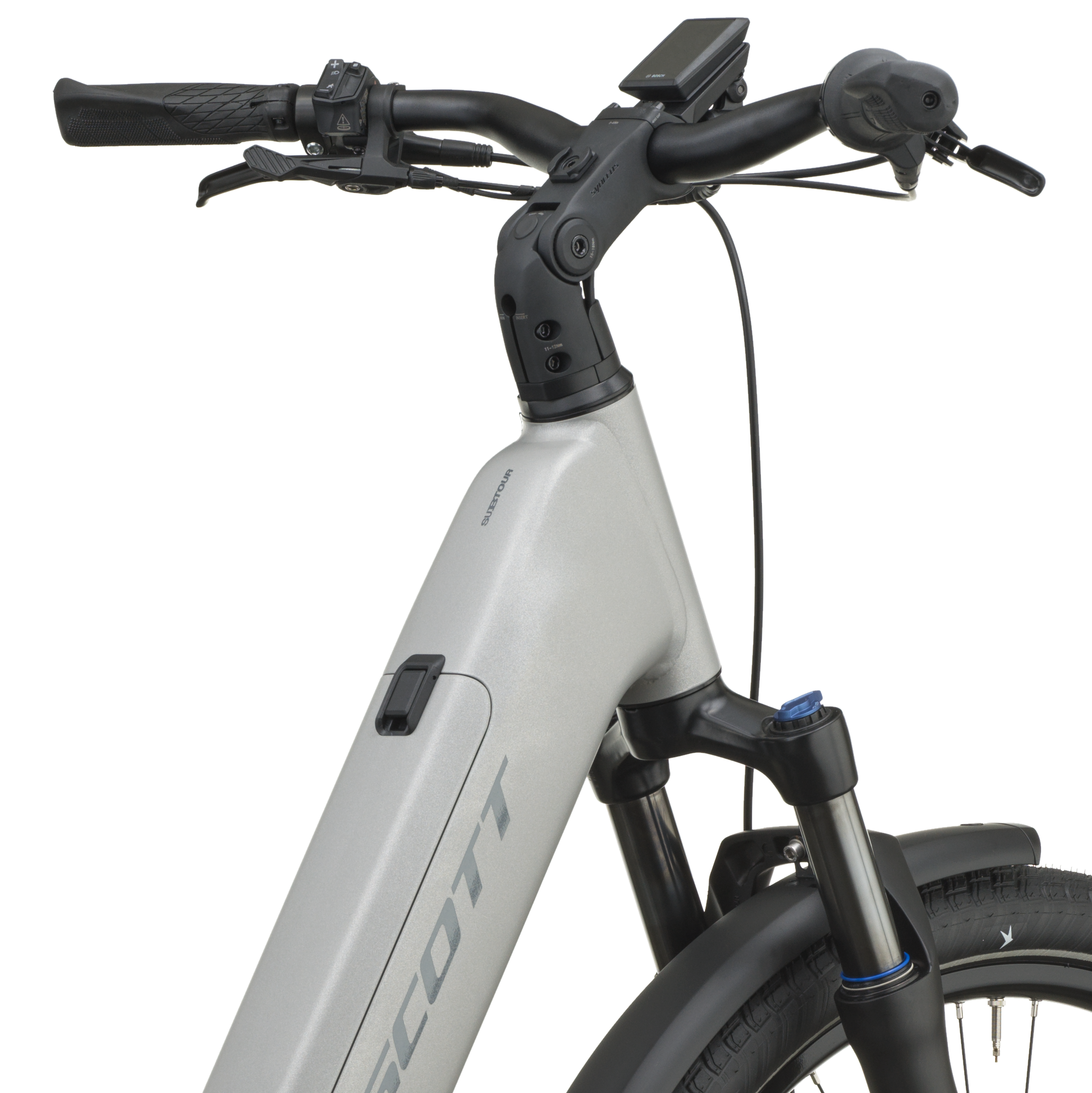

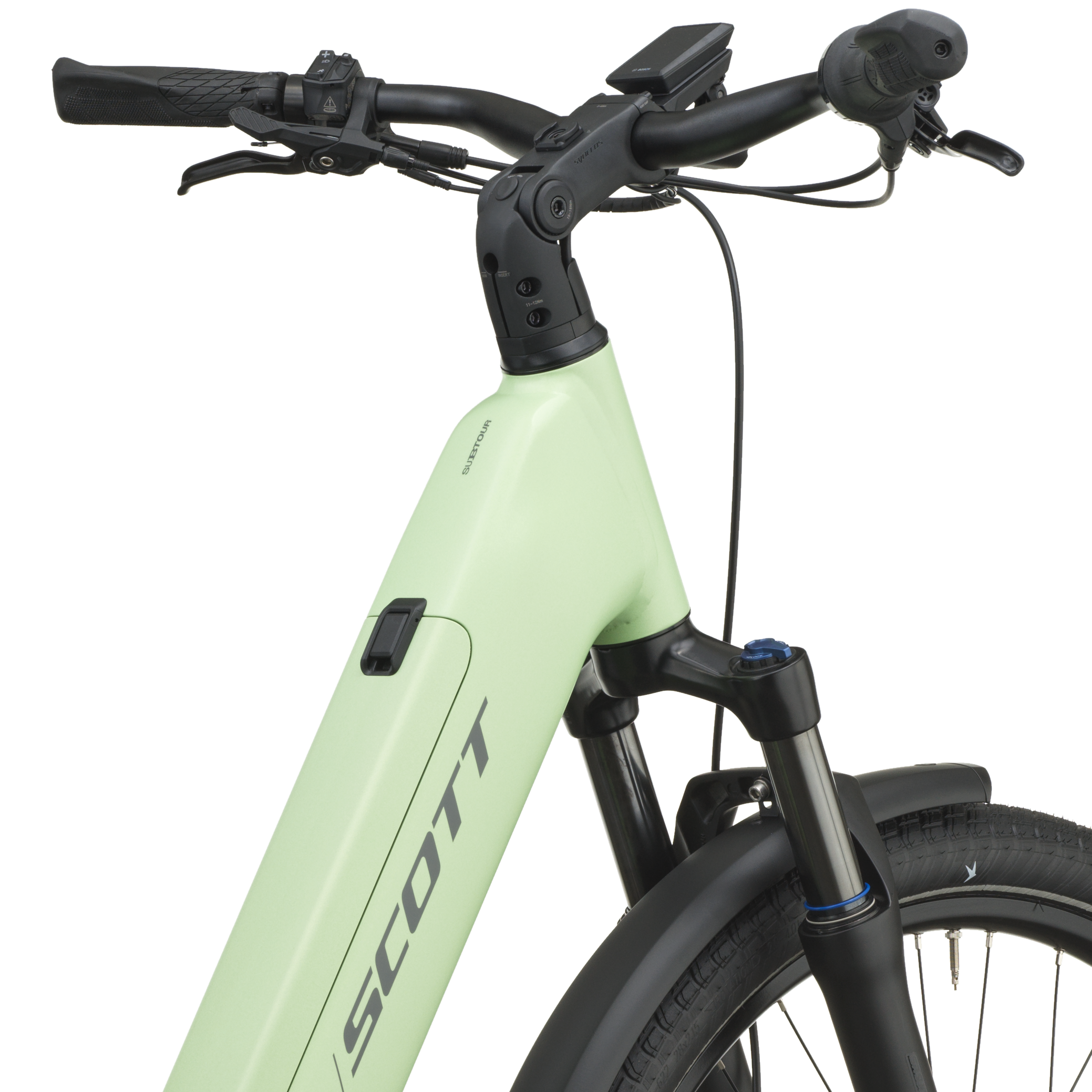

An adjustable stem lets you customize your fit for a comfortable upright posture or a sportier riding position—whichever suits your style. It's also equipped with an integrated SP connection, allowing you to easily secure your phone within reach and keep navigation within view at all times.
The rear rack is compatible with Racktime SNAPIT 2.0 and KID'n’CARRY systems that support up to 30kg. It's perfect for groceries, gear, or a child seat.
Whether you’re commuting to work, tackling a day of errands, or heading out for a weekend adventure, the SUB Tour 10 Wave gives you the freedom to enjoy every moment on two wheels.
Please note that bike specifications are subject to change without prior notice.
What’s New
- What's new: SP connect, Kid 'n Carry Ready
Frame and Suspension
- Frame: Alloy S-XL=29", 6061 Alloy custom butted tubing, Top extraction battery, 135mm with 46mm Beltline
- Travel: 100mm
- Fork: SR Suntour XCM34 BOOST AIR LO
Motor and Battery

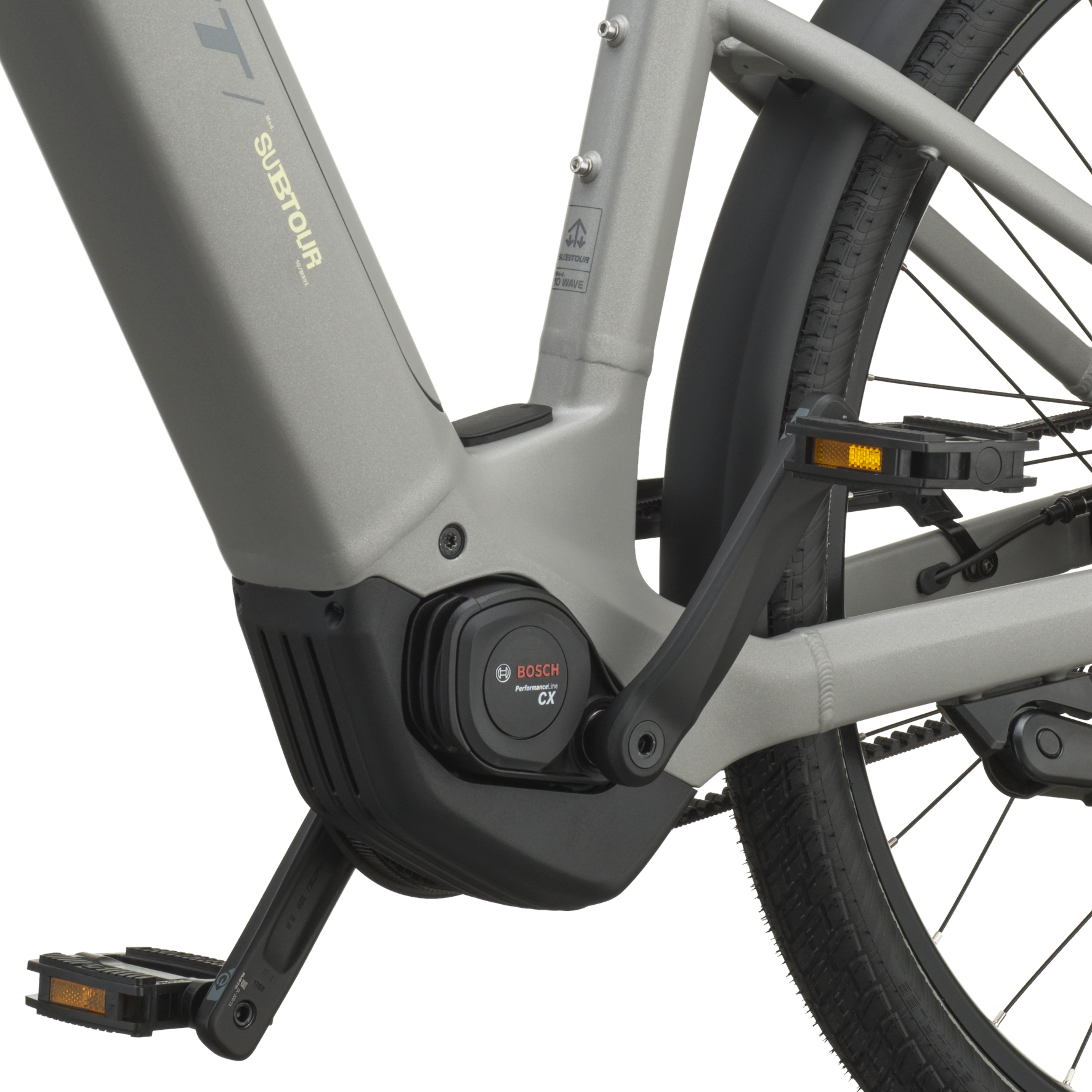

- Drive Unit: Bosch Performance Line CX (BDU384Y)
- Battery: Bosch PowerTube 800Wh
- Display: Bosch Kiox 300
- Charger: Bosch 4A Charger 230V
Drivetrain
- Rear Derailleur: Shimano Nexus Inter 5e
- Shifters: Nexus 5 Revo Shifter
- Crankset: FSA CK 220 170mm
- Chainguide: Chaincase cover
- Chainring: Gates CDX 46T w/Guard
- Chain: Gates CDX 130T
- Cassette: Gates CDX 32T
Brake System
- Brakes: Shimano BR-MT200 2-Piston
- Front Disc Rotor: Shimano SM-RT30 CL, 180mm
- Rear Disc Rotor: Shimano SM-RT30 CL, 160mm
Cockpit and Seating
- Grips: Urban Comfort
- Handlebar: Syncros UC3.0 680mm, Rise 26mm, Backsweep 30°
- H'stem: JD, Adjustable, 31.8*90 mm −10°~+60°, Kiox 300, SP Connect

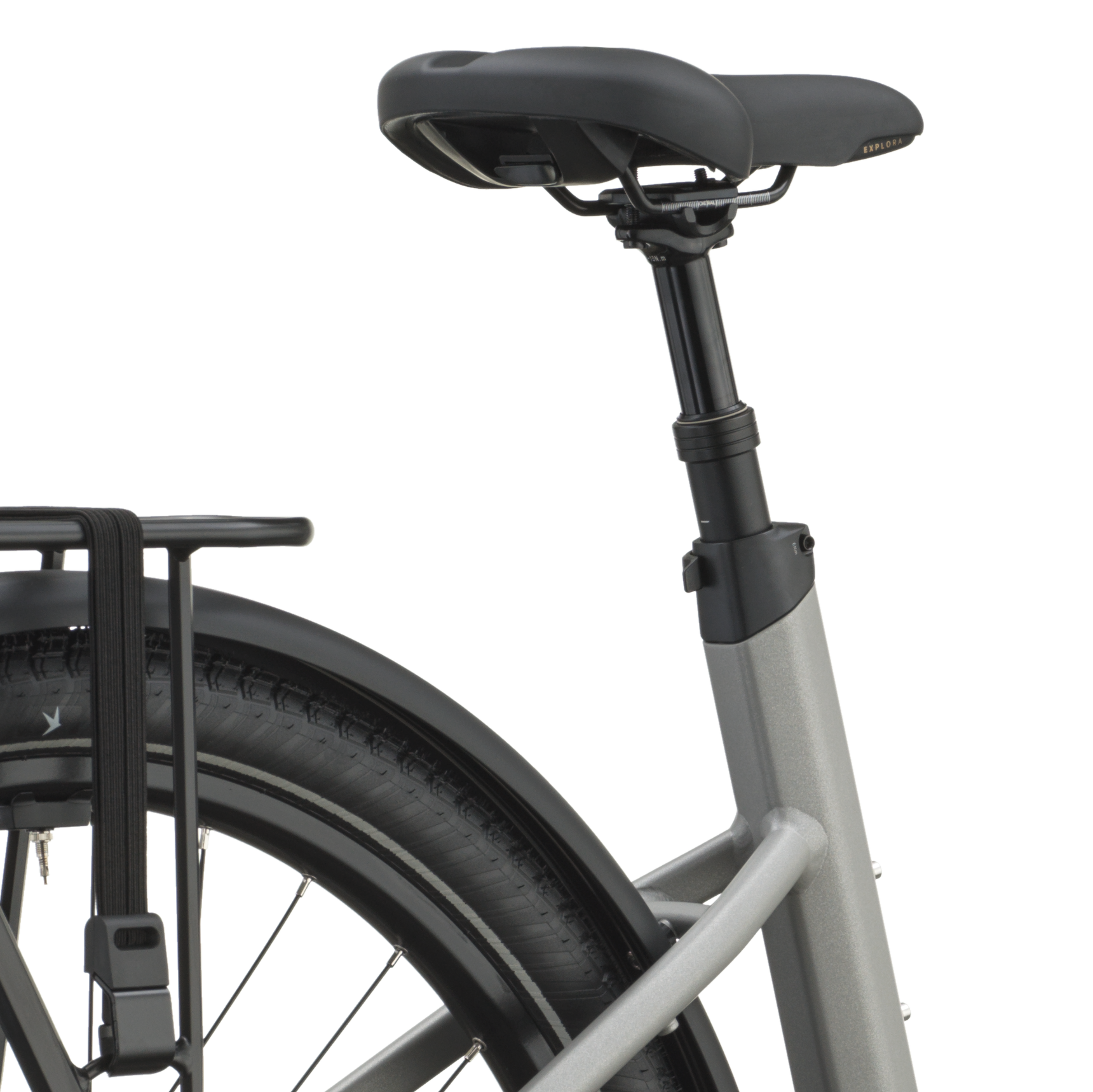

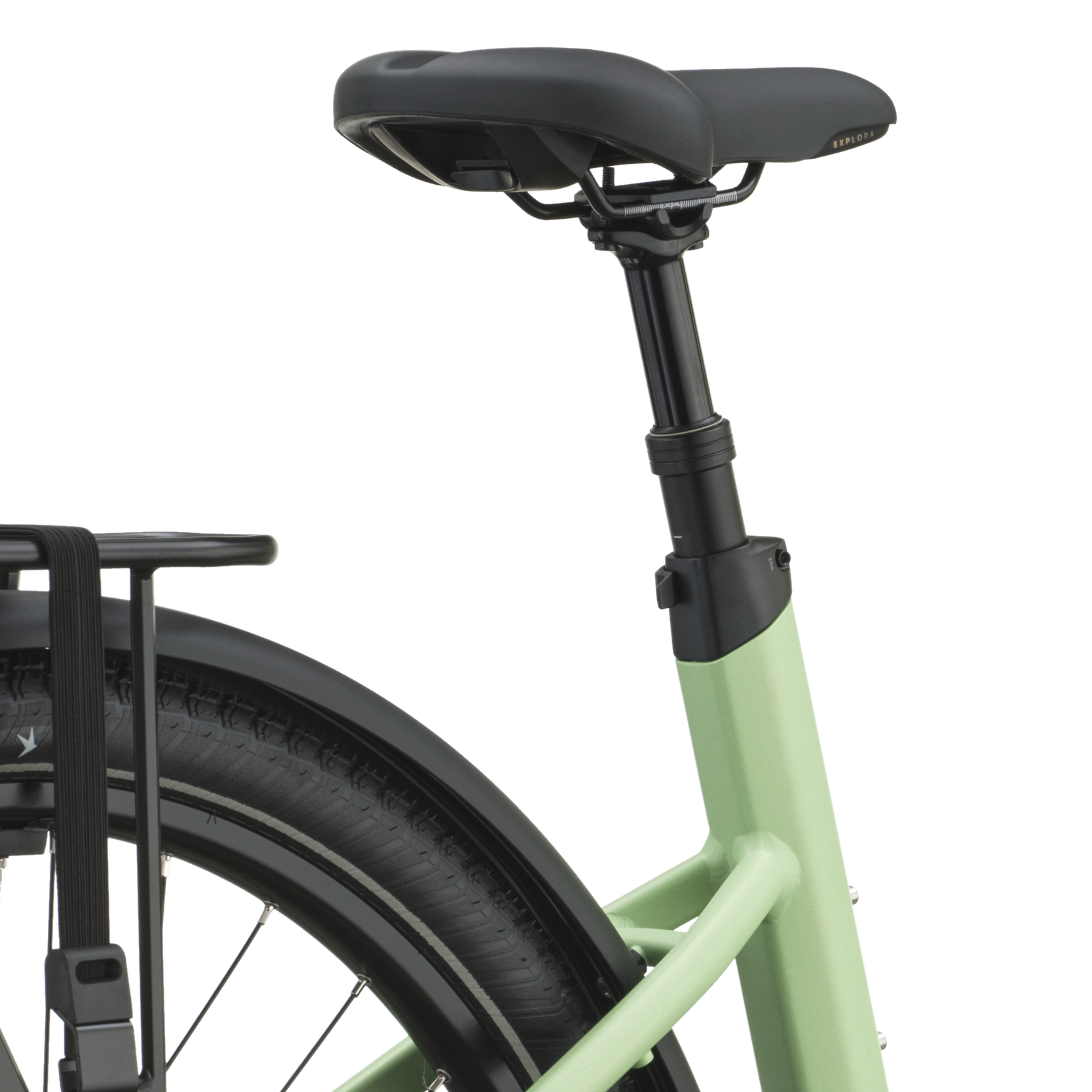

- Seatpost: Syncros Dropper Post SP-M302-AL2, 31.6mm
- Seat: Selle Royal Explora Moderate Wide 195mm
- Headset: Feimin, 28.8-56-62(39.8), Sealed Bearing, Alloy Cup
Wheels and Tires
- Front Hub: Shimano HB-TC500 15x110mm
- Spokes: Stainless Black 13G
- Front Rim: X18 Disc
- Rear Rim: X18 Disc
- Front Tire: Schwalbe Big Apple Performance, 55-622
- Rear Tire: Schwalbe Big Apple Performance, 55-622
Lights and Equipment
- Front Light: Lezyne Hecto Pro STVZO E400
- Rear Light: Lezyne STVZO Integrated
- Rack: Racktime carrier SNAPIT 2.0 30Kg KID'n'CARRY Ready
- Fender: Curana Apollo 65
- Pedals: Marwi SP-827
Extras and Accessories
- Extras: Ursus U-Mount Kickstand
Weight
- Approx weight in KG: 29.7
- Approx weight in LBS: 65.48
- Max. System Weight: 160kg
- Note: The overall weight includes the bike, the rider, the equipment and possible additional luggage.
