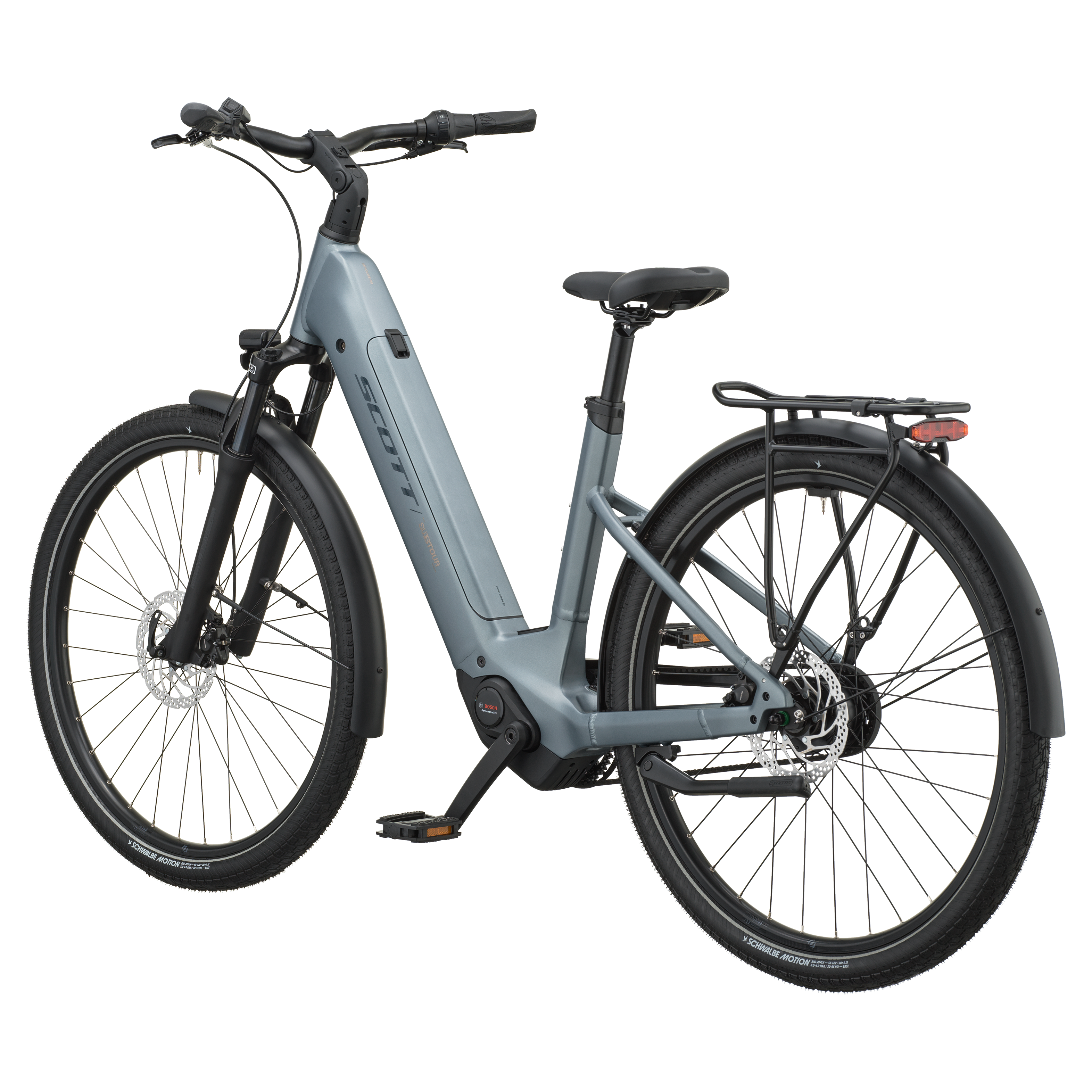

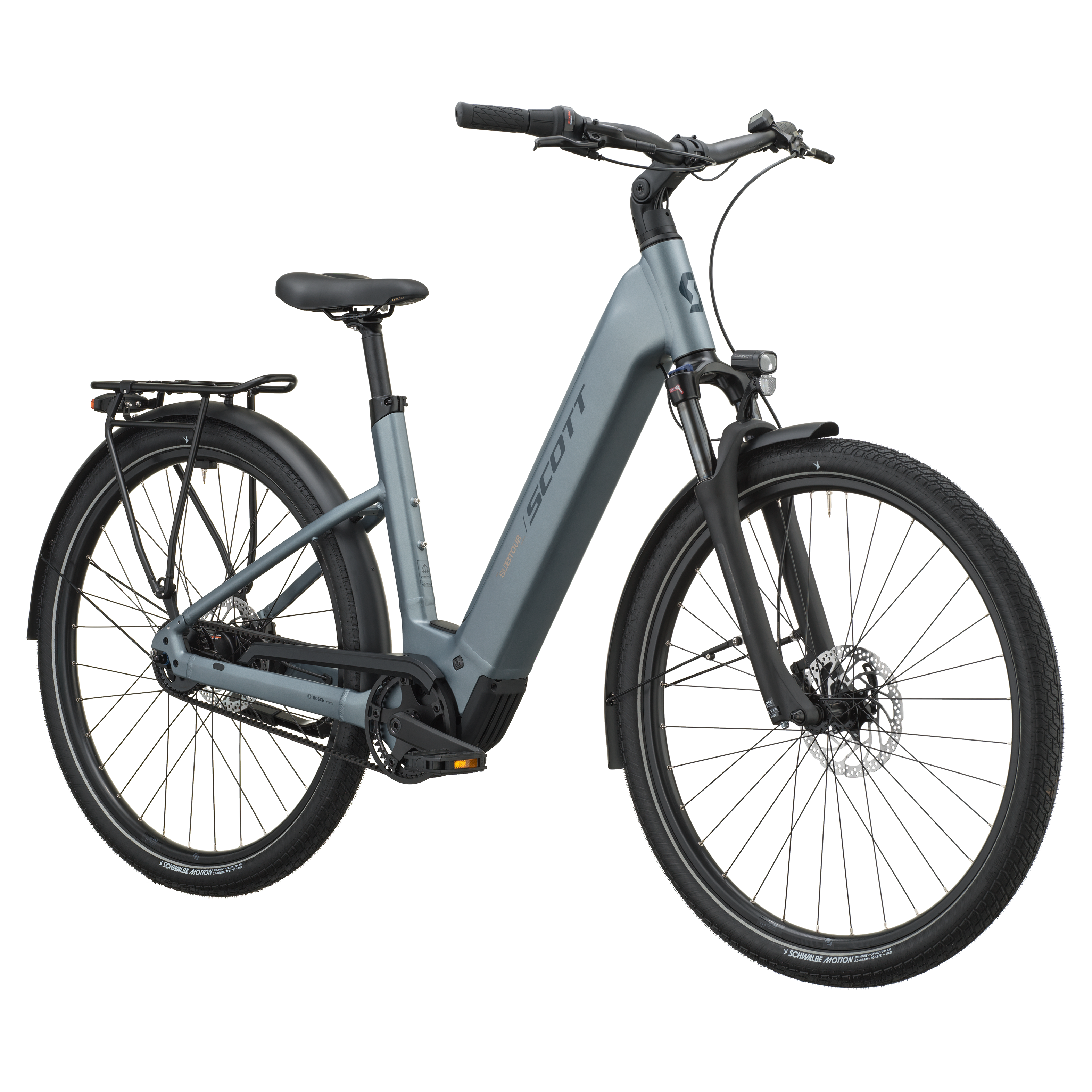

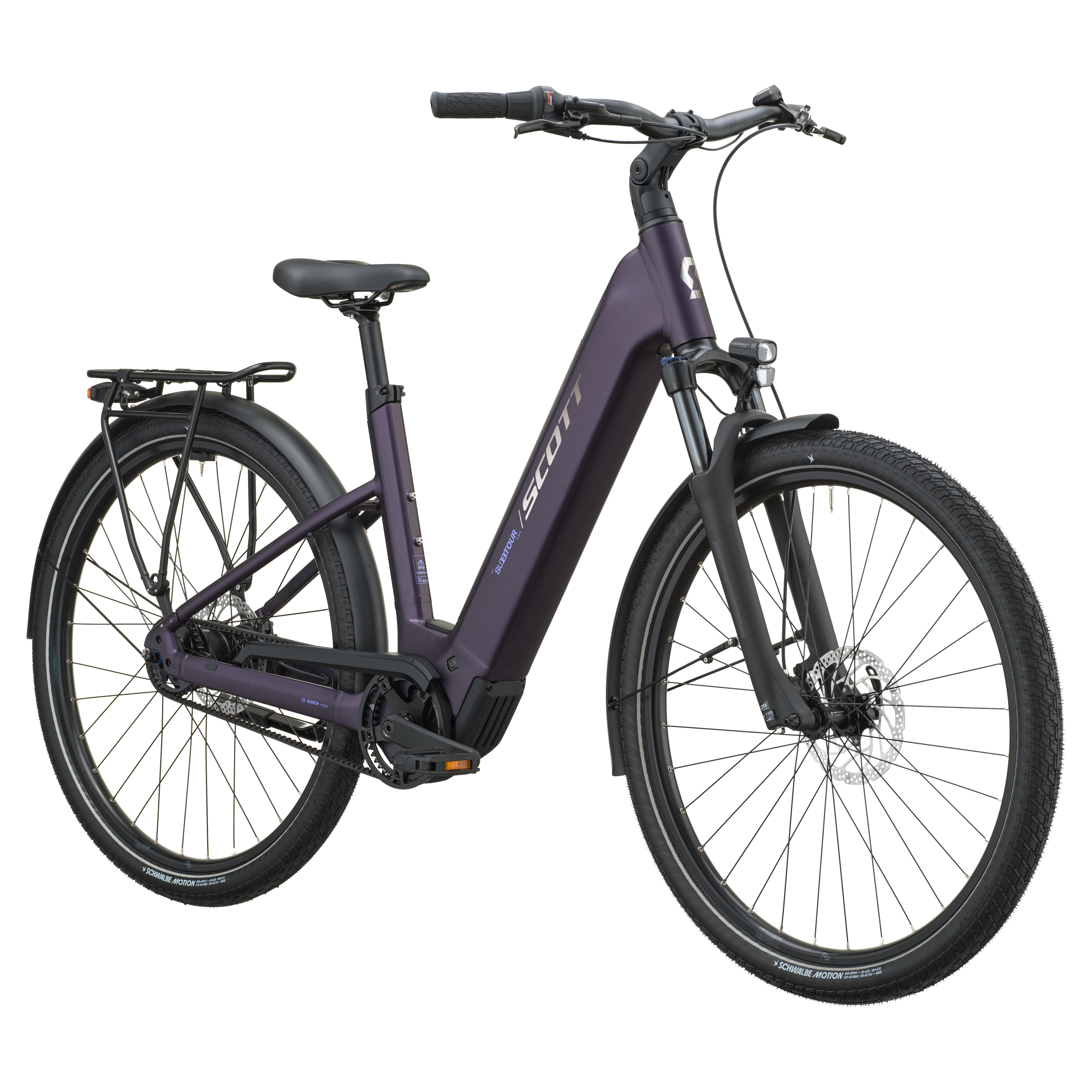

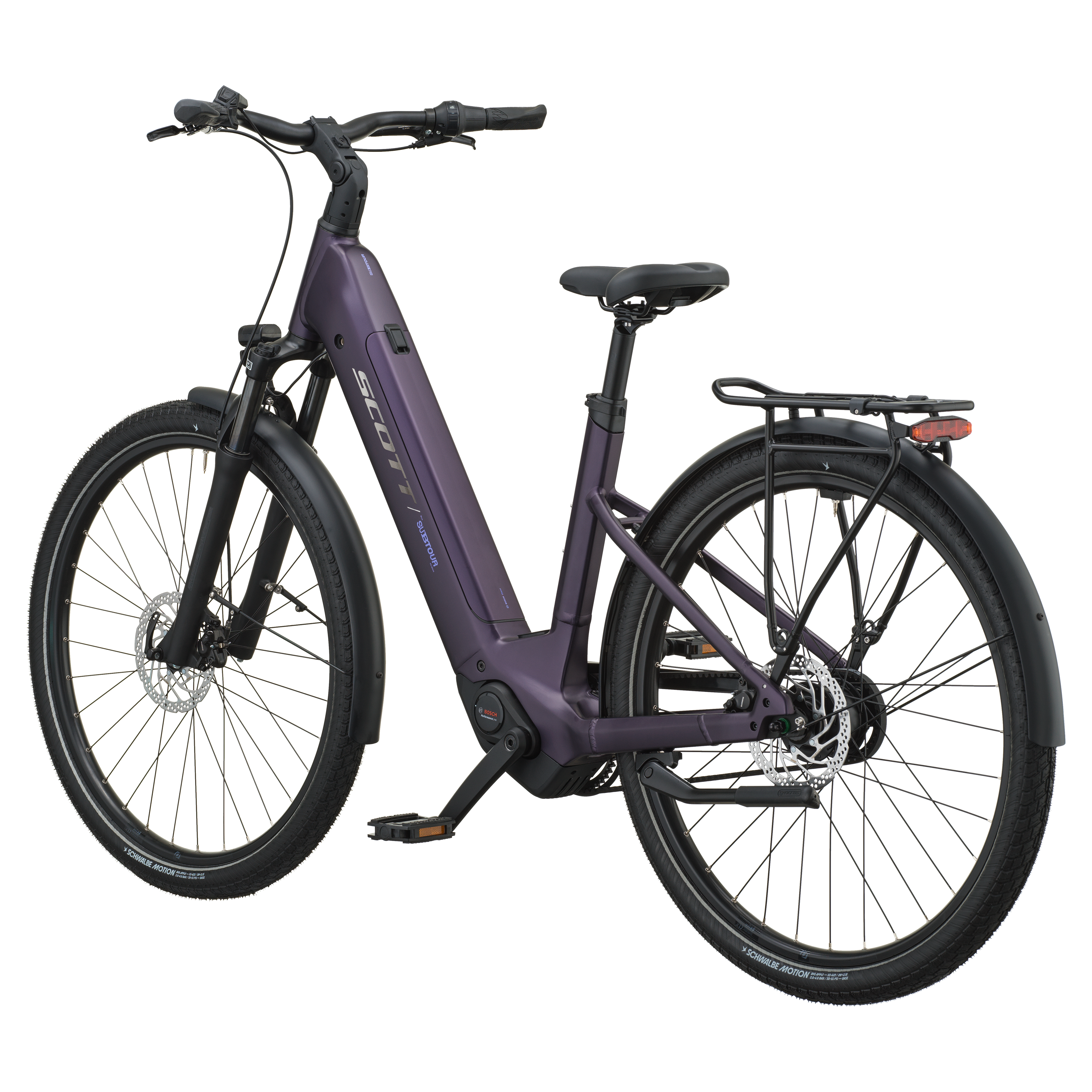

The SCOTT SUB Tour 40 Wave E-Bike delivers a confident, dynamic riding experience in an urban-ready package. Its low step-through frame makes mounting and dismounting effortless.

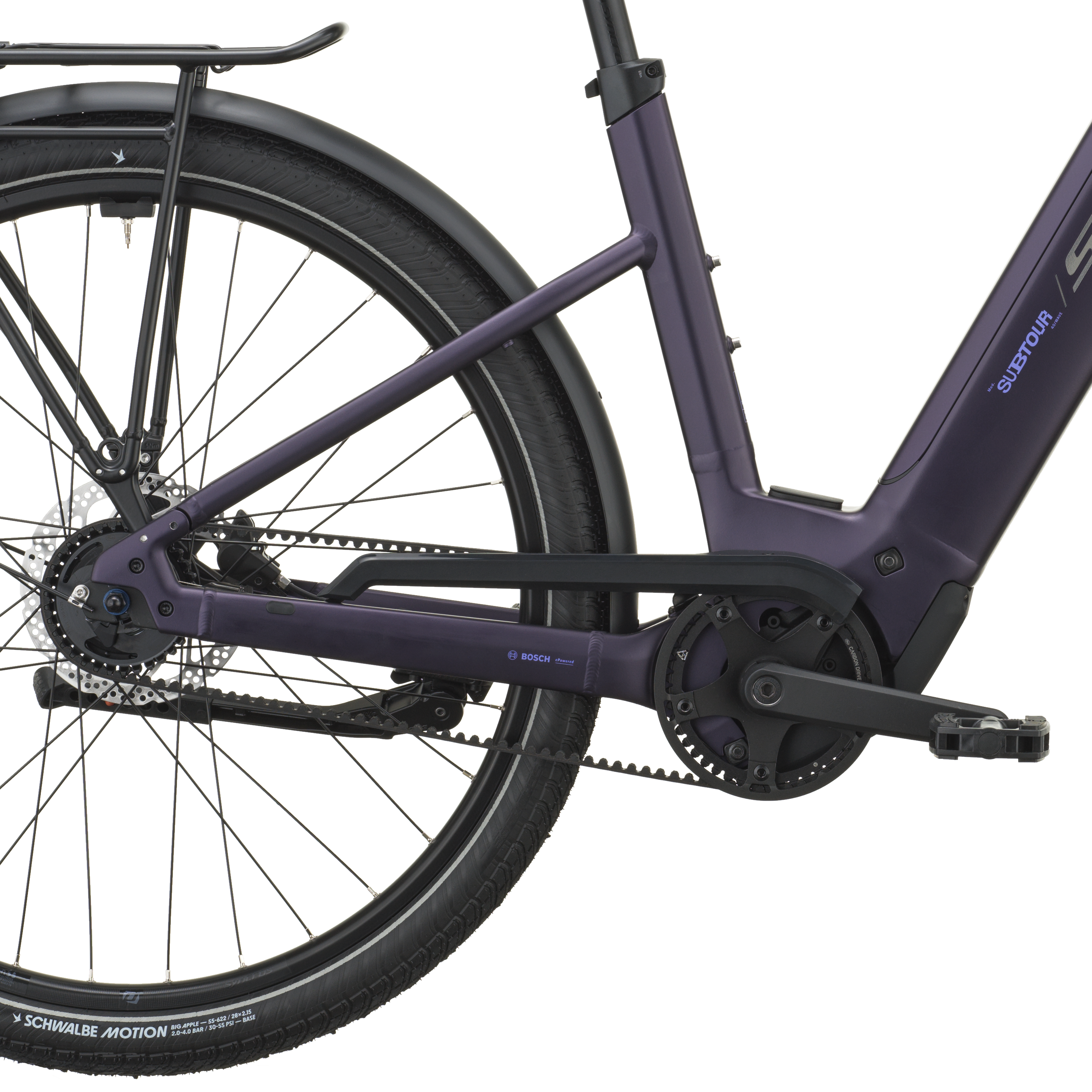

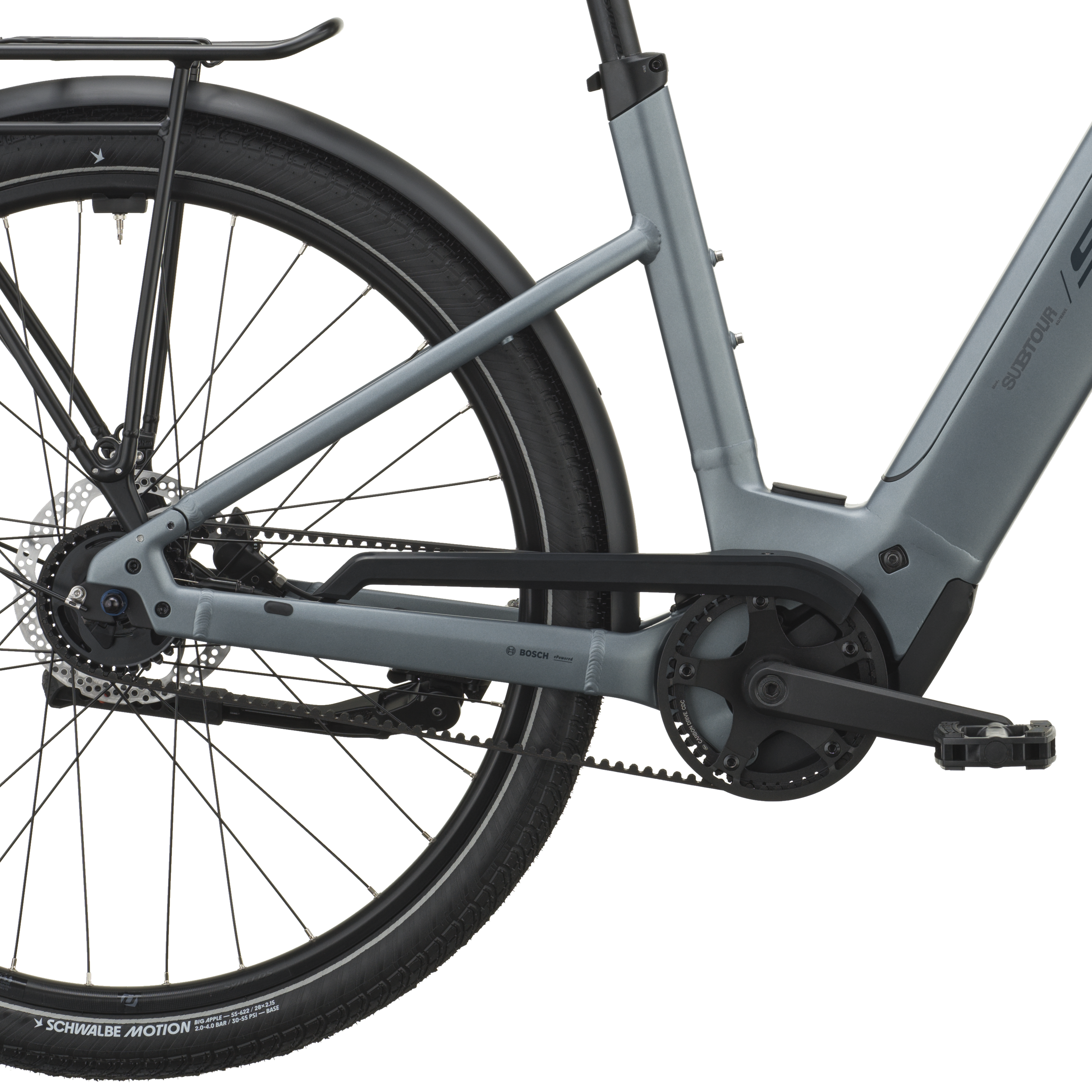

Powered by a Bosch Performance motor and a removable 540Wh battery, the bike provides smooth, natural-feeling acceleration and ample range for any city adventure. The belt-driven drivetrain ensures quiet, low-maintenance power delivery, while multiple assist modes let you tailor the ride to your needs—whether you’re heading to the office, grabbing coffee with friends, or cruising past traffic jams. Maintenance is further reduced thanks to the internal gear hub which extends service intervals.

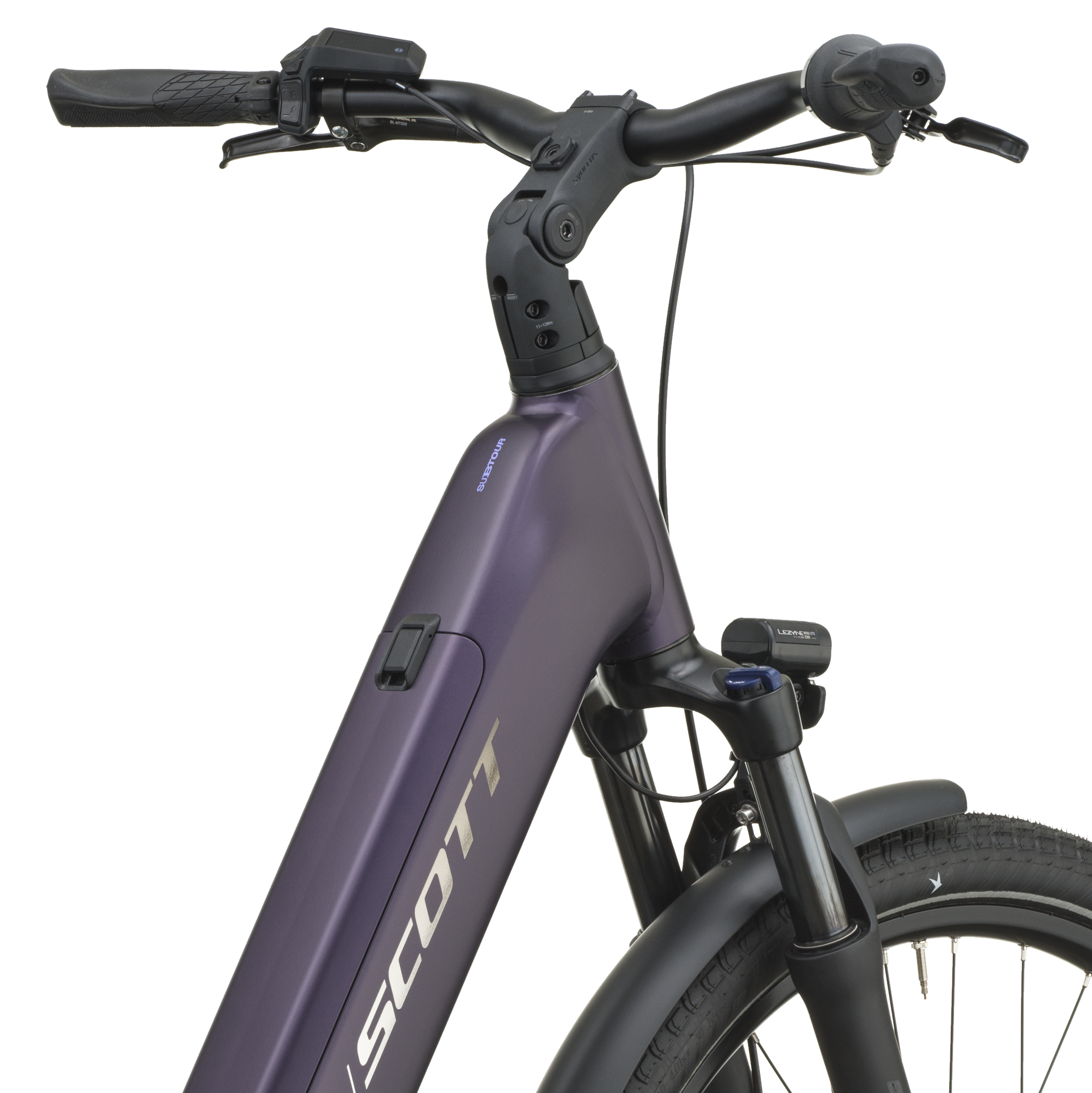

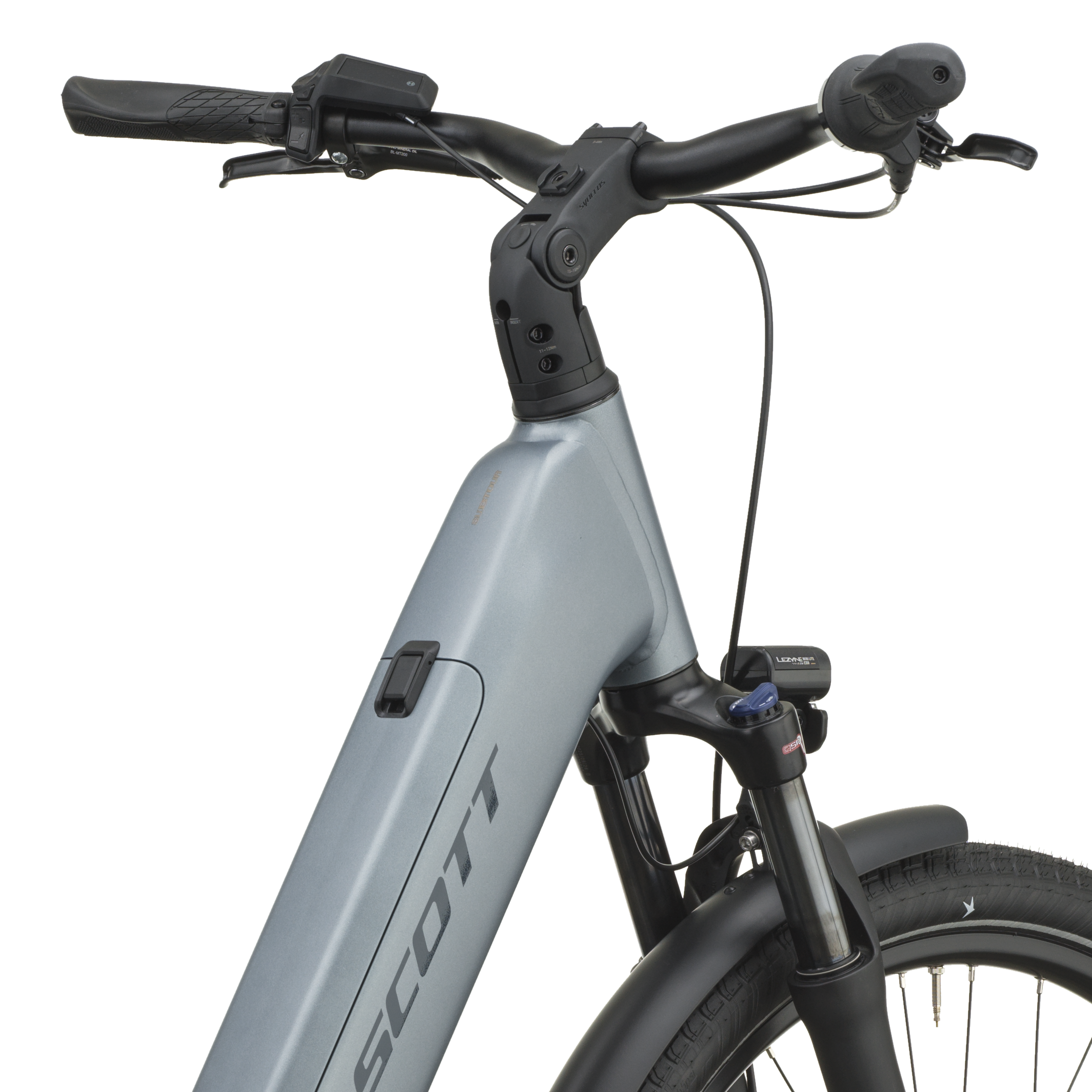

An adjustable stem lets you customize your fit for a comfortable upright posture or a sportier riding position, and it includes an SP connection that securely mounts your phone for hands-free navigation, keeping directions in clear view.

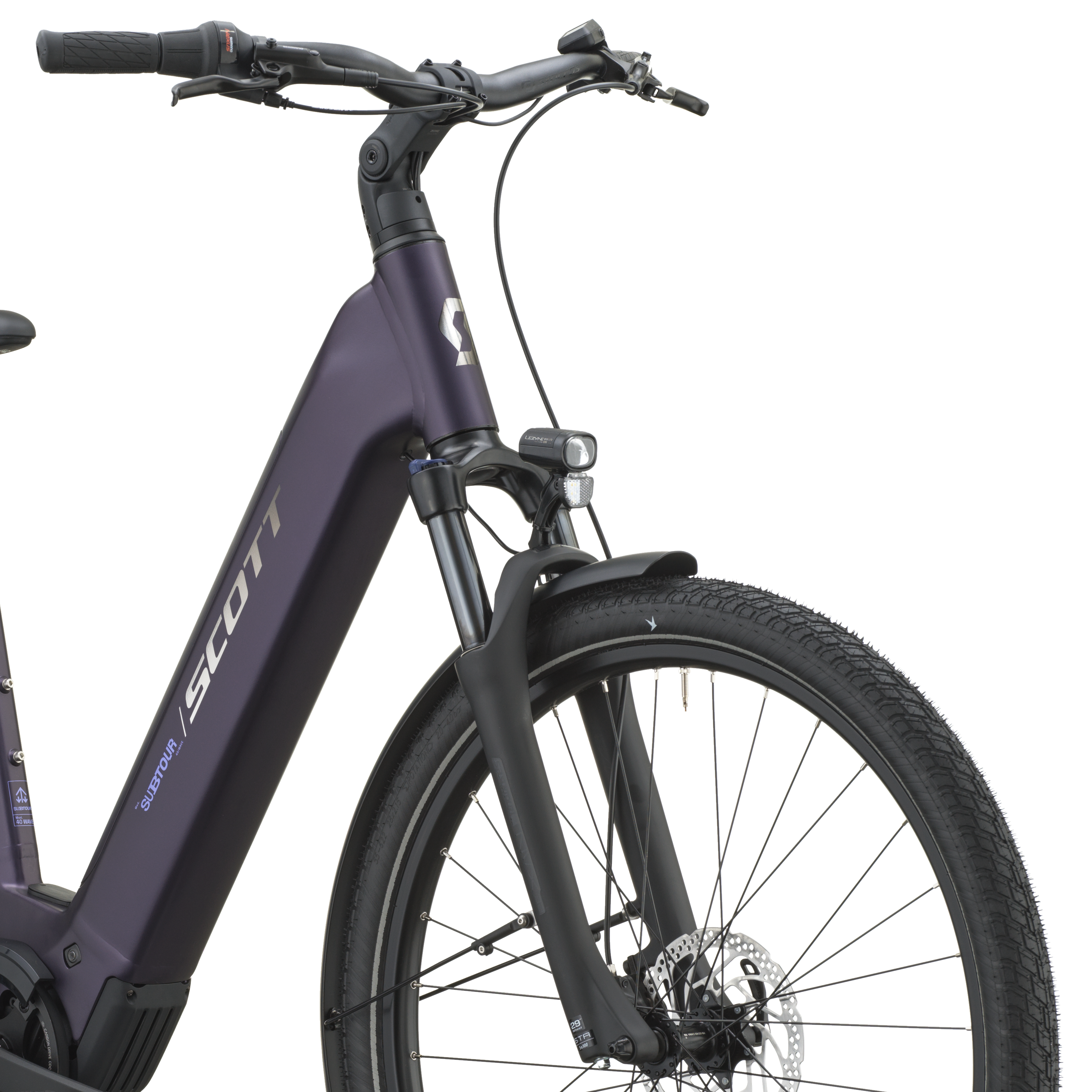

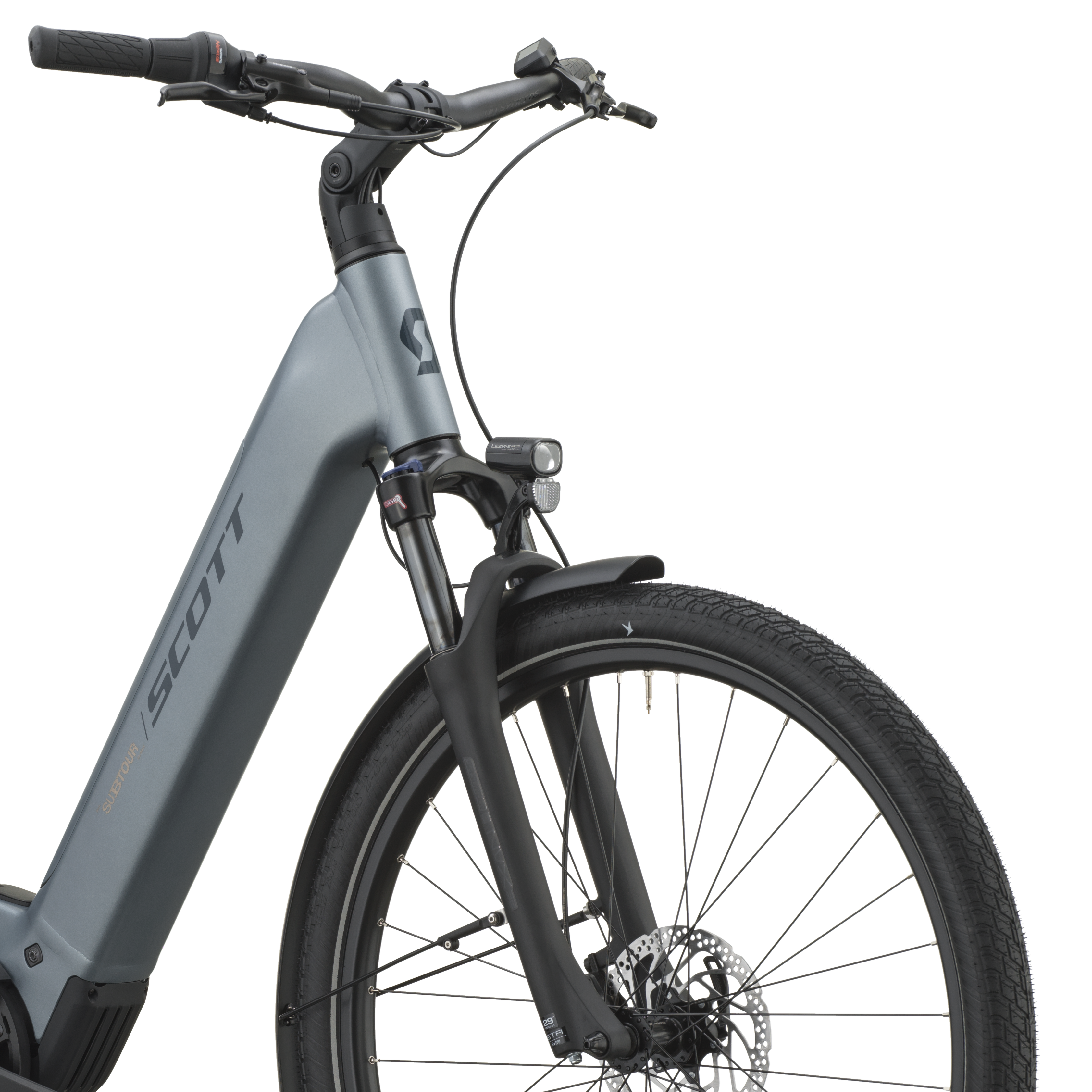

The rear rack supports up to 30kg and is compatible with Racktime SNAPIT 2.0 and KID'n’CARRY systems, making it a real cargo workhorse. Even more, the front light is positioned on the fork to free up space for a front basket, giving you extra carrying flexibility.
The SUB Tour 40 Wave adapts to and supports your daily life with a dynamic ride that doesn't compromise on comfort or control.
Please note that bike specifications are subject to change without prior notice.
What’s New
- What's new: SP connect, Kid 'n Carry Ready
Frame and Suspension
- Frame: Alloy S-XL=29", 6061 Alloy custom butted tubing, Top extraction battery, 135mm with 46mm Beltline
- Travel: 100mm
- Fork: SR Suntour NVX 32 5TA COIL LO
Motor and Battery

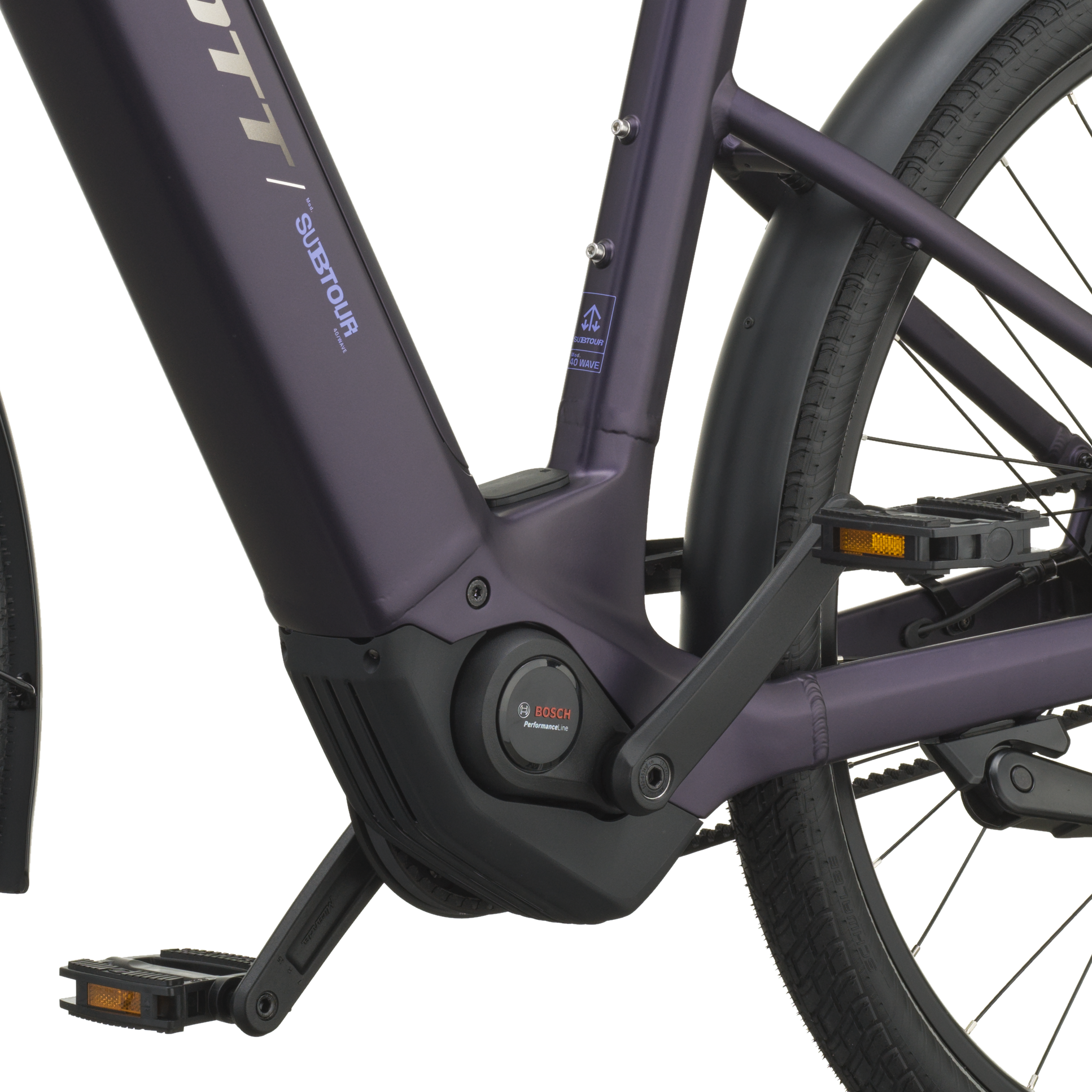

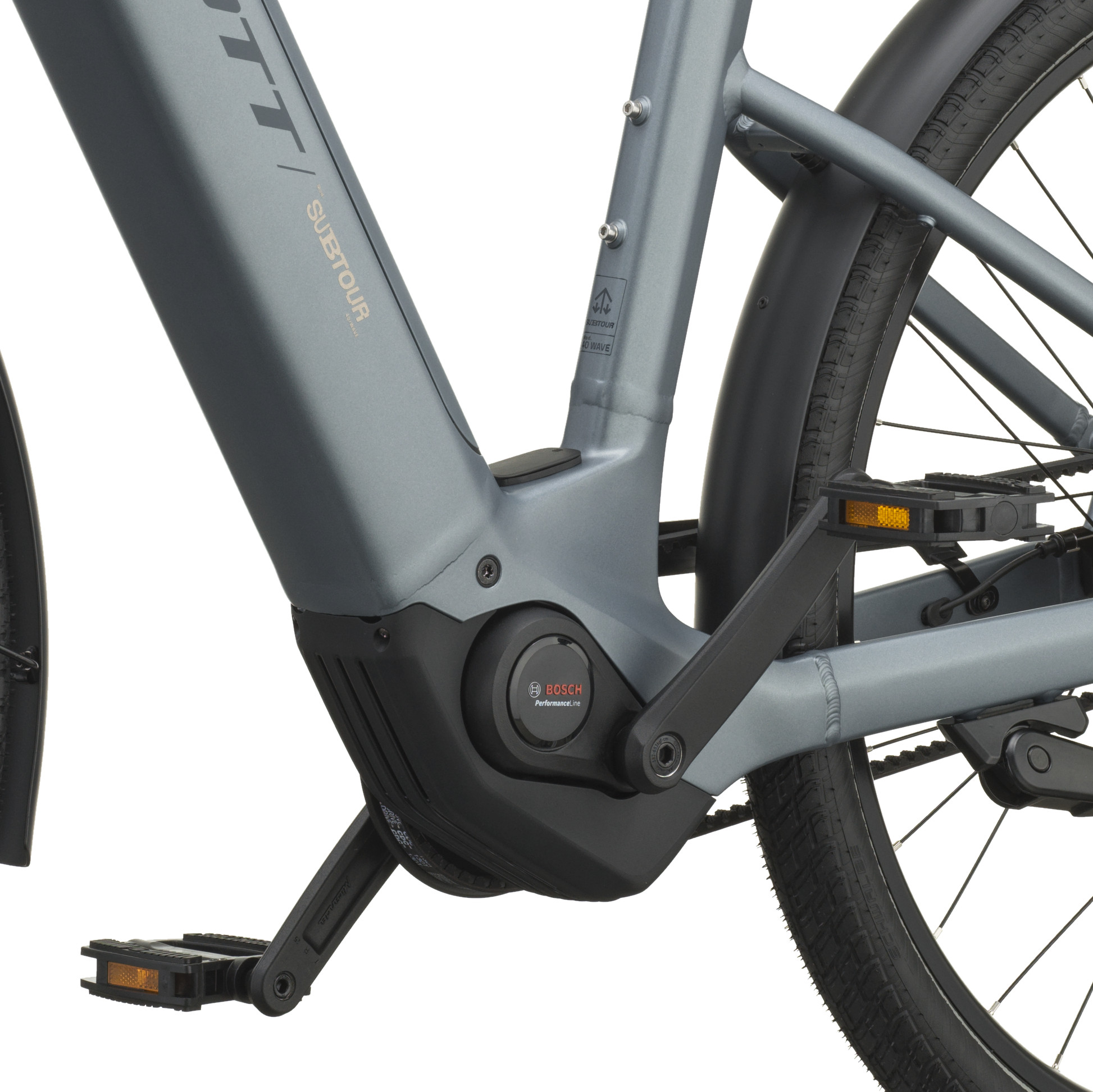

- Drive Unit: Bosch Performance Line (BDU346Y)
- Battery: Bosch PowerTube 540Wh
- Display: Bosch Purion 200
- Charger: Bosch 2A Charger 230V
Drivetrain
- Rear Derailleur: Shimano Nexus Inter 5e
- Shifters: Nexus 5 Revo Shifter
- Crankset: Miranda Virage 170mm
- Chainguide: Chaincase cover
- Chainring: Gates CDC 46T w/Guard
- Chain: Gates CDC 130T
- Cassette: Gates CDX 32T
Brake System
- Brakes: Shimano BR-MT200 2-Piston
- Front Disc Rotor: Shimano SM-RT30 CL, 180mm
- Rear Disc Rotor: Shimano SM-RT30 CL, 160mm
Cockpit and Seating
- Grips: Urban Comfort
- Handlebar: Syncros UC3.0 680mm, Rise 26mm, Backsweep 30°
- H'stem: JD, Adjustable, 31.8*90 mm −10°~+60°, SP Connect

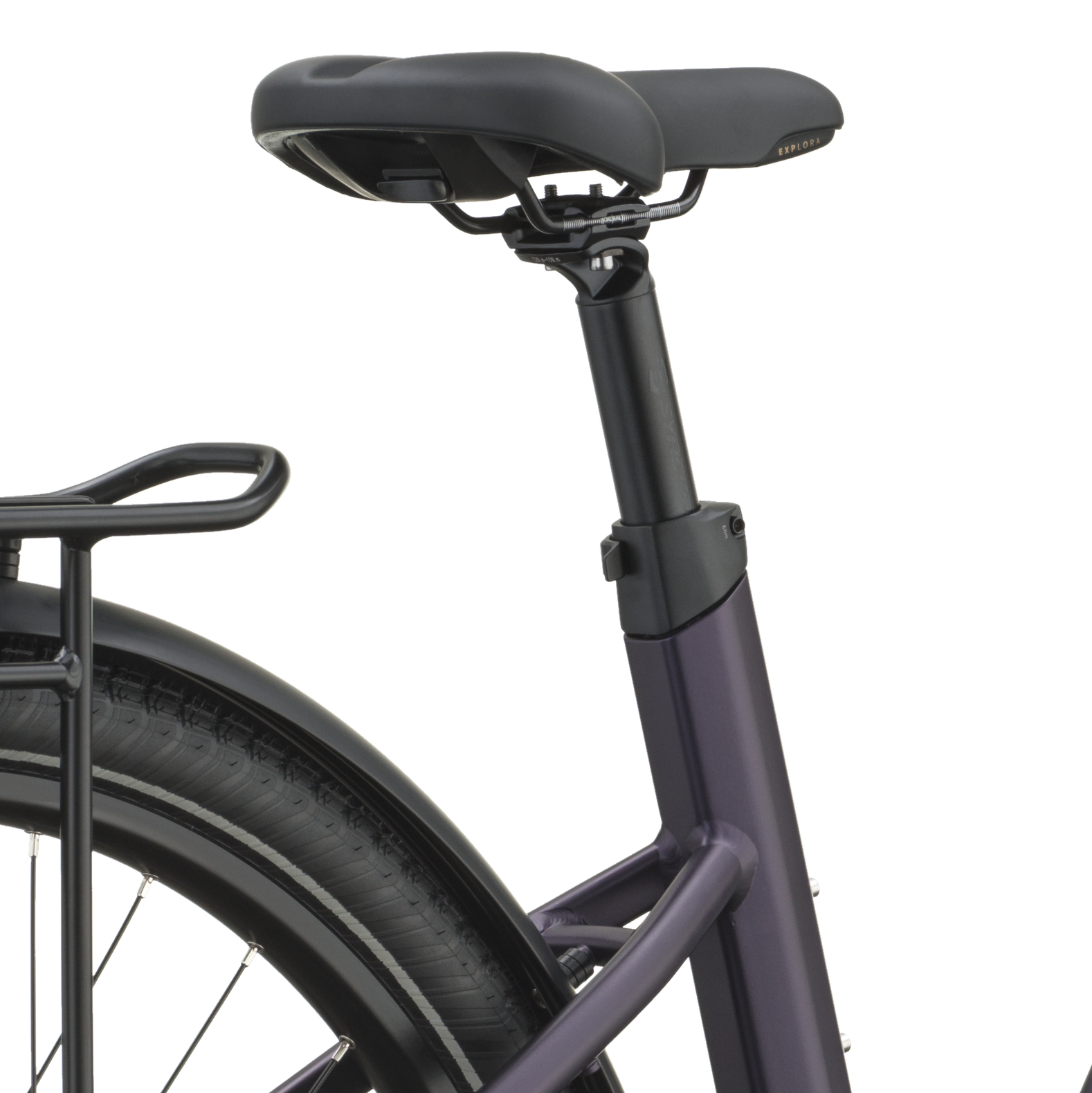

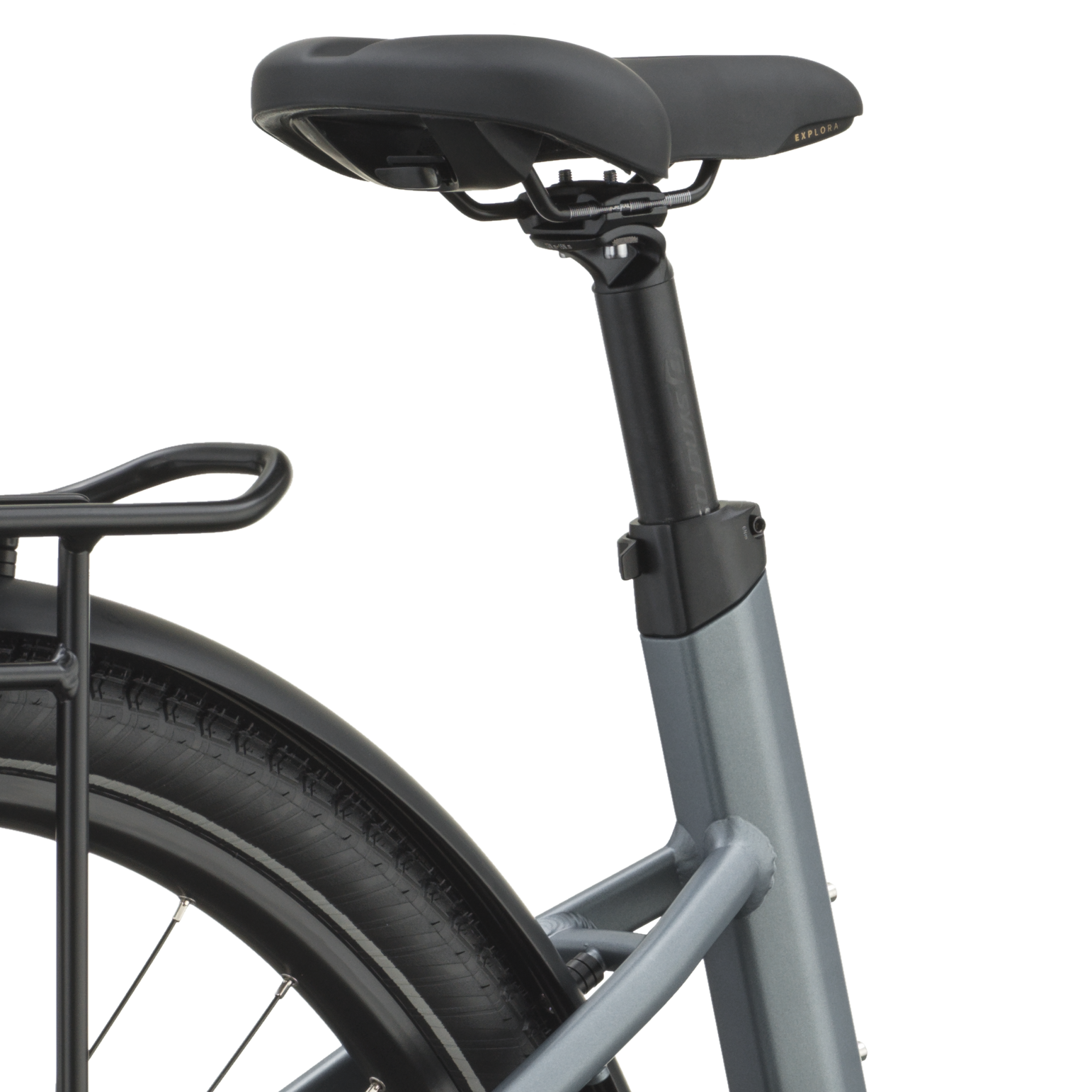

- Seatpost: Syncros M3.0, 31.6mm, 350mm
- Seat: Selle Royal Explora Moderate Wide 195mm
- Headset: Feimin, 28.8-56-62(39.8/30), H887 Bearing Cup
Wheels and Tires
- Front Hub: Shimano HBQC400B58LL, 5x100mm
- Spokes: Stainless Black 13G
- Front Rim: X18 Disc
- Rear Rim: X18 Disc
- Front Tire: Schwalbe Big Apple Performance, 55-622
- Rear Tire: Schwalbe Big Apple Performance, 55-622
Lights and Equipment
- Front Light: Lezyne Mini Lite STVZO E350
- Rear Light: Lezyne Superbright STVZO
- Rack: Racktime carrier SNAPIT 2.0 30Kg KID'n'CARRY Ready
- Fender: Metasol 65
- Pedals: Marwi SP-827
Extras and Accessories
- Extras: Ursus U-Mount Kickstand
Weight
- Approx weight in KG: 29.8
- Approx weight in LBS: 65.7
- Max. System Weight: 160kg
- Note: The overall weight includes the bike, the rider, the equipment and possible additional luggage.
