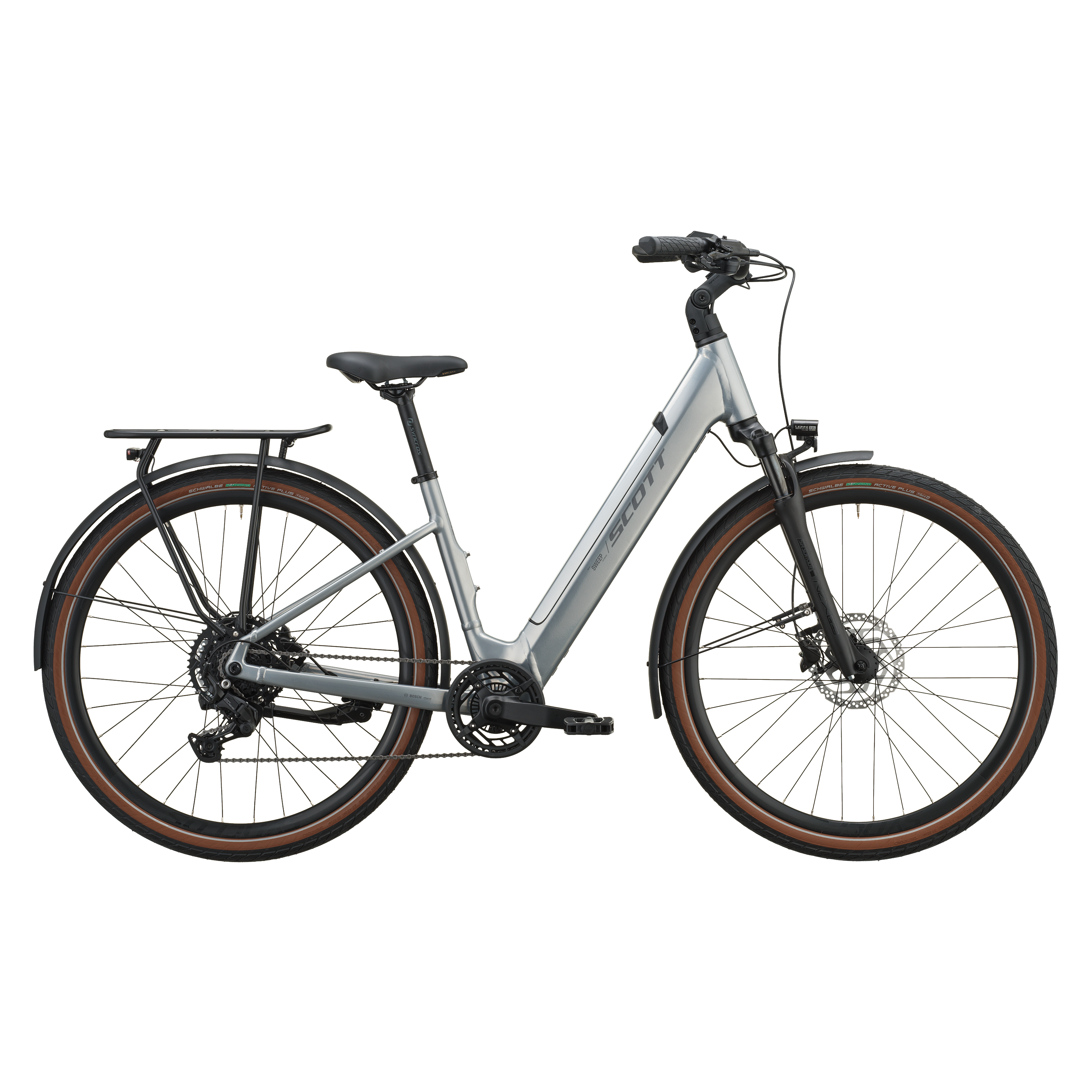

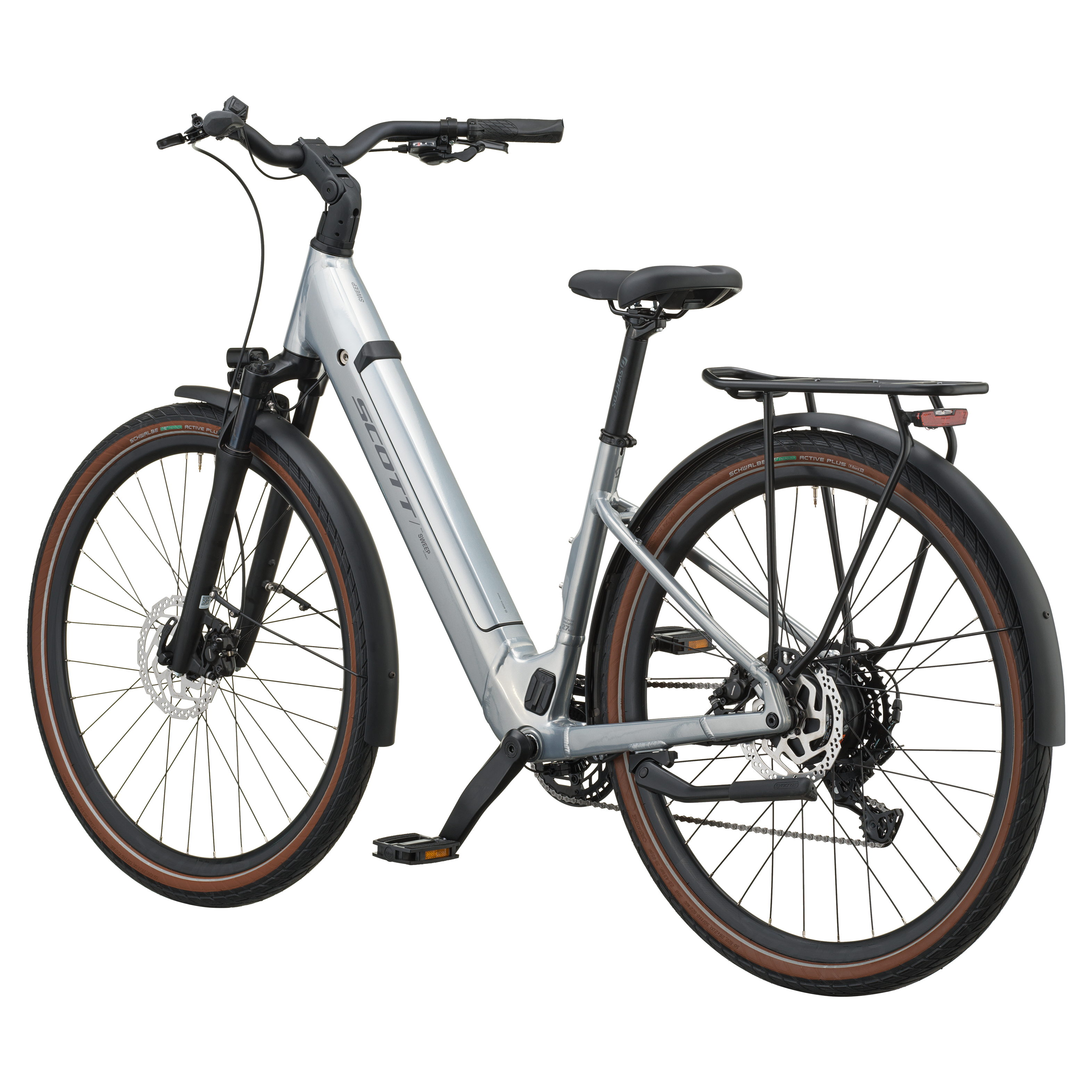

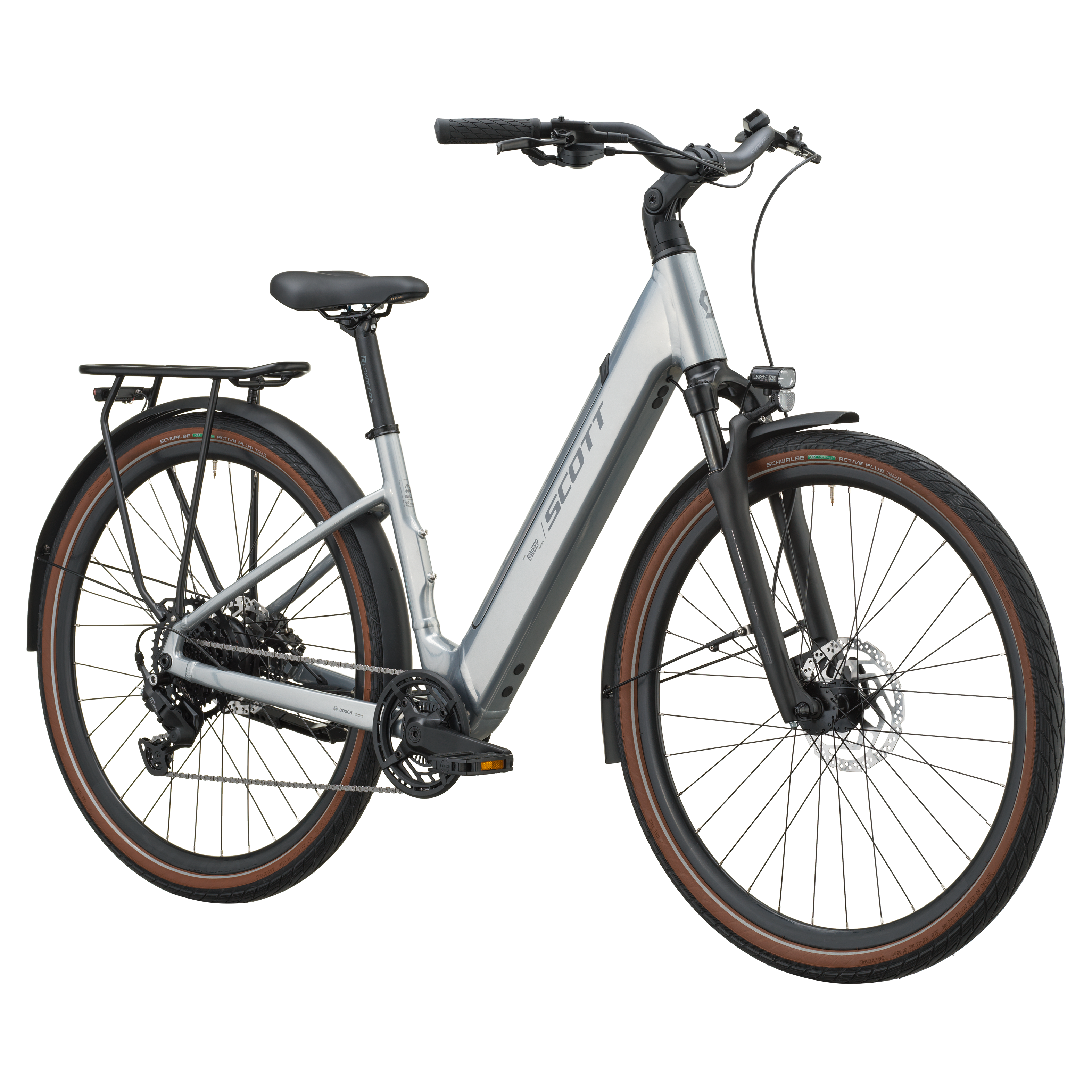

The SCOTT Sweep 20 Wave is the ideal first E-Bike for city life: easy to use, simple to handle, and designed with a sleek low step-through frame that makes getting on and off effortless. With its clean, modern look, it delivers an elevated everyday riding experience—so seamlessly integrated that you’d hardly know it’s electric.
Delivering a natural and intuitive riding feel, the Sweep 20 Wave is powered by Bosch’s latest rear-hub drive unit, producing 45Nm of torque and offering smooth, efficient support for moving through the city with ease. Its cleanly integrated 360Wh battery is easily removable and provides range for daily commuting—while the option to add a range extender ensures you’re ready for longer urban journeys.

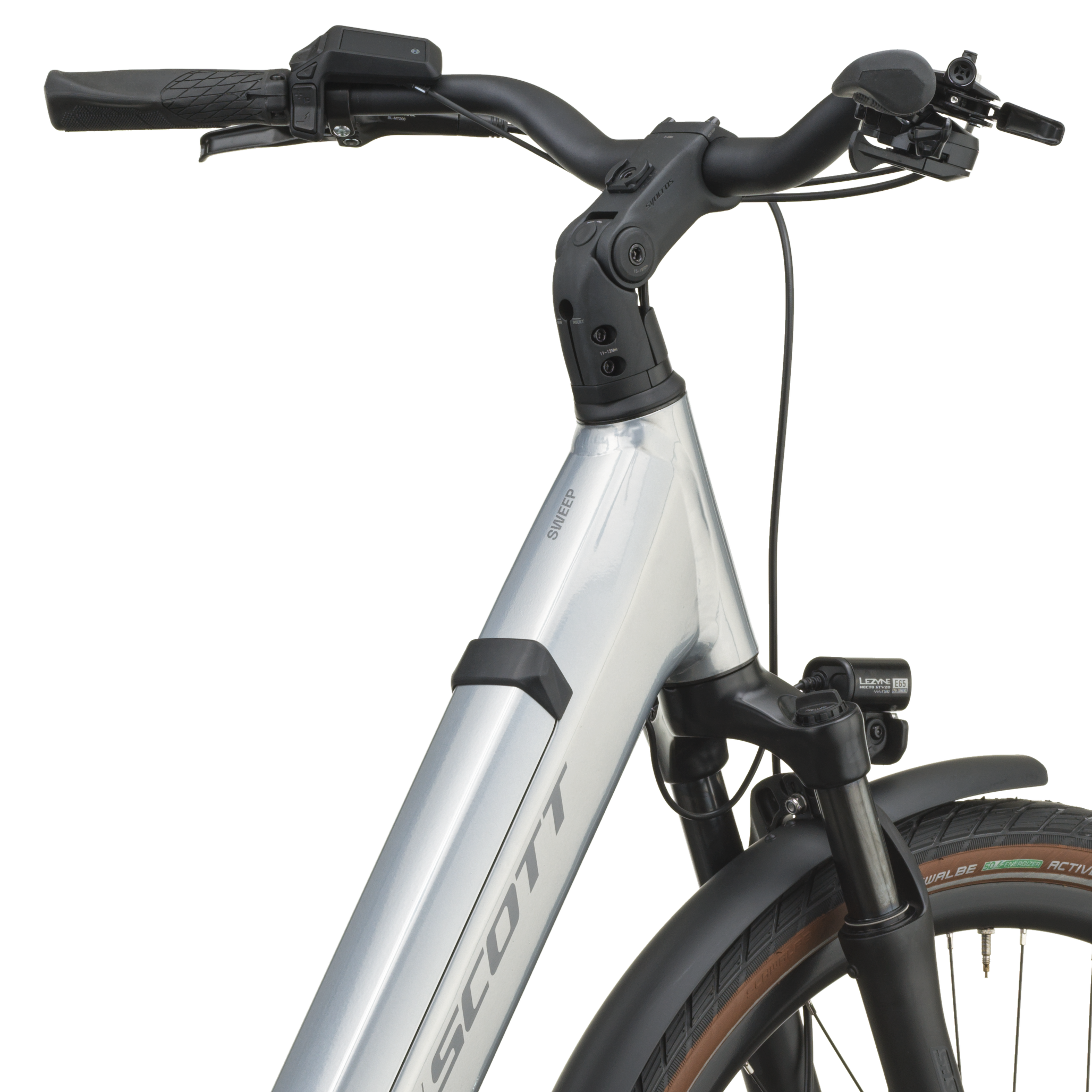

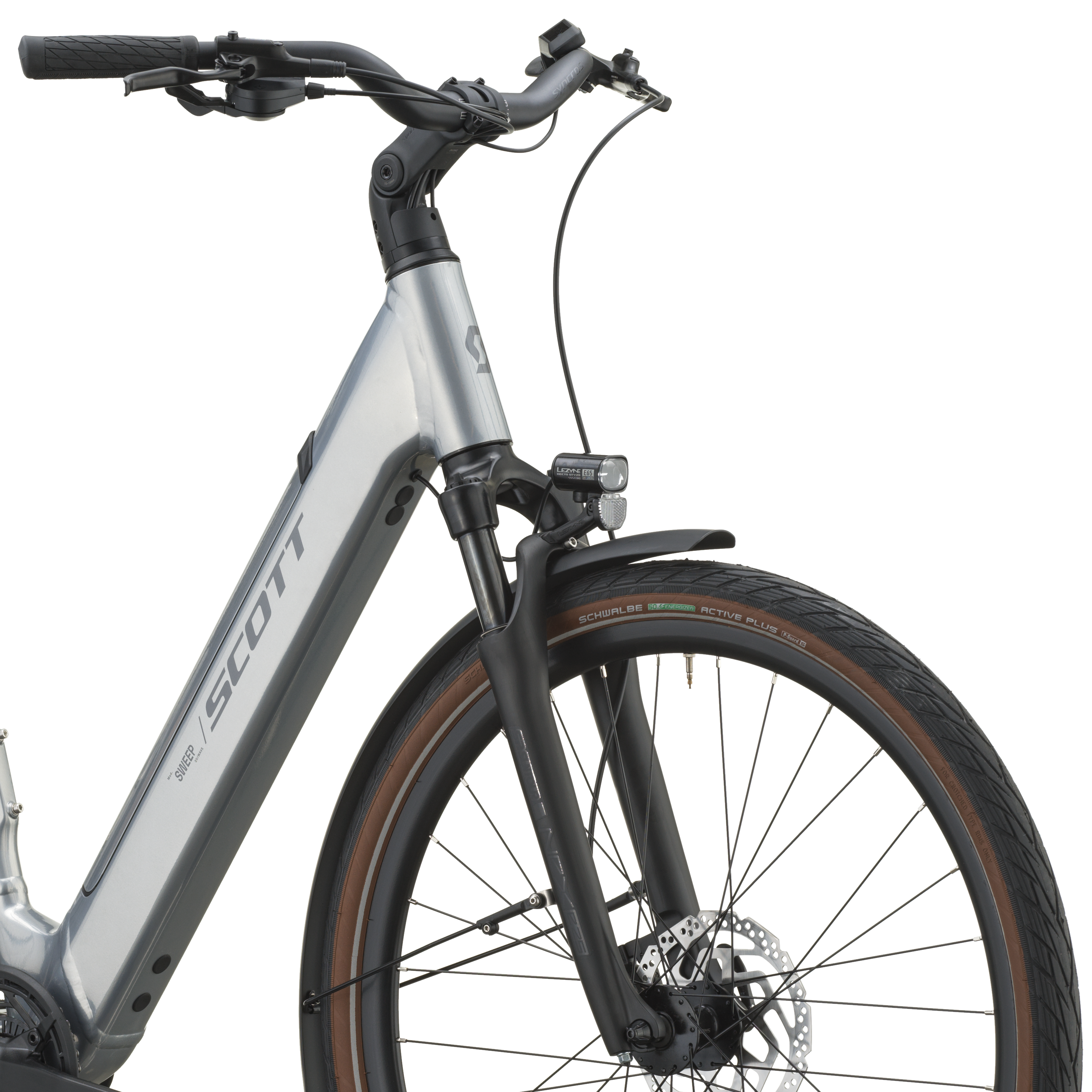

A front suspension fork helps soften bumps and uneven pavement along your route, adding comfort throughout every ride. Additionally, the adjustable stem allows you to find a riding position that feels comfortable for everyday use. With an SP Connect mount integrated directly into the stem, you’ll have a secure spot for your smartphone, keeping navigation and notifications within easy view.
Its versatile 9-speed drivetrain offers the gearing you need for typical city terrain, from relaxed boulevards to steeper neighborhood streets. For daily practicality, the Sweep 20 Wave comes equipped with a Racktime rear rack to carry your essentials, strong fenders to protect you from splashes and grime, and front and rear lights that help keep you visible and illuminate your route.
With its streamlined design, lightweight feeling, and easy-to-throw-your-leg-on low step-through frame, the Sweep 20 Wave delivers a smooth, easy riding experience throughout the city—and looks just as good as it feels on the road.
Please note that bike specifications are subject to change without prior notice.
What’s New
- What's new: Frame, SP Connect, Bosch Hub Drive, PT360
Frame and Suspension
- Frame: Alloy S-L=29", 6061 Alloy custom butted tubing, Top extraction battery
- Travel: 75mm
- Fork: SR Suntour NEX-E25-DS COIL
Motor and Battery

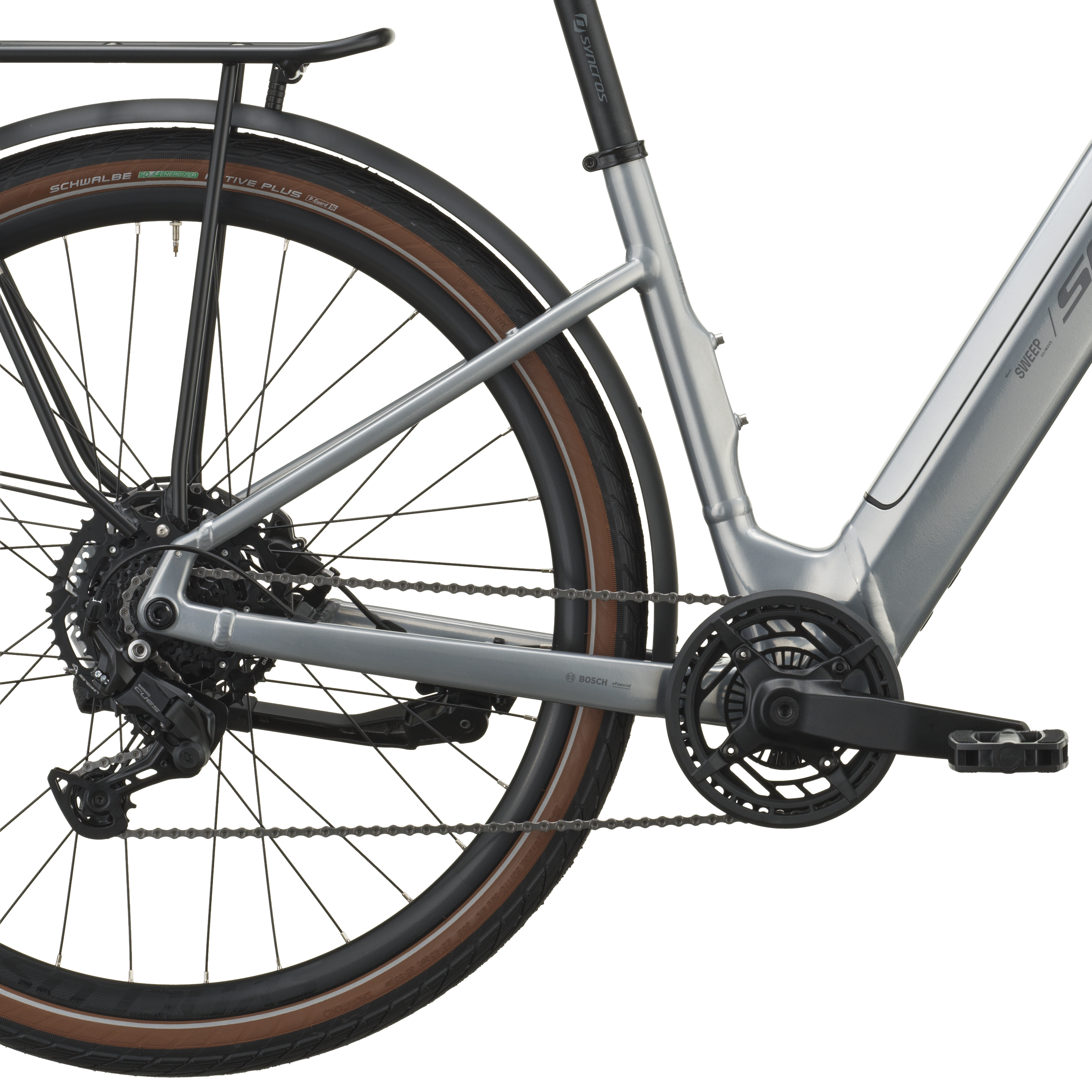

- Drive Unit: Bosch Hub Drive Motor
- Battery: Bosch Powertube 360
- Display: Bosch Purion 200
- Charger: Bosch 2A Charger 230V
Drivetrain
- Rear Derailleur: Shimano Cues RD-U4000 9-Speed
- Shifters: Shimano Cues SL-U4000 With Display

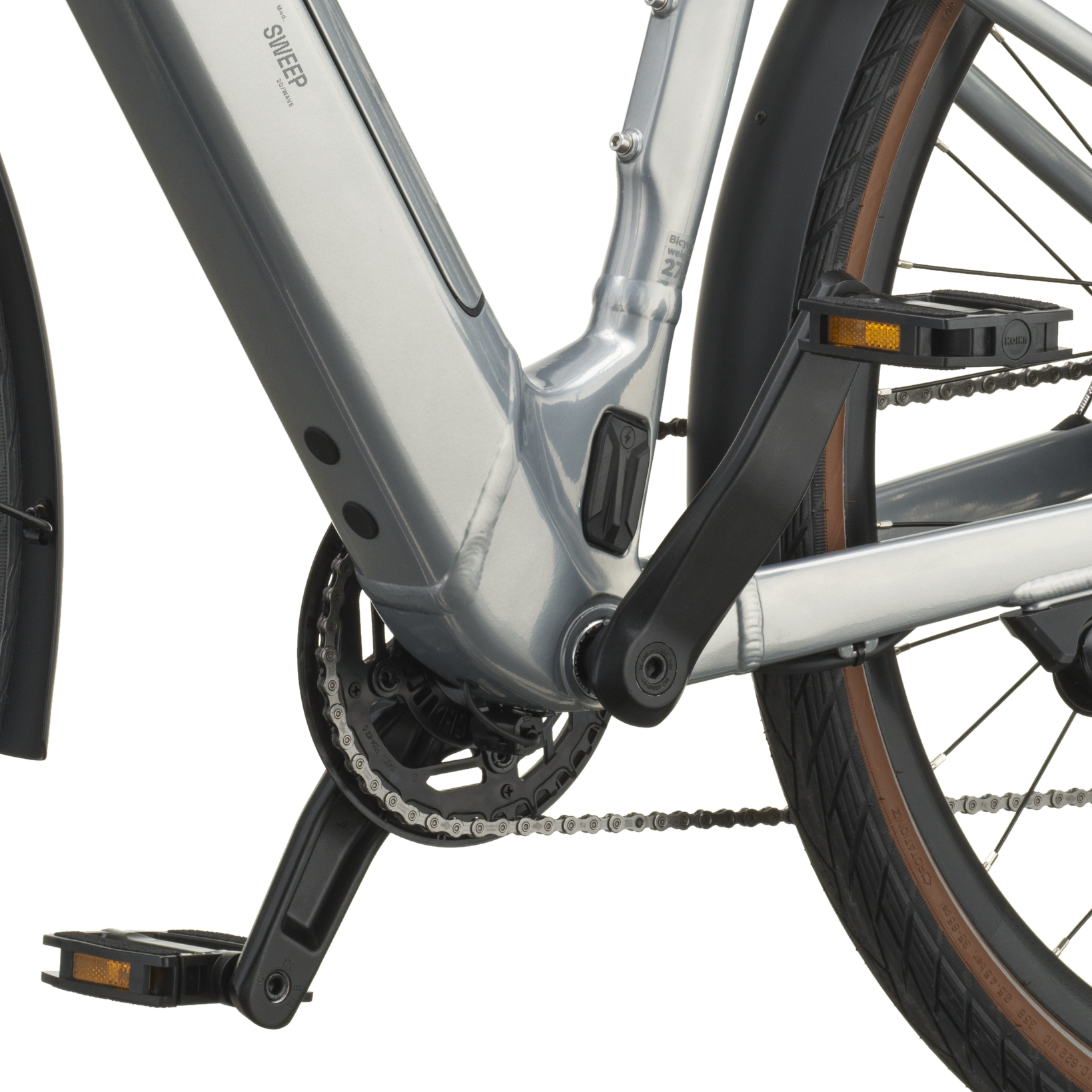

- Crankset: Prowheel DMG-FD04SG
- Chain: Shimano CN-LG500
- Cassette: Shimano Cues CS-LG300, 9-Speed 11-46T
Brake System
- Brakes: Shimano BR-MT201 2-Piston
- Front Disc Rotor: Shimano SM-RT26 6B, 180mm
- Rear Disc Rotor: Shimano SM-RT26 6B, 180mm
Cockpit and Seating
- Grips: Urban Comfort
- Handlebar: Satori HB-Seagull, Sweep 40°, RISE 40mm, 31,8mm
- H'stem: JD, Adjustable, 31.8*90 mm −10°~+60°, SP Connect

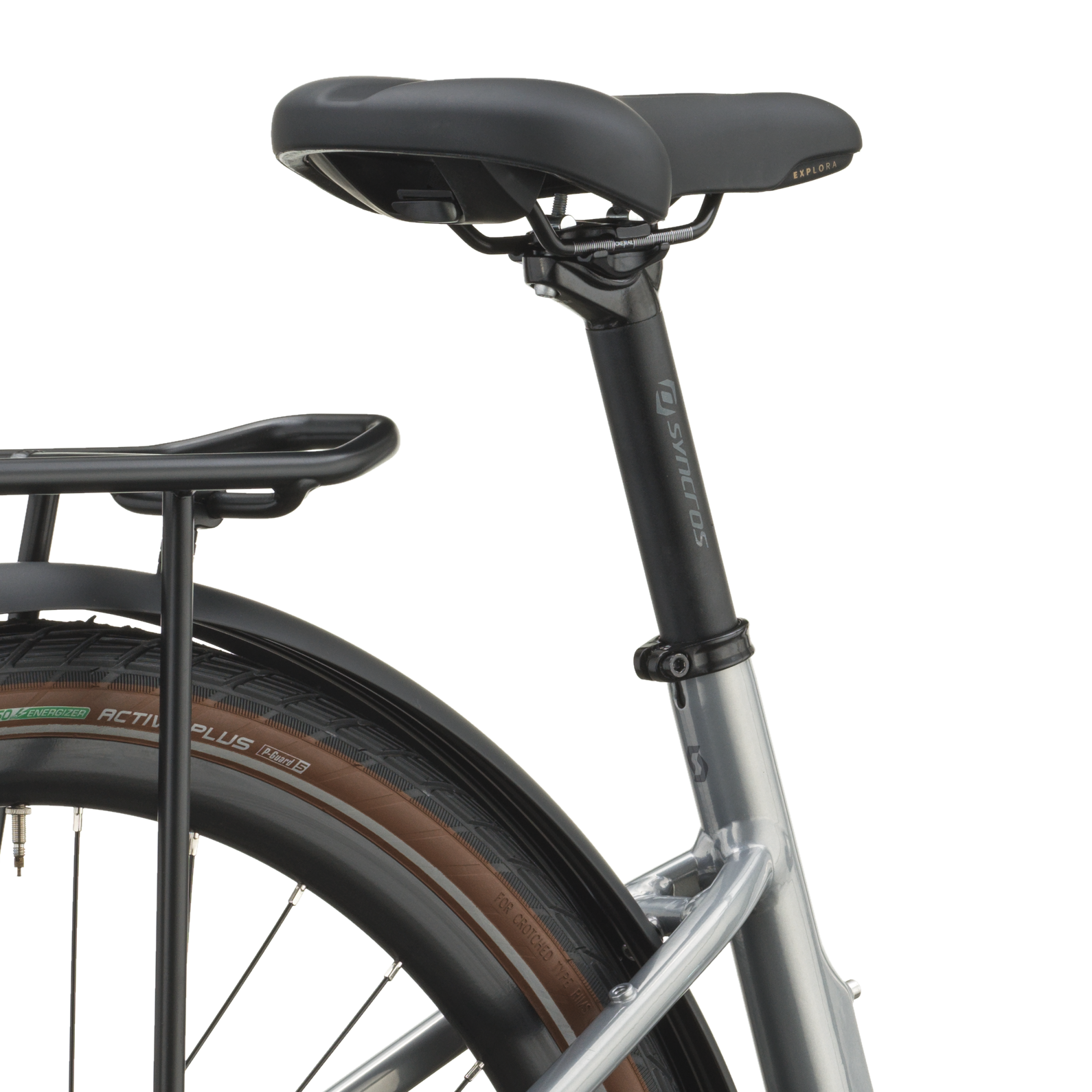

- Seatpost: Syncros M3.0, 31.6mm, 350mm
- Seat: Selle Royal Explora Moderate Wide 195mm
- Headset: Feimin, 28.8-56-62(39.8/30), H887 Bearing Cup
Wheels and Tires
- Front Hub: HB-QB400
- Spokes: Stainless Black 13G
- Front Rim: X15 Disc
- Rear Rim: X15 Disc
- Front Tire: Schwalbe Energizer Active Plus 50-622
- Rear Tire: Schwalbe Energizer Active Plus 50-622
Lights and Equipment
- Front Light: Lezyne Hecto E65 STVZO
- Rear Light: AXA Juno E
- Rack: Racktime Stand-it Eco 2.0
- Fender: Metasol 60
- Pedals: Marwi SP-827
Extras and Accessories
- Extras: Ursus U-Mount Kickstand
Weight
- Approx weight in KG: 24.7
- Approx weight in LBS: 54.45
- Max. System Weight: 130kg
- Note: The overall weight includes the bike, the rider, the equipment and possible additional luggage.
