WHEELS MFG T47 Inboard ABEC-3 Bearing For 29mm Cranks (SRAM DUB)

€152,49 EUR

Tax included. Shipping calculated at checkout.
If you would like to purchase your bike using Cycle To Work Scheme please Select "Request Quote" and follow the instructions
PRODUCT INFO

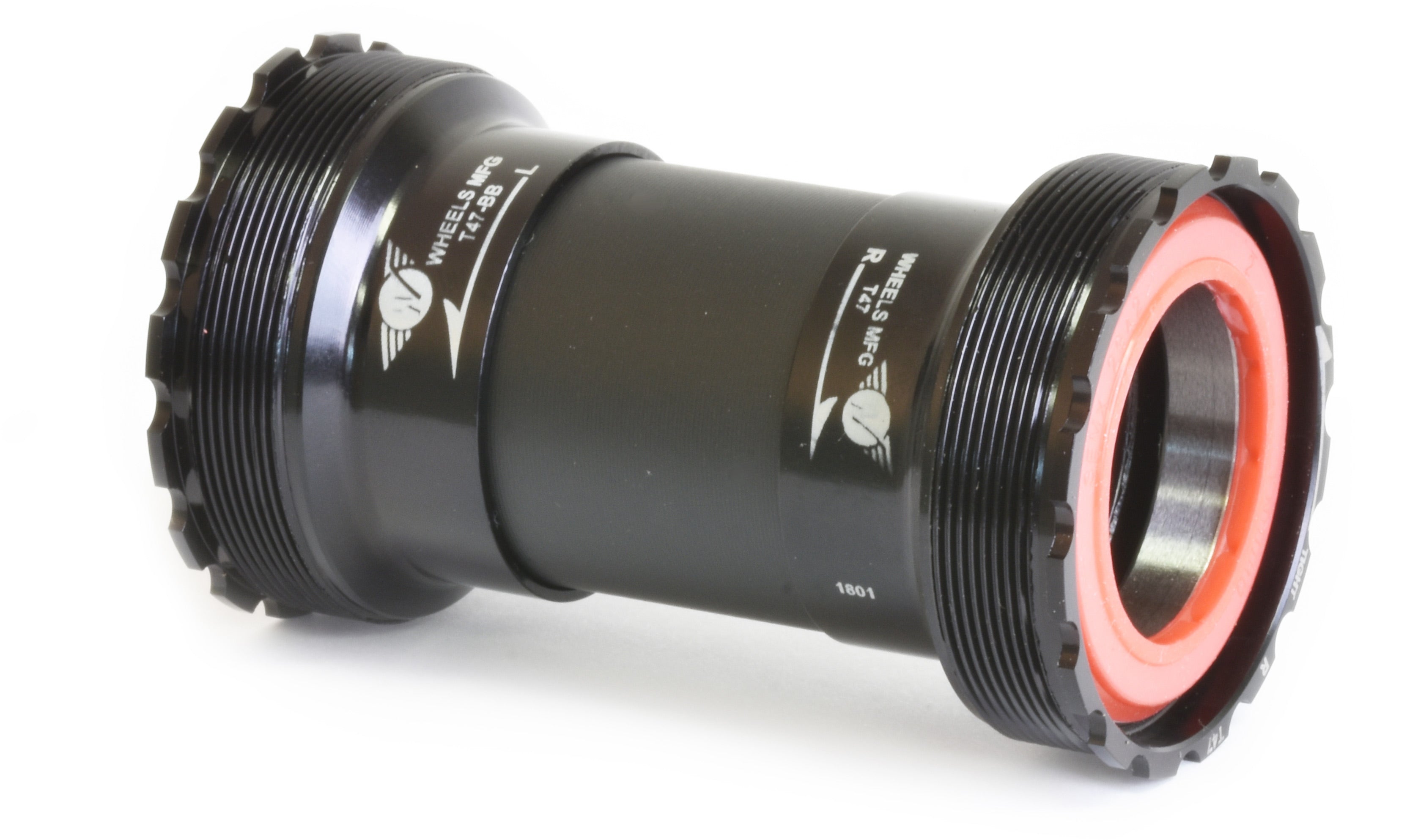

Wheels Mfg T47 threaded bottom bracket cups designed for T47 frames and 29mm spindle diameter SRAM DUB cranks. Featuring inboard ABEC-3 bearings, these cups are compatible with bottom bracket shells from 68mm to 121mm wide and provide a durable, serviceable solution for modern crank systems.

Machined aluminium cups thread directly into a T47 bottom bracket shell. The included sleeve fits between the cups to provide added protection from dirt and grime while preventing internal wires and hoses from rubbing against the crank spindle. Bearings are easily serviced or replaced.

  • Introducing the new anodized bottom brackets from Wheels Mfg.
  • T47 threaded bottom bracket cups for T47 frames.
  • Compatible with 29mm spindle diameter SRAM DUB cranks.
  • ABEC-3 inboard bearings for smooth, reliable performance.
  • Machined aluminium cups thread directly into a T47 bottom bracket shell.
  • T47 cups are similar to standard BSA threaded cups, with the drive-side cup using a left-hand thread and the non-drive-side cup using a right-hand thread.
  • Use a quality grease when installing in steel or aluminium bottom bracket shells, and an anti-seize compound compatible with titanium bottom bracket shells.
  • Made in the USA.

Features:

  • Bearings: Enduro ABEC-3.
  • Bottom Bracket/Frame Interface: T47.
  • Bottom Bracket Shell Width: 68mm - 121mm.
  • Bottom Bracket Shell I.D: 47 x 1.0mm threaded.
  • Crank Spindle Diameter: 29mm.
  • Over Bearing Width: 68mm in a 68mm wide shell.
  • Tool Pattern: 48.5mm x 16-notch.
  • Weight: 97g.
